RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384874 FRONT AIR CONDITIONING UNIT(for LHD) A

HEATING / AIR CONDITIONING FRONT AIR CONDITIONING UNIT(for LHD) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: A bolt without a torque specification is shown in the standard bolt chart.; Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS201902,999999,_V1,_080617,_0393342,RM100000001HX78,

PROCEDURE

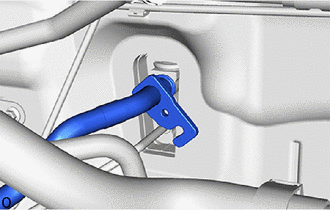

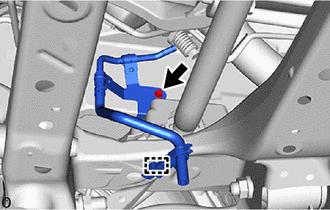

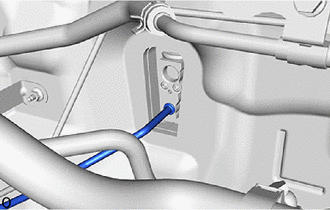

Hide Display 88539D 1.INSTALL COOLER UNIT DRAIN PIPE

HINT:: Perform this procedure only when removal/installation of the cooler unit drain pipe is necessary.

Install the piping clamp with 2 screws.

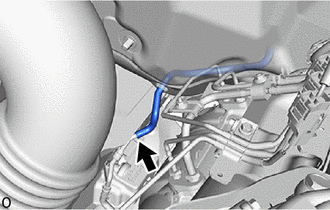

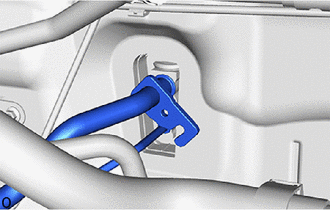

Hide Display 88539C 2.INSTALL NO. 2 COOLER UNIT DRAIN HOSE

HINT:: Perform this procedure only when removal/installation of the No. 2 cooler unit drain hose is necessary.

Install the No. 2 cooler unit drain hose to cooler unit drain pipe.

Temporarily install the cooler unit drain pipe with No. 2 cooler unit drain hose.

Install the cooler unit drain pipe with No. 2 cooler unit drain hose with the bolt and attach the clamp.

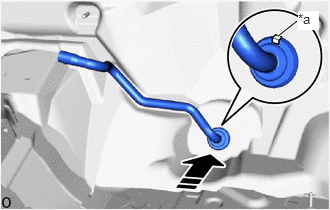

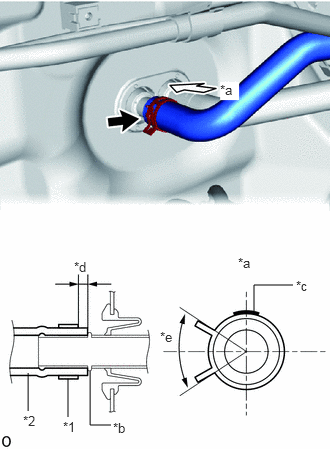

Hide Display 88539 3.INSTALL NO. 1 COOLER UNIT DRAIN HOSE

NOTICE:
Perform this procedure only when removal/installation of the No. 1 cooler unit drain hose is necessary.: After removing the No. 1 cooler unit drain hose, replace it with a new one to prevent water from entering.

3.094,0.219 2.896,0.375 true 3.104,0.115 3.323,0.313 0.219,0.198 10 true *a

*a	Marking
	Install in this Direction

Install the No. 1 cooler unit drain hose.

NOTICE:: Install the No. 1 cooler unit drain hose with its paint mark facing upward.

Connect the No. 1 cooler unit drain hose to cooler unit drain pipe.

Hide Display 51405A 4.INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

HINT:: Perform this procedure only when removal/installation of the No. 1 cooler unit drain hose and No. 2 cooler unit drain hose is necessary.

for 7GR-FKS:

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION201906,202107,_51,_078603,_0381343,RM100000001J10V_02_0096,202107,202310,_51,_078603,_0381343,RM100000001XZUR_02_0096,

for 1GD-FTV:

Click hereEngine / Hybrid System>1GD-FTV (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION201906,202005,_51,_079219,_0384428,RM100000001IW73_01_0088,202005,202107,_51,_079219,_0384428,RM100000001M30V_01_0088,202107,202310,_51,_079219,_0384428,RM100000001WWCO_01_0088,

Hide Display 52618 5.INSTALL LOWER FRONT BUMPER ABSORBER

HINT:: Perform this procedure only when removal/installation of the No. 1 cooler unit drain hose and No. 2 cooler unit drain hose is necessary.

for 7GR-FKS:

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION201906,202107,_51,_078603,_0381343,RM100000001J10V_02_0141,202107,202310,_51,_078603,_0381343,RM100000001XZUR_02_0141,

for 1GD-FTV:

Click hereEngine / Hybrid System>1GD-FTV (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION201906,202005,_51,_079219,_0384428,RM100000001IW73_01_0089,202005,202107,_51,_079219,_0384428,RM100000001M30V_01_0089,202107,202310,_51,_079219,_0384428,RM100000001WWCO_01_0089,

Hide Display 51406A 6.INSTALL NO. 2 ENGINE UNDER COVER SUB-ASSEMBLY (w/ No. 2 Engine Under Cover Sub-assembly)

HINT:: Perform this procedure only when removal/installation of the No. 1 cooler unit drain hose and No. 2 cooler unit drain hose is necessary.

for 7GR-FKS:

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION201906,202107,_51,_078603,_0381343,RM100000001J10V_02_0097,202107,202310,_51,_078603,_0381343,RM100000001XZUR_02_0097,

for 1GD-FTV:

Click hereEngine / Hybrid System>1GD-FTV (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION201906,202005,_51,_079219,_0384428,RM100000001IW73_01_0090,202005,202107,_51,_079219,_0384428,RM100000001M30V_01_0090,202107,202310,_51,_079219,_0384428,RM100000001WWCO_01_0090,

Hide Display 7.INSTALL AIR CONDITIONER UNIT ASSEMBLY

NOTICE:: ·

Be sure to support the air conditioning unit assembly when installing it because failure to do so may cause the bracket of the air conditioning unit assembly to break.

·

When installing the air conditioning unit assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

·

Be careful not to damage the internal components of the instrument panel reinforcement assembly and air conditioning unit assembly on the glass etc. Only perform installation after first taking the appropriate actions.

·

Do not allow the air conditioning unit assembly to strike the airbag ECU assembly. Doing so may damage the heater case, causing water leaks.

Temporarily install the air conditioner unit assembly to the instrument panel reinforcement assembly with the 4 bolts.

NOTICE:
When carrying the air conditioning unit assembly, hold the bottom of the assembly. Do not hold the following parts.: ·

Do not hold the air conditioning harness assembly. Otherwise, static electricity from the technician may damage the air conditioning harness assembly.

·

Do not hold the heater core or pipe of the heater radiator unit sub-assembly. Otherwise, the pipe may detach, the clamp may be damaged, or the crimped areas of the heater core and pipe of the heater radiator unit sub-assembly may be damaged, causing coolant to leak.

·

Do not hold the air conditioning radiator damper servo sub-assembly, blower damper servo sub-assembly or link. Otherwise, the servo motor may become misaligned, causing abnormal operation noise, temperature control defects, or air leaks due to sealing defects in the doors.

·

Do not hold the door. Doing so may cause air leaks due to closing defects resulting from excessive opening/closing. Also, keep the door free from oil and grease.

Hide Display 8.INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONER UNIT ASSEMBLY

NOTICE:: ·

Be sure to support the air conditioning unit assembly when installing it because failure to do so may cause the bracket of the air conditioning unit assembly to break.

·

When installing the air conditioning unit assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

·

Be careful not to damage the internal components of the instrument panel reinforcement assembly with air conditioning unit assembly on the glass etc. Only perform installation after first taking the appropriate actions.

Temporarily install the instrument panel reinforcement assembly with air conditioner unit assembly.

NOTICE:: ·

Do not allow the heater radiator unit sub-assembly heater pipe or cooler expansion valve to strike the body.

·

Make sure that both parts are securely installed to the guide.

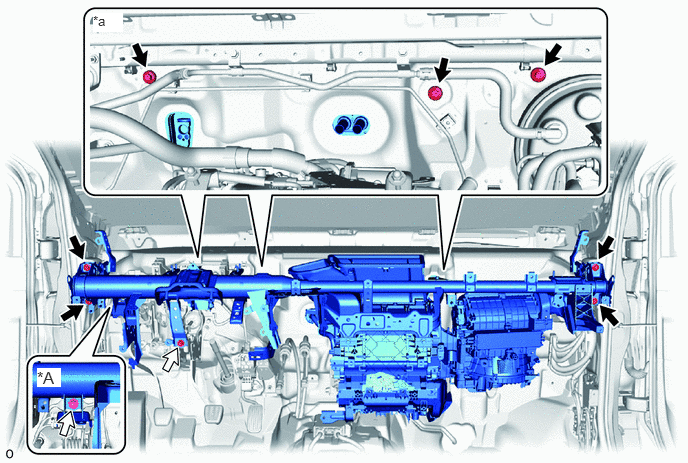

for Automatic Transmission:

Install the instrument panel reinforcement assembly with the 8 bolts.

0.969,0.135 1.281,0.333 0.313,0.198 10 true *a 0.385,3.833 0.635,4.031 0.25,0.198 12 true *A

*A	for Manual Transmission	-	-
*a	Engine Room Side	-	-
	Bolt A		Bolt B

Torque:: Bolt A : 25 N*m (255 kgf*cm, 18 ft.*lbf); Bolt B : 23.6 N*m (241 kgf*cm, 17 ft.*lbf)

for Manual Transmission:

Install the instrument panel reinforcement assembly with the 9 bolts.

Torque:: Bolt A : 25 N*m (255 kgf*cm, 18 ft.*lbf); Bolt B : 23.6 N*m (241 kgf*cm, 17 ft.*lbf)

1.135,2.865 1.667,2.99 true 0.948,2.844 1.406,2.344 true 0.844,2.885 0.667,3.146 true 1.698,2.917 1.896,3.115 0.198,0.198 10 true *a 1.417,2.229 1.729,2.427 0.313,0.198 10 false *b 0.594,3.146 0.906,3.344 0.313,0.198 10 false *c

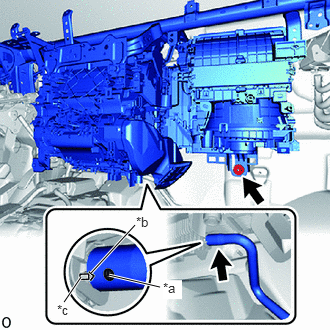

*a	Standard Position
*b	Hose Notch
*c	Rib

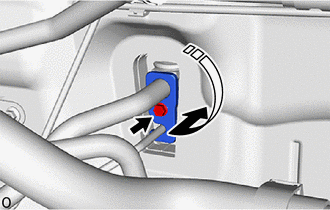

Align the standard position, install the drain cooler hose.

Tighten the nut.

Hide Display 88650N 9.INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING AMPLIFIER>INSTALLATION201906,202310,_58,_079316,_0384899,RM100000001ISKE,

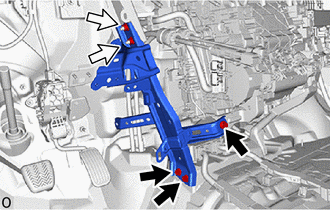

Hide Display 55306A 10.INSTALL NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY

0,0 0,0 false

	Bolt
	Nut

Install the No. 1 instrument panel brace sub-assembly with the 3 bolts and 2 nuts.

Torque:: Bolt: : 20 N*m (204 kgf*cm, 15 ft.*lbf); Nut: : 18 N*m (184 kgf*cm, 13 ft.*lbf)

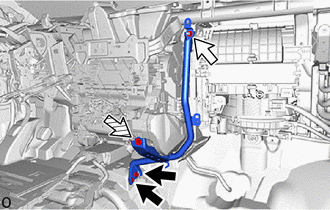

Hide Display 55307C 11.INSTALL NO. 2 INSTRUMENT PANEL BRACE SUB-ASSEMBLY

0,0 0,0 false

	Bolt
	Nut
	Screw

Install the No. 2 instrument panel brace sub-assembly with the 2 bolts.

Torque:: 20 N*m (204 kgf*cm, 15 ft.*lbf)

Install the nut and screw.

Torque:: 18 N*m (184 kgf*cm, 13 ft.*lbf)

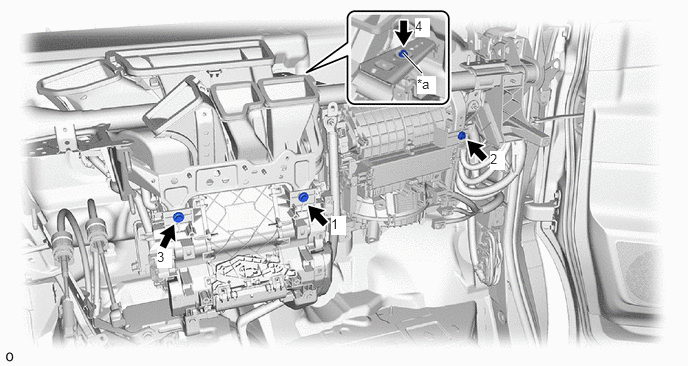

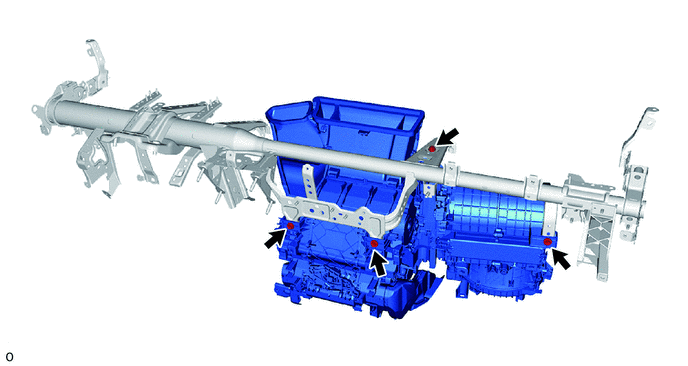

Hide Display 12.INSTALL AIR CONDITIONER UNIT ASSEMBLY

Tighten the 4 bolts in the order shown in the illustration.

Torque:: Bolt(A) : 10 N*m (102 kgf*cm, 7 ft.*lbf)

4.198,0.552 4.396,0.76 true 3.448,2.25 3.604,2.448 0.156,0.198 10 true 1 5.104,1.573 5.26,1.771 0.156,0.198 10 true 2 1.635,2.594 1.792,2.792 0.156,0.198 10 true 3 4.323,0.188 4.479,0.385 0.156,0.198 10 true 4 4.344,0.792 4.542,0.979 0.198,0.188 10 true *a

Bolt(A)

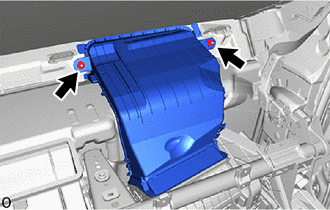

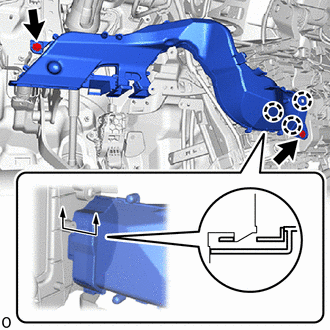

Hide Display 87201A 13.INSTALL AIR DUCT SUB-ASSEMBLY

Temporarily install the air duct sub-assembly.

Tighten the 2 nuts.

Hide Display 55950G 14.INSTALL DEFROSTER NOZZLE ASSEMBLY

Attach the claw to install the defroster nozzle assembly.

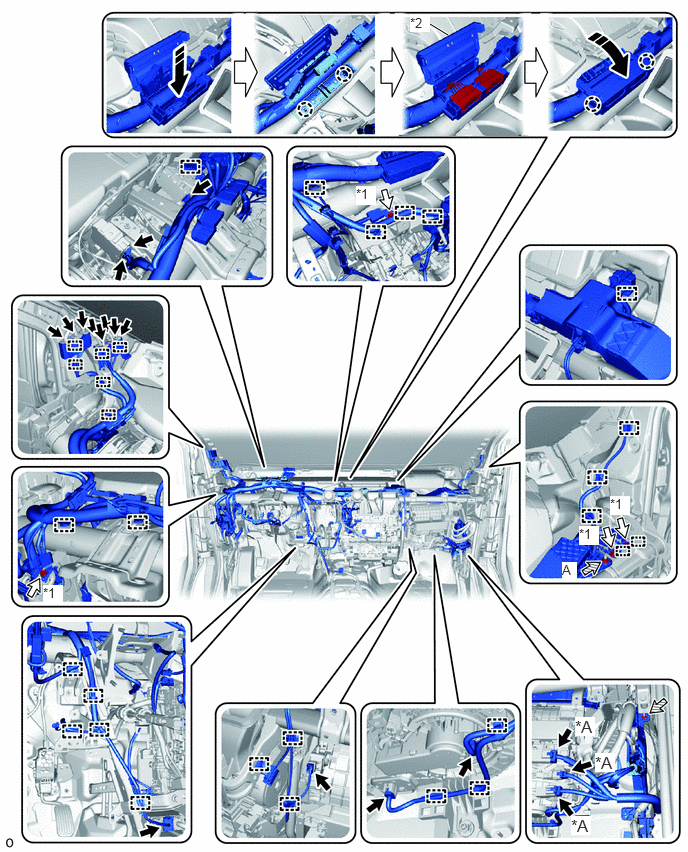

Hide Display 82141 15.INSTALL INSTRUMENT PANEL WIRE

Connect each connector and attach each clamp and install the instrument panel wire.

4.667,0.365 4.479,0.25 true 5.99,7.469 6.198,7.667 0.208,0.198 12 true *A 0.448,6.094 0.656,6.292 0.208,0.198 10 true *1 6.031,5.479 6.24,5.677 0.208,0.198 10 true *1 6.354,5.167 6.563,5.365 0.208,0.198 10 true *1 6.198,7.844 6.406,8.042 0.208,0.198 12 true *A 5.948,8.5 6.156,8.698 0.208,0.198 12 true *A 3.708,1.938 3.917,2.135 0.208,0.198 10 true *1 5.854,5.854 6.01,6.042 0.156,0.188 10 true A 4.271,0.156 4.479,0.333 0.208,0.177 10 true *2

*A	w/ PTC Heater	-	-
*1	Ground Wire	*2	Protector Cover
	Connector		Bolt
	Nut		Install in this Direction

Install each nut.

Torque:: NUT A : 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

Attach the claw and install the protector cover together with the instrument panel wire.

Attach the claw and close protector cover.

Install each bolt and each ground wire.

Torque:: 10 N*m (102 kgf*cm, 7 ft.*lbf)

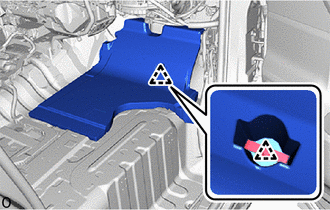

Hide Display 58193G 16.INSTALL NO. 3 FRONT FLOOR FOOTREST

Attach the clip to install the No. 3 front floor footrest.

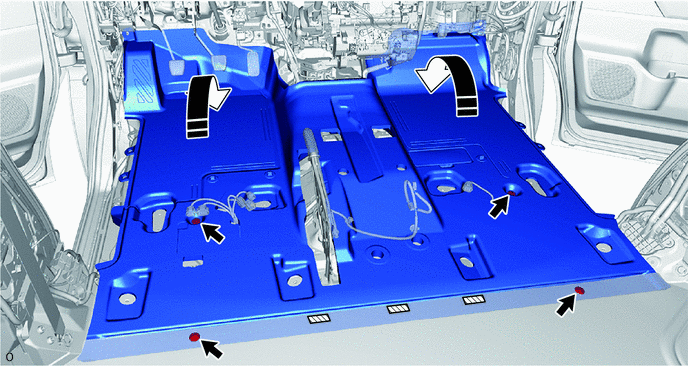

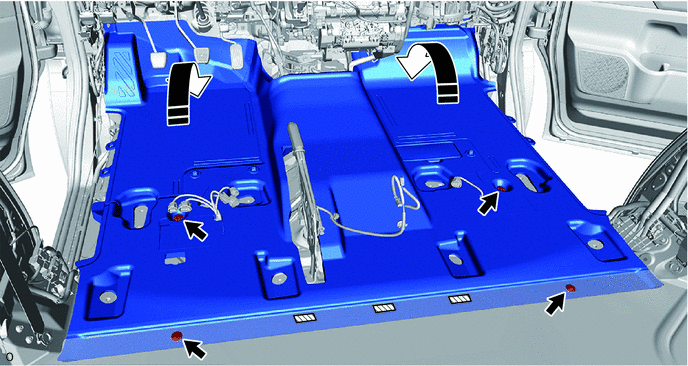

Hide Display 58510D 17.INSTALL FRONT FLOOR CARPET ASSEMBLY

w/ Console Box:

Install the front floor carpet assembly to the original position as shown in the illustration.

0,0 0,0 false

Install in this Direction

Fastener

ii.

Attach each fastener.

iii.

Install the 4 clips.

w/o Console Box:

Install the front floor carpet assembly to the original position as shown in the illustration.

0,0 0,0 false

Install in this Direction

Fastener

ii.

Attach each fastener.

iii.

Install the 4 clips.

Hide Display 62520B 18.INSTALL QUARTER TRIM PANEL ASSEMBLY LH (for 4 Door)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0003,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0003,

Hide Display 62620K 19.INSTALL SIDE TRIM BOARD ASSEMBLY LH (for High Roof)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0004,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0004,

Hide Display 62640M 20.INSTALL REAR QUARTER TRIM BOARD ASSEMBLY LH (for 4 Door)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0005,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0005,

Hide Display 58777A 21.INSTALL TOOL BAG HOLDER (for 4 Door)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0007,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0007,

Hide Display 73570B 22.INSTALL REAR SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR) (for 4 Door, w/ Seat Belt)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Full-trim)>INSTALLATION201902,999999,_58,_078602,_0389937,RM100000001HCBG_06_0005,

Hide Display 67935 23.INSTALL BACK DOOR SCUFF PLATE (for 4 Door)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0010,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0010,

Hide Display 62414A 24.INSTALL LOWER CENTER PILLAR GARNISH LH (for 5 Door)

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0032,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0032,

Hide Display 67918D 25.INSTALL REAR DOOR SCUFF PLATE LH (for 5 Door)

HINT:: Use the same procedure described for the RH side.; ·

except Wagon:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>INSTALLATION201906,202208,_58,_078375,_0380060,RM100000001IXV3_01_0041,202208,202310,_58,_078375,_0380060,RM1000000024I17_01_0041,

·

for Wagon:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0035,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0035,

Hide Display 62413A 26.INSTALL LOWER CENTER PILLAR GARNISH RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0032,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0032,

Hide Display 74680 27.INSTALL PILLAR ASSIST GRIP ASSEMBLY B (w/ Assist Grip)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0033,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0033,

Hide Display 74617A 28.INSTALL ASSIST GRIP PLUG (w/ Assist Grip)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0034,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0034,

Hide Display 67917C 29.INSTALL REAR DOOR SCUFF PLATE RH

for Wagon:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0035,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0035,

for Semi-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>INSTALLATION201906,202208,_58,_078375,_0380060,RM100000001IXV3_01_0041,202208,202310,_58,_078375,_0380060,RM1000000024I17_01_0041,

for Full-trim:

Hide Display 74707 30.INSTALL NO. 1 HAND GRIP FRAME SUB-ASSEMBLY (for Semi-trim, w/ Hand Rail)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>INSTALLATION201906,202208,_58,_078375,_0380060,RM100000001IXV3_01_0042,202208,202310,_58,_078375,_0380060,RM1000000024I17_01_0042,

Hide Display 74733 31.INSTALL NO. 1 HAND GRIP COVER (for Semi-trim, w/ Hand Rail)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>INSTALLATION201906,202208,_58,_078375,_0380060,RM100000001IXV3_01_0043,202208,202310,_58,_078375,_0380060,RM1000000024I17_01_0043,

Hide Display 73220 32.INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

for Wagon:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Wagon)>INSTALLATION201906,202310,_58,_078602,_0398106,RM100000001IT6A_01_0120,

for Semi-trim:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Semi-trim)>INSTALLATION201902,202310,_58,_078602,_0387551,RM100000001GXXU_01_0120,

for Full-trim:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Full-trim)>INSTALLATION201902,202310,_58,_078602,_0387529,RM100000001GXU4_01_0120,

Hide Display 73210 33.INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR)

HINT:: Use the same procedure described for the LH side.

Hide Display 34.INSTALL OUTER LAP BELT ANCHOR COVER

HINT:: Use the same procedure for the other side.

for Wagon:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Wagon)>INSTALLATION201906,202310,_58,_078602,_0398106,RM100000001IT6A_01_0122,

for Semi-trim:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Semi-trim)>INSTALLATION201902,202310,_58,_078602,_0387551,RM100000001GXXU_01_0122,

for Full-trim:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Full-trim)>INSTALLATION201902,202310,_58,_078602,_0387529,RM100000001GXU4_01_0122,

Hide Display 35.INSTALL TRANSMISSION INSTRUMENT PANEL SHIFT ASSEMBLY (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SHIFT LEVER>INSTALLATION201902,999999,_52,_078741,_0382079,RM100000001G8MY,

Hide Display 33530K 36.INSTALL SHIFT LEVER ASSEMBLY (for Manual Transmission)

Click hereDrivetrain>RC60J (MANUAL TRANSMISSION / TRANSAXLE)>SHIFT LEVER>INSTALLATION201902,999999,_52,_078740,_0383471,RM100000001GB9Y,

Hide Display 45250 37.INSTALL STEERING COLUMN ASSEMBLY

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>INSTALLATION201906,202310,_55,_079313,_0388799,RM100000001J05G,

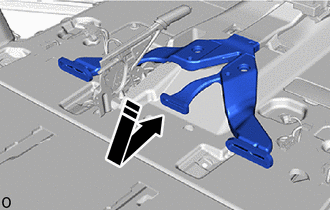

Hide Display 87212F 38.INSTALL REAR NO. 2 AIR DUCT (w/ Rear Foot Duct)

0,0 0,0 false

Install in this Direction

Install the rear No. 2 air duct as shown in the illustration.

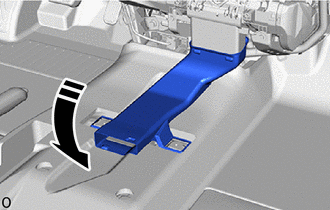

Hide Display 87212G 39.INSTALL REAR NO. 3 AIR DUCT (w/ Rear Foot Duct)

0,0 0,0 false

Install in this Direction

Install the rear No. 3 air duct as shown in the illustration.

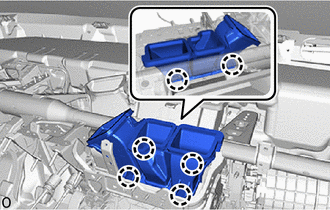

Hide Display 87211 40.INSTALL NO. 1 AIR DUCT

Attach the claw to install a new No. 1 air duct.

Install the 2 bolts.

NOTICE:: ·

When removing, do not crack or deform the lower heater case of the air conditioning radiator assembly.

·

If the No. 1 air duct is reused, it may fall off or abnormal noise may occur. Therefore, make sure to replace with a new one.

Hide Display 41.INSTALL INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU (for LHD)>INSTALLATION201906,202310,_57,_079061,_0383489,RM100000001IVRW,

Hide Display 89661 42.INSTALL ECM

for 7GR-FKS:

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>ECM>INSTALLATION201902,202310,_51,_078720,_0381918,RM100000001G2Y5,

for 1GD-FTV:

Click hereEngine / Hybrid System>1GD-FTV (ENGINE CONTROL)>ECM>INSTALLATION201906,202005,_51,_078856,_0387390,RM100000001O3OG,202005,202107,_51,_078856,_0387390,RM100000001O3OQ,202107,202208,_51,_078856,_0387390,RM100000001WVNQ,202208,202310,_51,_078856,_0387390,RM1000000025S9H,

Hide Display 55301 43.INSTALL INSTRUMENT PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,202310,_58,_078375,_0380058,RM100000001IHP7,

Hide Display 44.INSTALL FRONT SEAT ASSEMBLY

for Power Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>INSTALLATION201906,202310,_58,_078601,_0396271,RM100000001IGPO,

for Separate Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>INSTALLATION201906,202310,_58,_078601,_0381328,RM100000001J8ZE,

for Fixed Bench Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Fixed Bench Seat Type)>INSTALLATION201902,999999,_58,_078601,_0381330,RM100000001FZKU,

for Sliding Bench Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>INSTALLATION201906,202310,_58,_078601,_0381329,RM100000001ITAY,

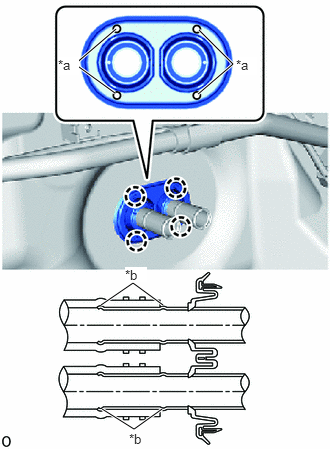

Hide Display 88897M 45.INSTALL HEATER PIPE GROMMET (w/ Heater System)

2.063,0.979 2.427,0.667 2.427,0.667 2.073,0.313 true 1.052,3.177 1.385,2.948 1.385,2.948 1.698,3.177 true 1.063,4.26 1.396,4.469 1.396,4.469 1.688,4.26 true 1.198,0.969 0.781,0.667 0.781,0.667 1.208,0.302 true 2.458,0.594 2.677,0.781 0.219,0.188 10 true *a 1.344,4.49 1.552,4.667 0.208,0.177 10 false *b 1.302,2.781 1.531,2.938 0.229,0.156 10 true *b 0.604,0.594 0.823,0.781 0.219,0.188 10 true *a

*a	Marked Part
*b	Spool

Press the marked parts to attach the claw and install the heater pipe grommet.

NOTICE:: ·

Push the heater pipe grommet lip seal until it passes over the spools of the heater pipes as shown in the illustration.

·

Make sure that the lip portion of the heater pipe grommet does not sit on top of the spools of the heater pipes.

·

Make sure that there is no gap between the heater pipe grommet and dash panel.

·

Securely fit the heater pipe grommet onto the dash panel. Otherwise, water may enter from the engine room or cause increased noise, vibration or harshness.

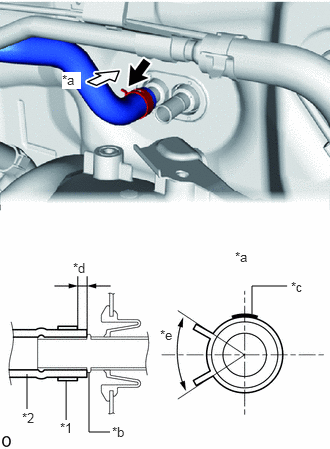

Hide Display 87245A 46.CONNECT HEATER WATER HOSE INLET A (w/ Heater System, for 1GD-FTV)

0.688,3.865 0.688,4.188 false 0.292,3.802 0.292,4.167 false 0.927,3.792 0.927,4.417 0.927,4.417 1.167,4.417 true 2.448,3.167 2.448,2.99 2.448,2.99 2.063,2.99 false 0.615,4.198 0.927,4.396 0.313,0.198 10 false *1 0.24,4.177 0.552,4.375 0.313,0.198 10 false *2 1.198,4.354 1.51,4.552 0.313,0.198 10 false *b 2.76,0.844 2.99,1.031 0.229,0.188 10 true *a 1.906,2.896 2.219,3.094 0.313,0.198 10 false *c 0.76,2.635 1.073,2.833 0.313,0.198 10 false *d 3.198,3.719 3.396,3.896 0.198,0.177 10 false *e 2.417,2.583 2.729,2.781 0.313,0.198 10 false *a

*1	Hose Clip
*2	Heater Water Hose Inlet A
*a	View A
*b	Stopper
*c	Marking (White or Blue or Brown)
*d	Hose Clip Installation Range (7.5 mm (0.295 in.))
*e	Clip Installation Angle (60°)

Connect the heater water hose inlet A with the marking facing left and attach the clip within the area shown in the illustration.

NOTICE:: ·

Do not apply excessive force to the heater water hose inlet A.

·

Make sure the heater water hose inlet A is securely inserted to the stopper. However, if the end of the heater water hose inlet A is cut diagonally, it is acceptable for the entire circumference of the tip to not contact the stopper.

·

Connect the heater water hose inlet A so that its marking faces the top of the vehicle.

Make sure to install the hose clip within the range shown in the illustration.

NOTICE:: Make sure that the hose clamps do not contact each other.

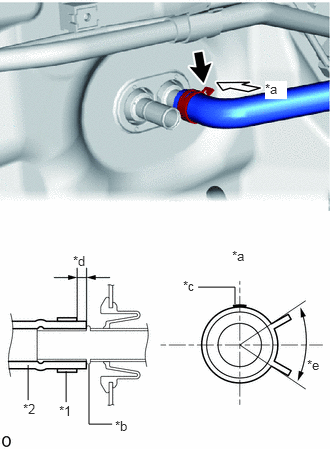

Hide Display 87246A 47.CONNECT HEATER WATER HOSE OUTLET A (w/ Heater System, for 1GD-FTV)

0.708,3.948 0.708,4.344 false 0.292,3.885 0.292,4.281 false 0.938,3.865 0.938,4.427 0.938,4.427 1.156,4.427 false 2.646,3.24 2.646,2.969 2.646,2.969 3.052,2.969 false 0.656,4.365 0.969,4.521 0.313,0.156 10 false *1 0.24,4.302 0.552,4.458 0.313,0.156 10 false *2 2.292,0.854 2.49,1.042 0.198,0.188 10 true *a 1.177,4.375 1.49,4.531 0.313,0.156 10 false *b 3.083,2.896 3.396,3.052 0.313,0.156 10 false *c 0.771,2.698 1.083,2.854 0.313,0.156 10 false *d 1.667,3.427 1.979,3.583 0.313,0.156 10 false *e 2.479,2.656 2.792,2.854 0.313,0.198 10 false *a

*1	Hose Clip
*2	Heater Water Hose Outlet A
*a	View A
*b	Stopper
*c	Marking (White or Brown)
*d	Hose Clip Installation Range (7.5 mm (0.295 in.))
*e	Clip Installation Angle (60°)

Connect the heater water hose outlet A with the marking facing left and attach the clip within the area shown in the illustration.

NOTICE:: ·

Do not apply excessive force to the heater water hose outlet A.

·

Make sure the heater water hose outlet A is securely inserted to the stopper. However, if the end of the heater water hose outlet A is cut diagonally, it is acceptable for the entire circumference of the tip to not contact the stopper.

·

Connect the heater water hose outlet A hose so that its marking faces the top of the vehicle.

Make sure to install the hose clip within the range shown in the illustration.

NOTICE:: Make sure that the hose clamps do not contact each other.

Hide Display 87246A 48.CONNECT HEATER WATER HOSE OUTLET A (w/ Heater System, for 7GR-FKS)

2.625,3.271 2.625,2.979 2.625,2.979 2.99,2.979 false 0.688,3.969 0.688,4.375 false 0.281,3.896 0.281,4.26 false 0.927,3.875 0.927,4.5 0.927,4.5 1.146,4.5 false 0.625,4.375 0.938,4.531 0.313,0.156 10 false *1 0.229,4.271 0.542,4.427 0.313,0.156 10 false *2 0.646,0.75 0.844,0.927 0.198,0.177 10 true *a 1.167,4.417 1.479,4.573 0.313,0.156 10 false *b 3.031,2.906 3.344,3.063 0.313,0.156 10 false *c 0.76,2.708 1.073,2.865 0.313,0.156 10 false *d 1.667,3.406 1.979,3.563 0.313,0.156 10 false *e 2.448,2.594 2.76,2.792 0.313,0.198 10 false *a

*1	Hose Clip
*2	Heater Water Hose Outlet A
*a	View A
*b	Stopper
*c	Marking (White or Yellow or Pink)
*d	Hose Clip Installation Range (7.5 mm (0.295 in.))
*e	Clip Installation Angle (60°)

Connect the heater water hose outlet A with the marking facing left and attach the clip within the area shown in the illustration.

NOTICE:: ·

Do not apply excessive force to the heater water hose outlet A.

·

Make sure the heater water hose outlet A is securely inserted to the stopper. However, if the end of the heater water hose outlet A is cut diagonally, it is acceptable for the entire circumference of the tip to not contact the stopper.

·

Connect the heater water hose outlet A so that its marking faces the top of the vehicle.

Make sure to install the hose clip within the range shown in the illustration.

NOTICE:: Make sure that the hose clamps do not contact each other.

Hide Display 87245A 49.CONNECT HEATER WATER HOSE INLET A (w/ Heater System, for 7GR-FKS)

0.979,3.823 0.979,4.438 0.979,4.438 1.198,4.438 false 2.448,3.219 2.448,3.031 2.448,3.031 1.958,3.031 false 0.323,3.833 0.323,4.302 false 0.76,3.906 0.76,4.375 false 1.198,0.844 1.406,1.042 0.208,0.198 10 true *a 1.229,4.365 1.542,4.563 0.313,0.198 10 false *b 1.802,2.948 2.115,3.146 0.313,0.198 10 false *c 0.813,2.656 1.125,2.854 0.313,0.198 10 false *d 3.219,3.76 3.406,3.948 0.188,0.188 10 false *e 0.708,4.385 1.021,4.583 0.313,0.198 10 false *1 0.271,4.313 0.583,4.51 0.313,0.198 10 false *2 2.406,2.573 2.719,2.771 0.313,0.198 10 false *a

*1	Hose Clip
*2	Heater Water Hose inlet A
*a	View A
*b	Stopper
*c	Marking (Yellow or Pink)
*d	Hose Clip Installation Range (7.5 mm (0.295 in.))
*e	Clip Installation Angle (60°)

Connect the heater water hose inlet A with the marking facing left and attach the clip within the area shown in the illustration.

NOTICE:: ·

Do not apply excessive force to the heater water hose inlet A.

·

Make sure the heater water hose inlet A is securely inserted to the stopper. However, if the end of the heater water hose inlet A is cut diagonally, it is acceptable for the entire circumference of the tip to not contact the stopper.

·

Connect the heater water hose inlet A so that its marking faces the top of the vehicle.

Make sure to install the hose clip within the range shown in the illustration.

NOTICE:: Make sure that the hose clamps do not contact each other.

Hide Display 88710C 50.CONNECT AIR CONDITIONING TUBE ASSEMBLY (w/ Cooler System, Sub-cool Accelerator)

Remove the vinyl tape wrapped around the connection of the air conditioning tube assembly and the air conditioning tube assembly.

Sufficiently apply compressor oil to a new O-ring and the fitting surface of the air conditioning tube assembly.

Compressor oil:: ND-OIL 8 or equivalent

Install the O-ring to the air conditioning tube assembly.

NOTICE:: Keep the O-rings and O-ring fitting surfaces free of foreign matter.

Connect the air conditioning tube assembly.

NOTICE:: ·

Do not apply excessive force to the air conditioning tube assembly.

·

Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed).

0,0 0,0 false

Install in this Direction

Rotate the 1-point tightening plate as shown in the illustration.

Insert the tube joint into the fitting hole securely and tighten the bolt.

Torque:: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

Hide Display 88716A 51.CONNECT COOLER REFRIGERANT LIQUID PIPE A (w/ Cooler System, w/o Sub-cool Accelerator)

Remove the vinyl tape wrapped around the connection of the cooler refrigerant liquid pipe A.

Sufficiently apply compressor oil to a new O-ring and the fitting surface of the cooler refrigerant liquid pipe A.

Compressor oil:: ND-OIL 8 or equivalent

Install the O-ring to the cooler refrigerant liquid pipe A.

NOTICE:: Keep the O-rings and O-ring fitting surfaces free of foreign matter.

Connect the cooler refrigerant liquid pipe A.

NOTICE:: ·

Do not apply excessive force to the cooler refrigerant liquid pipe A.

·

Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed).

Hide Display 88717A 52.CONNECT COOLER REFRIGERANT SUCTION PIPE A (w/ Cooler System, w/o Sub-cool Accelerator)

Remove the vinyl tape wrapped around the connection of the cooler refrigerant suction pipe A.

Sufficiently apply compressor oil to a new O-ring and the fitting surface of the cooler refrigerant suction pipe A.

Compressor oil:: ND-OIL 8 or equivalent

Install the O-ring to the cooler refrigerant suction pipe A.

NOTICE:: Keep the O-rings and O-ring fitting surfaces free of foreign matter.

Connect the cooler refrigerant suction pipe A.

NOTICE:: ·

Do not apply excessive force to the cooler refrigerant suction pipe A.

·

Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed).
