WIPER / WASHER  WASHER NOZZLE  ON-VEHICLE INSPECTION

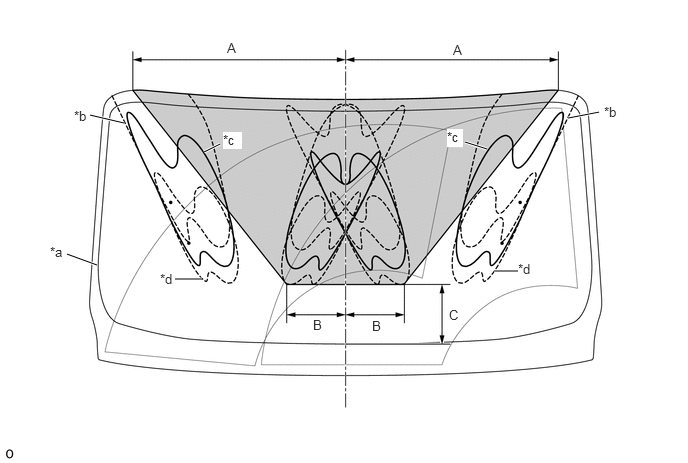

With the ignition switch to ON, check that the center stream of washer fluid sprays on the windshield within the hatched area shown in the illustration.

Standard:

Washer fluid hits the windshield in the area shown in the illustration.

0.698,2.646 1.01,2.76 true 0.938,1.198 1.292,1.281 true 2.125,1.583 2.292,1.5 true 1.823,2.906 2.104,2.906 true 5.146,2.823 5.396,2.823 true 5.917,1.229 6.24,1.167 true 4.844,1.479 5.073,1.552 true 2.365,0.417 2.698,0.76 0.333,0.344 10 false A 4.719,0.438 5.094,0.844 0.375,0.406 10 false A 3.26,3.302 3.594,3.646 0.333,0.344 10 false B 3.875,3.313 4.208,3.656 0.333,0.344 10 false B 4.677,3.198 5.01,3.542 0.333,0.344 10 false C 0.521,2.542 0.854,2.885 0.333,0.344 10 false *a 0.771,1.125 1.115,1.5 0.344,0.375 10 false *b 2.323,1.375 2.521,1.552 0.198,0.177 10 true *c 1.667,2.823 2,3.167 0.333,0.344 10 false *d 6.292,1.083 6.625,1.427 0.333,0.344 10 false *b 4.656,1.344 4.823,1.531 0.167,0.188 10 true *c 5.396,2.719 5.729,3.063 0.333,0.344 10 false *d

*a	Ceramic Edge	*b	Upper Limit
*c	Standard	*d	Lower Limit
	Landing Area	-	-

Standard Measurement:

Area	Measurement	Area	Measurement
A	700 mm (2.30 ft.)	B	195 mm (7.68 in.)
C	199 mm (7.83 in.)	-	-
