RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384899 AIR CONDITIONING AMPLIFIER A

HEATING / AIR CONDITIONING AIR CONDITIONING AMPLIFIER INSTALLATION

PROCEDURE

Hide Display 88650N 1.INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY (for LHD)

a.

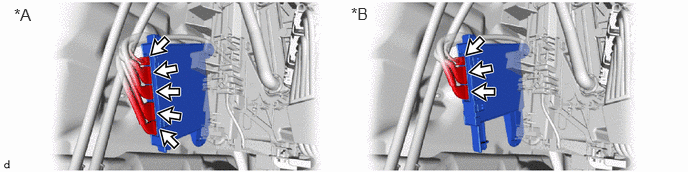

Connect each connector.

E415417C03

0.146,0.052 0.521,0.292 0.375,0.24 12 false *A 3.656,0.042 4.031,0.281 0.375,0.24 12 false *B

*A

for Automatic Air Conditioning System

*B

for Manual Air Conditioning System

b.

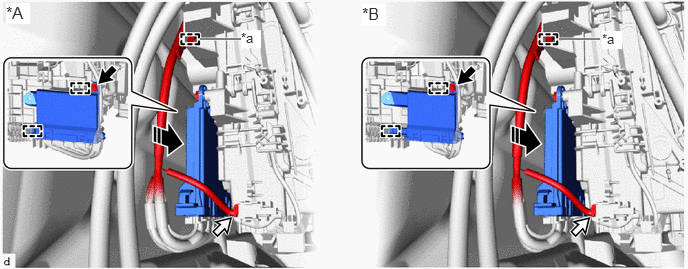

Attach the guide to install the air conditioning amplifier assembly.

E415420C02

2.083,0.406 2.51,0.406 true 5.823,0.406 6.25,0.406 true 0.063,0.031 0.313,0.25 0.25,0.219 12 true *A 3.771,0.042 4.021,0.26 0.25,0.219 12 true *B 2.51,0.313 2.719,0.5 0.208,0.188 10 true *a 6.271,0.323 6.479,0.51 0.208,0.188 10 true *a

*A	for Automatic Air Conditioning System	*B	for Manual Air Conditioning System
*a	Clamp	-	-
	Screw		Connector
	Install in this Direction	-	-

c.

Attach the clamp.

d.

Install the screw.

Hide Display 58533C 2.INSTALL CENTER FLOOR CARPET COVER RH (for LHD)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0002,

Hide Display 55641 3.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER (for LHD)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0049,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0050,

Hide Display 62112 4.INSTALL COWL SIDE TRIM BOARD LH (for LHD)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0050,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0050,

Hide Display 67914B 5.INSTALL FRONT DOOR SCUFF PLATE LH (for LHD)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0049,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0049,

Hide Display 67912A 6.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE LH (for LHD)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0050,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0050,

Hide Display 88650N 7.INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY (for RHD)

a.

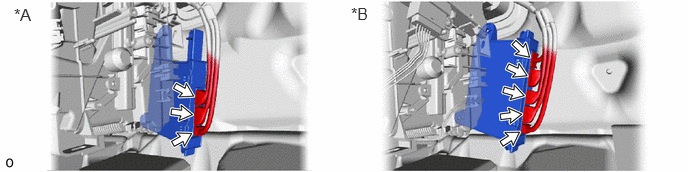

Connect each connector.

E421717C02

0.146,0.052 0.521,0.292 0.375,0.24 12 false *A 3.656,0.042 4.031,0.281 0.375,0.24 12 false *B

*A

for Manual Air Conditioning System

*B

for Automatic Air Conditioning System

b.

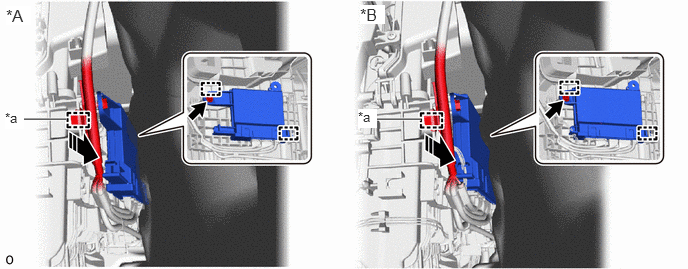

Attach the guide to install the air conditioning amplifier assembly.

E421721C01

0.219,1.24 0.688,1.24 true 3.917,1.24 4.385,1.24 true 0.063,0.063 0.323,0.26 0.26,0.198 12 true *A 3.75,0.052 4.01,0.25 0.26,0.198 12 true *B 3.729,1.135 3.927,1.333 0.198,0.198 10 true *a 0.052,1.146 0.25,1.344 0.198,0.198 10 true *a

*A	for Manual Air Conditioning System	*B	for Automatic Air Conditioning System
*a	Clamp	-	-
	Install in this Direction	-	-

c.

Attach the clamp.

d.

Install the screw.

Hide Display 58533C 8.INSTALL CENTER FLOOR CARPET COVER RH (for RHD)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0002,

Hide Display 55641 9.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER (for RHD)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0038,

Hide Display 62111C 10.INSTALL COWL SIDE TRIM BOARD RH (for RHD)

HINT:: Use the same procedure described for the LHD.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0044,

Hide Display 67913B 11.INSTALL FRONT DOOR SCUFF PLATE RH (for RHD)

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0049,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0049,

Hide Display 67911B 12.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE RH (for RHD)

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0050,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0050,

Hide Display 13.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

·

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

·

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 14. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 15.PERFORM DIAGNOSTIC SYSTEM CHECK

·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 16. INITIALIZE SERVO MOTOR (for Automatic Air Conditioning System)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System)>INITIALIZATION201902,999999,_58,_079316,_0386651,RM100000001GSS4,

Hide Display 17.CHECK SRS WARNING LIGHT

·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>OPERATION CHECK201902,999999,_58,_079257,_0385034,RM100000001GJPW,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,
