INTERIOR PANELS / TRIM  ROOF HEADLINING(for Wagon)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the roof headlining assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures not Performed Link
Disconnect cable from negative (-) battery terminal Memorize steering angle neutral point Parking assist monitor system (Click here)
Panoramic view monitor system (Click here)

HINT:
·

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures not Performed Necessary Procedures Link

*: w/ Stop and start system

Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -


·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 1. PRECAUTION (w/ Airbag System)

Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Airbag System)


CAUTION:
B422343

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.



Hide 67911B 5.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE RH

HINT:

Use the same procedure described for the LH side.


Hide 67913B 6.REMOVE FRONT DOOR SCUFF PLATE RH

HINT:

Use the same procedure described for the LH side.


Hide 62111C 8.REMOVE COWL SIDE TRIM BOARD RH

HINT:

Use the same procedure described for the LH side.


Hide 62311B 10.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

HINT:

Use the same procedure described for the LH side.


Hide 74680 12.REMOVE PILLAR ASSIST GRIP ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 62212 13.REMOVE FRONT PILLAR GARNISH LH

a.
B519202C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction

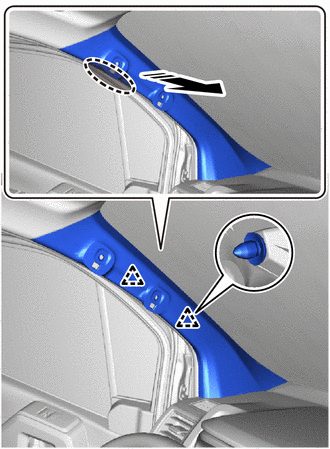

Place your hand at the position shown in the illustration, pull as shown to detach the clip.


b.
B519203C01
0,0 0,0 false
V113147

Remove in this Direction

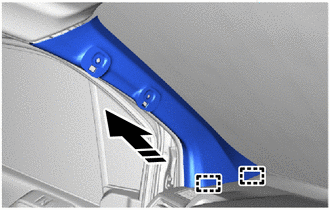

Pull in the direction of the arrow shown in the illustration to detach the guide and remove the front pillar garnish LH.


c.

for 12 Speakers:

Disconnect the connector.


d.
B519223C01
1.156,1.531 1.573,1.115 true 1,1.479 1.229,1.677 0.229,0.198 10 true *a

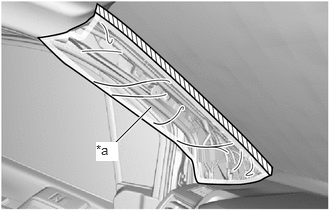

*a Protective Cover
V100155

Adhesive Tape


w/ Curtain Shield Airbag:

Protect the curtain shield airbag assembly LH.

i.

Completely cover the curtain shield airbag assembly LH with a cloth or nylon sheet and secure the ends of the cover with adhesive tape as shown in the illustration.

NOTICE:

Cover the curtain shield airbag assembly LH with a protective cover as soon as the front pillar garnish LH is removed.




Hide 62211 14.REMOVE FRONT PILLAR GARNISH RH

HINT:

Use the same procedure described for the LH side.


Hide 17.REMOVE REAR SEAT ASSEMBLY RH

a.

for Folding Type:

HINT:

Use the same procedure described for the LH side.



b.

for Manual Captain Seat:

HINT:

Use the same procedure described for the LH side.



c.

for Power Captain Seat:

HINT:

Use the same procedure described for the LH side.




Hide 73210 21.REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 67872A 24.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP LH

HINT:
·

Use the same procedure described for the RH side.

·

Pull back the No. 1 slide door weatherstrip LH so that the lower center pillar garnish LH and center pillar garnish LH can be removed.

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>REMOVAL



Hide 67871E 25.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP RH

HINT:

Pull back the No. 1 slide door weatherstrip RH so that the lower center pillar garnish RH and center pillar garnish RH can be removed.

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (except Wagon)>REMOVAL


Hide 74617A 26.REMOVE ASSIST GRIP PLUG

HINT:

Use the same procedure for both assist grip plugs.


a.

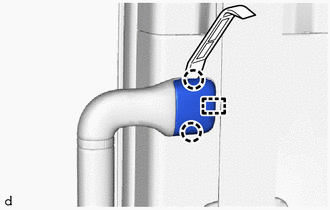

B568893

Insert moulding remover A at the position shown in the illustration, detach the claw and guide and remove the assist grip plug.


Hide 74680 27.REMOVE PILLAR ASSIST GRIP ASSEMBLY B

HINT:

Use the same procedure for both pillar assist grip assemblies B.


a.
B568894

Remove the 2 bolts and pillar assist grip assembly B.


Hide 62412 30.REMOVE CENTER PILLAR GARNISH LH

a.
B560908

Remove the clip.


b.

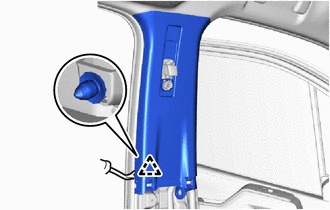

B560909

Using a clip remover, detach the clip.


c.
B560911C01
0,0 0,0 false
V113146

Place Hands Here
V113147

Remove in this Direction

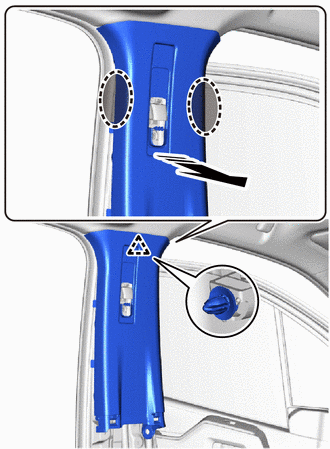

Place both hands at the position shown in the illustration, pull in the direction indicated by the arrow to detach the clip and remove the center pillar garnish LH.


Hide 62411 31.REMOVE CENTER PILLAR GARNISH RH

HINT:

Use the same procedure described for the LH side.


Hide 73360D 35.REMOVE REAR SEAT OUTER BELT ASSEMBLY RH (w/ Seat Belt)

HINT:

Use the same procedure described for the LH side.


Hide 67872A 36.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP LH

HINT:
·

Use the same procedure described for the RH side.

·

Pull back the No. 1 slide door weatherstrip LH so that the quarter trim panel assembly LH can be removed.

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>REMOVAL



Hide 67871E 37.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP RH

HINT:

Pull back the No. 1 slide door weatherstrip RH so that the quarter trim panel assembly RH can be removed.

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>REMOVAL


Hide 62520B 38.REMOVE QUARTER TRIM PANEL ASSEMBLY LH

a.

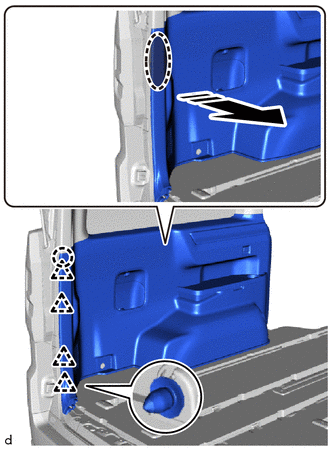

B551526C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration, pull as shown to detach the claw and clip.


b.

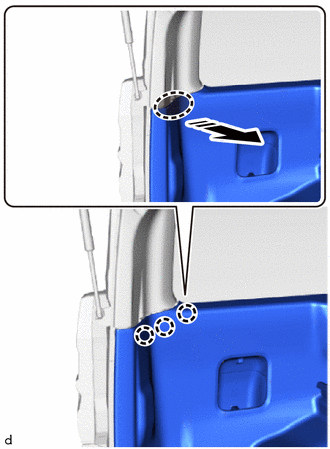

B551527C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration, pull as shown to detach the claw.


c.

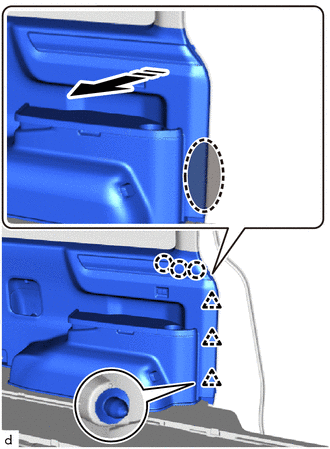

B551528C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration, pull as shown to detach the clip and claw.


d.
B551529C01
0,0 0,0 false
V113147

Remove in this Direction

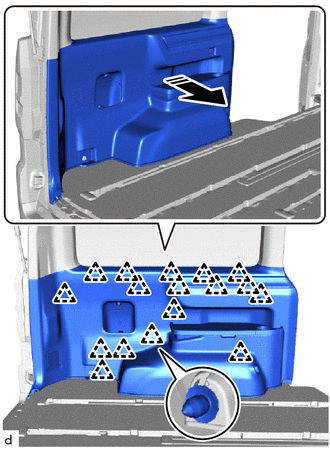

Detach the clip and remove the quarter trim panel assembly LH as shown in the illustration.


e.
B551530

Disconnect the 2 connectors.


Hide 62510M 39.REMOVE QUARTER TRIM PANEL ASSEMBLY RH

a.

w/ Rear Air Conditioning System:

i.
B551516C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction

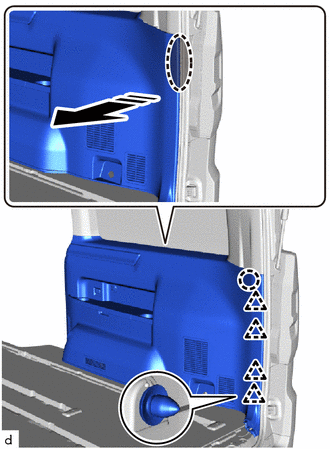

Place your hand at the position shown in the illustration, pull as shown to detach the claw and clip.


ii.
B551517C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction

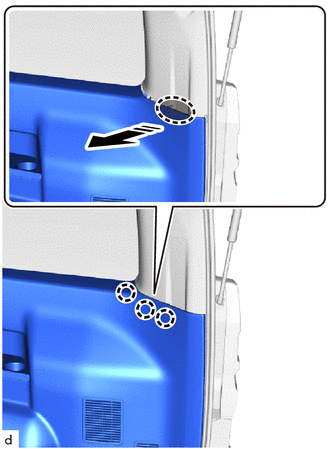

Place your hand at the position shown in the illustration, pull as shown to detach the claw.


iii.
B551518C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction

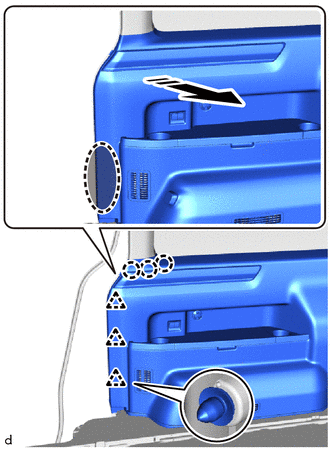

Place your hand at the position shown in the illustration, pull as shown to detach the clip and claw.


iv.

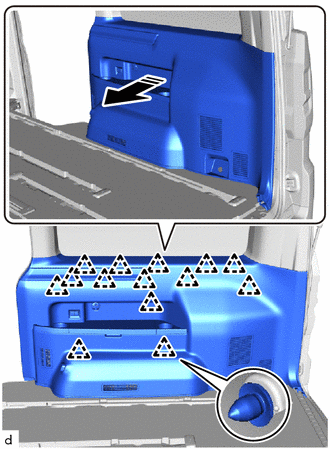

B551519C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the clip and remove the quarter trim panel assembly RH as shown in the illustration.


v.
B551520

Disconnect each connector.



b.

w/ Rear Cooler:

i.

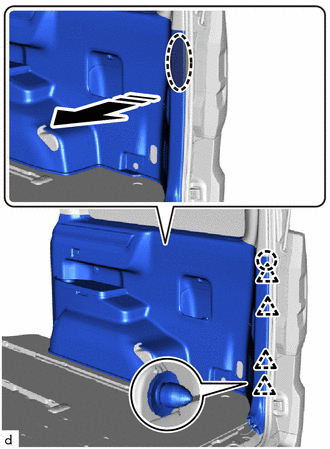

B551521C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration, pull as shown to detach the claw and clip.


ii.

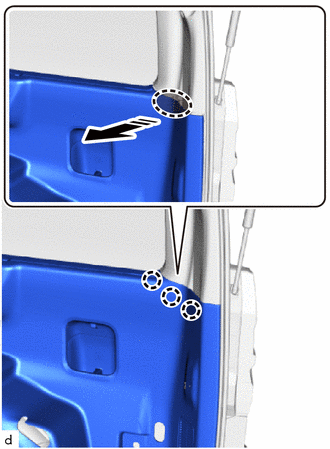

B551522C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration, pull as shown to detach the claw.


iii.
B551523C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction

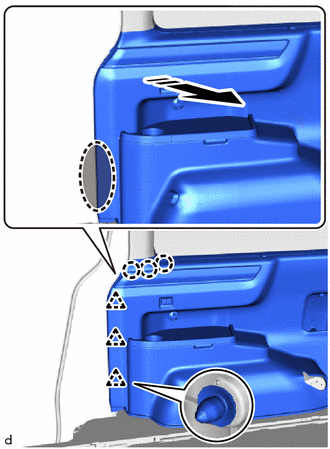

Place your hand at the position shown in the illustration, pull as shown to detach the clip and claw.


iv.
B551524C01
0,0 0,0 false
V113147

Remove in this Direction

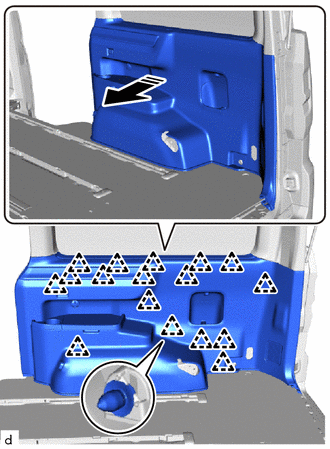

Detach the clip and remove the quarter trim panel assembly RH as shown in the illustration.


v.
B551525

Disconnect each connector.



Hide 62639A 40.REMOVE QUARTER PILLAR GARNISH LH

a.
B551537C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction

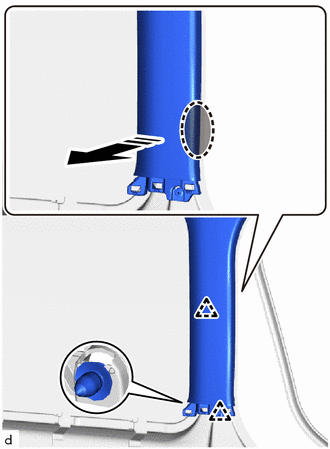

Place your hand at the position shown in the illustration, pull as shown to detach the clip.


b.
B551538C01
0,0 0,0 false
V113146

Place Hands Here
V113147

Remove in this Direction

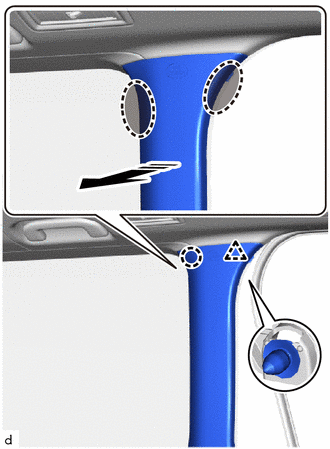

Place both hands at the position shown in the illustration, pull as shown to detach the clip and claw and remove the quarter pillar garnish LH.


Hide 62638A 41.REMOVE QUARTER PILLAR GARNISH RH

HINT:

Use the same procedure described for the LH side.


Hide 62472D 43.REMOVE REAR UPPER PILLAR GARNISH LH

a.

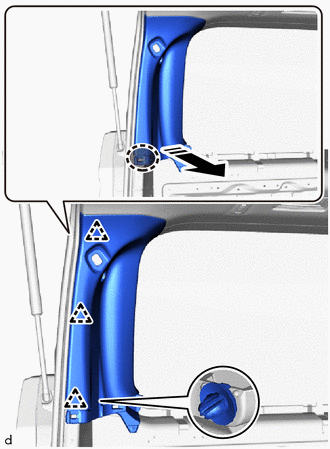

B551531C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration, pull as shown to detach the clip.


b.
B551532C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction

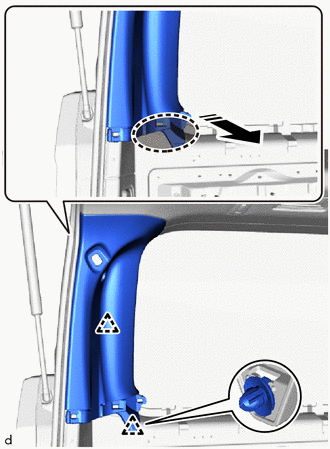

Place your hand at the position shown in the illustration, pull as shown to detach the clip.


c.
B551533C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction

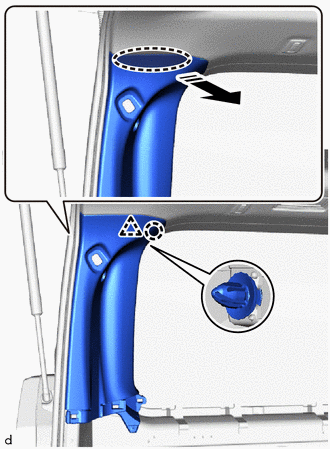

Place your hand at the position shown in the illustration, pull as shown to detach the clip and claw and remove the rear upper pillar garnish LH.


Hide 62471D 44.REMOVE REAR UPPER PILLAR GARNISH RH

a.

w/ Rear Cooler:

HINT:

Use the same procedure described for the LH side.



b.

w/ Rear Air Conditioning System:

i.
B551534C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction

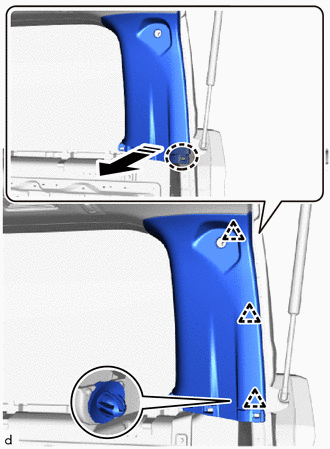

Place your hand at the position shown in the illustration, pull as shown to detach the clip.


ii.
B551535C02
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration, pull as shown to detach the clip.


iii.
B551536C01
0,0 0,0 false
V113146

Place Hand Here

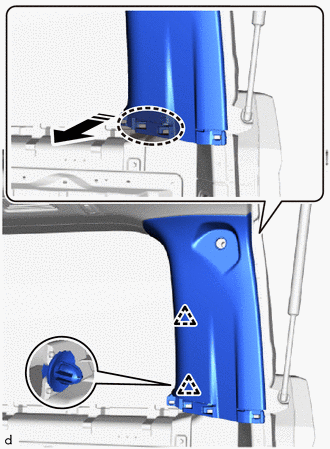

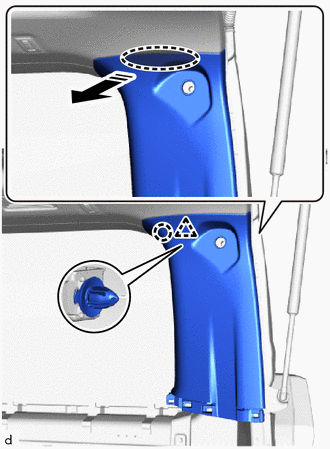

V113147

Remove in this Direction


Place your hand at the position shown in the illustration, pull as shown to detach the clip and claw and remove the rear upper pillar garnish RH.



Hide 62460A 45.REMOVE REAR ROOF SIDE RAIL GARNISH ASSEMBLY LH

a.

w/ Rear Sunshade:

i.
B589637C01
0,0 0,0 false
V113147

Remove in this Direction

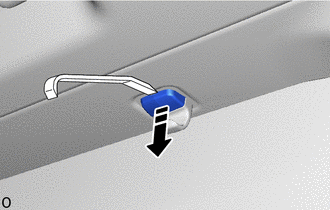

Insert moulding remover A at the position shown in the illustration and lower the pin in the direction indicated by the arrow.

NOTICE:

Do not remove the sunshade hook from the rear roof side rail garnish assembly LH.


HINT:

Use the same procedure described for the other side.



ii.
B551540C01
0,0 0,0 false
V113147

Remove in this Direction

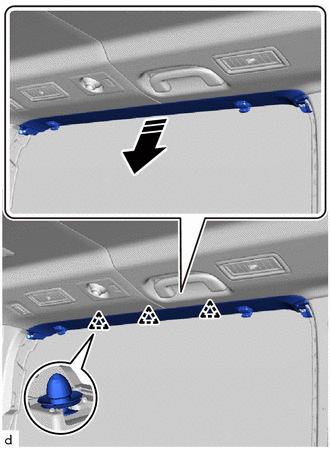

Pull in the direction of the arrow shown in the illustration to detach the clip and remove the rear roof side rail garnish assembly LH.

HINT:

Remove the sunshade hook together with the rear roof side garnish assembly LH.




b.
B551580C01
0,0 0,0 false
V113147

Remove in this Direction


w/o Rear Sunshade:

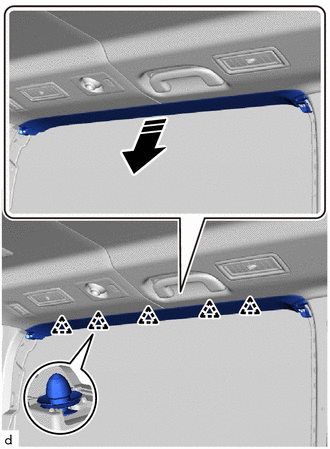

Pull in the direction of the arrow shown in the illustration to detach the clip and remove the rear roof side rail garnish assembly LH.


Hide 62450A 46.REMOVE REAR ROOF SIDE RAIL GARNISH ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 81240D 48.REMOVE NO. 2 ROOM LIGHT ASSEMBLY

HINT:

Use the same procedure described for the No. 1 room light assembly.


Hide 49.REMOVE REAR ROOF HEADLINING ASSEMBLY

a.
B562844

Remove the screw.

HINT:

Use the same procedure for the opposite side.



b.
B562845

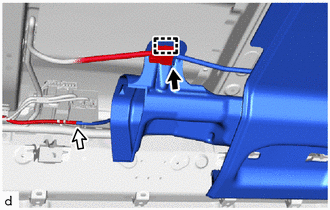

Disconnect the connector.


c.
B562846

Detach the clip and guide and remove the rear roof headlining assembly.


d.

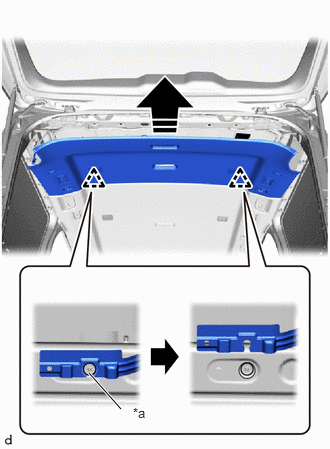

B562847C01
1.26,4.26 0.927,3.885 true 1.385,4.219 1.698,4.417 0.313,0.198 10 false *a
*a Clip
V113147

Remove in this Direction

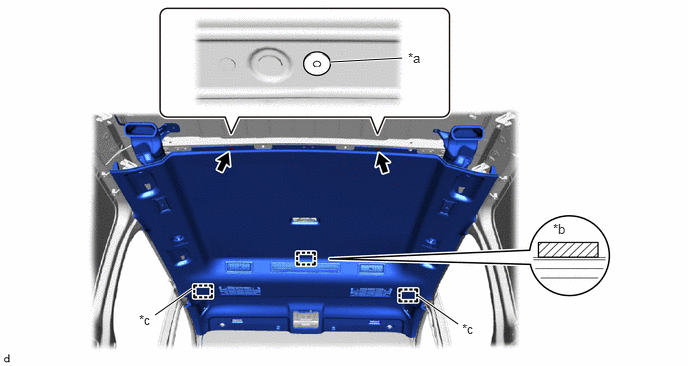

Pull the rear roof headlining assembly toward the rear of the vehicle in the direction of the arrow shown in the illustration and detach the clip.


e.
B551544

Turn the rear roof headlining assembly diagonally and bend slightly to remove it from the back door.

NOTICE:
·

Make sure that wrinkles do not form in the rear roof headlining assembly during removal.

·

Make sure that the rear roof headlining assembly does not get caught on anything as it may become bent or damaged.

·

Do not damage the rear roof headlining assembly or vehicle interior.

·

2 or more people are required when carrying the rear roof headlining assembly out of the vehicle, as it may become deformed.




Hide 86466D 53.REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)

Hide 74318 55.REMOVE VISOR BRACKET COVER LH

a.

Open the visor assembly LH.


b.

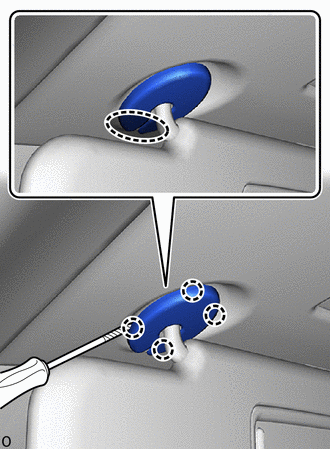

B553137C01
0,0 0,0 false
V113146

Insert Thin-bladed Screwdriver Here
V100155

Protective Tape


Insert a thin-bladed screwdriver at the position shown in the illustration and detach the claw and remove the visor bracket cover LH.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 74317 56.REMOVE VISOR BRACKET COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 74320 57.REMOVE VISOR ASSEMBLY LH

a.

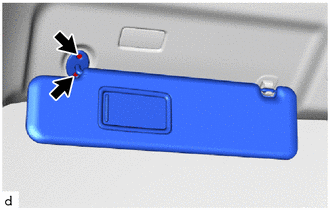

B551554

Remove the 2 screws.


b.

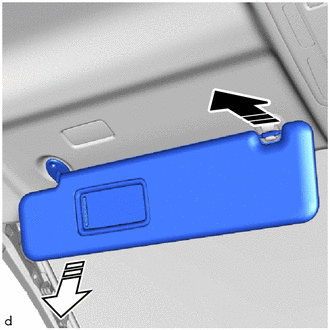

B551555C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Pull in the direction (1) shown in the illustration to disconnect the visor assembly LH from the visor holder.


c.

Pull in the direction (2) shown in the illustration and remove the visor assembly LH.


Hide 74310 58.REMOVE VISOR ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 67872A 61.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP LH

HINT:
·

Use the same procedure described for the RH side.

·

Pull back the No. 1 slide door weatherstrip LH so that the roof headlining assembly can be removed.

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>REMOVAL



Hide 67871E 62.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP RH

HINT:

Pull back the No. 1 slide door weatherstrip RH so that the roof headlining assembly can be removed.

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>REMOVAL


Hide 63.REMOVE ROOF HEADLINING ASSEMBLY

a.

for Windshield Glass Side:

i.

Disconnect each connector.



b.

for Front Pillar LH Side:

i.

w/ Curtain Shield Airbag:

Remove the protective cover installed to the front pillar LH.


ii.

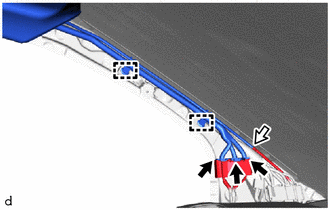

B551545C01
0,0 0,0 false
V100135

Connector
V100136

Washer Hose


Disconnect the 3 connectors.


iii.

Using a clip remover, detach the wire harness clamp.


iv.

Disconnect the washer hose.


v.

w/ Curtain Shield Airbag:

Install the protective cover to the front pillar LH.



c.

for Rear Roof LH Side:

i.
B551546C01
0,0 0,0 false
V100135

Connector
V100136

Washer Hose


Detach the clamp and disconnect the connector.


ii.

Disconnect the washer hose.



d.

for Rear Roof RH Side, w/ Digital Inner Mirror:

i.
B551547

Detach the clamp and disconnect the connector.



e.

w/ Rear Cooler:

i.
B551548

Remove the 4 bolts.


ii.

Remove the 2 clips and 2 plates.

HINT:

The clips indicated by the arrow have plates between the roof headlining assembly and body. Be careful not to let them fall.



iii.

Detach the fastener and hook and remove the roof headlining assembly.

B551550C01
3.438,0.646 4.188,0.604 true 1.615,3.281 2,3.01 true 4.354,3.083 4.771,3.375 true 4.25,0.521 4.563,0.719 0.313,0.198 10 false *a 5.76,2.302 6.073,2.5 0.313,0.198 10 false *b 4.813,3.344 5.125,3.542 0.313,0.198 10 false *c 1.448,3.25 1.76,3.448 0.313,0.198 10 false *c
*a Plate *b Fastener
*c Hook - -




f.

w/ Rear Air Conditioning System:

i.

Remove the 2 clips and 2 plates.

HINT:

The clips indicated by the arrow have plates between the roof headlining assembly and body. Be careful not to let them fall.



ii.

Detach the fastener and hook and remove the roof headlining assembly.

B551549C01
3.417,0.698 4.177,0.74 true 4.365,3.104 4.75,3.427 true 1.625,3.344 2.01,3.052 true 5.844,2.26 6.156,2.458 0.313,0.198 10 false *b 4.25,0.646 4.563,0.844 0.313,0.198 10 false *a 4.781,3.458 5.094,3.656 0.313,0.198 10 false *c 1.479,3.344 1.792,3.542 0.313,0.198 10 false *c
*a Plate *b Fastener
*c Hook - -




g.
B551551

Turn the roof headlining assembly diagonally and bend slightly to remove it from the back door.

NOTICE:
·

Make sure that wrinkles do not form in the roof headlining assembly during removal.

·

Make sure that the roof headlining assembly does not get caught on anything as it may become bent or damaged.

·

Do not damage the roof headlining assembly or vehicle interior.

·

2 or more people are required when carrying the roof headlining assembly out of the vehicle, as it may become deformed.
