SEAT  REAR SEAT ASSEMBLY(for 60/40 Split Seat Type 40 Side)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 71940L 1.REMOVE NO. 3 SEAT HEADREST ASSEMBLY LH

a.

Remove the No. 3 seat headrest assembly LH.


Hide 79246J 2.REMOVE NO. 3 SEAT LEG COVER LH

a.

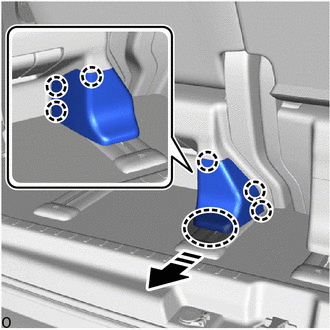

B546943C01
0,0 0,0 false
V113146C12
0,0 0,0 false

Place Hands Here
V113147

Remove in this Direction


Place your hands at the position shown in the illustration and pull in the removal direction and detach the claw and remove the No. 3 seat leg cover LH.


Hide 3.REMOVE REAR NO. 3 SEAT ASSEMBLY LH

a.

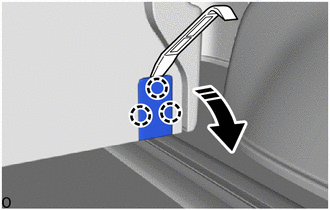

B546949C01
0,0 0,0 false
V113147

Open in this Direction


Using moulding remover A, detach the claw and open the cover as shown in the illustration.

HINT:

Use the same procedure for the RH side.



b.

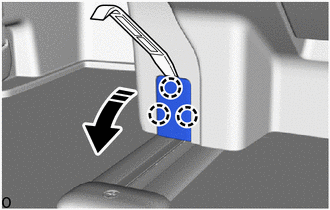

B546945C02
0,0 0,0 false
V113147

Open in this Direction


Using moulding remover A, detach the claw and open the cover as shown in the illustration.


c.

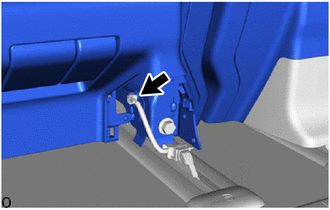

B546948

w/ Power Supply Unit:

i.

Disconnect the connector.



d.

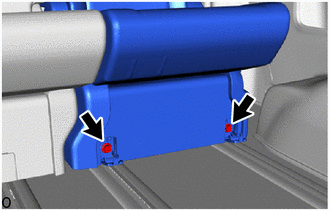

B546942

Remove the 2 bolts.


e.
B546947

Remove the 2 bolts.


f.

Remove the rear No. 3 seat assembly LH from the vehicle.

NOTICE:
·

2 or more people are required when carrying the rear No. 3 seat assembly LH out of the vehicle.

·

Do not damage the rear No. 3 seat assembly LH, body exterior or interior parts.
