RM35X0E _58 Vehicle Interior _078601 SEAT _0396327 REAR SEAT ASSEMBLY(for Manual Captain Seat) A

SEAT  REAR SEAT ASSEMBLY(for Manual Captain Seat)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the rear seat assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures not Performed Link
Disconnect cable from negative (-) battery terminal Memorize steering angle neutral point Parking assist monitor system (Click here)
Panoramic view monitor system (Click here)

HINT:
·

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures not Performed Necessary Procedures Link
Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -


·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

·

The procedure listed below is a representative example.

·

Use the same procedure for first row and second row, unless otherwise specified.



PROCEDURE

Hide 1. PRECAUTION (for First Row)

CAUTION:
B394719

Be sure to read Precaution thoroughly before servicing.



NOTICE:
·

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

If the pretensioner has been deployed, replace any damaged parts as necessary.



Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for First Row)


CAUTION:
B422343

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.



Hide 71940G 3.REMOVE NO. 1 SEAT HEADREST ASSEMBLY LH

a.

Remove the No. 1 seat headrest assembly LH.


Hide 71H74 4.REMOVE REAR SEAT LOWER CUSHION SHIELD LH (for First Row)

a.

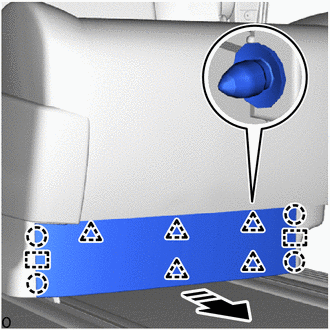

B548230C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the clip, claw and guide and remove the rear seat lower cushion shield LH as shown in the illustration.


Hide 79246J 5.REMOVE NO. 3 SEAT LEG COVER LH (for Second Row)

a.

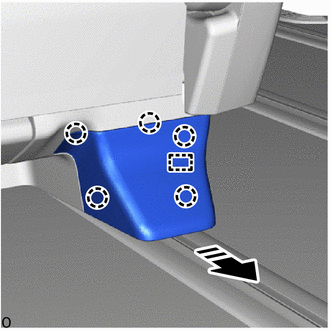

B548232C02
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and guide and remove the No. 3 seat leg cover LH as shown in the illustration.


Hide 79246H 6.REMOVE NO. 2 SEAT LEG COVER LH (for Second Row, w/ Power Supply Unit)

a.

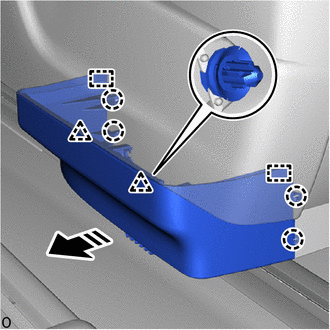

B562777C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the clip, claw and guide and remove the No. 2 seat leg cover LH as shown in the illustration.


Hide 7.REMOVE REAR SEAT ASSEMBLY LH

a.

for First Row:

i.

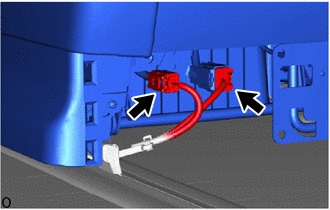

B548236

Disconnect the 2 connectors.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:





b.

for Second Row, w/o Power Supply Unit:

i.

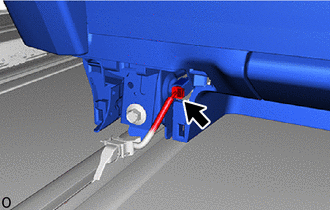

B553615

Disconnect the connector.



c.

for Second Row, w/ Power Supply Unit:

i.

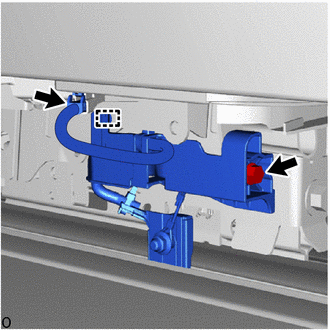

B548237

Disconnect the connector and detach the clamp.


ii.

Remove the bolt.



d.

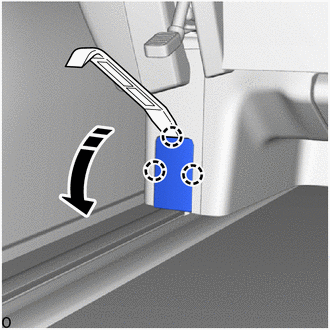

B548238C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and open the cover as shown in the illustration.

HINT:

Use the same procedure for all covers.



e.

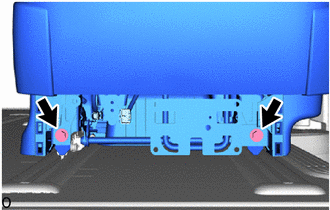

B548240

Remove the 2 bolts.


f.

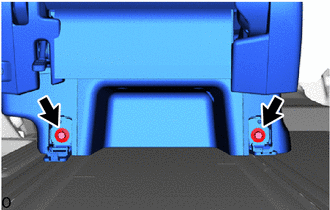

B548241

Remove the 2 bolts and rear seat assembly LH.

NOTICE:
·

2 or more people are required when carrying the rear seat assembly LH out of the vehicle.

·

Do not damage the rear seat assembly LH, seat rail, body exterior or interior parts.




Hide 71397H 8.REMOVE REAR SEAT STOPPER LH (for First Row)

HINT:

Perform this procedure when replacing the rear seat stopper LH.


a.

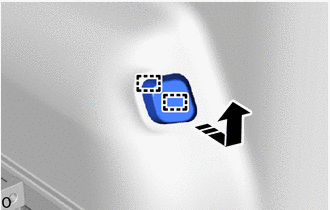

B552097C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the rear seat stopper LH as shown in the illustration.
