RM35X0E _58 Vehicle Interior _078601 SEAT _0382458 REAR SEAT ASSEMBLY(for Folding Type) A

SEAT  REAR SEAT ASSEMBLY(for Folding Type)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.



PROCEDURE

Hide 71940M 1.REMOVE REAR SEAT HEADREST ASSEMBLY (w/ Headrest)

a.

Remove the 2 rear seat headrest assemblies.


Hide 2.REMOVE REAR SEAT ASSEMBLY LH

a.

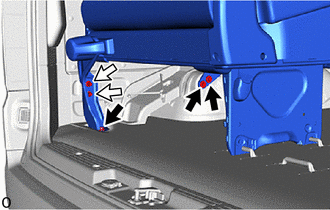

B536598C01
0,0 0,0 false
V100135

Bolt
V100136

Nut


Remove the 3 bolts and 2 nuts.


b.

w/o Under Cover:

i.

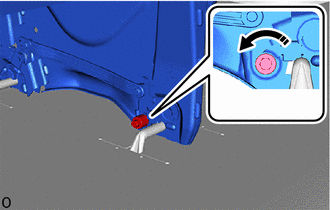

B536600C01
0,0 0,0 false
V113147

Rotate in this Direction


Rotate the bolt to the vehicle front side and unlock the inner leg as shown in the illustration.



c.

w/ Under Cover:

i.

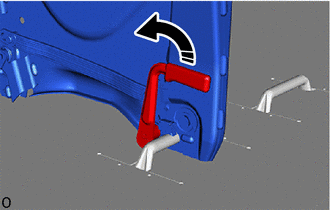

B536599C01
0,0 0,0 false
V113147

Operate in this Direction


Operate the rear seat lock handle and unlock the inner leg as shown in the illustration.



d.

Remove the rear seat assembly LH.


Hide 72681E 3.REMOVE REAR SEAT HOOK (w/ Under Cover)

HINT:
·

Perform this procedure when replacing the rear seat hook.

·

Use the same procedure for the other side.



a.

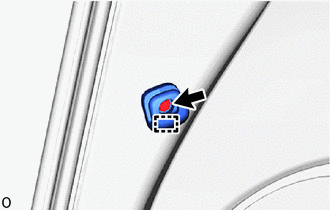

B541139

Loosen the screw.


b.

Detach the guide and remove the rear seat hook.


Hide 72613H 4.REMOVE REAR SEAT LOCK STRIKER

HINT:
·

Perform this procedure when replacing the rear seat lock striker.

·

Use the same procedure for the other side.



a.

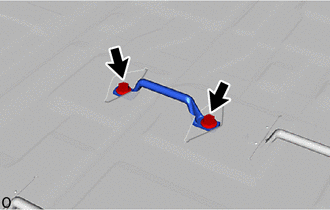

B541140

Remove the 2 bolts and rear seat lock striker.
