7GR-FKS FUEL  FUEL PUMP  INSTALLATION

0.49,0.49 0.667,0.49 0.667,0.49 0.885,0.833 true 0.594,1.417 0.75,1.417 0.75,1.417 0.885,1.073 true 3.083,1.438 2.938,1.438 2.938,1.438 2.76,1.094 true 3.083,0.479 2.927,0.479 2.927,0.479 2.76,0.823 true 0.323,0.396 0.5,0.583 0.177,0.188 10 true *a 0.438,1.323 0.646,1.51 0.208,0.188 10 true *b 3.125,0.375 3.302,0.563 0.177,0.188 10 true *a 3.115,1.354 3.323,1.542 0.208,0.188 10 true *b

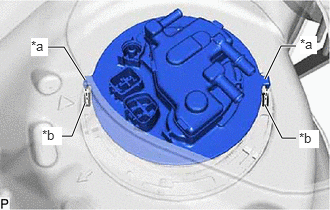

*a	Protrusion
*b	Notch

Align the protrusions of the fuel suction with pump and gauge tube assembly with the notches in the fuel tank assembly.

Install the fuel pump gauge retainer.

ii.

0.656,1.031 1.177,1.031 true 1.979,0.698 2.625,0.698 true 0.771,1.917 0.927,1.917 0.927,1.917 1.188,1.531 true 2.167,3.01 2.885,3.01 true 2.646,0.604 2.833,0.792 0.188,0.188 10 true *a 0.49,0.948 0.677,1.135 0.188,0.188 10 true *b 0.615,1.823 0.802,2.01 0.188,0.188 10 true *c 2.917,2.917 3.146,3.094 0.229,0.177 10 false *d

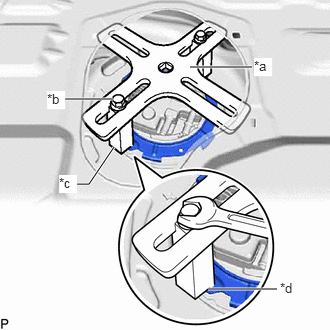

*a	SST (Plate)
*b	SST (Bolt)
*c	SST (Claw)
*d	Insertion Point

Temporarily install SST (plate) and SST (claw) to the fuel pump gauge retainer.

SST

09808-14031  (09808-01030, 09808-01090)
09808-01110

HINT:

Securely insert the ends of SST (claw) into the insertion points in the fuel pump gauge retainer.

iv.

0.833,1.958 1.271,1.958 true 1.729,0.771 1.896,0.479 1.896,0.479 2.063,0.479 true 0.958,1.688 1.438,1.688 true 1.063,2.906 1.208,2.906 1.208,2.906 1.375,3.146 true 1.823,3.063 1.698,3.063 1.698,3.063 1.51,3.375 true 2.115,0.385 2.365,0.604 0.25,0.219 10 false *a 0.802,1.604 1,1.792 0.198,0.188 10 true *b 0.667,1.865 0.854,2.052 0.188,0.188 10 true *c 1.865,2.969 2.052,3.146 0.188,0.177 10 false *d 0.896,2.813 1.063,3 0.167,0.188 10 true *e

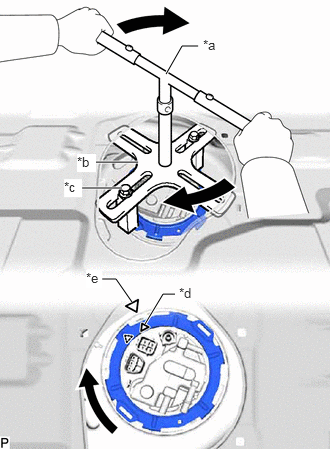

*a	SST (Handle)
*b	SST (Plate)
*c	SST (Bolt)
*d	Triangle Mark (Fuel Pump Gauge Retainer)
*e	Triangle Mark (Fuel Tank Assembly)

Install SST (handle) to SST (plate).

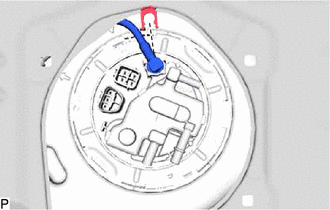

Push the fuel tube joint of the fuel tank main tube sub-assembly and install the tube joint clip.

NOTICE:

0.969,0.76 0.729,0.385 0.729,0.385 0.573,0.385 false 1.656,0.573 1.729,0.198 1.729,0.198 1.896,0.198 false 1.625,1.083 2.094,1.479 2.094,1.479 2.26,1.479 true 1.104,3.24 1.375,3.094 1.375,3.094 1.542,3.094 false 2.438,3.271 2.75,2.813 2.75,2.813 2.917,2.813 true 0.792,3.385 1.021,3.729 1.021,3.729 1.188,3.729 true 2.594,3.396 2.938,3.781 2.938,3.781 3.104,3.781 false 1.01,1.396 0.344,1.396 true 1,1.229 0.583,1.219 0.583,1.219 0.583,1.385 true 0.375,0.292 0.594,0.469 0.219,0.177 10 false *b 1.927,0.094 2.146,0.271 0.219,0.177 10 false *a 2.313,1.406 2.531,1.583 0.219,0.177 10 false *1 0.156,1.302 0.375,1.479 0.219,0.177 10 false *c 1.573,3 1.792,3.177 0.219,0.177 10 false *1 2.948,2.729 3.167,2.906 0.219,0.177 10 false *b 0.719,4.354 0.938,4.531 0.219,0.177 10 false *d 2.375,4.344 2.594,4.521 0.219,0.177 10 false *e 1.198,3.635 1.417,3.813 0.219,0.177 10 false *b 3.135,3.688 3.354,3.865 0.219,0.177 10 false *1

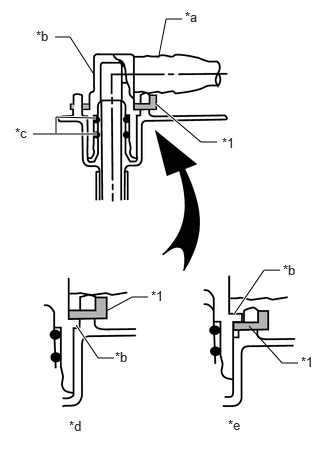

*1	Tube Joint Clip
*a	Nylon Tube
*b	Fuel Tube Joint
*c	O-ring
*d	Correct
*e	Incorrect

·

Check that there are no scratches or foreign matter around the connecting parts of the fuel tube joint and plug before performing this work.

·

Check that the fuel tube joint is securely inserted to the end.

·

Check that the tube joint clip is on the collar of the fuel tube joint.

·

After installing the tube joint clip, check that the fuel tank main tube sub-assembly is securely connected by pulling on it.
