RM35X0E _58 Vehicle Interior _078601 SEAT _0381335 REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt) A

SEAT REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.

PROCEDURE

Hide Display 1.INSTALL REAR SEAT ASSEMBLY LH

Place the rear seat assembly LH in the cabin.

NOTICE:: ·

2 or more people are required when carrying the rear seat assembly LH into the vehicle.

·

Do not damage the rear seat assembly LH, body exterior or interior parts.

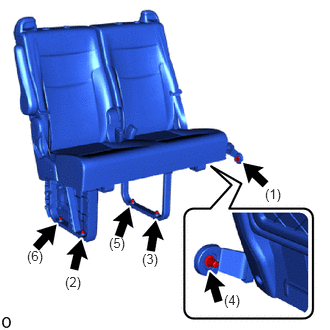

0.677,2.854 0.885,3.031 0.208,0.177 10 false (2) 1.479,2.615 1.688,2.792 0.208,0.177 10 false (3) 2.76,1.938 2.969,2.115 0.208,0.177 10 false (1) 2.333,3.042 2.542,3.219 0.208,0.177 10 false (4) 1.135,2.448 1.344,2.625 0.208,0.177 10 false (5) 0.281,2.583 0.49,2.76 0.208,0.177 10 false (6)

	Bolt
	Nut

Install the rear seat assembly LH with the 4 bolts and 2 nuts in the order indicated in the illustration.

Torque:: 39 N*m (398 kgf*cm, 29 ft.*lbf)

Hide Display 79956W 2.INSTALL REAR SEAT LEG SIDE COVER LH (w/ Cover)

0,0 0,0 false

Install in this Direction

Attach the claw and clip and install the rear seat leg side cover LH as shown in the illustration.

Hide Display 71940M 3.INSTALL REAR SEAT HEADREST ASSEMBLY

Install the 2 rear seat headrest assemblies.
