RM35X0E _59 Vehicle Exterior _078503 DOOR / HATCH _0387491 FUEL LID LOCK CONTROL CABLE ASSEMBLY(for RHD) A

DOOR / HATCH FUEL LID LOCK CONTROL CABLE ASSEMBLY(for RHD) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the fuel lid lock control cable sub-assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Removal and installation of battery terminal	Parking assist monitor system	Memorize steering angle neutral point	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Removal and installation of battery terminal	Panoramic view monitor system	Memorize steering angle neutral point	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 1. PRECAUTION (w/ Front Seat Side Airbag)

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 3.REMOVE FRONT SEAT ASSEMBLY

HINT:: Use the same procedure for the RH and LH sides.

for Power Seat:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REMOVAL201906,999999,_58,_078601,_0396271,RM100000001IGPN,

for Separate Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REMOVAL201906,999999,_58,_078601,_0381328,RM100000001J8ZD,

for Fixed Bench Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Fixed Bench Seat Type)>REMOVAL201902,999999,_58,_078601,_0381330,RM100000001FZKR,

for Sliding Bench Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REMOVAL201906,999999,_58,_078601,_0381329,RM100000001ITAH,

Hide Display 67911B 4.REMOVE FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0046,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0046,

Hide Display 67913B 5.REMOVE FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0002,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0002,

Hide Display 62111C 6.REMOVE COWL SIDE TRIM BOARD RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201906,999999,_58,_078375,_0380058,RM100000001IHOZ_02_0050,

Hide Display 7.REMOVE FRONT CONSOLE BOX (w/ Console Box)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,999999,_58,_078375,_0380059,RM100000001IHPA,

Hide Display 73220 8.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH

for Semi-trim:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Semi-trim)>REMOVAL201902,999999,_58,_078602,_0387551,RM100000001GXXS,

for Full-trim:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Full-trim)>REMOVAL201902,999999,_58,_078602,_0387529,RM100000001GXU3,

for Wagon:

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Wagon)>REMOVAL201906,999999,_58,_078602,_0398106,RM100000001IT68,

Hide Display 55641 9.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201906,999999,_58,_078375,_0380058,RM100000001IHOZ_02_0055,

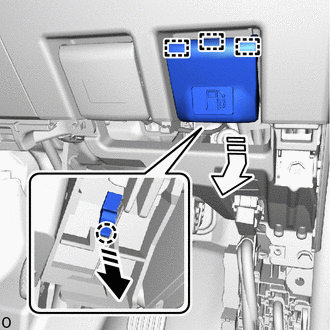

Hide Display 77306 10.REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the claw in the direction (1) indicated by the arrow shown in the illustration.

Detach the guide in the direction (2) indicated by the arrow shown in the illustration and remove the fuel lid lock open lever sub-assembly.

Detach the clamp and remove the fuel lid lock open lever sub-assembly from the fuel lid lock control cable sub-assembly.

Hide Display 77035 11.DISCONNECT FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY

0,0 0,0 false

Remove in this Direction

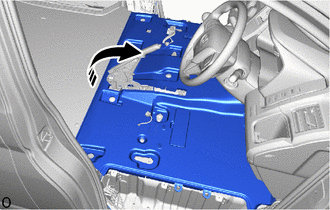

Fold back the front floor mat assembly enough so that the fuel lid lock control cable can be removed as shown in the illustration.

Detach the clamp and disconnect the fuel lid lock control cable sub-assembly.

Hide Display 77310A 12.REMOVE FUEL TANK CAP ASSEMBLY

0,0 0,0 false

Remove in this Direction

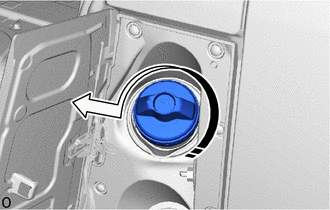

Remove the fuel tank cap assembly as shown in the illustration.

Detach the clamp and remove the fuel tank cap assembly.

w/ Urea SCR System:

HINT:: Use the same procedure to remove the fuel inlet box ring.

Hide Display 77293A 13.REMOVE NO. 3 FUEL TANK FILLER PIPE SHIELD

0,0 0,0 false

Protective Tape

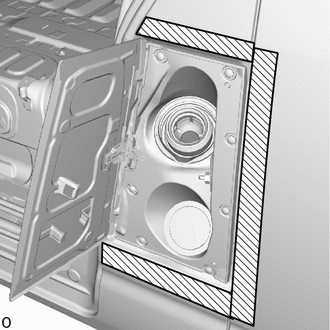

Apply protective tape around the fuel filler opening lid assembly as shown in the illustration.

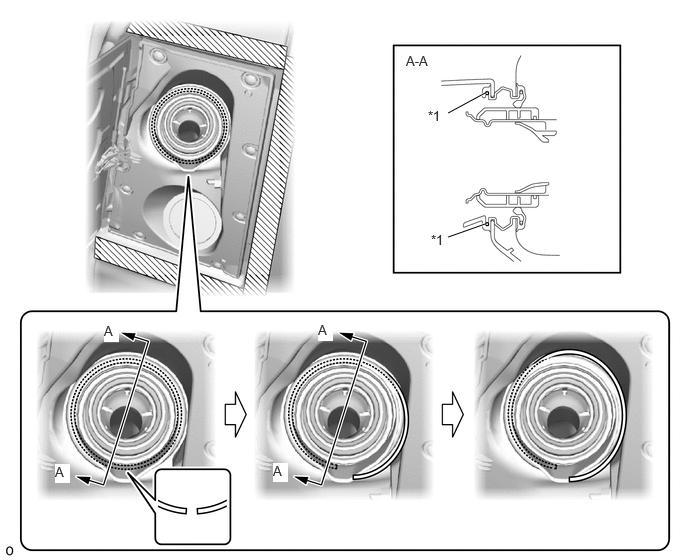

Remove the fuel inlet box ring as shown in the illustration.

4.667,1.177 5.052,0.969 true 4.667,2.469 5.052,2.333 true 4.229,0.552 4.781,0.802 0.552,0.25 10 false A-A 4.49,2.417 4.844,2.708 0.354,0.292 10 false *1 4.458,1.125 4.813,1.417 0.354,0.292 10 false *1 1.083,3.365 1.24,3.563 0.156,0.198 10 true A 0.573,4.833 0.729,5.031 0.156,0.198 10 true A 2.844,4.823 3,5.021 0.156,0.198 10 true A 3.313,3.354 3.469,3.552 0.156,0.198 10 true A

Fuel Inlet Box Ring

w/ Urea SCR System:

HINT:: Use the same procedure to remove the fuel inlet box ring.

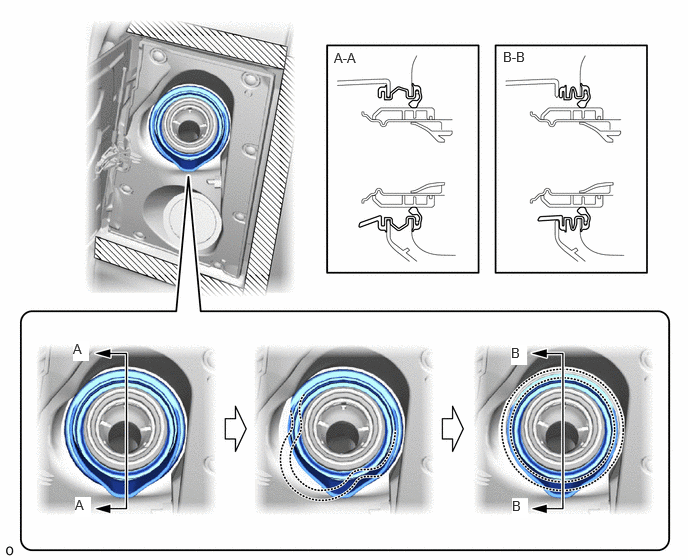

While pushing the fuel tank filler pipe shield assembly into the vehicle, disconnect the fuel tank filler pipe shield assembly from the No. 3 fuel tank filler pipe shield as shown in the illustration.

3.479,0.521 3.938,0.719 0.458,0.198 10 false A-A 5.24,0.51 5.698,0.708 0.458,0.198 10 false B-B 0.76,3.552 0.927,3.76 0.167,0.208 10 true A 0.781,5.177 0.948,5.385 0.167,0.208 10 true A 5.323,3.594 5.49,3.802 0.167,0.208 10 true B 5.333,5.188 5.5,5.396 0.167,0.208 10 true B

w/ Urea SCR System:

HINT:: Use the same procedure to disconnect the fuel tank filler pipe shield assembly.

Using a 4 mm hexagon socket wrench, remove the 7 screws.

0,0 0,0 false

Remove in this Direction

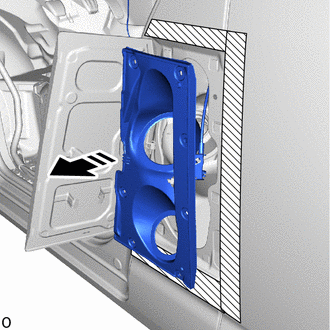

Pull the No. 3 fuel tank filler pipe shield in the direction of the arrow shown in the illustration and remove it together with the fuel lid lock control cable sub-assembly.

HINT:: Pull the fuel lid lock control cable sub-assembly out of the vehicle.

Detach the claw and remove the 7 grommets.

Hide Display 77035 14.REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY

Detach the clamp and remove the fuel lid lock control cable sub-assembly from the fuel filler opening lid lock sub-assembly.

Hide Display 77037 15.REMOVE FUEL FILLER OPENING LID LOCK SUB-ASSEMBLY

HINT:: Perform this procedure only when replacement of the fuel filler opening lid lock sub-assembly is necessary.

Remove the nut and fuel filler opening lid lock sub-assembly.

Hide Display 77378A 16.REMOVE FUEL FILLER OPENING LID LOCK COVER

HINT:: Perform this procedure only when replacement of the fuel filler opening lid lock cover is necessary.

Detach the clip and remove the fuel filler opening lid lock cover.
