Wear protective gloves. Sharp areas on the parts may injure your hands.
There is risk of injury.
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the front seat outer belt assembly removal/installation are shown below.
| Replacement Part or Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative (-) battery terminal | Memorize steering angle neutral point | Parking assist monitor system | ( 201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
|
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.
Learning completes when vehicle is driven
| Effect/Inoperative Function When Necessary Procedures not Performed | Necessary Procedures | Link |
|---|---|---|
| Stop and start system | Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). | ( 201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
|
| Lane control system | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. | ( 201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
|
| Pre-collision system |
Learning completes when vehicle is operated normally
| Effect/Inoperative Function When Necessary Procedures not Performed | Necessary Procedures | Link |
|---|---|---|
| Power slide door system | Fully close the slide door by hand.
|
( 201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
|
| Air conditioning system | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
Use the same procedure for RHD and LHD vehicles.
The procedure listed below is for LHD vehicles.
1. PRECAUTION (w/ Pretensioner and Force Limiter)
Be sure to read Precaution thoroughly before servicing.
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Pretensioner and Force Limiter)
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
If the airbag deploys for any reason, it may cause a serious accident.
67912A
3.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE LH
67911B
4.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE RH
Use the same procedure described for the LH side.
67914B
5.REMOVE FRONT DOOR SCUFF PLATE LH
67913B
6.REMOVE FRONT DOOR SCUFF PLATE RH
Use the same procedure described for the LH side.
7.REMOVE FRONT SEAT ASSEMBLY LH
8.REMOVE FRONT SEAT ASSEMBLY RH
for Separate Seat Type:
Use the same procedure described for the LH side.
for Fixed Bench Seat Type:
74617A
9.REMOVE ASSIST GRIP PLUG (w/ Assist Grip)
74680
10.REMOVE PILLAR ASSIST GRIP ASSEMBLY B (w/ Assist Grip)
73233

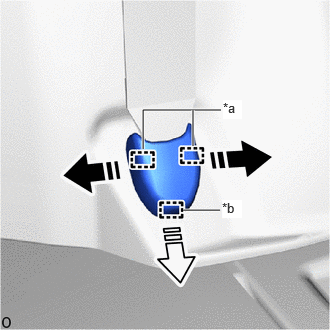

11.REMOVE OUTER LAP BELT ANCHOR COVER
Use the same procedure for the other side.
| *a | Guide A |
| *b | Guide B |
|
Remove in this Direction (1) |
|
Remove in this Direction (2) |
Pull in the removal direction (1) shown in the illustration and detach the guide A.
Detach the guide B in the removal direction (2) shown in the illustration and remove the outer lap belt anchor cover.
73220
12.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)
Remove the bolt and floor anchor of the front seat outer belt assembly LH.
73210
13.REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR)
Use the same procedure described for the LH side.
74733
14.REMOVE NO. 1 HAND GRIP COVER (w/ Hand Rail)
74707
15.REMOVE NO. 1 HAND GRIP FRAME SUB-ASSEMBLY (w/ Hand Rail)
67917C
16.REMOVE REAR DOOR SCUFF PLATE RH
62312B
17.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Pull back the front door opening trim weatherstrip LH so that the quarter trim panel assembly LH can be removed.
62311B
18.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
Pull back the front door opening trim weatherstrip RH so that the lower center pillar garnish RH and center piller garnish RH can be removed.
Use the same procedure described for the LH side.
67871E
19.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP RH
Pull back the No. 1 slide door weatherstrip RH so that the lower center pillar garnish RH and center piller garnish RH can be removed.
62413A
20.REMOVE LOWER CENTER PILLAR GARNISH RH
21.REMOVE REAR SEAT ASSEMBLY LH
for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt:
for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt:
22.REMOVE REAR SEAT ASSEMBLY RH
for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt:
67935
23.REMOVE BACK DOOR SCUFF PLATE
73570B
24.REMOVE REAR SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR) (w/ Seat Belt)
58777A
25.REMOVE TOOL BAG HOLDER
62640M
26.REMOVE REAR QUARTER TRIM BOARD ASSEMBLY LH
62620K
27.REMOVE SIDE TRIM BOARD ASSEMBLY LH (for High Roof)
62520B
28.REMOVE QUARTER TRIM PANEL ASSEMBLY LH
73178C

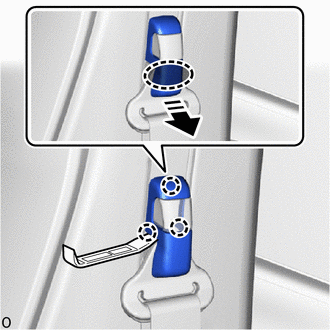

29.REMOVE SEAT BELT ANCHOR COVER CAP
Use the same procedure for the other side.
|
Place Hand Here |
|
Remove in this Direction |
Place your hand at the position shown in the illustration, using moulding remover A, detach the claw while pulling in the removal direction and remove the seat belt anchor cover cap.
73220
30.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH
Remove the bolt and shoulder anchor of the front seat outer belt assembly LH.
w/ Pretensioner and Force Limiter:
| *a | Locking Button |
|
Release in this Direction |
|
Protective Tape |
Using a thin-bladed screwdriver, pull out the locking button to release the lock to disconnect the pretensioner connector as shown in the illustration.
Tape the thin-bladed screwdriver tip before use.
Remove the 2 bolts.
Detach the guide and remove the front seat outer belt assembly LH.
73210
31.REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH
Use the same procedure described for the LH side.
62411
32.REMOVE CENTER PILLAR GARNISH RH
Perform this procedure when replacing the front shoulder belt anchor plate sub-assembly RH.
62412
33.REMOVE CENTER PILLAR GARNISH LH
Perform this procedure when replacing the front shoulder belt anchor plate sub-assembly LH.
73024
34.REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH
Perform this procedure when replacing the front shoulder belt anchor plate sub-assembly LH.
Detach the guide and remove the front shoulder belt anchor plate sub-assembly LH.
73023
35.REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH
Perform this procedure when replacing the front shoulder belt anchor plate sub-assembly RH.
Use the same procedure described for the LH side.
73200A
36.REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY
Perform this procedure when replacing the front shoulder belt anchor adjuster assembly.
Use the same procedure for the other side.
Remove the 2 bolts.
Detach the guide and remove the front shoulder belt anchor adjuster assembly.
