RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0398106 FRONT SEAT OUTER BELT ASSEMBLY(for Wagon) A

SEAT BELT FRONT SEAT OUTER BELT ASSEMBLY(for Wagon) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the front seat outer belt assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

Use the same procedure for the RH and LH sides.

The following procedure is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 67912A 3.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0046,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0046,

Hide Display 67914B 4.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0001,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0001,

Hide Display 62312B 5.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

HINT:: Pull back the front door opening trim weatherstrip LH so that the lower center pillar garnish LH and center pillar garnish LH can be removed.; Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>REMOVAL201902,999999,_59,_078503,_0385652,RM100000001GNFL_02_0003,

Hide Display 6.REMOVE FRONT SEAT ASSEMBLY LH

for Power Seat:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REMOVAL201906,999999,_58,_078601,_0396271,RM100000001IGPN,

for Separate Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REMOVAL201906,999999,_58,_078601,_0381328,RM100000001J8ZD,

Hide Display 73178C 7.REMOVE SEAT BELT ANCHOR COVER CAP

0,0 0,0 false

	Place Hand Here
	Remove in this Direction

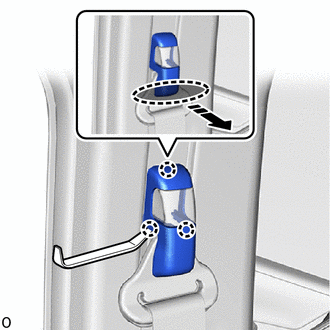

Place your hand at the position shown in the illustration, using moulding remover A, detach the claw while pulling in the removal direction and remove the seat belt anchor cover cap.

Hide Display 73233 8.REMOVE OUTER LAP BELT ANCHOR COVER

1.542,1.604 1.542,1.198 1.542,1.198 2.354,1.198 true 2.042,1.573 2.042,1.198 true 2.396,2.083 2.01,2.083 true 2.385,1.073 2.583,1.271 0.198,0.198 10 true *a 2.448,1.958 2.656,2.146 0.208,0.188 10 true *b

*a	Guide A
*b	Guide B
	Remove in this Direction (1)
	Remove in this Direction (2)

Pull in the removal direction (1) shown in the illustration and detach the guide A.

Detach the guide B in the removal direction (2) shown in the illustration and remove the outer lap belt anchor cover.

Hide Display 73220 9.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

Remove the bolt and floor anchor of the front seat outer belt assembly LH.

Hide Display 67918D 10.REMOVE REAR DOOR SCUFF PLATE LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0014,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0014,

Hide Display 67872A 11.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP LH

HINT:: Pull back the No. 1 slide door weatherstrip LH so that the lower center pillar garnish LH and center piller garnish LH can be removed.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>REMOVAL201906,999999,_59,_078503,_0397541,RM100000001IPZ4_02_0010,

Hide Display 74617A 12.REMOVE ASSIST GRIP PLUG

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5_02_0024,

Hide Display 74680 13.REMOVE PILLAR ASSIST GRIP ASSEMBLY B

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5_02_0025,

Hide Display 62414A 14.REMOVE LOWER CENTER PILLAR GARNISH LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0017,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0017,

Hide Display 73220 15.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH

Remove the bolt and shoulder anchor of the front seat outer belt assembly LH.

0.583,0.698 1.042,0.99 true 0.396,0.542 0.573,0.74 0.177,0.198 10 false *a

*a	Locking Button
	Release in this Direction
	Protective Tape

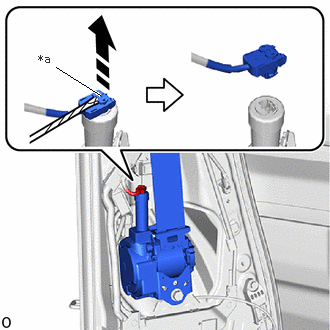

Using a thin-bladed screwdriver, pull out the locking button to release the lock to disconnect the pretensioner connector as shown in the illustration.

HINT:: Tape the thin-bladed screwdriver tip before use.

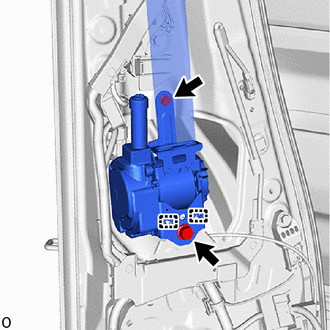

Remove the 2 bolts.

Detach the guide and remove the front seat outer belt assembly LH.

Hide Display 62412 16.REMOVE CENTER PILLAR GARNISH LH

HINT:: ·

Perform this procedure when replacing the front shoulder belt anchor plate sub-assembly LH.

·

Use the same procedure described for the RH side.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0020,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0020,

Hide Display 73024 17.REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH

HINT:: Perform this procedure when replacing the front shoulder belt anchor plate sub-assembly LH.

Detach the guide and remove the front shoulder belt anchor plate sub-assembly LH.

Hide Display 73200A 18.REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

HINT:: Perform this procedure when replacing the front shoulder belt anchor adjuster assembly.

Remove the 2 bolts.

Detach the guide and remove the front shoulder belt anchor adjuster assembly.
