RM35X0E _58 Vehicle Interior _078375 INTERIOR PANELS / TRIM _0380059 FRONT CONSOLE BOX A

INTERIOR PANELS / TRIM  FRONT CONSOLE BOX  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RHD and LHD vehicles.

·

The procedure listed below is for the LHD vehicles.



PROCEDURE

Hide 58903A 1.REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

a.

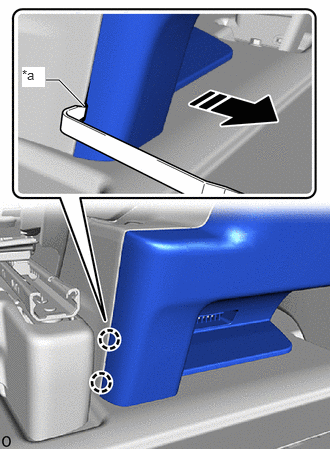

B537662C01
0.479,0.833 0.615,0.833 0.615,0.833 0.875,1.104 true 0.229,0.698 0.469,0.906 0.24,0.208 10 true *a
*a Cut out
V113147

Remove in this Direction


Insert moulding remover A at the position shown in the illustration and pull toward the rear of the vehicle to detach the claw.


b.

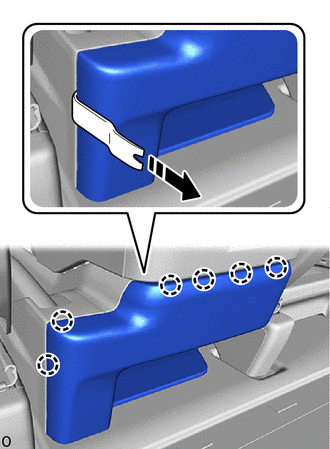

B528160C01
0,0 0,0 false
V113147

Remove in this Direction


Insert moulding remover B at the position shown in the illustration and pull toward the rear of the vehicle to detach the claw.


c.

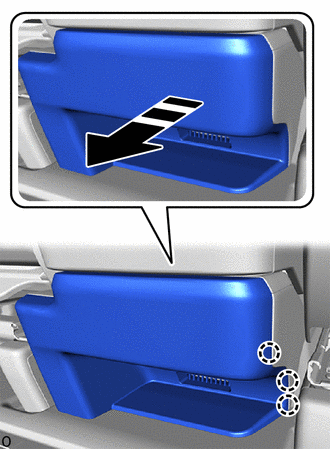

B528161C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the console rear end panel sub-assembly as shown in the illustration.


Hide 58904B 2.REMOVE PARKING BRAKE HOLE COVER SUB-ASSEMBLY (for Separate Seat Type)

a.

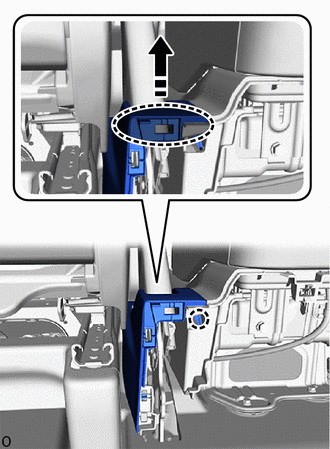

B528162C01
0,0 0,0 false
V113146

Place Finger Here
V113147

Remove in this Direction


Place your finger at the position shown in the illustration and pull in the direction of the arrow to detach the claw.


b.

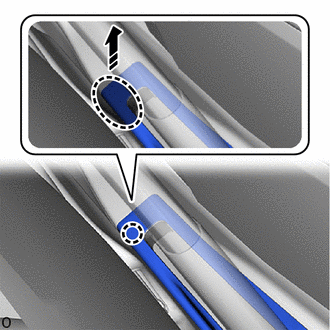

B528163C01
0,0 0,0 false
V113146

Place Finger Here
V113147

Remove in this Direction


Place your finger at the position shown in the illustration and pull in the direction of the arrow to detach the claw.


c.

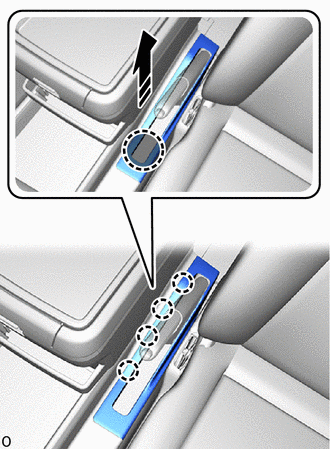

B528164C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration and pull in the direction of the arrow to detach the claw and remove the parking brake hole cover sub-assembly.


Hide 58903E 3.REMOVE NO. 2 CONSOLE REAR END PANEL SUB-ASSEMBLY (w/ Console Box)

a.

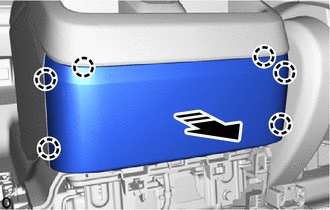

B537688C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the No. 2 console rear end panel sub-assembly as shown in the illustration.


b.

for Wagon:

i.
B528215

Disconnect the connector.



Hide 58825A 4.REMOVE CONSOLE BOX POCKET (w/ Console Box)

a.

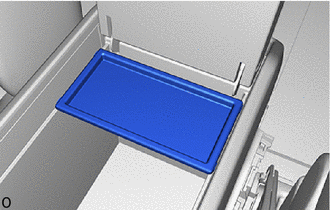

B528165

Remove the console box pocket.


Hide 58815A 5.REMOVE CONSOLE BOX CARPET (w/ Console Box)

a.

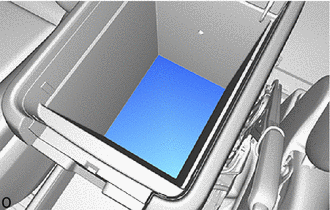

B528166

Remove the console box carpet.


Hide 58820A 6.REMOVE CONSOLE COMPARTMENT BOX ASSEMBLY (w/ Console Box)

a.

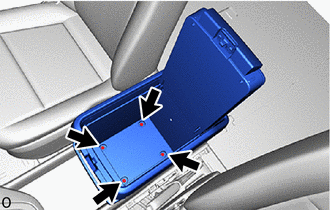

B528167

Remove the 4 bolts.


b.

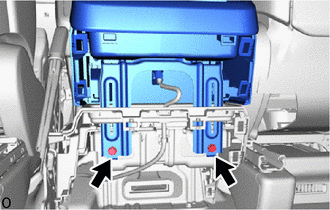

B537692

Remove the 2 bolts.


c.

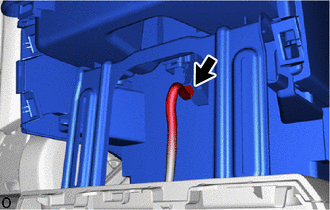

B537693

Disconnect the connector.


d.

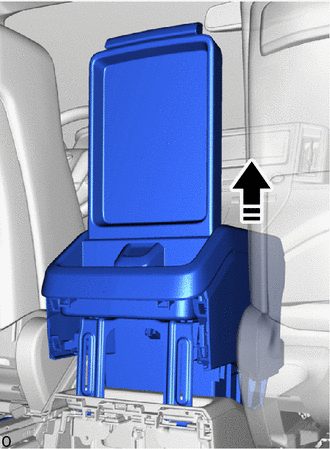

B537690C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the console compartment box assembly as shown in the illustration.


Hide 58919B 7.REMOVE CONSOLE BOX PLATE (w/o Console Box)

a.

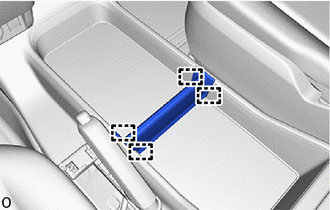

B528171

Detach the guide and remove the console box plate.


Hide 58839A 8.REMOVE CONSOLE BOX HOLE COVER (w/o Console Box, w/o Fire Extinguisher)

a.

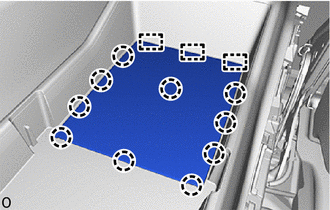

B528172

Detach the claw and guide and remove the console box hole cover.


Hide 58199D 9.REMOVE NO. 2 EXTINGUISHER BRACKET (w/o Console Box, w/ Fire Extinguisher)

a.

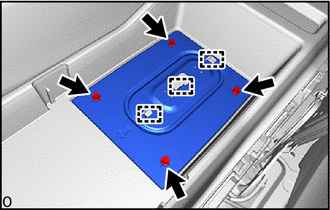

B537657

Remove the 4 bolts.


b.

Detach the guide and remove the No. 2 extinguisher bracket.


Hide 58199D 10.REMOVE NO. 2 EXTINGUISHER BRACKET (w/ Console Box, w/ Fire Extinguisher)

a.

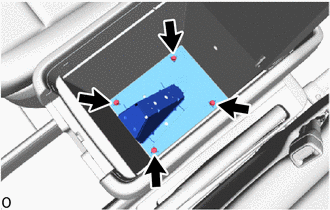

B537680

Remove the 4 bolts and No. 2 extinguisher bracket.


Hide 58810J 11.REMOVE CONSOLE BOX ASSEMBLY

a.

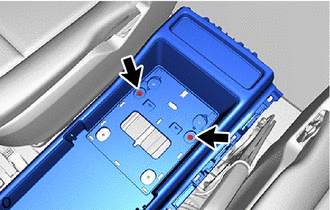

B528173

Remove the 2 bolts.


b.

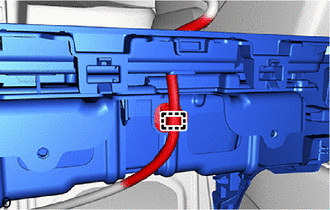

B528174

w/ Console Box:

i.

Detach the wire harness clamp.



c.

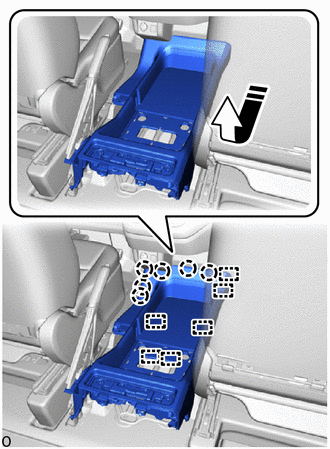

B537651C01
0,0 0,0 false
V113147

Remove in this Direction


Pull in the direction of the arrow to detach the claw and guide and remove the console box assembly.


Hide 58902C 12.REMOVE CONSOLE BOX MOUNTING BRACKET SUB-ASSEMBLY

HINT:

Perform this procedure only when replacing the console box mounting bracket sub-assembly.


a.

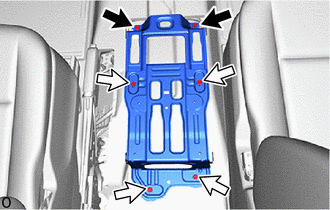

B537633C02
0,0 0,0 false
V100135

Bolt A
V100136

Bolt B


Remove the 6 bolts and console box mounting bracket sub-assembly.

HINT:
Item Length
Bolt A 20 mm (0.7874 in.)
Bolt B 54 mm (2.1260 in.)



Hide 58839A 13.REMOVE CONSOLE BOX HOLE COVER (for Wagon, w/o Console Box)

a.

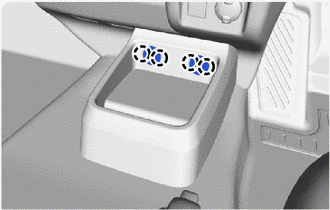

B537678

Detach the claw and remove the 2 console box hole covers.


Hide 58802E 14.REMOVE FRONT CONSOLE BOX SUB-ASSEMBLY (for Wagon, w/o Console Box)

a.

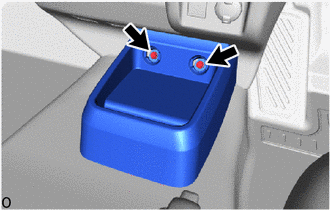

B537679

Remove the 2 bolts.


b.

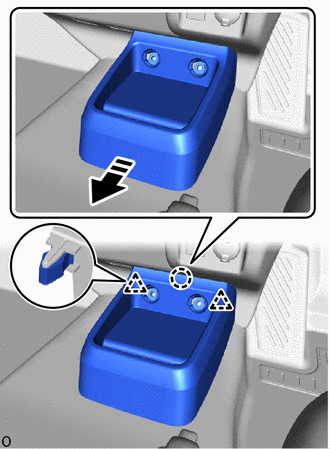

B537681C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the clip and claw and remove the front console box sub-assembly as shown in the illustration.
