SEAT BELT  FRONT SEAT OUTER BELT ASSEMBLY(for Semi-trim)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the front seat outer belt assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures not Performed Link
Disconnect cable from negative (-) battery terminal Memorize steering angle neutral point Parking assist monitor system (Click here)

HINT:
·

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures not Performed Necessary Procedures Link
Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -


·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 1. PRECAUTION (w/ Pretensioner and Force Limiter)

CAUTION:
B394719

Be sure to read Precaution thoroughly before servicing.

·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION



NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Pretensioner and Force Limiter)

·

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL

·

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL


CAUTION:
B422343

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.



Hide 67911B 4.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE RH

HINT:

Use the same procedure described for the LH side.


Hide 67913B 6.REMOVE FRONT DOOR SCUFF PLATE RH

HINT:

Use the same procedure described for the LH side.


Hide 73233 11.REMOVE OUTER LAP BELT ANCHOR COVER

HINT:

Use the same procedure for the other side.


a.
B542950C01
1.958,0.802 1.958,0.417 1.958,0.417 1.156,0.417 true 1.583,0.833 1.583,0.417 true 2.469,1.135 1.844,1.135 true 0.948,0.313 1.135,0.51 0.188,0.198 10 true *a 2.49,1.031 2.677,1.229 0.188,0.198 10 true *b
*a Guide A
*b Guide B
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)

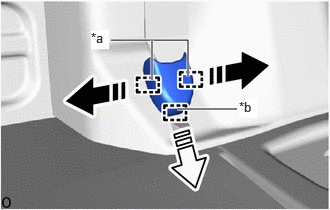

Pull in the removal direction (1) shown in the illustration and detach the guide A.


b.

Detach the guide B in the removal direction (2) shown in the illustration and remove the outer lap belt anchor cover.


Hide 73220 12.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

a.
B542952

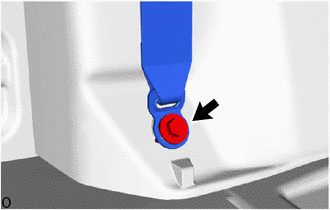

Remove the bolt and floor anchor of the front seat outer belt assembly LH.


Hide 73210 13.REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR)

HINT:

Use the same procedure described for the LH side.


Hide 67918D 17.REMOVE REAR DOOR SCUFF PLATE LH (for 5 Door)

HINT:

Use the same procedure described for the RH side.


Hide 62312B 18.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

HINT:

Pull back the front door opening trim weatherstrip LH so that the lower center pillar garnish LH and center piller garnish LH can be removed.

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>REMOVAL


Hide 62311B 19.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

HINT:
·

Pull back the front door opening trim weatherstrip RH so that the lower center pillar garnish RH and center piller garnish RH can be removed.

·

Use the same procedure described for the LH side.



Hide 67871E 20.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP RH

HINT:

Pull back the No. 1 slide door weatherstrip RH so that the lower center pillar garnish RH and center piller garnish RH can be removed.

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (except Wagon)>REMOVAL


Hide 67872A 21.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP LH (for 5 Door)

HINT:
·

Pull back the No. 1 slide weatherstrip LH so that the lower center pillar garnish LH and center piller garnish LH can be removed.

·

Use the same procedure described for the RH side.



Hide 62414A 23.REMOVE LOWER CENTER PILLAR GARNISH LH

HINT:

Use the same procedure described for the RH side.


Hide 73178C 24.REMOVE SEAT BELT ANCHOR COVER CAP

HINT:

Use the same procedure for the other side.


a.
B542942C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction

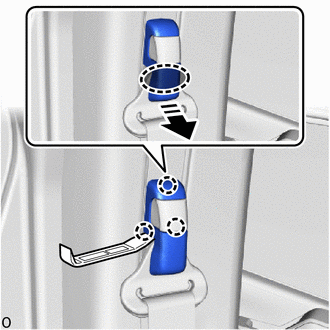

Place your hand at the position shown in the illustration, using moulding remover A, detach the claw while pulling in the removal direction and remove the seat belt anchor cover cap.


Hide 73220 25.REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH

a.
B542943

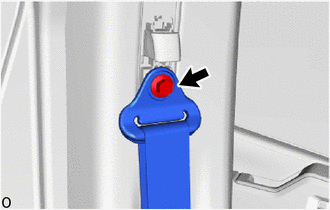

Remove the bolt and shoulder anchor of the front seat outer belt assembly LH.


b.

w/ Pretensioner and Force Limiter:

i.
B541705C01
0.583,0.698 1.042,0.99 true 0.396,0.542 0.573,0.74 0.177,0.198 10 false *a
*a Locking Button
V113147

Release in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, pull out the locking button to release the lock to disconnect the pretensioner connector as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.




c.
B541707

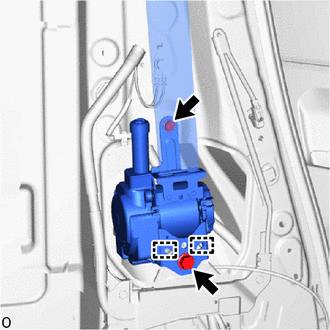

Remove the 2 bolts.


d.

Detach the guide and remove the front seat outer belt assembly LH.


Hide 73210 26.REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 73024 29.REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH

HINT:

Perform this procedure when replacing the front shoulder belt anchor plate sub-assembly LH.


a.
B542944

Detach the guide and remove the front shoulder belt anchor plate sub-assembly LH.


Hide 73023 30.REMOVE FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH

HINT:
·

Perform this procedure when replacing the front shoulder belt anchor plate sub-assembly RH.

·

Use the same procedure described for the LH side.



Hide 73200A 31.REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

HINT:
·

Perform this procedure when replacing the front shoulder belt anchor adjuster assembly.

·

Use the same procedure for the other side.



a.
B541708

Remove the 2 bolts.


b.

Detach the guide and remove the front shoulder belt anchor adjuster assembly.
