NETWORKING  CAN COMMUNICATION SYSTEM(for HEV Model)  TERMINALS OF ECU


CAUTION:
·

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

·
A340358

Before the following operations are conducted, take precautions to prevent electric shock by turning the power switch off, wearing insulated gloves, and removing the service plug grip from HV battery.

-

Inspecting the high-voltage system

-

Disconnecting the low voltage connector of the inverter with converter assembly

-

Disconnecting the low voltage connector of the HV battery


·
A371653

To prevent electric shock, make sure to remove the service plug grip to cut off the high voltage circuit before servicing the vehicle.

·
A358042

After removing the service plug grip from the HV battery, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.

·
A371654C04
1.563,1.229 1.333,0.813 true 1.156,0.677 1.469,0.875 0.313,0.198 10 false *a
*a Without waiting for 10 minutes


After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>PRECAUTION

HINT:

Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.




NOTICE:
·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minute or more before measuring the resistance.

·

This section describes the standard values for all CAN related components.



HINT:
·

The systems (ECUs and sensors) that use CAN communication vary depending on the vehicle and optional equipment. Check which systems (ECUs and sensors) are installed to the vehicle.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HEV Model)>DIAGNOSIS SYSTEM

·

Operating the ignition switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.

·

Even after DTCs are cleared, if a DTC is stored again after driving the vehicle for a while, the malfunction may be occurring due to vibration of the vehicle. In such a case, wiggling the ECUs or wire harness while performing the inspection below may help determine the cause of the malfunction.



NO. 2 GLOBAL CAN JUNCTION CONNECTOR


a.

Check the No. 2 global CAN junction connector.

i.

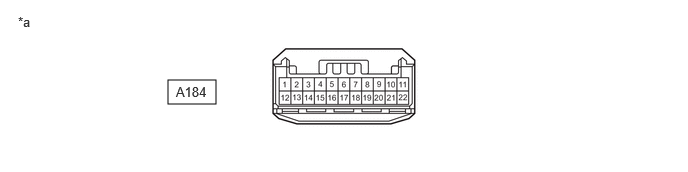

Connection diagram

C489766C36
1.75,0.833 2.25,1.083 0.5,0.25 0.188,0.146 0.5,0.344 0.313,0.198 10 false *a 1.833,0.875 2.26,1.094 0.427,0.219 10 false A184
*a Front view of wire harness connector
(to No. 2 Global CAN Junction Connector) 		- -



ii.

Check the connection diagram of the components which are connected to the No. 2 global CAN junction connector.

Terminal No. (Symbol) Wiring Color Connected to
A184-1 (CANH) B Skid control ECU (brake actuator assembly)
(for Bus 4)
A184-12 (CANL) W
A184-2 (CANH) B No. 5 global CAN junction connector
(for Bus 4)
A184-13 (CANL) W
A184-3 (CANH) B Central gateway ECU (network gateway ECU)
(for Bus 4)
A184-14 (CANL) W
A184-4 (CANH) B Electric brake booster (brake booster with master cylinder assembly)
(for Bus 4)
A184-15 (CANL) W
A184-5 (CANH) R Hybrid vehicle control ECU
(for Battery Local Bus)
A184-16 (CANL) W
A184-6 (CANH) R Inverter with converter assembly
(for Battery Local Bus)
A184-17 (CANL) W
A184-7 (CANH) B Battery ECU assembly
(for Battery Local Bus)
A184-18 (CANL) W




NO. 4 GLOBAL CAN JUNCTION CONNECTOR (w/ Power Back Door)


a.

Check the No. 4 global CAN junction connector.

i.

Connection diagram

C454839C56
1.615,0.823 2.042,1.073 0.427,0.25 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 1.698,0.865 2.063,1.104 0.365,0.24 10 false I189
*a Front view of wire harness connector
(to No. 4 Global CAN Junction Connector) 		- -



ii.

Check the connection diagram of the components which are connected to the No. 4 global CAN junction connector.

Terminal No. (Symbol) Wiring Color Connected to
I189-1 (CANH) Y Certification ECU (smart key ECU assembly)
(for Bus 5)
I189-12 (CANL) W
I189-2 (CANH) V Central gateway ECU (network gateway ECU)
(for Bus 5)
I189-13 (CANL) BR
I189-3 (CANH) B Air conditioning amplifier assembly
(for Bus 5)
I189-14 (CANL) W
I189-4 (CANH) GR No. 6 global CAN junction connector
(for Bus 5)
I189-15 (CANL) W




NO. 4 GLOBAL CAN JUNCTION CONNECTOR (w/o Power Back Door)


a.

Check the No. 4 global CAN junction connector.

i.

Connection diagram

C454839C56
1.615,0.823 2.042,1.073 0.427,0.25 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 1.698,0.865 2.063,1.104 0.365,0.24 10 false I189
*a Front view of wire harness connector
(to No. 4 Global CAN Junction Connector) 		- -



ii.

Check the connection diagram of the components which are connected to the No. 4 global CAN junction connector.

Terminal No. (Symbol) Wiring Color Connected to
I189-1 (CANH) Y Certification ECU (smart key ECU assembly)
(for Bus 5)
I189-12 (CANL) W
I189-2 (CANH) V Central gateway ECU (network gateway ECU)
(for Bus 5)
I189-13 (CANL) BR
I189-3 (CANH) B Air conditioning amplifier assembly
(for Bus 5)
I189-14 (CANL) W
I189-5 (CANH) L Main body ECU (multiplex network body ECU)
(for Bus 5)
I189-16 (CANL) W




NO. 5 GLOBAL CAN JUNCTION CONNECTOR


a.

Check the No. 5 global CAN junction connector.

i.

Connection diagram

C454839C55
1.615,0.823 2.042,1.073 0.427,0.25 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 1.698,0.865 2.063,1.104 0.365,0.24 10 false I263
*a Front view of wire harness connector
(to No. 5 Global CAN Junction Connector) 		- -



ii.

Check the connection diagram of the components which are connected to the No. 5 global CAN junction connector.

Terminal No. (Symbol) Wiring Color Connected to
I263-1 (CANH) G Power steering ECU assembly
(for Bus 4)
I263-12 (CANL) W
I263-2 (CANH) R Airbag ECU assembly
(for Bus 4)
I263-13 (CANL) G
I263-3 (CANH) B Steering sensor
(for Bus 4)
I263-14 (CANL) W
I263-4 (CANH) B No. 2 global CAN junction connector
(for Bus 4)
I263-15 (CANL) W
I263-8 (CANH) B Radio and display receiver assembly
(for Bus 3)
I263-19 (CANL) W
I263-9 (CANH) L Telematics transceiver
(for Bus 3)
I263-20 (CANL) W
I263-10 (CANH) L Combination meter assembly
(for Bus 3)
I263-21 (CANL) W
I263-11 (CANH) L Central gateway ECU (network gateway ECU)
(for Bus 3)
I263-22 (CANL) R




NO. 6 GLOBAL CAN JUNCTION CONNECTOR (w/ Power Back Door)


a.

Check the No. 6 global CAN junction connector.

i.

Connection diagram

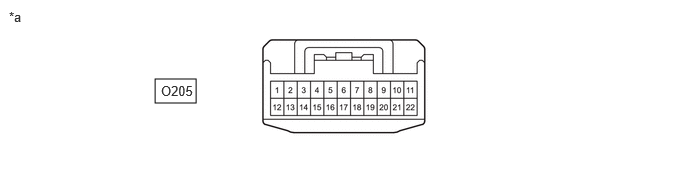

C454839C57
1.615,0.823 2.042,1.073 0.427,0.25 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 1.677,0.865 2.104,1.104 0.427,0.24 10 false O205
*a Front view of wire harness connector
(to No. 6 Global CAN Junction Connector) 		- -



ii.

Check the connection diagram of the components which are connected to the No. 6 global CAN junction connector.

Terminal No. (Symbol) Wiring Color Connected to
O205-5 (CANH) P Main body ECU (multiplex network body ECU)
(for Bus 5)
O205-16 (CANL) B
O205-6 (CANH) P No. 4 global CAN junction connector
(for Bus 5)
O205-17 (CANL) W
O205-7 (CANH) GR Multiplex network door ECU
(for Bus 5)
O205-18 (CANL) W




NO. 7 GLOBAL CAN JUNCTION CONNECTOR


a.

Check the No. 7 global CAN junction connector.

i.

Connection diagram

C454839C58
1.615,0.823 2.042,1.073 0.427,0.25 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 1.698,0.865 2.063,1.104 0.365,0.24 10 false I262
*a Front view of wire harness connector
(to No. 7 Global CAN Junction Connector) 		- -



ii.

Check the connection diagram of the components which are connected to the No. 7 global CAN junction connector.

Terminal No. (Symbol) Wiring Color Connected to
I262-5 (CANH) B Inverter with converter assembly
(for Bus 2)
I262-16 (CANL) W
I262-6 (CANH) R Hybrid vehicle control ECU
(for Bus 2)
I262-17 (CANL) W
I262-7 (CANH) B Battery ECU assembly
(for Bus 2)
I262-18 (CANL) W
I262-8 (CANH) L Tire pressure warning ECU and receiver
(for Bus 6)
I262-19 (CANL) R
I262-9 (CANH) L Central gateway ECU (network gateway ECU)
(for Bus 6)
I262-20 (CANL) BR
I262-10 (CANH) W Central gateway ECU (network gateway ECU)
(for Bus 6)
I262-21 (CANL) V
I262-11 (CANH) G Vehicle approaching speaker controller
(for Bus 6)
I262-22 (CANL) W




NO. 8 GLOBAL CAN JUNCTION CONNECTOR (w/ TOYOTA Parking Assist-sensor System)


a.

Check the No. 8 global CAN junction connector.

i.

Connection diagram

C454839C59
1.615,0.823 2.042,1.073 0.427,0.25 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 1.698,0.875 2.063,1.115 0.365,0.24 10 false I264
*a Front view of wire harness connector
(to No. 8 Global CAN Junction Connector) 		- -



ii.

Check the connection diagram of the components which are connected to the No. 8 global CAN junction connector.

Terminal No. (Symbol) Wiring Color Connected to
I264-1 (CANH) L Clearance warning ECU assembly
(for Bus 1)
I264-12 (CANL) W
I264-2 (CANH) B Forward recognition camera
(for Bus 1)
I264-13 (CANL) W
I264-3 (CANH) SB Central gateway ECU (network gateway ECU)
(for Bus 1)
I264-14 (CANL) W




NO. 9 GLOBAL CAN JUNCTION CONNECTOR (w/ Panoramic View Monitor System or Parking Assist Monitor System)


a.

Check the No. 9 global CAN junction connector.

i.

Connection diagram

C454839C60
1.615,0.823 2.042,1.073 0.427,0.25 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 1.688,0.865 2.052,1.104 0.365,0.24 10 false O211
*a Front view of wire harness connector
(to No. 9 Global CAN Junction Connector) 		- -



ii.

Check the connection diagram of the components which are connected to the No. 9 global CAN junction connector.

Terminal No. (Symbol) Wiring Color Connected to
O211-1 (CANH) L Parking assist ECU*1
(for Bus 1)
O211-12 (CANL) W
O211-2 (CANH) R CAN junction terminal
(for Bus 1)
O211-13 (CANL) W
O211-3 (CANH) B Rear Television Camera Assembly*2
(for Bus 1)
O211-14 (CANL) W
O211-4 (CANH) BE Millimeter wave radar sensor assembly
(for Bus 1)
O211-15 (CANL) W

*1: w/ Panoramic View Monitor System

*2: w/ Parking Assist Monitor System





NO. 1 CAN JUNCTION CONNECTOR


a.

Check the No. 1 CAN junction connector.

i.

Connection diagram

C484976C11
2.031,0.823 2.458,1.073 0.427,0.25 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.083,0.875 2.646,1.104 0.563,0.229 10 false A199
*a Front view of wire harness connector
(to No. 1 CAN Junction Connector) 		- -



ii.

Check the connection diagram of the components which are connected to the No. 1 CAN junction connector.

Terminal No. (Symbol) Wiring Color Connected to
A199-1 (CANH) BE Electric brake booster (brake booster with master cylinder assembly)
(for Powertrain Local Bus)
A199-5 (CANL) W
A199-2 (CANH) L Hybrid vehicle control ECU
(for Powertrain Local Bus)
A199-6 (CANL) W
A199-3 (CANH) B No. 2 CAN junction connector
(for Powertrain Local Bus)
A199-7 (CANL) W




NO. 2 CAN JUNCTION CONNECTOR


a.

Check the No. 2 CAN junction connector.

i.

Connection diagram

C484976C10
2.031,0.823 2.458,1.073 0.427,0.25 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.083,0.865 2.646,1.094 0.563,0.229 10 false A200
*a Front view of wire harness connector
(to No. 2 CAN Junction Connector) 		- -



ii.

Check the connection diagram of the components which are connected to the No. 2 CAN junction connector.

Terminal No. (Symbol) Wiring Color Connected to
A200-1 (CANH) V Inverter with converter assembly
(for Powertrain Local Bus)
A200-5 (CANL) W
A200-2 (CANH) BE Skid control ECU (brake actuator assembly)
(for Powertrain Local Bus)
A200-6 (CANL) W
A200-3 (CANH) B ECM
(for Powertrain Local Bus)
A200-7 (CANL) W
A200-4 (CANH) B No. 1 CAN junction connector
(for Powertrain Local Bus)
A200-8 (CANL) W




CAN JUNCTION TERMINAL


a.

Check the CAN junction terminal.

i.

Connection diagram

C464761C86
2.156,0.719 2.646,0.958 0.49,0.24 0.115,0.115 0.427,0.313 0.313,0.198 10 false *a 2.219,0.76 2.833,0.958 0.615,0.198 10 false O207
*a Rear view of wire harness connector
(to CAN Junction Terminal) 		- -



ii.

Check the connection diagram of the components which are connected to the CAN junction terminal.

Terminal No. (Symbol) Wiring Color Connected to
O207-3 (CANH) R No. 9 global CAN junction connector*1
(for Bus 1)
O207-2 (CANL) W
O207-3 (CANH) R Millimeter wave radar sensor assembly*2
(for Bus 1)
O207-2 (CANL) W

*1: w/ Panoramic View Monitor System or Parking Assist Monitor System

*2: w/o Panoramic View Monitor System and Parking Assist Monitor System

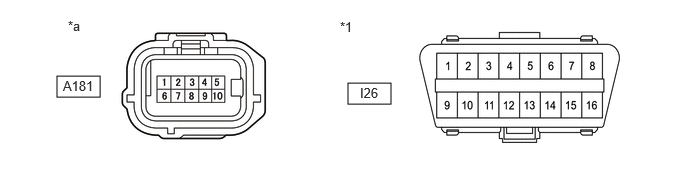

DLC3


a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Measure the resistance according to the value(s) in the table below.

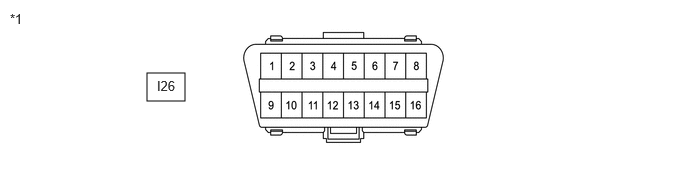

C427140C47
1.531,0.76 1.927,1.052 0.396,0.292 0.104,0.115 0.417,0.313 0.313,0.198 10 false *1 1.635,0.813 2.052,1.115 0.417,0.302 10 false I26
*1 DLC3 - -


Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I26-6 (CANH) - I26-14 (CANL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
I26-6 (CANH) - I26-4 (CG) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I26-14 (CANL) - I26-4 (CG) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I26-6 (CANH) - I26-16 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I26-14 (CANL) - I26-16 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

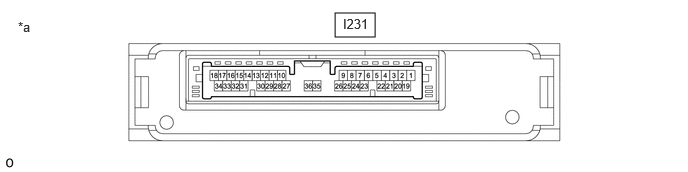

C422307C49
3.49,0.135 3.906,0.385 0.417,0.25 0.188,0.198 0.5,0.396 0.313,0.198 10 false *a 3.573,0.167 4.031,0.365 0.458,0.198 10 false I231
*a Component without harness connected
(Central Gateway ECU (Network Gateway ECU)) 		- -


a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I231 central gateway ECU (network gateway ECU) connector.


c.

Measure the resistance according to the value(s) in the table below.

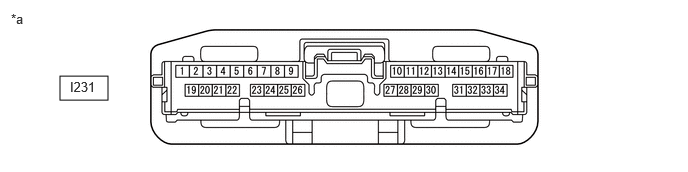

C422308C35
0.625,0.792 1.125,1.042 0.5,0.25 0.115,0.115 0.427,0.313 0.313,0.198 10 false *a 0.729,0.823 1.146,1.01 0.417,0.188 10 false I231
*a Front view of wire harness connector
(to Central Gateway ECU (Network Gateway ECU)) 		- -


Standard Resistance:
Diagnosis Bus Branch Lines (DLC3 - Central gateway ECU (network gateway ECU))
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I231-16 (CA6H) - I231-17 (CA6L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher
I231-16 (CA6H) - I231-22 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I231-17 (CA6L) - I231-22 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I231-16 (CA6H) - I231-1 (BATT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I231-17 (CA6L) - I231-1 (BATT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

Bus 1 Main Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I231-28 (CA1H) - I231-27 (CA1L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
I231-28 (CA1H) - I231-22 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I231-27 (CA1L) - I231-22 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I231-28 (CA1H) - I231-1 (BATT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I231-27 (CA1L) - I231-1 (BATT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

Bus 2 Main Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I231-26 (CA4H) - I231-25 (CA4L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
I231-26 (CA4H) - I231-22 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I231-25 (CA4L) - I231-22 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I231-26 (CA4H) - I231-1 (BATT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I231-25 (CA4L) - I231-1 (BATT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

Bus 3 Main Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I231-30 (CA3H) - I231-29 (CA3L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
I231-30 (CA3H) - I231-22 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I231-29 (CA3L) - I231-22 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I231-30 (CA3H) - I231-1 (BATT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I231-29 (CA3L) - I231-1 (BATT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

Bus 4 Main Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I231-24 (CA2H) - I231-23 (CA2L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
I231-24 (CA2H) - I231-22 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I231-23 (CA2L) - I231-22 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I231-24 (CA2H) - I231-1 (BATT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I231-23 (CA2L) - I231-1 (BATT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

Bus 5 Main Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I231-7 (CA5H) - I231-8 (CA5L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
I231-7 (CA5H) - I231-22 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I231-8 (CA5L) - I231-22 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I231-7 (CA5H) - I231-1 (BATT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I231-8 (CA5L) - I231-1 (BATT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

Bus 6 Main Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I231-31 (CA7H) - I231-10 (CAVH) HIGH-level CAN bus line - HIGH-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
I231-32 (CA7L) - I231-11 (CAVL) LOW-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
I231-31 (CA7H) - I231-22 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I231-32 (CA7L) - I231-22 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I231-31 (CA7H) - I231-1 (BATT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I231-32 (CA7L) - I231-1 (BATT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

Bus 7 Main Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I231-5 (CA8H) - I231-6 (CA8L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
I231-5 (CA8H) - I231-22 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I231-6 (CA8L) - I231-22 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I231-5 (CA8H) - I231-1 (BATT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I231-6 (CA8L) - I231-1 (BATT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




OPTION CONNECTOR (BUS BUFFER ECU)


a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I232 option connector (bus buffer ECU) connector.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.



c.

Measure the resistance according to the value(s) in the table below.

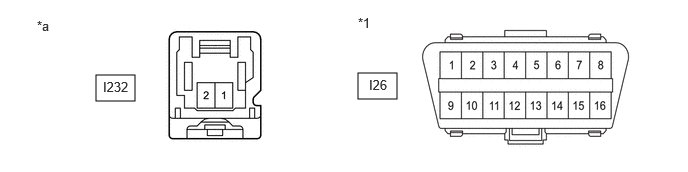

C446923C19
3.729,0.76 4.135,1.031 0.406,0.271 1,0.781 1.406,1.052 0.406,0.271 0.385,0.188 0.698,0.385 0.313,0.198 10 false *a 3.729,0.156 4.042,0.354 0.313,0.198 10 false *1 3.844,0.802 4.156,1 0.313,0.198 10 false I26 1.073,0.823 1.385,1.021 0.313,0.198 10 false I232
*1 DLC3 - -
*a Front view of wire harness connector
(to Option Connector (Bus Buffer ECU)) 		- -


Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I232-2 (CAN+) - I232-1 (CAN-) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
I232-2 (CAN+) - I26-4 (CG) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I232-1 (CAN-) - I26-4 (CG) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I232-2 (CAN+) - I26-16 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I232-1 (CAN-) - I26-16 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




ECM


Refer to Terminals of ECU.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>TERMINALS OF ECM

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the A47 ECM connector.


c.

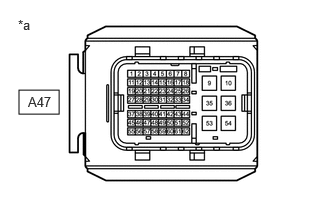

C392553C31
0.198,0.938 0.615,1.188 0.417,0.25 0.188,0.177 0.406,0.427 0.219,0.25 10 false *a 0.292,0.979 0.719,1.188 0.427,0.208 10 false A47
*a Front view of wire harness connector
(to ECM)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Bus 2 Main Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
A47-7 (CFDH) - A47-8 (CFDL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
A47-7 (CFDH) - A47-10 (E1) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A47-8 (CFDL) - A47-10 (E1) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A47-7 (CFDH) - A47-1 (BATT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A47-8 (CFDL) - A47-1 (BATT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

Powertrain Local Bus Branch Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
A47-5 (CFDT) - A47-6 (CFDB) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
A47-5 (CFDT) - A47-10 (E1) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A47-6 (CFDB) - A47-10 (E1) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A47-5 (CFDT) - A47-1 (BATT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A47-6 (CFDB) - A47-1 (BATT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




RADIO AND DISPLAY RECEIVER ASSEMBLY (for Navigation System)


Refer to Terminals of ECU.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM (Production Date from 2023/04)>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I254 radio and display receiver assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

C427752C37
3.729,0.76 4.135,1.031 0.406,0.271 0.229,0.781 0.635,1.052 0.406,0.271 0.385,0.188 0.698,0.385 0.313,0.198 10 false *a 3.729,0.156 4.042,0.354 0.313,0.198 10 false *1 3.844,0.802 4.156,1 0.313,0.198 10 false I26 0.292,0.823 0.604,1.021 0.313,0.198 10 false I254
*1 DLC3 - -
*a Front view of wire harness connector
(to Radio and Display Receiver Assembly) 		- -


Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I254-13 (CANH) - I254-14 (CANL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
I254-13 (CANH) - I26-4 (CG) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I254-14 (CANL) - I26-4 (CG) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I254-13 (CANH) - I26-16 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I254-14 (CANL) - I26-16 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




RADIO AND DISPLAY RECEIVER ASSEMBLY (w/ Audio and Visual System)


Refer to Terminals of ECU.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM (Production Date from 2023/04)>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I275 radio and display receiver assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

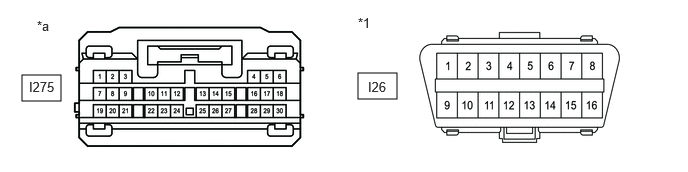

C427752C35
3.729,0.76 4.135,1.031 0.406,0.271 0.229,0.781 0.635,1.052 0.406,0.271 0.385,0.188 0.698,0.385 0.313,0.198 10 false *a 3.729,0.156 4.042,0.354 0.313,0.198 10 false *1 3.833,0.823 4.146,1.021 0.313,0.198 10 false I26 0.302,0.823 0.615,1.021 0.313,0.198 10 false I275
*1 DLC3 - -
*a Front view of wire harness connector
(to Radio and Display Receiver Assembly) 		- -


Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I275-13 (CANH) - I275-14 (CANL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
I275-13 (CANH) - I26-4 (CG) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I275-14 (CANL) - I26-4 (CG) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I275-13 (CANH) - I26-16 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I275-14 (CANL) - I26-16 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)


Refer to Terminals of ECU.

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HEV Model)>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the A194 electric brake booster (brake booster with master cylinder assembly) connector.


c.

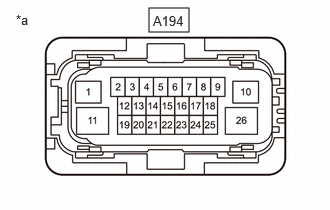

C492801C22
1.552,0.083 1.969,0.333 0.417,0.25 0.167,0.125 0.479,0.281 0.313,0.156 10 false *a 1.594,0.135 1.969,0.354 0.375,0.219 10 false A194
*a Front view of wire harness connector
(to Electric Brake Booster (Brake Booster with Master Cylinder Assembly))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Bus 4 Branch Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
A194-2 (CA1H) - A194-12 (CA1L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
A194-2 (CA1H) - A194-26 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A194-12 (CA1L) - A194-26 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A194-2 (CA1H) - A194-11 (+BS) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A194-12 (CA1L) - A194-11 (+BS) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

Powertrain Local Bus Branch Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
A194-9 (CA2H) - A194-18 (CA2L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
A194-9 (CA2H) - A194-26 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A194-18 (CA2L) - A194-26 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A194-9 (CA2H) - A194-11 (+BS) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A194-18 (CA2L) - A194-11 (+BS) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)


Refer to Terminals of ECU.

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HEV Model)>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.


c.

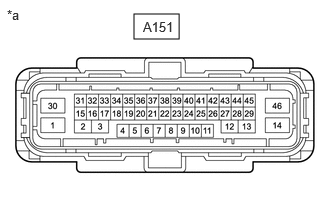

C437333C20
1.396,0.146 1.865,0.406 0.469,0.26 0.073,0.073 0.385,0.229 0.313,0.156 10 false *a 1.49,0.198 1.948,0.396 0.458,0.198 10 false A151
*a Front view of wire harness connector
(to Skid Control ECU (Brake Actuator Assembly))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Bus 4 Branch Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
A151-5 (CANH) - A151-19 (CANL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
A151-5 (CANH) - A151-46 (GND1) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A151-19 (CANL) - A151-46 (GND1) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A151-5 (CANH) - A151-30 (+BS) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A151-19 (CANL) - A151-30 (+BS) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

Powertrain Local Bus Main Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
A151-11 (CA2H) - A151-25 (CA2L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
A151-11 (CA2H) - A151-46 (GND1) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A151-25 (CA2L) - A151-46 (GND1) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A151-11 (CA2H) - A151-30 (+BS) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A151-25 (CA2L) - A151-30 (+BS) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




STEERING SENSOR

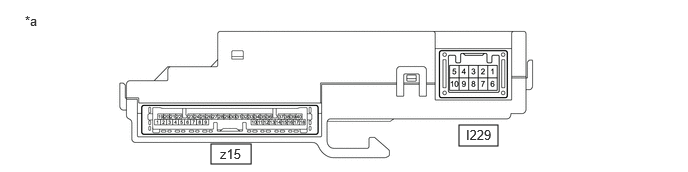

C464762C29
2.198,1.5 2.615,1.708 0.417,0.208 4.781,1.302 5.188,1.521 0.406,0.219 0.26,0.135 0.573,0.333 0.313,0.198 10 false *a 2.292,1.521 2.646,1.677 0.354,0.156 10 false z15 4.854,1.323 5.167,1.521 0.313,0.198 10 false I229
*a Component without harness connected
(Steering Sensor) 		- -


a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I229 steering sensor connector.


c.
C427527C80
0.552,0.927 0.958,1.229 0.406,0.302 0.146,0.156 0.458,0.354 0.313,0.198 10 false *a 0.635,0.979 1.042,1.208 0.406,0.229 10 false I229
*a Front view of wire harness connector
(to Steering Sensor)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I229-3 (CANH) - I229-8 (CANL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
I229-3 (CANH) - I229-6 (ESS) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I229-8 (CANL) - I229-6 (ESS) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I229-3 (CANH) - I229-4 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I229-8 (CANL) - I229-4 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




POWER STEERING ECU ASSEMBLY


Refer to Terminals of ECU.

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING SYSTEM>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I21 and I42 power steering ECU assembly connectors.


c.

Measure the resistance according to the value(s) in the table below.

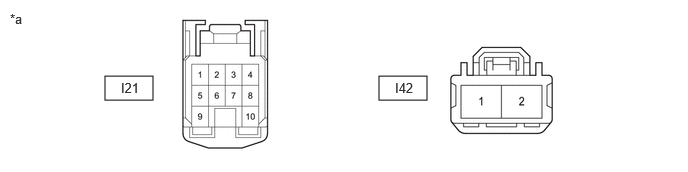

C434461C14
1.094,0.792 1.594,1.042 0.5,0.25 3.948,0.792 4.448,1.042 0.5,0.25 0.104,0.115 0.417,0.313 0.313,0.198 10 false *a 1.26,0.833 1.573,1.031 0.313,0.198 10 false I21 4.115,0.833 4.427,1.031 0.313,0.198 10 false I42
*a Front view of wire harness connector
(to Power Steering ECU Assembly) 		- -


Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I21-7 (CANH) - I21-8 (CANL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
I21-7 (CANH) - I42-2 (PGND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I21-8 (CANL) - I42-2 (PGND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I21-7 (CANH) - I42-1 (PIG) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I21-8 (CANL) - I42-1 (PIG) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




AIRBAG ECU ASSEMBLY


Refer to Terminals of ECU.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I47 airbag ECU assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

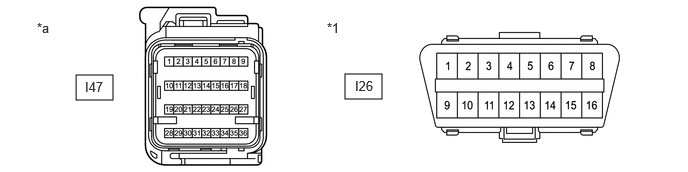

C427534C32
0.792,0.781 1.177,1.042 0.385,0.26 3.594,0.771 3.979,1.031 0.385,0.26 0.385,0.208 0.698,0.406 0.313,0.198 10 false *a 3.406,0.208 3.719,0.406 0.313,0.198 10 false *1 3.698,0.813 4.01,1.01 0.313,0.198 10 false I26 0.885,0.823 1.198,1.021 0.313,0.198 10 false I47
*1 DLC3 - -
*a Front view of wire harness connector
(to Airbag ECU Assembly) 		- -


Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I47-26 (CAFH) - I47-27 (CAFL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
I47-26 (CAFH) - I47-33 (E1) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I47-27 (CAFL) - I47-33 (E1) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I47-26 (CAFH) - I26-16 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I47-27 (CAFL) - I26-16 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)


Refer to Terminals of ECU.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, HEV Model)>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I222 certification ECU (smart key ECU assembly) connector.


c.

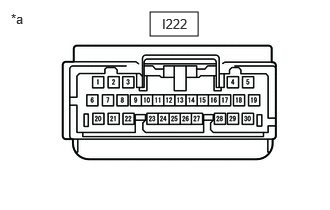

C422313C14
1.563,0.125 2.063,0.375 0.5,0.25 0.115,0.115 0.427,0.313 0.313,0.198 10 false *a 1.688,0.167 2,0.365 0.313,0.198 10 false I222
*a Front view of wire harness connector
(to Certification ECU (Smart Key ECU Assembly))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I222-1 (CANH) - I222-2 (CANL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
I222-1 (CANH) - I222-29 (E) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I222-2 (CANL) - I222-29 (E) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I222-1 (CANH) - I222-6 (+B) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I222-2 (CANL) - I222-6 (+B) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




AIR CONDITIONING AMPLIFIER ASSEMBLY


Refer to Terminals of ECU.

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING SYSTEM (for HEV Model)>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I49 air conditioning amplifier assembly connector.


c.
C422314C07
1.594,0.125 2.094,0.375 0.5,0.25 0.104,0.094 0.417,0.292 0.313,0.198 10 false *a 1.75,0.167 2.063,0.365 0.313,0.198 10 false I49
*a Front view of wire harness connector
(to Air Conditioning Amplifier Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I49-2 (CANH) - I49-1 (CANL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
I49-2 (CANH) - I49-17 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I49-1 (CANL) - I49-17 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I49-2 (CANH) - I49-5 (B) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I49-1 (CANL) - I49-5 (B) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)


Refer to Terminals of ECU.

Click hereVehicle Interior>LIGHTING (INT)>LIGHTING SYSTEM>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I85 main body ECU (multiplex network body ECU) connector.


c.

Measure the resistance according to the value(s) in the table below.

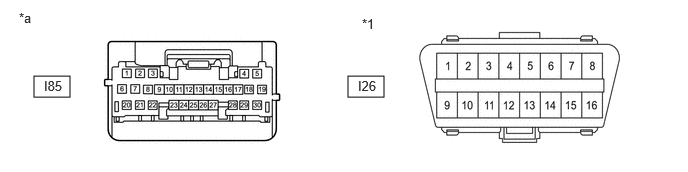

C443226C04
0.354,0.792 0.729,1.01 0.375,0.219 3.625,0.792 4,1.01 0.375,0.219 0.198,0.104 0.51,0.302 0.313,0.198 10 false *a 3.771,0.167 4.083,0.365 0.313,0.198 10 false *1 0.458,0.813 0.771,1.01 0.313,0.198 10 false I85 3.729,0.813 4.042,1.01 0.313,0.198 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to Main Body ECU (Multiplex Network Body ECU)) 		- -


Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I85-2 (CANH) - I85-1 (CANL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
I85-2 (CANH) - I26-4 (CG) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I85-1 (CANL) - I26-4 (CG) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I85-2 (CANH) - I26-16 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I85-1 (CANL) - I26-16 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




COMBINATION METER ASSEMBLY


Refer to Terminals of ECU.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I4 and I5 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

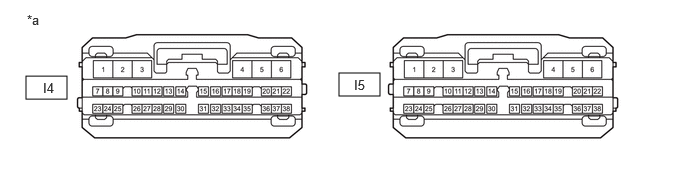

C454596C25
0.271,0.792 0.698,1.031 0.427,0.24 3.531,0.76 3.958,1 0.427,0.24 0.281,0.125 0.594,0.323 0.313,0.198 10 false *a 0.448,0.833 0.76,1.031 0.313,0.198 10 false I4 3.688,0.802 4,1 0.313,0.198 10 false I5
*a Front view of wire harness connector
(to Combination Meter Assembly) 		- -


Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I5-31 (CANH) - I5-14 (CANL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
I5-31 (CANH) - I4-2 (ES) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I5-14 (CANL) - I4-2 (ES) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I5-31 (CANH) - I4-5 (B) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I5-14 (CANL) - I4-5 (B) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




CLEARANCE WARNING ECU ASSEMBLY (w/ TOYOTA Parking Assist-sensor System)


Refer to Terminals of ECU.

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TOYOTA PARKING ASSIST-SENSOR SYSTEM>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I24 clearance warning ECU assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

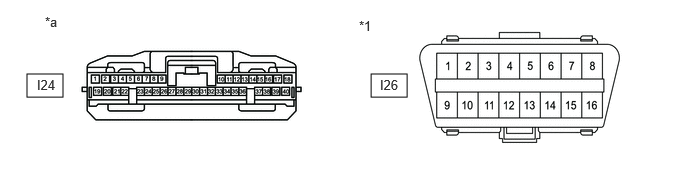

C427760C26
0.281,0.771 0.656,1.01 0.375,0.24 3.865,0.771 4.24,1.01 0.375,0.24 3.74,0.188 4.052,0.385 0.313,0.198 10 false *1 0.469,0.146 0.781,0.344 0.313,0.198 10 false *a 3.958,0.802 4.271,1 0.313,0.198 10 false I26 0.385,0.802 0.698,1 0.313,0.198 10 false I24
*1 DLC3 - -
*a Front view of wire harness connector
(to Clearance Warning ECU Assembly) 		- -


Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I24-17 (R1) - I24-18 (R2) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
I24-17 (R1) - I24-31 (E) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I24-18 (R2) - I24-31 (E) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I24-17 (R1) - I26-16 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I24-18 (R2) - I26-16 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




FORWARD RECOGNITION CAMERA


Refer to Terminals of ECU.

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA SYSTEM (Production Date from 2023/04)>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the T37 forward recognition camera connector.


c.

Measure the resistance according to the value(s) in the table below.

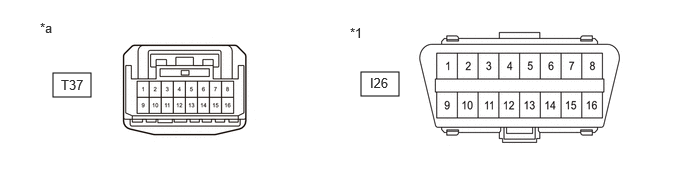

C469685C61
3.76,0.75 4.156,1 0.396,0.25 0.552,0.76 0.948,1.01 0.396,0.25 0.635,0.802 1.042,1.052 0.406,0.25 10 false T37 0.417,0.208 0.729,0.406 0.313,0.198 10 false *a 3.646,0.26 3.958,0.458 0.313,0.198 10 false *1 3.854,0.781 4.323,1.094 0.469,0.313 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to Forward Recognition Camera) 		- -


Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
T37-2 (CA2P) - T37-1 (CA2L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
T37-2 (CA2P) - T37-13 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
T37-1 (CA2L) - T37-13 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
T37-2 (CA2P) - I26-16 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
T37-1 (CA2L) - I26-16 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
T37-10 (CA1P) - T37-9 (CA1N) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
T37-10 (CA1P) - T37-13 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
T37-9 (CA1N) - T37-13 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
T37-10 (CA1P) - I26-16 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
T37-9 (CA1N) - I26-16 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




MILLIMETER WAVE RADAR SENSOR ASSEMBLY


Refer to Terminals of ECU.

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT RADAR SENSOR SYSTEM (Production Date from 2023/04)>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the A181 millimeter wave radar sensor assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

C427753C89
0.594,0.792 1.042,1.01 0.448,0.219 3.625,0.865 4.073,1.083 0.448,0.219 0.708,0.188 1.021,0.385 0.313,0.198 10 false *a 3.542,0.198 3.854,0.396 0.313,0.198 10 false *1 0.656,0.813 1.094,1.052 0.438,0.24 10 false A181 3.75,0.885 4.063,1.083 0.313,0.198 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly) 		- -


Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
A181-10 (CA3H) - A181-9 (CA3L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
A181-10 (CA3H) - A181-5 (SGND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A181-9 (CA3L) - A181-5 (SGND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A181-10 (CA3H) - I26-16 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A181-9 (CA3L) - I26-16 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A181-4 (CA2H) - A181-3 (CA2L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
A181-4 (CA2H) - A181-5 (SGND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A181-3 (CA2L) - A181-5 (SGND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A181-4 (CA2H) - I26-16 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A181-3 (CA2L) - I26-16 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System)


Refer to Terminals of ECU.

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING ASSIST MONITOR SYSTEM>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the U53 rear television camera assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

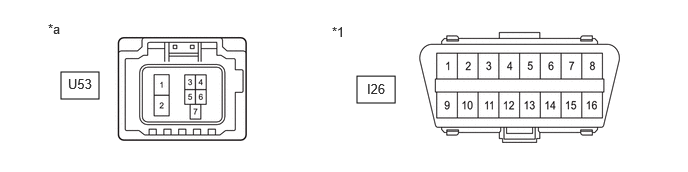

C469689C22
0.635,0.75 1.031,1.031 0.396,0.281 3.719,0.792 4.115,1.073 0.396,0.281 0.5,0.219 0.813,0.417 0.313,0.198 10 false *a 3.458,0.25 3.771,0.448 0.313,0.198 10 false *1 3.823,0.844 4.135,1.042 0.313,0.198 10 false I26 0.708,0.792 1.115,1 0.406,0.208 10 false U53
*1 DLC3 - -
*a Front view of wire harness connector
(to Rear Television Camera Assembly) 		- -


Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
U53-1 (CANH) - U53-2 (CANL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
U53-1 (CANH) - I26-4 (CG) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
U53-2 (CANL) - I26-4 (CG) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
U53-1 (CANH) - I26-16 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
U53-2 (CANL) - I26-16 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




HYBRID VEHICLE CONTROL ECU


Refer to Terminals of ECU.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I278 hybrid vehicle control ECU connector.


c.

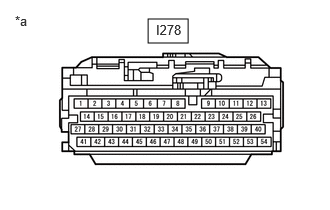

C430869C36
1.542,0.198 1.958,0.448 0.417,0.25 0.156,0.135 0.469,0.333 0.313,0.198 10 false *a 1.625,0.229 2.083,0.427 0.458,0.198 10 false I278
*a Front view of wire harness connector
(to Hybrid Vehicle Control ECU)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Bus 2 Branch Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I278-51 (CA1H) - I278-52 (CA1L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
I278-51 (CA1H) - I278-1 (E1) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I278-52 (CA1L) - I278-1 (E1) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I278-51 (CA1H) - I278-13 (BATT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I278-52 (CA1L) - I278-13 (BATT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

Powertrain Local Bus Main Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I278-50 (CA3P) - I278-49 (CA3N) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
I278-50 (CA3P) - I278-1 (E1) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I278-49 (CA3N) - I278-1 (E1) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I278-50 (CA3P) - I278-13 (BATT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I278-49 (CA3N) - I278-13 (BATT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

Battery Local Bus Main Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I278-9 (CA4H) - I278-22 (CA4L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
I278-9 (CA4H) - I278-1 (E1) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I278-22 (CA4L) - I278-1 (E1) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I278-9 (CA4H) - I278-13 (BATT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I278-22 (CA4L) - I278-13 (BATT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




INVERTER WITH CONVERTER ASSEMBLY


Refer to Terminals of ECU.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>MOTOR GENERATOR CONTROL SYSTEM>TERMINALS OF ECU

CAUTION:

Be sure to wear insulated gloves.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.



b.

Disconnect the cable from the negative (-) auxiliary battery terminal.


c.

Disconnect the A192 inverter with converter assembly connector.


d.

Measure the resistance according to the value(s) in the table below.

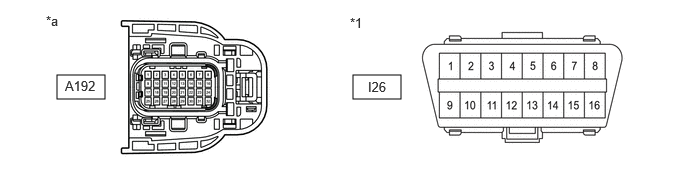

C453866C10
0.594,0.781 1.094,1.031 0.5,0.25 3.677,0.781 4.177,1.031 0.5,0.25 0.479,0.135 0.792,0.333 0.313,0.198 10 false *a 3.646,0.156 3.958,0.354 0.313,0.198 10 false *1 0.677,0.813 1.146,1.052 0.469,0.24 10 false A192 3.833,0.823 4.146,1.021 0.313,0.198 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to Inverter with Converter Assembly) 		- -


Standard Resistance:
Bus 2 Main Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
A192-5 (CANH) - A192-6 (CANL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
A192-5 (CANH) - A192-4 (GND1) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A192-6 (CANL) - A192-4 (GND1) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A192-5 (CANH) - I26-16 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A192-6 (CANL) - I26-16 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A192-13 (CADH) - A192-14 (CADL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
A192-13 (CADH) - A192-4 (GND1) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A192-14 (CADL) - A192-4 (GND1) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A192-13 (CADH) - I26-16 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A192-14 (CADL) - I26-16 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

Powertrain Local Bus Branch Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
A192-3 (CALH) - A192-11 (CALL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
A192-3 (CALH) - A192-4 (GND1) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A192-11 (CALL) - A192-4 (GND1) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A192-3 (CALH) - I26-16 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A192-11 (CALL) - I26-16 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




BATTERY ECU ASSEMBLY


Refer to Terminals of ECU.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID BATTERY SYSTEM>TERMINALS OF ECU

CAUTION:

Be sure to wear insulated gloves.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.



b.

Disconnect the cable from the negative (-) auxiliary battery terminal.


c.

Disconnect the O217 battery ECU assembly connector.


d.

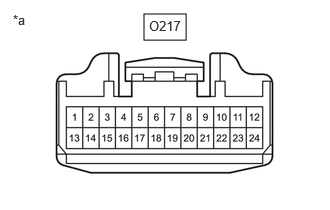

C461844C28
1.5,0.146 1.938,0.417 0.438,0.271 0.135,0.125 0.448,0.323 0.313,0.198 10 false *a 1.552,0.188 2.01,0.51 0.458,0.323 10 false O217
*a Front view of wire harness connector
(to Battery ECU Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Bus 2 Main Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
O217-9 (CA2H) - O217-8 (CA2L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
O217-9 (CA2H) - O217-10 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
O217-8 (CA2L) - O217-10 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
O217-9 (CA2H) - O217-24 (AM) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
O217-8 (CA2L) - O217-24 (AM) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
O217-20 (C2HB) - O217-19 (C2LB) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
O217-20 (C2HB) - O217-10 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
O217-19 (C2LB) - O217-10 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
O217-20 (C2HB) - O217-24 (AM) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
O217-19 (C2LB) - O217-24 (AM) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

Battery Local Bus Main Lines
Terminal No. (Symbol) Terminal Description Condition Specified Condition
O217-22 (CA1H) - O217-21 (CA1L) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
O217-22 (CA1H) - O217-10 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
O217-21 (CA1L) - O217-10 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
O217-22 (CA1H) - O217-24 (AM) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
O217-21 (CA1L) - O217-24 (AM) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




TELEMATICS TRANSCEIVER


Refer to Terminals of ECU.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM (for TOYOTA Connect)>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I200 Telematics transceiver connector.


c.

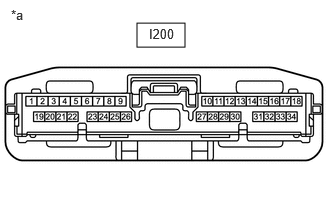

C427756C77
1.427,0.24 1.927,0.49 0.5,0.25 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 1.552,0.271 1.99,0.479 0.438,0.208 10 false I200
*a Front view of wire harness connector
(to Telematics Transceiver)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I200-25 (CANP) - I200-26 (CANN) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
I200-25 (CANP) - I200-20 (E) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I200-26 (CANN) - I200-20 (E) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I200-25 (CANP) - I200-1 (+B) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I200-26 (CANN) - I200-1 (+B) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door)


Refer to Terminals of ECU.

Click hereVehicle Exterior>DOOR / HATCH>POWER BACK DOOR SYSTEM>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the U22 multiplex network door ECU connector.


c.

Measure the resistance according to the value(s) in the table below.

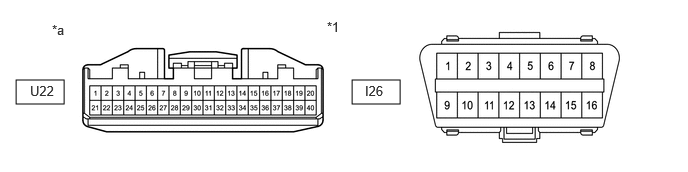

C427763C10
0.167,0.833 0.667,1.083 0.5,0.25 3.667,0.833 4.167,1.083 0.5,0.25 0.542,0.229 0.854,0.427 0.313,0.198 10 false *a 3.406,0.198 3.719,0.396 0.313,0.198 10 false *1 0.313,0.865 0.729,1.083 0.417,0.219 10 false U22 3.802,0.865 4.219,1.083 0.417,0.219 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to Multiplex Network Door ECU) 		- -


Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
U22-39 (CANP) - U22-40 (CANN) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
U22-39 (CANP) - I26-4 (CG) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
U22-40 (CANN) - I26-4 (CG) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
U22-39 (CANP) - U22-20 (ECUB) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
U22-40 (CANN) - U22-20 (ECUB) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




VEHICLE APPROACHING SPEAKER CONTROLLER


Refer to Terminals of ECU.

Click hereVehicle Exterior>ACOUSTIC VEHICLE ALERTING SYSTEM>ACOUSTIC VEHICLE ALERTING SYSTEM>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the I281 vehicle approaching speaker controller connector.


c.
C509385C01
0.24,1 0.688,1.24 0.448,0.24 0.125,0.094 0.438,0.292 0.313,0.198 10 false *a 0.333,1.031 0.75,1.25 0.417,0.219 10 false I281
*a Front view of wire harness connector
(to Vehicle Approaching Speaker Controller)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
I281-1 (CANH) - I281-2 (CANL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
I281-1 (CANH) - I281-12 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I281-2 (CANL) - I281-12 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I281-1 (CANH) - I281-7 (+B) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I281-2 (CANL) - I281-7 (+B) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




TIRE PRESSURE WARNING ECU AND RECEIVER


Refer to Terminals of ECU.

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>TERMINALS OF ECU

a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the O18 tire pressure warning ECU and receiver connector.


c.

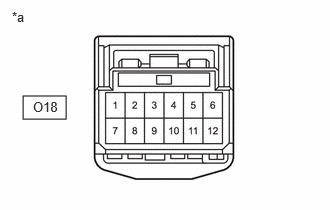

C509385C02
0.24,1 0.688,1.24 0.448,0.24 0.125,0.094 0.438,0.292 0.313,0.198 10 false *a 0.344,1.031 0.76,1.25 0.417,0.219 10 false O18
*a Front view of wire harness connector
(to Tire Pressure Warning ECU and Receiver)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
O18-9 (CANH) - O18-10 (CANL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
O18-9 (CANH) - O18-12 (GND) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
O18-10 (CANL) - O18-12 (GND) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
O18-9 (CANH) - O18-7 (+B) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
O18-10 (CANL) - O18-7 (+B) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher




INVERTER WITH CONVERTER ASSEMBLY

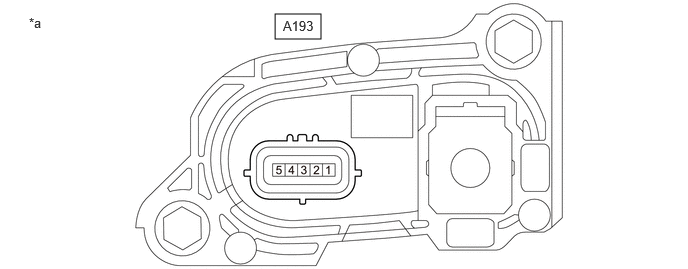

C485122C05
2.865,0.146 3.344,0.406 0.479,0.26 2.948,0.188 3.406,0.385 0.458,0.198 10 false A193 0.302,0.156 0.76,0.354 0.458,0.198 10 false *a
*a Component without harness connected
(Inverter with Converter Assembly) 		- -


CAUTION:

Be sure to wear insulated gloves.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.



b.

Disconnect the cable from the negative (-) auxiliary battery terminal.


c.

Disconnect the A193 inverter with converter assembly connector.


d.

Measure the resistance according to the value(s) in the table below.

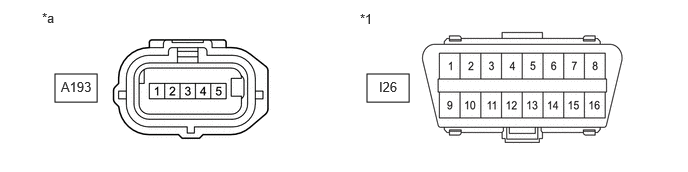

C453867C03
0.573,0.771 1.01,1.063 0.438,0.292 3.823,0.771 4.26,1.063 0.438,0.292 0.438,0.104 0.75,0.302 0.313,0.198 10 false *a 3.75,0.115 4.063,0.313 0.313,0.198 10 false *1 0.635,0.823 1.063,1.063 0.427,0.24 10 false A193 3.948,0.823 4.375,1.063 0.427,0.24 10 false I26
*1 DLC3 - -
*a Front view of wire harness connector
(to Inverter with Converter Assembly) 		- -


Standard Resistance:
Terminal No. (Symbol) Terminal Description Condition Specified Condition
A193-5 (CNH) - A193-4 (CNL) HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
A193-5 (CNH) - I26-4 (CG) HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A193-4 (CNL) - I26-4 (CG) LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A193-5 (CNH) - I26-16 (BAT) HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A193-4 (CNL) - I26-16 (BAT) LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
