TELEMATICS TRANSCEIVER

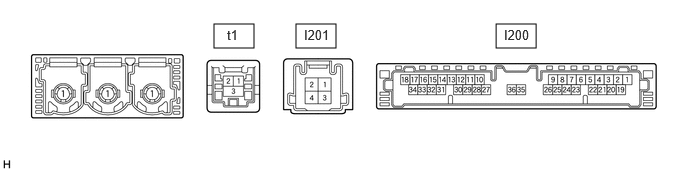

| Terminal No. (Symbol) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| I200-1 (+B) - I200-20 (E) | Power source (+B) | Ignition switch off | 11 to 14 V |
| I200-3 (SIG-) - I200-20 (E) | Ground | Always | Below 1 V |
| I200-4 (IND1) - I200-20 (E) | Emergency call switch red indicator illumination signal | For 5 seconds after turning the ignition switch to ON | 1 to 8.5 V |
| Ignition switch off | Below 1 V | ||
| I200-5 (MCVD) - I200-20 (E) | Telephone microphone assembly power supply | Ignition switch ON | 7.5 to 8.5 V |
| Ignition switch off | Below 1 V | ||
| I200-6 (MCI+) - I200-20 (E) | Microphone voice signal | Voice being input to telephone microphone assembly | A waveform synchronized with microphone voice signal is input |
| I200-7 (MCI-) - I200-20 (E) | Microphone voice signal | Always | Below 1 V |
| I200-13 (GSW) - I200-20 (E) | Collision detection signal | Ignition switch ON | Pulse generation
(Refer to waveform 1) |
| I200-14 (MUTE) - I200-20 (E) | MUTE Signal | Audio system playing | Above 3.5 V |
| Emergency call mode | Below 1 V | ||
| I200-15 (USBV) - I200-20 (E) | USB power supply | Ignition switch ON | 4.75 to 5.25 V |
| Ignition switch off | Below 1 V | ||
| I200-16 (MCO+) - I200-20 (E) | Microphone voice signal | Voice being input to telephone microphone assembly | A waveform synchronized with microphone voice signal is input |
| I200-19 (IG2) - I200-20 (E) | Power source (IG) | Ignition switch ON | 11 to 14 V |
| Ignition switch off | Below 1 V | ||
| I200-20 (E) - Body ground | Ground | Always | Below 1 Ω |
| I200-21 (SIG1) - I200-3 (SIG-) | Emergency call switch button condition signal | Emergency call switch not pressed | 1.3 to 1.9 V |
| Emergency call switch pressed | 0.5 to 0.8 V | ||
| I200-22 (IND2) - I200-20 (E) | Emergency call switch green indicator illumination signal | For 5 seconds after turning the ignition switch to ON | 1 to 8.5 V |
| Ignition switch off | Below 1 V | ||
| I200-23 (SGND) - I200-20 (E) | Shield ground | Always | Below 1 Ω |
| I200-25 (CANP) | CAN communication signal | - | - |
| I200-26 (CANN) | CAN communication signal | - | - |
| I200-31 (USBG) - Body ground | Shield ground | Always | Below 1 Ω |
| I200-32 (MCO-) - I200-20 (E) | Microphone voice signal | Always | Below 1 V |
| I201-1 (SPI+) - I200-20 (E) | Sound signal | Audio system playing | A waveform synchronized with sound signals is output |
| I201-2 (SPI-) - I200-20 (E) | Sound signal | Audio system playing | A waveform synchronized with sound signals is output |
| I201-3 (SPO+) - I200-20 (E) | Sound signal | Audio system playing, or emergency call mode | A waveform synchronized with sound signals is output |
| I201-4 (SPO-) - I200-20 (E) | Sound signal | Audio system playing, or emergency call mode | A waveform synchronized with sound signals is output |
| t1-1 (USB-) | USB communication line | - | - |
| t1-2 (USB+) | USB communication line | - | - |
| t1-3 (USBS) - Body ground | USB communication line | Always | Below 1 Ω |
Reference (Oscilloscope waveform):
Waveform 1
| Item | Condition |
|---|---|
| Tester Connection | I200-13 (GSW) - I200-20 (E) |
| Tool Setting | 5.0 V/DIV., 20 ms./DIV. |
| Vehicle Condition | Ignition switch ON |
