HYBRID / BATTERY CONTROL MOTOR GENERATOR CONTROL SYSTEM TERMINALS OF ECU
2.219,1.844 2.625,2.063
0.406,0.219
0.948,1.854 1.354,2.073
0.406,0.219
1,1.885 1.552,2.177
0.552,0.292
10
false
A192
2.26,1.875 2.781,2.083
0.521,0.208
10
false
A142
0.104,0.104 0.417,0.302
0.313,0.198
10
false

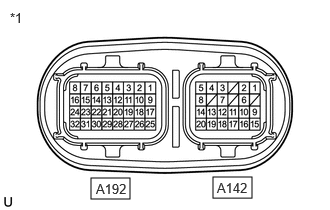

*1
| *1 | Inverter with Converter Assembly |
- HINT:
-
Since the inverter with converter assembly uses waterproof connectors, the voltage and waveforms cannot be inspected directly. Standard voltage readings and waveforms are indicated for reference only.
| Connector code | Terminal No. | Symbol | Terminal Description |
|---|---|---|---|
| A192 | 1 | IGC1 | Motor generator control ECU (MG ECU) power source |
| 2 | NE | Crankshaft position sensor signal | |
| 3 | CALH | CAN communication signal | |
| 4 | GND1 | Ground | |
| 5 | CANH | CAN communication signal | |
| 6 | CANL | CAN communication signal | |
| 7 | - | - | |
| 8 | - | - | |
| 9 | IGC2 | Motor generator control ECU (MG ECU) power source | |
| 10 | GI | Camshaft position sensor signal | |
| 11 | CALL | CAN communication signal | |
| 12 | GND2 | Ground | |
| 13 | CADH | CAN communication signal | |
| 14 | CADL | CAN communication signal | |
| 15 | - | - | |
| 16 | - | - | |
| 17 | - | - | |
| 18 | - | - | |
| 19 | DRN5 | Ground for shield | |
| 20 | DRN1 | Ground for shield | |
| 21 | - | - | |
| 22 | - | - | |
| 23 | - | - | |
| 24 | - | - | |
| 25 | - | - | |
| 26 | HSDN | MG shutdown signal | |
| 27 | DRN2 | Ground for shield | |
| 28 | - | - | |
| 29 | HMCH | Communication signal | |
| 30 | HMCL | Communication signal | |
| 31 | - | - | |
| 32 | - | - | |
| C142 | 1 | MRF | Motor resolver reference signal |
| 2 | MRFG | Motor resolver reference signal ground | |
| 3 | GRF | Generator resolver reference signal | |
| 4 | GRFG | Generator resolver reference signal ground | |
| 5 | MMT | Motor temperature sensor | |
| 6 | DRN6 | Ground for shield | |
| 7 | DRN3 | Ground for shield | |
| 8 | MMTG | Motor temperature sensor ground | |
| 9 | MSN | Motor resolver signal | |
| 10 | MSNG | Motor resolver signal ground | |
| 11 | TTAG | Transmission fluid temperature sensor ground | |
| 12 | GSNG | Generator resolver signal ground | |
| 13 | GSN | Generator resolver signal | |
| 14 | GMTG | Generator temperature sensor ground | |
| 15 | MCS | Motor resolver signal | |
| 16 | MCSG | Motor resolver signal ground | |
| 17 | TTA | Transmission fluid temperature sensor | |
| 18 | GCSG | Generator resolver signal ground | |
| 19 | GCS | Generator resolver signal | |
| 20 | GMT | Generator temperature sensor |
- NOTICE:
-
Do not measure the voltage or waveform on the sealed side of the inverter with converter assembly connector. Doing so may damage the connector because the connector is waterproof.
