This DTC is stored when the combination meter assembly detects a short in a turn signal light circuit.
If there is a short in a turn signal light circuit, the turn signal lights on the side with the short circuit will blink faster than usual.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area |
|---|---|---|---|
| B150819 | Turn Signal/Hazard Flasher Circuit Current Above Threshold | Diagnosis Condition:
Battery voltage is 10 V or more Malfunction Status: Short in turn signal light circuit |
for TFTM Made
·
Headlight assembly ·
Outer rear view mirror assembly -
Side turn signal light assembly ·
Rear combination light assembly -
Rear combination light socket and wire*1 -
Rear turn signal light bulb*1 ·
Harness or connector ·
Combination meter assembly for GTMC Made
·
Headlight assembly ·
Outer rear view mirror assembly -
Side turn signal light assembly ·
Rear combination light assembly -
Rear combination light socket and wire*2 -
Rear turn signal light bulb ·
Harness or connector ·
Combination meter assembly |
*1: for Bulb Type Turn Signal Light
*2: for LEVIN

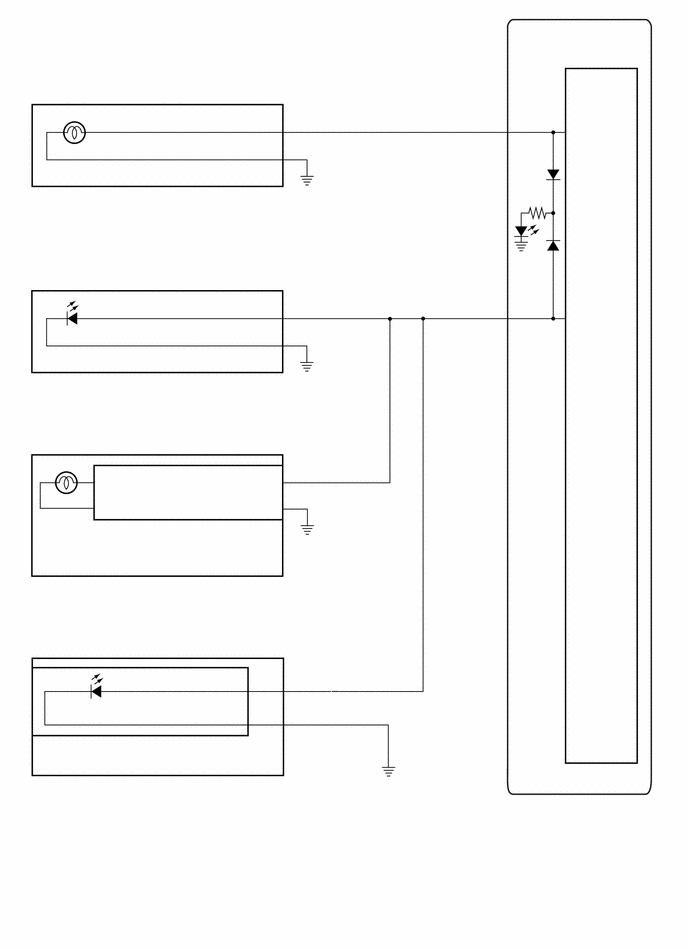

except NR Series Engine (for TFTM Made)

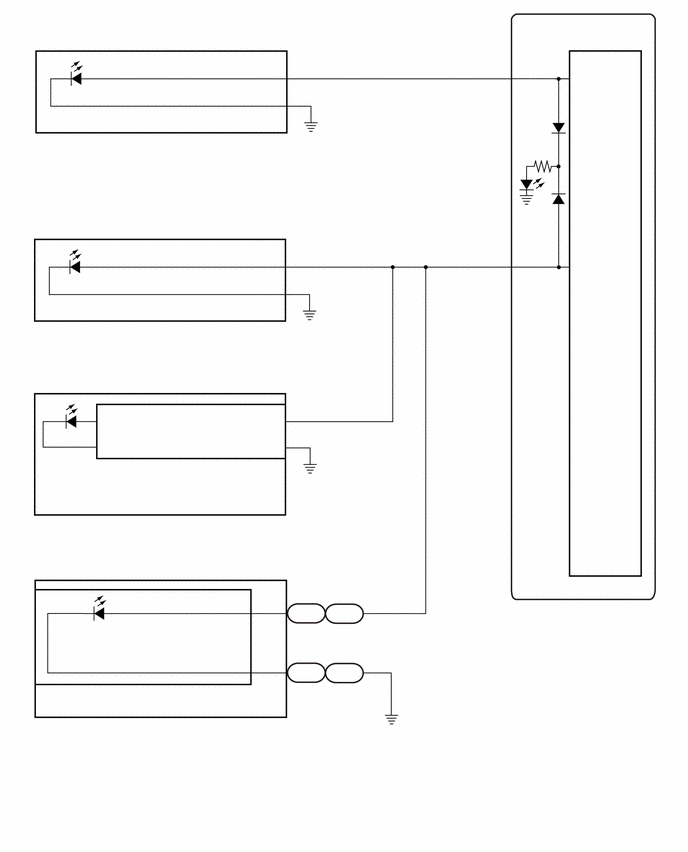

for NR Series Engine (for TFTM Made)
except NR Series Engine (for GTMC Made)
for NR Series Engine (for GTMC Made)
When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.
except NR Series Engine
When replacing the combination meter assembly, update the ECU security key.
Inspect the turn signal light bulbs before performing the following procedure.
Choose the model to be inspected.
| Result | Proceed to |
|---|---|
| for TFTM Made | A |
| for GTMC Made | B |
A
B
Choose the model to be inspected.
| Result | Proceed to |
|---|---|
| except NR Series Engine | A |
| for NR Series Engine | B |
A
B
Operate the turn signal switch and check the problem symptoms.
| Result | Proceed to |
|---|---|
| Front turn signal light (LH side) does not blink | A |
| Side turn signal light (LH side) does not blink | B |
| Rear turn signal light (LH side) does not blink | |
| Front turn signal light (RH side) does not blink | C |
| Side turn signal light (RH side) does not blink | D |
| Rear turn signal light (RH side) does not blink |
A
B
C
D
Remove the headlight assembly LH.
Remove the headlight assembly RH.
Interchange the headlight assembly LH with RH and connect the connectors.
Check the front turn signal light (LH side) operates normally.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Front turn signal light (LH side) does not blink) |
A |
| Front turn signal light (LH side) operates normally | B |
A
B
Disconnect the A164*1 or A166*2 headlight assembly LH connector.
*1: for Bulb Type Turn Signal Light
*2: for LED Type Turn Signal Light
Disconnect the I5 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| A164-1 (B) or I5-5 (LL) - Body ground | Always | 10 kΩ or higher |
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| A166-7 (B) or I5-5 (LL) - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the outer rear view mirror assembly LH.
Remove the outer rear view mirror assembly RH.
Interchange the outer rear view mirror assembly LH with RH and connect the connectors.
Check the side turn signal light (LH side) operates normally.
If the side turn signal light (LH side) operates normally, return the outer rear view mirror assembly LH and outer rear view mirror assembly RH that were interchanged in a previous step back to their original conditions so that a component of the outer rear view mirror assembly LH can be inspected in the next step.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) |
A |
| Side/rear turn signal light (LH side) operates normally | B |
A
B
Choose the model to be inspected.
| Result | Proceed to |
|---|---|
| for Bulb Type Turn Signal Light | A |
| for LED Type Turn Signal Light | B |
A
B
Remove the rear combination light socket and wire LH from the rear combination light assembly LH.
Remove the rear combination light socket and wire RH from the rear combination light assembly RH.
Interchange the rear combination light socket and wire LH with RH and connect the connectors.
Check the rear turn signal light (LH side) operates normally.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) |
A |
| Side/rear turn signal light (LH side) operates normally | B |
A
B
Remove the rear combination light assembly LH.
Remove the rear combination light assembly RH.
Interchange the rear combination light assembly LH with RH and connect the connectors.
Check the rear turn signal light (LH side) operates normally.
If the rear turn signal light (LH side) operates normally, return the rear combination light assembly LH and rear combination light assembly RH that were interchanged in a previous step back to their original conditions so that a component of the rear combination light assembly LH can be inspected in the next step.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) |
A |
| Side/rear turn signal light (LH side) operates normally | B |
A
B
Disconnect the L9 outer rear view mirror assembly LH connector.
Disconnect the O104 rear combination light assembly LH connector.
Disconnect the I5 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| L9-5 (B), O104-3 (B) or I5-22 (TRNL) - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the side turn signal light assembly LH from the outer rear view mirror assembly LH.
Remove the side turn signal light assembly RH from the outer rear view mirror assembly RH.
Interchange the side turn signal light assembly LH with RH and connect the connectors.
Check the side turn signal light (LH side) operates normally.
| Result | Proceed to |
|---|---|
| Side/rear turn signal light (LH side) operates normally | A |
| Side/rear turn signal light (LH side) does not blink | B |
A
B
Remove the headlight assembly RH.
Remove the headlight assembly LH.
Interchange the headlight assembly RH with LH and connect the connectors.
Check the front turn signal light (RH side) operates normally.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Front turn signal light (RH side) does not blink) |
A |
| Front turn signal light (RH side) operates normally | B |
A
B
Disconnect the A163*1 or A165*2 headlight assembly RH connector.
*1: for Bulb Type Turn Signal Light
*2: for LED Type Turn Signal Light
Disconnect the I5 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| A163-1 (B) or I5-6 (LR) - Body ground | Always | 10 kΩ or higher |
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| A165-7 (B) or I5-6 (LR) - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the outer rear view mirror assembly RH.
Remove the outer rear view mirror assembly LH.
Interchange the outer rear view mirror assembly RH with LH and connect the connectors.
Check the side turn signal light (RH side) operates normally.
If the side turn signal light (RH side) operates normally, return the outer rear view mirror assembly RH and outer rear view mirror assembly LH that were interchanged in a previous step back to their original conditions so that a component of the outer rear view mirror assembly RH can be inspected in the next step.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) |
A |
| Side/rear turn signal light (RH side) operates normally | B |
A
B
Choose the model to be inspected.
| Result | Proceed to |
|---|---|
| for Bulb Type Turn Signal Light | A |
| for LED Type Turn Signal Light | B |
A
B
Remove the rear combination light socket and wire RH from the rear combination light assembly RH.
Remove the rear combination light socket and wire LH from the rear combination light assembly LH.
Interchange the rear combination light socket and wire RH with LH and connect the connectors.
Check the rear turn signal light (RH side) operates normally.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) |
A |
| Side/rear turn signal light (RH side) operates normally | B |
A
B
Remove the rear combination light assembly RH.
Remove the rear combination light assembly LH.
Interchange the rear combination light assembly RH with LH and connect the connectors.
Check the rear turn signal light (RH side) operates normally.
If the rear turn signal light (RH side) operates normally, return the rear combination light assembly RH and rear combination light assembly LH that were interchanged in a previous step back to their original conditions so that a component of the rear combination light assembly RH can be inspected in the next step.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) |
A |
| Side/rear turn signal light (RH side) operates normally | B |
A
B
Disconnect the K10 outer rear view mirror assembly RH connector.
Disconnect the O103 rear combination light assembly RH connector.
Disconnect the I5 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| K10-5 (B), O103-3 (B) or I5-21 (TRNR) - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the side turn signal light assembly RH from the outer rear view mirror assembly RH.
Remove the side turn signal light assembly LH from the outer rear view mirror assembly LH.
Interchange the side turn signal light assembly RH with LH and connect the connectors.
Check the side turn signal light (RH side) operates normally.
| Result | Proceed to |
|---|---|
| Side/rear turn signal light (RH side) operates normally | A |
| Side/rear turn signal light (RH side) does not blink | B |
A
B
Operate the turn signal switch and check the problem symptoms.
| Result | Proceed to |
|---|---|
| Front turn signal light (LH side) does not blink | A |
| Side turn signal light (LH side) does not blink | B |
| Rear turn signal light (LH side) does not blink | |
| Front turn signal light (RH side) does not blink | C |
| Side turn signal light (RH side) does not blink | D |
| Rear turn signal light (RH side) does not blink |
A
B
C
D
Remove the headlight assembly LH.
Remove the headlight assembly RH.
Interchange the headlight assembly LH with RH and connect the connectors.
Check the front turn signal light (LH side) operates normally.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Front turn signal light (LH side) does not blink) |
A |
| Front turn signal light (LH side) operates normally | B |
A
B
Disconnect the A164 headlight assembly LH connector.
Disconnect the I5 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| A164-1 (B) or I5-1 (LL) - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the outer rear view mirror assembly LH.
Remove the outer rear view mirror assembly RH.
Interchange the outer rear view mirror assembly LH with RH and connect the connectors.
Check the side turn signal light (LH side) operates normally.
If the side turn signal light (LH side) operates normally, return the outer rear view mirror assembly LH and outer rear view mirror assembly RH that were interchanged in a previous step back to their original conditions so that a component of the outer rear view mirror assembly LH can be inspected in the next step.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) |
A |
| Side/rear turn signal light (LH side) operates normally | B |
A
B
Choose the model to be inspected.
| Result | Proceed to |
|---|---|
| for Bulb Type Turn Signal Light | A |
| for LED Type Turn Signal Light | B |
A
B
Remove the rear combination light socket and wire LH from the rear combination light assembly LH.
Remove the rear combination light socket and wire RH from the rear combination light assembly RH.
Interchange the rear combination light socket and wire LH with RH and connect the connectors.
Check the rear turn signal light (LH side) operates normally.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) |
A |
| Side/rear turn signal light (LH side) operates normally | B |
A
B
Remove the rear combination light assembly LH.
Remove the rear combination light assembly RH.
Interchange the rear combination light assembly LH with RH and connect the connectors.
Check the rear turn signal light (LH side) operates normally.
If the rear turn signal light (LH side) operates normally, return the rear combination light assembly LH and rear combination light assembly RH that were interchanged in a previous step back to their original conditions so that a component of the rear combination light assembly LH can be inspected in the next step.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) |
A |
| Side/rear turn signal light (LH side) operates normally | B |
A
B
Disconnect the L9 outer rear view mirror assembly LH connector.
Disconnect the O104 rear combination light assembly LH connector.
Disconnect the I5 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| L9-5 (B), O104-3 (B) or I5-5 (TRNL) - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the side turn signal light assembly LH from the outer rear view mirror assembly LH.
Remove the side turn signal light assembly RH from the outer rear view mirror assembly RH.
Interchange the side turn signal light assembly LH with RH and connect the connectors.
Check the side turn signal light (LH side) operates normally.
| Result | Proceed to |
|---|---|
| Side/rear turn signal light (LH side) operates normally | A |
| Side/rear turn signal light (LH side) does not blink | B |
A
B
Remove the headlight assembly RH.
Remove the headlight assembly LH.
Interchange the headlight assembly RH with LH and connect the connectors.
Check the front turn signal light (RH side) operates normally.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Front turn signal light (RH side) does not blink) |
A |
| Front turn signal light (RH side) operates normally | B |
A
B
Disconnect the A163 headlight assembly RH connector.
Disconnect the I5 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| A163-1 (B) or I5-2 (LR) - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the outer rear view mirror assembly RH.
Remove the outer rear view mirror assembly LH.
Interchange the outer rear view mirror assembly RH with LH and connect the connectors.
Check the side turn signal light (RH side) operates normally.
If the side turn signal light (RH side) operates normally, return the outer rear view mirror assembly RH and outer rear view mirror assembly LH that were interchanged in a previous step back to their original conditions so that a component of the outer rear view mirror assembly RH can be inspected in the next step.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) |
A |
| Side/rear turn signal light (RH side) operates normally | B |
A
B
Choose the model to be inspected.
| Result | Proceed to |
|---|---|
| for Bulb Type Turn Signal Light | A |
| for LED Type Turn Signal Light | B |
A
B
Remove the rear combination light socket and wire RH from the rear combination light assembly RH.
Remove the rear combination light socket and wire LH from the rear combination light assembly LH.
Interchange the rear combination light socket and wire RH with LH and connect the connectors.
Check the rear turn signal light (RH side) operates normally.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) |
A |
| Side/rear turn signal light (RH side) operates normally | B |
A
B
Remove the rear combination light assembly RH.
Remove the rear combination light assembly LH.
Interchange the rear combination light assembly RH with LH and connect the connectors.
Check the rear turn signal light (RH side) operates normally.
If the rear turn signal light (RH side) operates normally, return the rear combination light assembly RH and rear combination light assembly LH that were interchanged in a previous step back to their original conditions so that a component of the rear combination light assembly RH can be inspected in the next step.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) |
A |
| Side/rear turn signal light (RH side) operates normally | B |
A
B
Disconnect the K10 outer rear view mirror assembly RH connector.
Disconnect the O103 rear combination light assembly RH connector.
Disconnect the I5 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| K10-5 (B), O103-3 (B) or I5-6 (TRNR) - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the side turn signal light assembly RH from the outer rear view mirror assembly RH.
Remove the side turn signal light assembly LH from the outer rear view mirror assembly LH.
Interchange the side turn signal light assembly RH with LH and connect the connectors.
Check the side turn signal light (RH side) operates normally.
| Result | Proceed to |
|---|---|
| Side/rear turn signal light (RH side) operates normally | A |
| Side/rear turn signal light (RH side) does not blink | B |
A
B
Choose the model to be inspected.
| Result | Proceed to |
|---|---|
| except NR Series Engine | A |
| for NR Series Engine | B |
A
B
Operate the turn signal switch and check the problem symptoms.
| Result | Proceed to |
|---|---|
| Front turn signal light (LH side) does not blink | A |
| Side turn signal light (LH side) does not blink | B |
| Rear turn signal light (LH side) does not blink | |
| Front turn signal light (RH side) does not blink | C |
| Side turn signal light (RH side) does not blink | D |
| Rear turn signal light (RH side) does not blink |
A
B
C
D
Remove the headlight assembly LH.
Remove the headlight assembly RH.
Interchange the headlight assembly LH with RH and connect the connectors.
Check the front turn signal light (LH side) operates normally.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Front turn signal light (LH side) does not blink) |
A |
| Front turn signal light (LH side) operates normally | B |
A
B
Disconnect the A168 headlight assembly LH connector.
Disconnect the I5 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| A168-1 (B) or I5-5 (LL) - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the outer rear view mirror assembly LH.
Remove the outer rear view mirror assembly RH.
Interchange the outer rear view mirror assembly LH with RH and connect the connectors.
Check the side turn signal light (LH side) operates normally.
If the side turn signal light (LH side) operates normally, return the outer rear view mirror assembly LH and outer rear view mirror assembly RH that were interchanged in a previous step back to their original conditions so that a component of the outer rear view mirror assembly LH can be inspected in the next step.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) |
A |
| Side/rear turn signal light (LH side) operates normally | B |
A
B
Choose the model to be inspected.
| Result | Proceed to |
|---|---|
| for LEVIN | A |
| for LEVIN GT | B |
A
B
Remove the rear combination light socket and wire LH from the rear combination light assembly LH.
Remove the rear combination light socket and wire RH from the rear combination light assembly RH.
Interchange the rear combination light socket and wire LH with RH and connect the connectors.
Check the rear turn signal light (LH side) operates normally.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) |
A |
| Side/rear turn signal light (LH side) operates normally | B |
A
B
Remove the rear combination light assembly LH.
Remove the rear combination light assembly RH.
Interchange the rear combination light assembly LH with RH and connect the connectors.
Check the rear turn signal light (LH side) operates normally.
If the rear turn signal light (LH side) operates normally, return the rear combination light assembly LH and rear combination light assembly RH that were interchanged in a previous step back to their original conditions so that a component of the rear combination light assembly LH can be inspected in the next step.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) |
A |
| Side/rear turn signal light (LH side) operates normally | B |
A
B
Disconnect the L8*1 or L9*2 outer rear view mirror assembly LH connector.
*1: w/ Retractor Mirror
*2: w/o Retractor Mirror
Disconnect the O104 rear combination light assembly LH connector.
Disconnect the I5 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| L8-8 (B)*1, L9-5 (B)*2, O104-3 (B) or I5-22 (TRNL) - Body ground | Always | 10 kΩ or higher |
*1: w/ Retractor Mirror
*2: w/o Retractor Mirror
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the side turn signal light assembly LH from the outer rear view mirror assembly LH.
Remove the side turn signal light assembly RH from the outer rear view mirror assembly RH.
Interchange the side turn signal light assembly LH with RH and connect the connectors.
Check the side turn signal light (LH side) operates normally.
| Result | Proceed to |
|---|---|
| Side/rear turn signal light (LH side) operates normally | A |
| Side/rear turn signal light (LH side) does not blink | B |
A
B
Remove the headlight assembly RH.
Remove the headlight assembly LH.
Interchange the headlight assembly RH with LH and connect the connectors.
Check the front turn signal light (RH side) operates normally.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Front turn signal light (RH side) does not blink) |
A |
| Front turn signal light (RH side) operates normally | B |
A
B
Disconnect the A167 headlight assembly RH connector.
Disconnect the I5 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| A167-1 (B) or I5-6 (LR) - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the outer rear view mirror assembly RH.
Remove the outer rear view mirror assembly LH.
Interchange the outer rear view mirror assembly RH with LH and connect the connectors.
Check the side turn signal light (RH side) operates normally.
If the side turn signal light (RH side) operates normally, return the outer rear view mirror assembly RH and outer rear view mirror assembly LH that were interchanged in a previous step back to their original conditions so that a component of the outer rear view mirror assembly RH can be inspected in the next step.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) |
A |
| Side/rear turn signal light (RH side) operates normally | B |
A
B
Choose the model to be inspected.
| Result | Proceed to |
|---|---|
| for LEVIN | A |
| for LEVIN GT | B |
A
B
Remove the rear combination light socket and wire RH from the rear combination light assembly RH.
Remove the rear combination light socket and wire LH from the rear combination light assembly LH.
Interchange the rear combination light socket and wire RH with LH and connect the connectors.
Check the rear turn signal light (RH side) operates normally.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) |
A |
| Side/rear turn signal light (RH side) operates normally | B |
A
B
Remove the rear combination light assembly RH.
Remove the rear combination light assembly LH.
Interchange the rear combination light assembly RH with LH and connect the connectors.
Check the rear turn signal light (RH side) operates normally.
If the rear turn signal light (RH side) operates normally, return the rear combination light assembly RH and rear combination light assembly LH that were interchanged in a previous step back to their original conditions so that a component of the rear combination light assembly RH can be inspected in the next step.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) |
A |
| Side/rear turn signal light (RH side) operates normally | B |
A
B
Disconnect the K9*1 or K10*2 outer rear view mirror assembly RH connector.
*1: w/ Retractor Mirror
*2: w/o Retractor Mirror
Disconnect the O103 rear combination light assembly RH connector.
Disconnect the I5 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| K9-8 (B)*1, K10-5 (B)*2, O103-3 (B) or I5-21 (TRNR) - Body ground | Always | 10 kΩ or higher |
*1: w/ Retractor Mirror
*2: w/o Retractor Mirror
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the side turn signal light assembly RH from the outer rear view mirror assembly RH.
Remove the side turn signal light assembly LH from the outer rear view mirror assembly LH.
Interchange the side turn signal light assembly RH with LH and connect the connectors.
Check the side turn signal light (RH side) operates normally.
| Result | Proceed to |
|---|---|
| Side/rear turn signal light (RH side) operates normally | A |
| Side/rear turn signal light (RH side) does not blink | B |
A
B
Operate the turn signal switch and check the problem symptoms.
| Result | Proceed to |
|---|---|
| Front turn signal light (LH side) does not blink | A |
| Side turn signal light (LH side) does not blink | B |
| Rear turn signal light (LH side) does not blink | |
| Front turn signal light (RH side) does not blink | C |
| Side turn signal light (RH side) does not blink | D |
| Rear turn signal light (RH side) does not blink |
A
B
C
D
Remove the headlight assembly LH.
Remove the headlight assembly RH.
Interchange the headlight assembly LH with RH and connect the connectors.
Check the front turn signal light (LH side) operates normally.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Front turn signal light (LH side) does not blink) |
A |
| Front turn signal light (LH side) operates normally | B |
A
B
Disconnect the A168 headlight assembly LH connector.
Disconnect the I5 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| A168-1 (B) or I5-1 (LL) - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the outer rear view mirror assembly LH.
Remove the outer rear view mirror assembly RH.
Interchange the outer rear view mirror assembly LH with RH and connect the connectors.
Check the side turn signal light (LH side) operates normally.
If the side turn signal light (LH side) operates normally, return the outer rear view mirror assembly LH and outer rear view mirror assembly RH that were interchanged in a previous step back to their original conditions so that a component of the outer rear view mirror assembly LH can be inspected in the next step.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) |
A |
| Side/rear turn signal light (LH side) operates normally | B |
A
B
Choose the model to be inspected.
| Result | Proceed to |
|---|---|
| for LEVIN | A |
| for LEVIN GT | B |
A
B
Remove the rear combination light socket and wire LH from the rear combination light assembly LH.
Remove the rear combination light socket and wire RH from the rear combination light assembly RH.
Interchange the rear combination light socket and wire LH with RH and connect the connectors.
Check the rear turn signal light (LH side) operates normally.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) |
A |
| Side/rear turn signal light (LH side) operates normally | B |
A
B
Remove the rear combination light assembly LH.
Remove the rear combination light assembly RH.
Interchange the rear combination light assembly LH with RH and connect the connectors.
Check the rear turn signal light (LH side) operates normally.
If the rear turn signal light (LH side) operates normally, return the rear combination light assembly LH and rear combination light assembly RH that were interchanged in a previous step back to their original conditions so that a component of the rear combination light assembly LH can be inspected in the next step.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) |
A |
| Side/rear turn signal light (LH side) operates normally | B |
A
B
Disconnect the L8*1 or L9*2 outer rear view mirror assembly LH connector.
*1: w/ Retractor Mirror
*2: w/o Retractor Mirror
Disconnect the O104 rear combination light assembly LH connector.
Disconnect the I5 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| L8-8 (B)*1, L9-5 (B)*2, O104-3 (B) or I5-5 (TRNL) - Body ground | Always | 10 kΩ or higher |
*1: w/ Retractor Mirror
*2: w/o Retractor Mirror
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the side turn signal light assembly LH from the outer rear view mirror assembly LH.
Remove the side turn signal light assembly RH from the outer rear view mirror assembly RH.
Interchange the side turn signal light assembly LH with RH and connect the connectors.
Check the side turn signal light (LH side) operates normally.
| Result | Proceed to |
|---|---|
| Side/rear turn signal light (LH side) operates normally | A |
| Side/rear turn signal light (LH side) does not blink | B |
A
B
Remove the headlight assembly RH.
Remove the headlight assembly LH.
Interchange the headlight assembly RH with LH and connect the connectors.
Check the front turn signal light (RH side) operates normally.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Front turn signal light (RH side) does not blink) |
A |
| Front turn signal light (RH side) operates normally | B |
A
B
Disconnect the A167 headlight assembly RH connector.
Disconnect the I5 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| A167-1 (B) or I5-2 (LR) - Body ground | Always | 10 kΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the outer rear view mirror assembly RH.
Remove the outer rear view mirror assembly LH.
Interchange the outer rear view mirror assembly RH with LH and connect the connectors.
Check the side turn signal light (RH side) operates normally.
If the side turn signal light (RH side) operates normally, return the outer rear view mirror assembly RH and outer rear view mirror assembly LH that were interchanged in a previous step back to their original conditions so that a component of the outer rear view mirror assembly RH can be inspected in the next step.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) |
A |
| Side/rear turn signal light (RH side) operates normally | B |
A
B
Choose the model to be inspected.
| Result | Proceed to |
|---|---|
| for LEVIN | A |
| for LEVIN GT | B |
A
B
Remove the rear combination light socket and wire RH from the rear combination light assembly RH.
Remove the rear combination light socket and wire LH from the rear combination light assembly LH.
Interchange the rear combination light socket and wire RH with LH and connect the connectors.
Check the rear turn signal light (RH side) operates normally.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) |
A |
| Side/rear turn signal light (RH side) operates normally | B |
A
B
Remove the rear combination light assembly RH.
Remove the rear combination light assembly LH.
Interchange the rear combination light assembly RH with LH and connect the connectors.
Check the rear turn signal light (RH side) operates normally.
If the rear turn signal light (RH side) operates normally, return the rear combination light assembly RH and rear combination light assembly LH that were interchanged in a previous step back to their original conditions so that a component of the rear combination light assembly RH can be inspected in the next step.
| Result | Proceed to |
|---|---|
| Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) |
A |
| Side/rear turn signal light (RH side) operates normally | B |
A
B
Disconnect the K9*1 or K10*2 outer rear view mirror assembly RH connector.
*1: w/ Retractor Mirror
*2: w/o Retractor Mirror
Disconnect the O103 rear combination light assembly RH connector.
Disconnect the I5 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| K9-8 (B)*1, K10-5 (B)*2, O103-3 (B) or I5-6 (TRNR) - Body ground | Always | 10 kΩ or higher |
*1: w/ Retractor Mirror
*2: w/o Retractor Mirror
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the side turn signal light assembly RH from the outer rear view mirror assembly RH.
Remove the side turn signal light assembly LH from the outer rear view mirror assembly LH.
Interchange the side turn signal light assembly RH with LH and connect the connectors.
Check the side turn signal light (RH side) operates normally.
| Result | Proceed to |
|---|---|
| Side/rear turn signal light (RH side) operates normally | A |
| Side/rear turn signal light (RH side) does not blink | B |
A
B
