RM3660EC _59 Vehicle Exterior _080784 LIGHTING (EXT) _0393156 HEADLIGHT ASSEMBLY(for GTMC Made) A

LIGHTING (EXT) HEADLIGHT ASSEMBLY(for GTMC Made) REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE FRONT BUMPER ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>REMOVAL201906,202007,_59,_080736,_0392547,RM100000001HRI4,202007,202107,_59,_080736,_0392547,RM100000001NOTO,202107,202304,_59,_080736,_0392547,RM100000001Y798,202304,202307,_59,_080736,_0392547,RM100000002AXCM,202307,999999,_59,_080736,_0392547,RM100000002CHFA,

Hide Display 81150 2.REMOVE HEADLIGHT ASSEMBLY

0,0 0,0 false

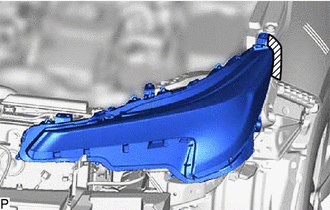

Protective Tape

Apply protective tape around the headlight assembly as shown in the illustration.

3.083,2.646 3.396,2.844 0.313,0.198 10 true *a 3.031,1.094 3.344,1.292 0.313,0.198 10 true *b 1.771,1.615 2.083,1.813 0.313,0.198 10 true *b 1.104,0.208 1.417,0.406 0.313,0.198 10 true *b

*a	Bolt
*b	Screw

Remove the bolt and 3 screws.

0,0 0,0 false

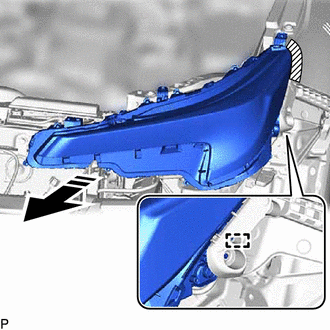

Remove in this Direction

Disengage the guide to separate the headlight assembly as shown in the illustration.

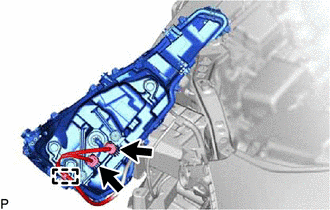

Disengage each clamp.

Disconnect each connector to remove the headlight assembly.
