LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY(for GTMC Made)  DISASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 81550L 1.REMOVE REAR TURN SIGNAL LIGHT BULB

a.
E419585C01
0,0 0,0 false
V113147

Disconnect in this Direction

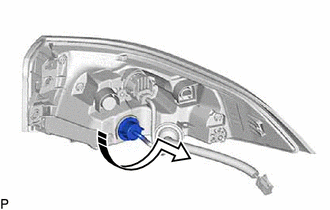

Turn the rear combination light socket and wire with the rear turn signal light bulb as shown in the illustration to disconnect them as a unit.


b.

Remove the rear turn signal light bulb from the rear combination light socket and wire.


Hide 81565E 2.REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE

a.
E419587

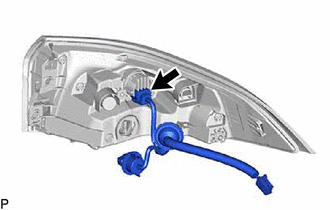

Disconnect the connector to remove the rear combination light socket and wire.
