RM3660EC _59 Vehicle Exterior _080784 LIGHTING (EXT) _0393155 HEADLIGHT ASSEMBLY(for TFTM Made) A

LIGHTING (EXT) HEADLIGHT ASSEMBLY(for TFTM Made) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during headlight assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedures	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
· Front television camera assembly* · Front bumper assembly* · Radiator grille sub-assembly*	Front television camera view adjustment	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)
Replacement or removal and installation of 2 or more parts: · Front television camera assembly, radiator grille sub-assembly or front bumper assembly · Side television camera assembly LH or outer rear view mirror assembly LH · Side television camera assembly RH or outer rear view mirror assembly RH · Rear television camera assembly	Television camera view adjustment	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE FRONT BUMPER ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>REMOVAL202307,999999,_59,_080736,_0392548,RM100000002CH8T,

Hide Display 81150 2.REMOVE HEADLIGHT ASSEMBLY

0,0 0,0 false

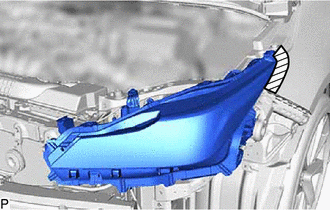

Protective Tape

Apply protective tape around the headlight assembly as shown in the illustration.

2.969,2.583 3.281,2.781 0.313,0.198 10 true *a 2.865,1.146 3.177,1.344 0.313,0.198 10 true *b 1.427,1.552 1.74,1.75 0.313,0.198 10 true *b 1.833,0.521 2.146,0.719 0.313,0.198 10 true *b

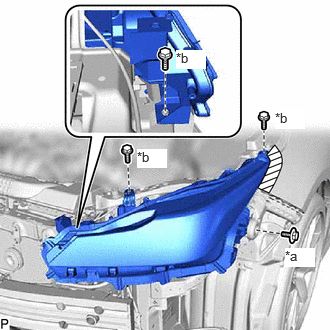

*a	Bolt
*b	Screw

Remove the bolt and 3 screws.

0,0 0,0 false

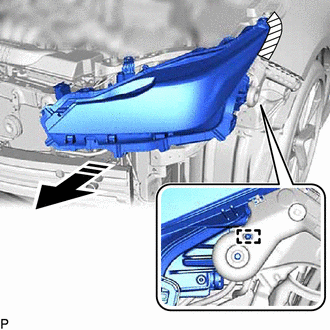

Remove in this Direction

Disengage the guide to separate the headlight assembly as shown in the illustration.

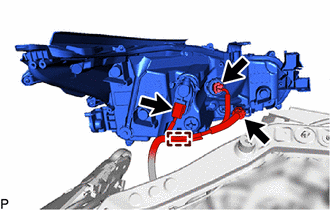

Disengage each clamp.

Disconnect each connector to remove the headlight assembly.
