LIGHTING (EXT) REAR COMBINATION LIGHT ASSEMBLY(for TFTM Made) DISASSEMBLY

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

Hide Display 81550L 1.REMOVE REAR TURN SIGNAL LIGHT BULB (for Bulb Type Turn Signal Light)

0,0 0,0 false

Disconnect in this Direction

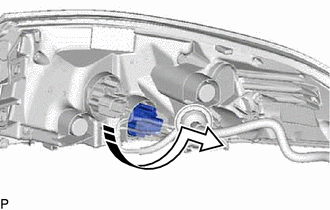

Turn the rear combination light socket and wire with the rear turn signal light bulb as shown in the illustration to disconnect them as a unit.

Remove the rear turn signal light bulb from the rear combination light socket and wire.

Hide Display 81565E 2.REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE (for Bulb Type Turn Signal Light)

Disconnect the connector.

Disengage the clamp to remove the rear combination light socket and wire.

Hide Display 81536C 3.REMOVE TAIL AND STOP LIGHT LED (for Bulb Type Turn Signal Light)

except NR Series Engine:

0,0 0,0 false

Remove in this Direction

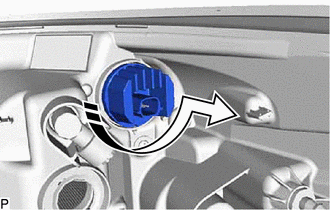

Turn the tail and stop light LED as shown in the illustration to remove it.

Hide Display 81536B 4.REMOVE REAR TURN SIGNAL LIGHT LED (for LED Type Turn Signal Light)

Disconnect the connector.

0,0 0,0 false

Remove in this Direction

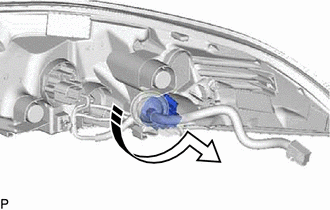

Turn the rear turn signal light LED as shown in the illustration to remove it.

Hide Display 5.REMOVE TAIL LIGHT LED (for LED Type Turn Signal Light)

Disconnect the connector.

0,0 0,0 false

Remove in this Direction

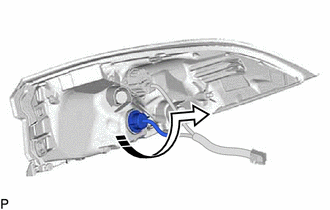

Turn the tail light LED as shown in the illustration to remove it.

Hide Display 81536E 6.REMOVE STOP LIGHT LED (for LED Type Turn Signal Light)

Disconnect the connector.

0,0 0,0 false

Remove in this Direction

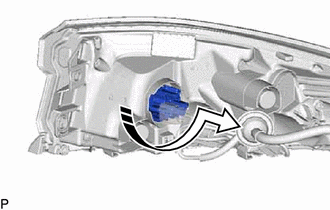

Turn the stop light LED as shown in the illustration to remove it.

Hide Display 81565E 7.REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE (for LED Type Turn Signal Light)

Disengage the clamp to remove the rear combination light socket and wire.
