RM3660EC _59 Vehicle Exterior _080794 MIRROR (EXT) _0393000 OUTER REAR VIEW MIRROR A

MIRROR (EXT)  OUTER REAR VIEW MIRROR  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during outer rear view mirror assembly with cover removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

·

Side television camera assembly LH*

·

Side television camera assembly RH*

·

Outer rear view mirror assembly LH*

·

Outer rear view mirror assembly RH*


Side television camera view adjustment Panoramic View Monitor System (Click here)
Replacement or removal and installation of 2 or more parts:
·

Front television camera assembly, radiator grille sub-assembly or front bumper assembly

·

Side television camera assembly LH or outer rear view mirror assembly LH

·

Side television camera assembly RH or outer rear view mirror assembly RH

·

Rear television camera assembly


Television camera view adjustment Panoramic View Monitor System (Click here)

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 3.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

Hide 4.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

Hide 87964 6.REMOVE OUTER MIRROR INSTALL HOLE COVER

a.

w/o Panoramic View Monitor System:

i.

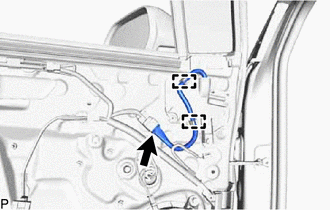

E398346

Disconnect the connector.


ii.

Disengage the 2 clamps.



b.

w/ Panoramic View Monitor System:

i.

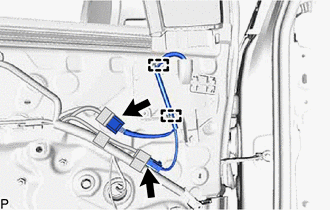

B682723

Disconnect the 2 connectors.


ii.

Disengage the 2 clamps.



c.

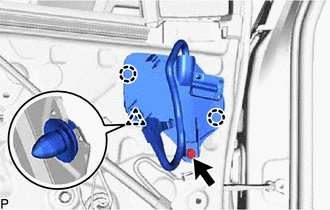

E398347

Remove the screw.


d.

Disengage the clip and 2 claws to remove the outer mirror install hole cover.


Hide 7.REMOVE OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER

a.

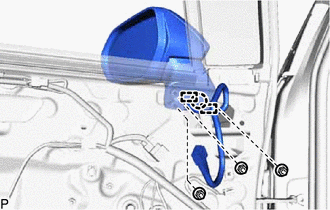

E398348

Remove the 3 nuts.


b.

Disengage the claw and 2 guides and remove the outer rear view mirror assembly with cover.
