LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY(for GTMC Made)  REMOVAL

0,0 0,0 false

	Insert Moulding Remover Here
	Remove in this Direction

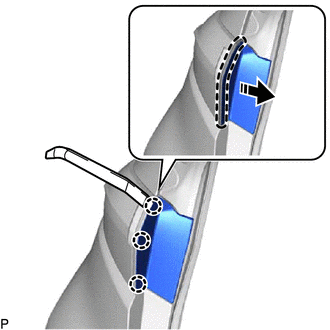

Using a moulding remover, disengage the 3 claws as shown in the illustration.

0,0 0,0 false

Remove in this Direction

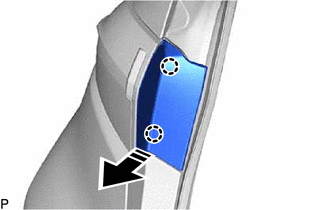

Disengage the 2 claws to remove the rear combination light cover as shown in the illustration.

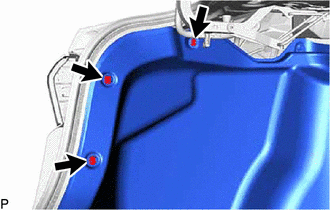

Remove the 3 clips.

0,0 0,0 false

Turn back in this Direction

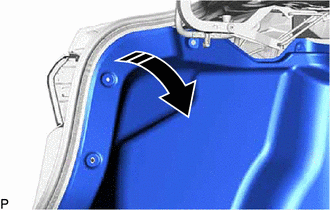

Turn back the luggage compartment trim cover assembly as shown in the illustration.

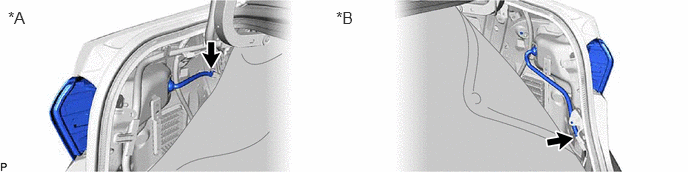

Disconnect the connector.

0.083,0.083 0.458,0.323 0.375,0.24 12 false *A 3.5,0.083 3.875,0.323 0.375,0.24 12 false *B

*A

for LH Side

*B

for RH Side

0,0 0,0 false

Protective Tape

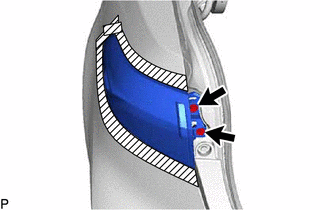

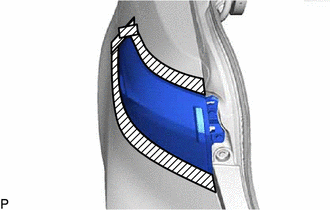

Apply protective tape around the rear combination light assembly as shown in the illustration.

Remove the 2 screws.

1.854,1.552 2.656,0.781 2.656,0.781 1.427,1.271 true 1.156,1.042 0.573,1.542 true 1.083,0.563 0.5,1.063 true 0.448,1.573 0.76,1.729 0.313,0.156 10 true *a 0.385,1.094 0.698,1.25 0.313,0.156 10 true *b 2.688,0.698 3,0.854 0.313,0.156 10 true *b

*a	Pin
*b	Guide
	Remove in this Direction

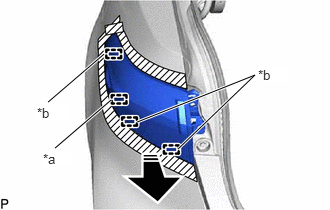

Pull the rear combination light assembly toward the rear of the vehicle as shown in the illustration to disengage the pin and 3 guides and separate the rear combination light assembly.

NOTICE:

To prevent the rear combination light assembly from falling when disengaging the pin and guides, make sure to hold the rear combination light assembly.

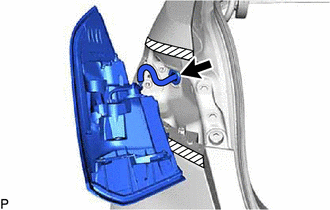

Disengage the grommet to remove the rear combination light assembly.
