RM3660EC _58 Vehicle Interior _080793 METER / GAUGE / DISPLAY _0473175 METER / GAUGE SYSTEM(for 12.3 Inch Display) C

METER / GAUGE / DISPLAY  METER / GAUGE SYSTEM(for 12.3 Inch Display)  B150819  Turn Signal/Hazard Flasher Circuit Current Above Threshold


DESCRIPTION

This DTC is stored when the combination meter assembly detects a short in a turn signal light circuit.

HINT:

If there is a short in a turn signal light circuit, the turn signal lights on the side with the short circuit will blink faster than usual.


DTC No. Detection Item DTC Detection Condition Trouble Area
B150819 Turn Signal/Hazard Flasher Circuit Current Above Threshold Diagnosis Condition:

Battery voltage is 10 V or more


Malfunction Status:

Short in turn signal light circuit


for TFTM Made
·

Headlight assembly

·

Outer rear view mirror assembly

-

Side turn signal light assembly


·

Rear combination light assembly

-

Rear combination light socket and wire*1

-

Rear turn signal light bulb*1


·

Harness or connector

·

Combination meter assembly


for GTMC Made
·

Headlight assembly

·

Outer rear view mirror assembly

-

Side turn signal light assembly


·

Rear combination light assembly

-

Rear combination light socket and wire*2

-

Rear turn signal light bulb


·

Harness or connector

·

Combination meter assembly



*1: for Bulb Type Turn Signal Light

*2: for LEVIN


WIRING DIAGRAM

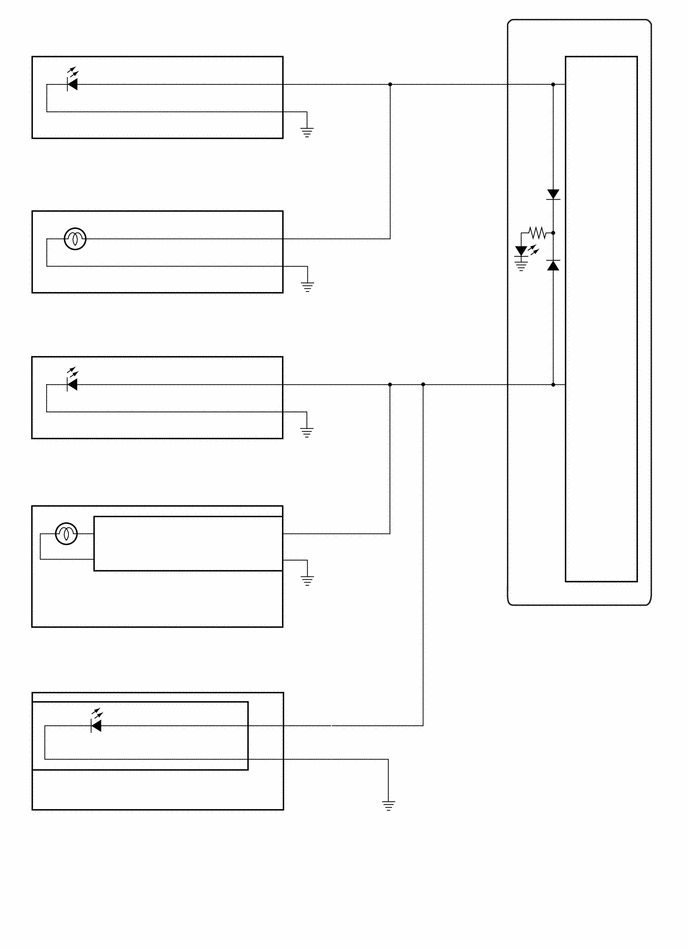

FOR TFTM MADE


E516197
0.927,1.656 4.135,1.854 3.208,0.198 10 false Headlight Assembly LH 0.927,1.469 1.542,1.667 0.615,0.198 10 false A166 0.969,3.271 4.177,3.469 3.208,0.198 10 false Headlight Assembly LH 0.979,3.094 1.594,3.292 0.615,0.198 10 false A164 0.531,8.698 5.729,8.896 5.198,0.198 10 false Outer Rear View Mirror Assembly LH 0.552,8.51 1.167,8.708 0.615,0.198 10 false L9 0.417,8.104 5.615,8.302 5.198,0.198 10 false Side Turn Signal Light Assembly LH 0.521,4.823 5.719,5.021 5.198,0.198 10 false Rear Combination Light Assembly LH 0.521,6.75 5.719,6.948 5.198,0.198 10 false Rear Combination Light Assembly LH 0.521,4.635 1.135,4.833 0.615,0.198 10 false O104 0.521,6.573 1.135,6.771 0.615,0.198 10 false O104 1.24,6.01 2.719,6.917 1.479,0.906 10 false Rear Combination Light Socket and Wire LH 5.167,6.552 7.01,7.229 1.844,0.677 10 false Combination Meter Assembly 5.167,6.365 5.781,6.563 0.615,0.198 10 false I5 5.948,2.875 6.604,3.552 0.656,0.677 10 false FLASHER IC 5.146,0.677 5.542,1.156 0.396,0.479 10 false 5 5.344,0.677 5.74,1.156 0.396,0.479 10 false LL 5.083,3.813 5.479,4.292 0.396,0.479 10 false 22 5.344,3.813 5.74,4.292 0.396,0.479 10 false TRNL 3.01,0.677 3.406,1.156 0.396,0.479 10 false 7 3.5,3.792 3.896,4.271 0.396,0.479 10 false *1 3.531,2.281 3.927,2.76 0.396,0.479 10 false *2 3.5,5.354 3.896,5.833 0.396,0.479 10 false *2 3.51,0.656 3.906,1.135 0.396,0.479 10 false *1 3.021,0.958 3.417,1.438 0.396,0.479 10 false 4 2.792,0.688 3.188,1.167 0.396,0.479 10 false B 2.792,0.958 3.188,1.438 0.396,0.479 10 false E 2.781,2.281 3.177,2.76 0.396,0.479 10 false B 2.781,2.573 3.177,3.052 0.396,0.479 10 false E 2.771,3.802 3.167,4.281 0.396,0.479 10 false B 2.781,5.458 3.177,5.938 0.396,0.479 10 false B 2.792,7.354 3.188,7.833 0.396,0.479 10 false B 2.771,4.094 3.167,4.573 0.396,0.479 10 false E 2.781,5.729 3.177,6.208 0.396,0.479 10 false E 2.792,7.708 3.188,8.188 0.396,0.479 10 false E 3,2.281 3.396,2.76 0.396,0.479 10 false 1 3.01,2.573 3.406,3.052 0.396,0.479 10 false 2 3.01,3.802 3.406,4.281 0.396,0.479 10 false 3 3.01,5.344 3.406,5.823 0.396,0.479 10 false 3 3.01,4.083 3.406,4.563 0.396,0.479 10 false 4 3.01,5.625 3.406,6.104 0.396,0.479 10 false 4 3.021,7.708 3.417,8.188 0.396,0.479 10 false 4 3.021,7.354 3.417,7.833 0.396,0.479 10 false 5 3.521,8.938 5.688,9.458 2.167,0.521 10 false *1: for LED Type Turn Signal Light 3.521,9.354 5.688,9.875 2.167,0.521 10 false *2: for Bulb Type Turn Signal Light

E516197
0.927,1.656 4.135,1.854 3.208,0.198 10 false Headlight Assembly RH 0.927,1.469 1.542,1.667 0.615,0.198 10 false A165 0.969,3.271 4.177,3.469 3.208,0.198 10 false Headlight Assembly RH 0.979,3.094 1.594,3.292 0.615,0.198 10 false A163 0.542,8.688 5.74,8.885 5.198,0.198 10 false Outer Rear View Mirror Assembly RH 0.552,8.5 1.167,8.698 0.615,0.198 10 false K10 0.417,8.104 5.615,8.302 5.198,0.198 10 false Side Turn Signal Light Assembly RH 0.521,4.823 5.719,5.021 5.198,0.198 10 false Rear Combination Light Assembly RH 0.521,6.75 5.719,6.948 5.198,0.198 10 false Rear Combination Light Assembly RH 0.521,4.635 1.135,4.833 0.615,0.198 10 false O103 0.521,6.573 1.135,6.771 0.615,0.198 10 false O103 1.24,6.01 2.719,6.917 1.479,0.906 10 false Rear Combination Light Socket and Wire RH 5.167,6.552 7.01,7.229 1.844,0.677 10 false Combination Meter Assembly 5.167,6.365 5.781,6.563 0.615,0.198 10 false I5 5.948,2.875 6.604,3.552 0.656,0.677 10 false FLASHER IC 5.146,0.677 5.542,1.156 0.396,0.479 10 false 6 5.344,0.677 5.74,1.156 0.396,0.479 10 false LR 5.083,3.813 5.479,4.292 0.396,0.479 10 false 21 5.344,3.813 5.74,4.292 0.396,0.479 10 false TRNR 3.01,0.677 3.406,1.156 0.396,0.479 10 false 7 3.5,3.792 3.896,4.271 0.396,0.479 10 false *1 3.531,2.281 3.927,2.76 0.396,0.479 10 false *2 3.5,5.354 3.896,5.833 0.396,0.479 10 false *2 3.51,0.656 3.906,1.135 0.396,0.479 10 false *1 3.021,0.958 3.417,1.438 0.396,0.479 10 false 4 2.792,0.688 3.188,1.167 0.396,0.479 10 false B 2.792,0.958 3.188,1.438 0.396,0.479 10 false E 2.781,2.281 3.177,2.76 0.396,0.479 10 false B 2.781,2.573 3.177,3.052 0.396,0.479 10 false E 2.771,3.802 3.167,4.281 0.396,0.479 10 false B 2.781,5.458 3.177,5.938 0.396,0.479 10 false B 2.792,7.354 3.188,7.833 0.396,0.479 10 false B 2.771,4.094 3.167,4.573 0.396,0.479 10 false E 2.781,5.729 3.177,6.208 0.396,0.479 10 false E 2.792,7.708 3.188,8.188 0.396,0.479 10 false E 3,2.281 3.396,2.76 0.396,0.479 10 false 1 3.01,2.573 3.406,3.052 0.396,0.479 10 false 2 3.01,3.802 3.406,4.281 0.396,0.479 10 false 3 3.01,5.344 3.406,5.823 0.396,0.479 10 false 3 3.01,4.083 3.406,4.563 0.396,0.479 10 false 4 3.01,5.625 3.406,6.104 0.396,0.479 10 false 4 3.021,7.708 3.417,8.188 0.396,0.479 10 false 4 3.021,7.354 3.417,7.833 0.396,0.479 10 false 5 3.521,8.938 5.688,9.458 2.167,0.521 10 false *1: for LED Type Turn Signal Light 3.521,9.354 5.688,9.875 2.167,0.521 10 false *2: for Bulb Type Turn Signal Light

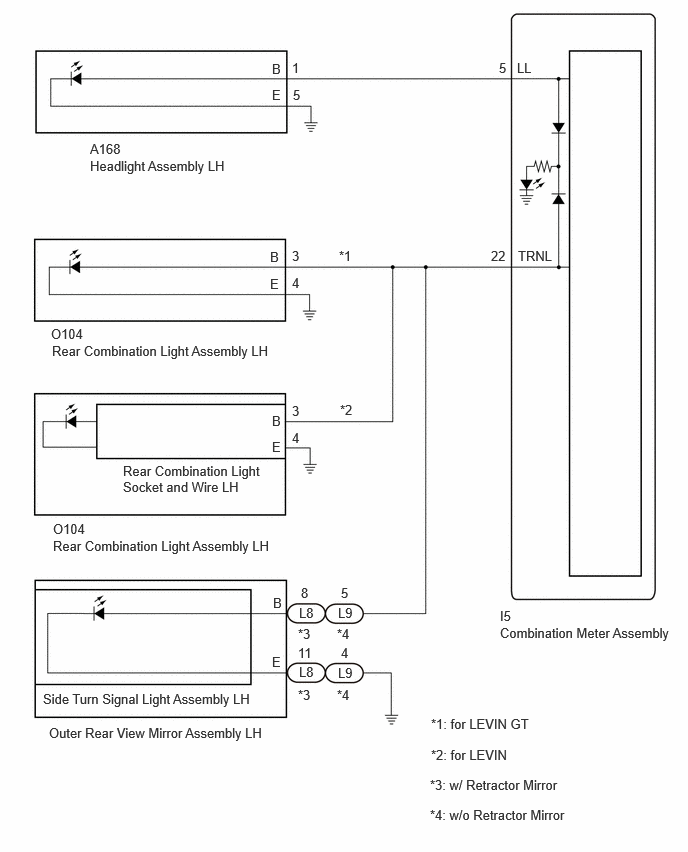

FOR GTMC MADE


E516198E01
0.938,1.646 4.146,1.844 3.208,0.198 10 false Headlight Assembly LH 0.938,1.469 4.146,1.667 3.208,0.198 10 false A168 2.833,0.635 3.198,1.042 0.365,0.406 10 false B 2.833,0.906 3.198,1.313 0.365,0.406 10 false E 3.042,0.625 3.406,1.031 0.365,0.406 10 false 1 3.052,0.906 3.417,1.313 0.365,0.406 10 false 5 5.198,0.625 5.563,1.031 0.365,0.406 10 false 5 5.396,2.583 6.042,3.188 0.646,0.604 10 false TRNL 5.385,0.625 5.75,1.031 0.365,0.406 10 false LL 5.115,2.583 5.479,2.99 0.365,0.406 10 false 22 0.542,3.573 5.74,3.771 5.198,0.198 10 false Rear Combination Light Assembly LH 0.552,5.604 5.75,5.802 5.198,0.198 10 false Rear Combination Light Assembly LH 0.531,3.396 3.74,3.594 3.208,0.198 10 false O104 0.552,5.427 3.76,5.625 3.208,0.198 10 false O104 2.813,2.594 3.177,3 0.365,0.406 10 false B 2.833,4.302 3.198,4.708 0.365,0.406 10 false B 2.844,6.198 3.208,6.604 0.365,0.406 10 false B 2.813,2.875 3.177,3.281 0.365,0.406 10 false E 2.833,4.573 3.198,4.979 0.365,0.406 10 false E 2.833,6.813 3.198,7.219 0.365,0.406 10 false E 3.042,2.583 3.406,2.99 0.365,0.406 10 false 3 3.042,4.198 3.406,4.604 0.365,0.406 10 false 3 3.042,2.865 3.406,3.271 0.365,0.406 10 false 4 3.042,4.479 3.406,4.885 0.365,0.406 10 false 4 0.448,7.198 5.646,7.396 5.198,0.198 10 false Side Turn Signal Light Assembly LH 0.51,7.552 5.708,7.75 5.198,0.198 10 false Outer Rear View Mirror Assembly LH 5.208,6.51 7.063,7.052 1.854,0.542 10 false Combination Meter Assembly 5.208,6.333 7.063,6.875 1.854,0.542 10 false I5 1.281,4.823 2.729,5.583 1.448,0.76 10 false Rear Combination Light Socket and Wire LH 3.115,6.302 6.323,6.5 3.208,0.198 10 false L8 3.521,6.302 6.729,6.5 3.208,0.198 10 false L9 3.521,6.927 6.729,7.125 3.208,0.198 10 false L9 3.115,6.917 6.323,7.115 3.208,0.198 10 false L8 3.135,6.094 3.5,6.5 0.365,0.406 10 false 8 3.552,6.094 3.917,6.5 0.365,0.406 10 false 5 3.104,6.719 3.469,7.125 0.365,0.406 10 false 11 3.552,6.719 3.917,7.125 0.365,0.406 10 false 4 3.51,6.521 3.875,6.927 0.365,0.406 10 false *4 3.104,6.521 3.469,6.927 0.365,0.406 10 false *3 3.51,7.156 3.875,7.563 0.365,0.406 10 false *4 3.104,7.156 3.469,7.563 0.365,0.406 10 false *3 3.531,2.583 3.896,2.99 0.365,0.406 10 false *1 3.542,4.188 3.906,4.594 0.365,0.406 10 false *2 4.49,7.781 6.938,7.979 2.448,0.198 10 false *2: for LEVIN 4.49,7.458 6.938,7.656 2.448,0.198 10 false *1: for LEVIN GT 4.479,8.094 6.042,8.49 1.563,0.396 10 false *3: w/ Retractor Mirror 4.479,8.406 6.042,8.802 1.563,0.396 10 false *4: w/o Retractor Mirror

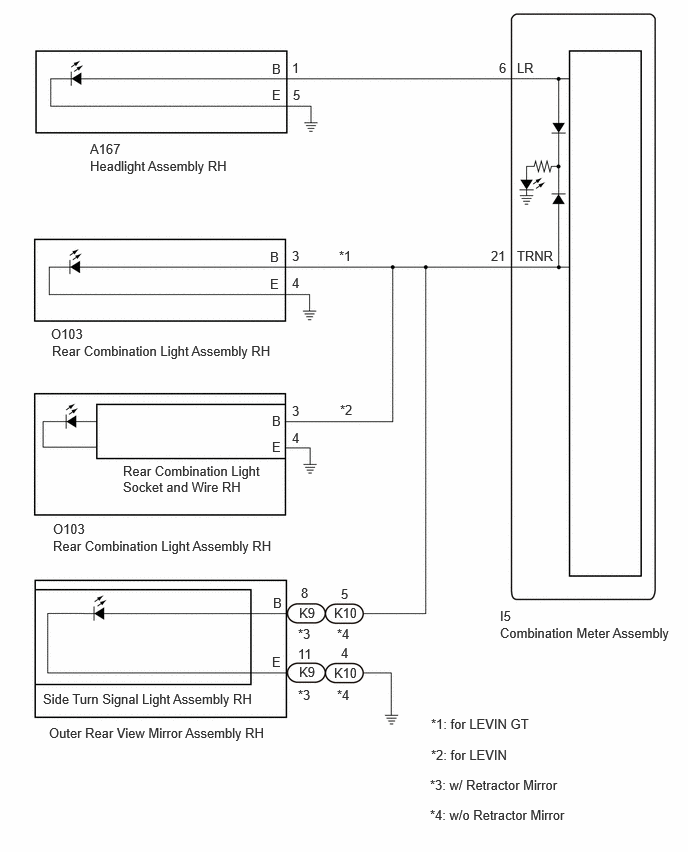

E516198E02
0.938,1.646 4.146,1.844 3.208,0.198 10 false Headlight Assembly RH 0.938,1.469 4.146,1.667 3.208,0.198 10 false A167 2.833,0.635 3.198,1.042 0.365,0.406 10 false B 2.833,0.906 3.198,1.313 0.365,0.406 10 false E 3.042,0.625 3.406,1.031 0.365,0.406 10 false 1 3.052,0.906 3.417,1.313 0.365,0.406 10 false 5 5.198,0.625 5.563,1.031 0.365,0.406 10 false 6 5.385,2.583 6.031,3.188 0.646,0.604 10 false TRNR 5.385,0.625 5.75,1.031 0.365,0.406 10 false LR 5.115,2.583 5.479,2.99 0.365,0.406 10 false 21 0.542,3.573 5.74,3.771 5.198,0.198 10 false Rear Combination Light Assembly RH 0.552,5.604 5.75,5.802 5.198,0.198 10 false Rear Combination Light Assembly RH 0.531,3.396 3.74,3.594 3.208,0.198 10 false O103 0.552,5.427 3.76,5.625 3.208,0.198 10 false O103 2.813,2.594 3.177,3 0.365,0.406 10 false B 2.833,4.302 3.198,4.708 0.365,0.406 10 false B 2.844,6.198 3.208,6.604 0.365,0.406 10 false B 2.813,2.875 3.177,3.281 0.365,0.406 10 false E 2.833,4.573 3.198,4.979 0.365,0.406 10 false E 2.833,6.813 3.198,7.219 0.365,0.406 10 false E 3.042,2.583 3.406,2.99 0.365,0.406 10 false 3 3.042,4.198 3.406,4.604 0.365,0.406 10 false 3 3.042,2.865 3.406,3.271 0.365,0.406 10 false 4 3.042,4.479 3.406,4.885 0.365,0.406 10 false 4 0.448,7.198 5.646,7.396 5.198,0.198 10 false Side Turn Signal Light Assembly RH 0.51,7.552 5.708,7.75 5.198,0.198 10 false Outer Rear View Mirror Assembly RH 5.208,6.51 7.063,7.052 1.854,0.542 10 false Combination Meter Assembly 5.208,6.333 7.063,6.875 1.854,0.542 10 false I5 1.281,4.823 2.729,5.583 1.448,0.76 10 false Rear Combination Light Socket and Wire RH 3.115,6.302 6.323,6.5 3.208,0.198 10 false K9 3.479,6.302 6.688,6.5 3.208,0.198 10 false K10 3.479,6.927 6.688,7.125 3.208,0.198 10 false K10 3.115,6.917 6.323,7.115 3.208,0.198 10 false K9 3.135,6.094 3.5,6.5 0.365,0.406 10 false 8 3.552,6.104 3.917,6.51 0.365,0.406 10 false 5 3.104,6.729 3.469,7.135 0.365,0.406 10 false 11 3.552,6.719 3.917,7.125 0.365,0.406 10 false 4 3.51,6.521 3.875,6.927 0.365,0.406 10 false *4 3.104,6.521 3.469,6.927 0.365,0.406 10 false *3 3.51,7.156 3.875,7.563 0.365,0.406 10 false *4 3.104,7.156 3.469,7.563 0.365,0.406 10 false *3 3.531,2.583 3.896,2.99 0.365,0.406 10 false *1 3.542,4.188 3.906,4.594 0.365,0.406 10 false *2 4.49,7.781 6.938,7.979 2.448,0.198 10 false *2: for LEVIN 4.49,7.458 6.938,7.656 2.448,0.198 10 false *1: for LEVIN GT 4.479,8.094 6.042,8.49 1.563,0.396 10 false *3: w/ Retractor Mirror 4.479,8.406 6.042,8.802 1.563,0.396 10 false *4: w/o Retractor Mirror


CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

except NR Series Engine

When replacing the combination meter assembly, update the ECU security key.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>UPDATE ECU SECURITY KEY

·

Inspect the turn signal light bulbs before performing the following procedure.



PROCEDURE

1.CONFIRM MODEL
a.

Choose the model to be inspected.


Result:
Result Proceed to
for TFTM Made A
for GTMC Made B



A

2.CHECK SYMPTOMS

B

19.CHECK SYMPTOMS
2.CHECK SYMPTOMS
a.

Operate the turn signal switch and check the problem symptoms.


Result:
Result Proceed to
Front turn signal light (LH side) does not blink A
Side turn signal light (LH side) does not blink B
Rear turn signal light (LH side) does not blink
Front turn signal light (RH side) does not blink C
Side turn signal light (RH side) does not blink D
Rear turn signal light (RH side) does not blink



A

3.CHECK FRONT TURN SIGNAL LIGHT (HEADLIGHT ASSEMBLY LH)

B

5.CHECK SIDE TURN SIGNAL LIGHT (OUTER REAR VIEW MIRROR ASSEMBLY LH)

C

11.CHECK FRONT TURN SIGNAL LIGHT (HEADLIGHT ASSEMBLY RH)

D

13.CHECK SIDE TURN SIGNAL LIGHT (OUTER REAR VIEW MIRROR ASSEMBLY RH)
3.CHECK FRONT TURN SIGNAL LIGHT (HEADLIGHT ASSEMBLY LH)
a.

Remove the headlight assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for TFTM Made)>REMOVAL


b.

Remove the headlight assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for TFTM Made)>REMOVAL


c.

Interchange the headlight assembly LH with RH and connect the connectors.


d.

Check the front turn signal light (LH side) operates normally.


Result:
Result Proceed to
Problem symptoms do not change
(Front turn signal light (LH side) does not blink) 		A
Front turn signal light (LH side) operates normally B



A

4.CHECK HARNESS AND CONNECTOR (FRONT TURN SIGNAL LIGHT (LH SIDE) - COMBINATION METER ASSEMBLY)

B

REPLACE HEADLIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for TFTM Made)>REMOVAL


4.CHECK HARNESS AND CONNECTOR (FRONT TURN SIGNAL LIGHT (LH SIDE) - COMBINATION METER ASSEMBLY)
a.

Disconnect the A164*1 or A166*2 headlight assembly LH connector.

*1: for Bulb Type Turn Signal Light

*2: for LED Type Turn Signal Light



b.

Disconnect the I5 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for Bulb Type Turn Signal Light):
Tester Connection Condition Specified Condition
A164-1 (B) or I5-5 (LL) - Body ground Always 10 kΩ or higher


Standard Resistance (for LED Type Turn Signal Light):
Tester Connection Condition Specified Condition
A166-7 (B) or I5-5 (LL) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK SIDE TURN SIGNAL LIGHT (OUTER REAR VIEW MIRROR ASSEMBLY LH)
a.

Remove the outer rear view mirror assembly LH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL


b.

Remove the outer rear view mirror assembly RH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL


c.

Interchange the outer rear view mirror assembly LH with RH and connect the connectors.


d.

Check the side turn signal light (LH side) operates normally.

NOTICE:

If the side turn signal light (LH side) operates normally, return the outer rear view mirror assembly LH and outer rear view mirror assembly RH that were interchanged in a previous step back to their original conditions so that a component of the outer rear view mirror assembly LH can be inspected in the next step.



Result:
Result Proceed to
Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) 		A
Side/rear turn signal light (LH side) operates normally B



A

6.CONFIRM MODEL

B

10.CHECK SIDE TURN SIGNAL LIGHT (SIDE TURN SIGNAL LIGHT ASSEMBLY LH)
6.CONFIRM MODEL
a.

Choose the model to be inspected.


Result:
Result Proceed to
for Bulb Type Turn Signal Light A
for LED Type Turn Signal Light B



A

7.CHECK REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT SOCKET AND WIRE LH)

B

8.CHECK REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT ASSEMBLY LH)
7.CHECK REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT SOCKET AND WIRE LH)
a.

Remove the rear combination light socket and wire LH from the rear combination light assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for TFTM Made)>DISASSEMBLY


b.

Remove the rear combination light socket and wire RH from the rear combination light assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for TFTM Made)>DISASSEMBLY


c.

Interchange the rear combination light socket and wire LH with RH and connect the connectors.


d.

Check the rear turn signal light (LH side) operates normally.


Result:
Result Proceed to
Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) 		A
Side/rear turn signal light (LH side) operates normally B



A

9.CHECK HARNESS AND CONNECTOR (SIDE AND REAR TURN SIGNAL LIGHT (LH SIDE) - COMBINATION METER ASSEMBLY)

B

REPLACE REAR COMBINATION LIGHT SOCKET AND WIRE LH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for TFTM Made)>DISASSEMBLY


8.CHECK REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT ASSEMBLY LH)
a.

Remove the rear combination light assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for TFTM Made)>REMOVAL


b.

Remove the rear combination light assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for TFTM Made)>REMOVAL


c.

Interchange the rear combination light assembly LH with RH and connect the connectors.


d.

Check the rear turn signal light (LH side) operates normally.

NOTICE:

If the rear turn signal light (LH side) operates normally, return the rear combination light assembly LH and rear combination light assembly RH that were interchanged in a previous step back to their original conditions so that a component of the rear combination light assembly LH can be inspected in the next step.



Result:
Result Proceed to
Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) 		A
Side/rear turn signal light (LH side) operates normally B



A

9.CHECK HARNESS AND CONNECTOR (SIDE AND REAR TURN SIGNAL LIGHT (LH SIDE) - COMBINATION METER ASSEMBLY)

B

REPLACE REAR COMBINATION LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for TFTM Made)>REMOVAL


9.CHECK HARNESS AND CONNECTOR (SIDE AND REAR TURN SIGNAL LIGHT (LH SIDE) - COMBINATION METER ASSEMBLY)
a.

Disconnect the L9 outer rear view mirror assembly LH connector.


b.

Disconnect the O104 rear combination light assembly LH connector.


c.

Disconnect the I5 combination meter assembly connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
L9-5 (B), O104-3 (B) or I5-22 (TRNL) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

10.CHECK SIDE TURN SIGNAL LIGHT (SIDE TURN SIGNAL LIGHT ASSEMBLY LH)
a.

Remove the side turn signal light assembly LH from the outer rear view mirror assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL


b.

Remove the side turn signal light assembly RH from the outer rear view mirror assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL


c.

Interchange the side turn signal light assembly LH with RH and connect the connectors.


d.

Check the side turn signal light (LH side) operates normally.


Result:
Result Proceed to
Side/rear turn signal light (LH side) operates normally A
Side/rear turn signal light (LH side) does not blink B



A

REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL


B

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY LH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL


11.CHECK FRONT TURN SIGNAL LIGHT (HEADLIGHT ASSEMBLY RH)
a.

Remove the headlight assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for TFTM Made)>REMOVAL


b.

Remove the headlight assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for TFTM Made)>REMOVAL


c.

Interchange the headlight assembly RH with LH and connect the connectors.


d.

Check the front turn signal light (RH side) operates normally.


Result:
Result Proceed to
Problem symptoms do not change
(Front turn signal light (RH side) does not blink) 		A
Front turn signal light (RH side) operates normally B



A

12.CHECK HARNESS AND CONNECTOR (FRONT TURN SIGNAL LIGHT (RH SIDE) - COMBINATION METER ASSEMBLY)

B

REPLACE HEADLIGHT ASSEMBLY RH

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for TFTM Made)>REMOVAL


12.CHECK HARNESS AND CONNECTOR (FRONT TURN SIGNAL LIGHT (RH SIDE) - COMBINATION METER ASSEMBLY)
a.

Disconnect the A163*1 or A165*2 headlight assembly RH connector.

*1: for Bulb Type Turn Signal Light

*2: for LED Type Turn Signal Light



b.

Disconnect the I5 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for Bulb Type Turn Signal Light):
Tester Connection Condition Specified Condition
A163-1 (B) or I5-6 (LR) - Body ground Always 10 kΩ or higher


Standard Resistance (for LED Type Turn Signal Light):
Tester Connection Condition Specified Condition
A165-7 (B) or I5-6 (LR) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

13.CHECK SIDE TURN SIGNAL LIGHT (OUTER REAR VIEW MIRROR ASSEMBLY RH)
a.

Remove the outer rear view mirror assembly RH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL


b.

Remove the outer rear view mirror assembly LH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL


c.

Interchange the outer rear view mirror assembly RH with LH and connect the connectors.


d.

Check the side turn signal light (RH side) operates normally.

NOTICE:

If the side turn signal light (RH side) operates normally, return the outer rear view mirror assembly RH and outer rear view mirror assembly LH that were interchanged in a previous step back to their original conditions so that a component of the outer rear view mirror assembly RH can be inspected in the next step.



Result:
Result Proceed to
Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) 		A
Side/rear turn signal light (RH side) operates normally B



A

14.CONFIRM MODEL

B

18.CHECK SIDE TURN SIGNAL LIGHT (SIDE TURN SIGNAL LIGHT ASSEMBLY RH)
14.CONFIRM MODEL
a.

Choose the model to be inspected.


Result:
Result Proceed to
for Bulb Type Turn Signal Light A
for LED Type Turn Signal Light B



A

15.CHECK REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT SOCKET AND WIRE RH)

B

16.CHECK REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT ASSEMBLY RH)
15.CHECK REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT SOCKET AND WIRE RH)
a.

Remove the rear combination light socket and wire RH from the rear combination light assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for TFTM Made)>DISASSEMBLY


b.

Remove the rear combination light socket and wire LH from the rear combination light assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for TFTM Made)>DISASSEMBLY


c.

Interchange the rear combination light socket and wire RH with LH and connect the connectors.


d.

Check the rear turn signal light (RH side) operates normally.


Result:
Result Proceed to
Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) 		A
Side/rear turn signal light (RH side) operates normally B



A

17.CHECK HARNESS AND CONNECTOR (SIDE AND REAR TURN SIGNAL LIGHT (RH SIDE) - COMBINATION METER ASSEMBLY)

B

REPLACE REAR COMBINATION LIGHT SOCKET AND WIRE RH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for TFTM Made)>DISASSEMBLY


16.CHECK REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT ASSEMBLY RH)
a.

Remove the rear combination light assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for TFTM Made)>REMOVAL


b.

Remove the rear combination light assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for TFTM Made)>REMOVAL


c.

Interchange the rear combination light assembly RH with LH and connect the connectors.


d.

Check the rear turn signal light (RH side) operates normally.

NOTICE:

If the rear turn signal light (RH side) operates normally, return the rear combination light assembly RH and rear combination light assembly LH that were interchanged in a previous step back to their original conditions so that a component of the rear combination light assembly RH can be inspected in the next step.



Result:
Result Proceed to
Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) 		A
Side/rear turn signal light (RH side) operates normally B



A

17.CHECK HARNESS AND CONNECTOR (SIDE AND REAR TURN SIGNAL LIGHT (RH SIDE) - COMBINATION METER ASSEMBLY)

B

REPLACE REAR COMBINATION LIGHT ASSEMBLY RH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for TFTM Made)>REMOVAL


17.CHECK HARNESS AND CONNECTOR (SIDE AND REAR TURN SIGNAL LIGHT (RH SIDE) - COMBINATION METER ASSEMBLY)
a.

Disconnect the K10 outer rear view mirror assembly RH connector.


b.

Disconnect the O103 rear combination light assembly RH connector.


c.

Disconnect the I5 combination meter assembly connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
K10-5 (B), O103-3 (B) or I5-21 (TRNR) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

18.CHECK SIDE TURN SIGNAL LIGHT (SIDE TURN SIGNAL LIGHT ASSEMBLY RH)
a.

Remove the side turn signal light assembly RH from the outer rear view mirror assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL


b.

Remove the side turn signal light assembly LH from the outer rear view mirror assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL


c.

Interchange the side turn signal light assembly RH with LH and connect the connectors.


d.

Check the side turn signal light (RH side) operates normally.


Result:
Result Proceed to
Side/rear turn signal light (RH side) operates normally A
Side/rear turn signal light (RH side) does not blink B



A

REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY RH

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL


B

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY RH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL


19.CHECK SYMPTOMS
a.

Operate the turn signal switch and check the problem symptoms.


Result:
Result Proceed to
Front turn signal light (LH side) does not blink A
Side turn signal light (LH side) does not blink B
Rear turn signal light (LH side) does not blink
Front turn signal light (RH side) does not blink C
Side turn signal light (RH side) does not blink D
Rear turn signal light (RH side) does not blink



A

20.CHECK FRONT TURN SIGNAL LIGHT (HEADLIGHT ASSEMBLY LH)

B

22.CHECK SIDE TURN SIGNAL LIGHT (OUTER REAR VIEW MIRROR ASSEMBLY LH)

C

28.CHECK FRONT TURN SIGNAL LIGHT (HEADLIGHT ASSEMBLY RH)

D

30.CHECK SIDE TURN SIGNAL LIGHT (OUTER REAR VIEW MIRROR ASSEMBLY RH)
20.CHECK FRONT TURN SIGNAL LIGHT (HEADLIGHT ASSEMBLY LH)
a.

Remove the headlight assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for GTMC Made)>REMOVAL


b.

Remove the headlight assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for GTMC Made)>REMOVAL


c.

Interchange the headlight assembly LH with RH and connect the connectors.


d.

Check the front turn signal light (LH side) operates normally.


Result:
Result Proceed to
Problem symptoms do not change
(Front turn signal light (LH side) does not blink) 		A
Front turn signal light (LH side) operates normally B



A

21.CHECK HARNESS AND CONNECTOR (FRONT TURN SIGNAL LIGHT (LH SIDE) - COMBINATION METER ASSEMBLY)

B

REPLACE HEADLIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for GTMC Made)>REMOVAL


21.CHECK HARNESS AND CONNECTOR (FRONT TURN SIGNAL LIGHT (LH SIDE) - COMBINATION METER ASSEMBLY)
a.

Disconnect the A168 headlight assembly LH connector.


b.

Disconnect the I5 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A168-1 (B) or I5-5 (LL) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

22.CHECK SIDE TURN SIGNAL LIGHT (OUTER REAR VIEW MIRROR ASSEMBLY LH)
a.

Remove the outer rear view mirror assembly LH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL


b.

Remove the outer rear view mirror assembly RH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL


c.

Interchange the outer rear view mirror assembly LH with RH and connect the connectors.


d.

Check the side turn signal light (LH side) operates normally.

NOTICE:

If the side turn signal light (LH side) operates normally, return the outer rear view mirror assembly LH and outer rear view mirror assembly RH that were interchanged in a previous step back to their original conditions so that a component of the outer rear view mirror assembly LH can be inspected in the next step.



Result:
Result Proceed to
Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) 		A
Side/rear turn signal light (LH side) operates normally B



A

23.CONFIRM MODEL

B

27.CHECK SIDE TURN SIGNAL LIGHT (SIDE TURN SIGNAL LIGHT ASSEMBLY LH)
23.CONFIRM MODEL
a.

Choose the model to be inspected.


Result:
Result Proceed to
for LEVIN A
for LEVIN GT B



A

24.CHECK REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT SOCKET AND WIRE LH)

B

25.CHECK REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT ASSEMBLY LH)
24.CHECK REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT SOCKET AND WIRE LH)
a.

Remove the rear combination light socket and wire LH from the rear combination light assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for GTMC Made)>DISASSEMBLY


b.

Remove the rear combination light socket and wire RH from the rear combination light assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for GTMC Made)>DISASSEMBLY


c.

Interchange the rear combination light socket and wire LH with RH and connect the connectors.


d.

Check the rear turn signal light (LH side) operates normally.


Result:
Result Proceed to
Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) 		A
Side/rear turn signal light (LH side) operates normally B



A

26.CHECK HARNESS AND CONNECTOR (SIDE AND REAR TURN SIGNAL LIGHT (LH SIDE) - COMBINATION METER ASSEMBLY)

B

REPLACE REAR COMBINATION LIGHT SOCKET AND WIRE LH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for GTMC Made)>DISASSEMBLY


25.CHECK REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT ASSEMBLY LH)
a.

Remove the rear combination light assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for GTMC Made)>REMOVAL


b.

Remove the rear combination light assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for GTMC Made)>REMOVAL


c.

Interchange the rear combination light assembly LH with RH and connect the connectors.


d.

Check the rear turn signal light (LH side) operates normally.

NOTICE:

If the rear turn signal light (LH side) operates normally, return the rear combination light assembly LH and rear combination light assembly RH that were interchanged in a previous step back to their original conditions so that a component of the rear combination light assembly LH can be inspected in the next step.



Result:
Result Proceed to
Problem symptoms do not change
(Side/rear turn signal light (LH side) does not blink) 		A
Side/rear turn signal light (LH side) operates normally B



A

26.CHECK HARNESS AND CONNECTOR (SIDE AND REAR TURN SIGNAL LIGHT (LH SIDE) - COMBINATION METER ASSEMBLY)

B

REPLACE REAR COMBINATION LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for GTMC Made)>REMOVAL


26.CHECK HARNESS AND CONNECTOR (SIDE AND REAR TURN SIGNAL LIGHT (LH SIDE) - COMBINATION METER ASSEMBLY)
a.

Disconnect the L8*1 or L9*2 outer rear view mirror assembly LH connector.

*1: w/ Retractor Mirror

*2: w/o Retractor Mirror



b.

Disconnect the O104 rear combination light assembly LH connector.


c.

Disconnect the I5 combination meter assembly connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
L8-8 (B)*1, L9-5 (B)*2, O104-3 (B) or I5-22 (TRNL) - Body ground Always 10 kΩ or higher


*1: w/ Retractor Mirror

*2: w/o Retractor Mirror



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

27.CHECK SIDE TURN SIGNAL LIGHT (SIDE TURN SIGNAL LIGHT ASSEMBLY LH)
a.

Remove the side turn signal light assembly LH from the outer rear view mirror assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL


b.

Remove the side turn signal light assembly RH from the outer rear view mirror assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL


c.

Interchange the side turn signal light assembly LH with RH and connect the connectors.


d.

Check the side turn signal light (LH side) operates normally.


Result:
Result Proceed to
Side/rear turn signal light (LH side) operates normally A
Side/rear turn signal light (LH side) does not blink B



A

REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL


B

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY LH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL


28.CHECK FRONT TURN SIGNAL LIGHT (HEADLIGHT ASSEMBLY RH)
a.

Remove the headlight assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for GTMC Made)>REMOVAL


b.

Remove the headlight assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for GTMC Made)>REMOVAL


c.

Interchange the headlight assembly RH with LH and connect the connectors.


d.

Check the front turn signal light (RH side) operates normally.


Result:
Result Proceed to
Problem symptoms do not change
(Front turn signal light (RH side) does not blink) 		A
Front turn signal light (RH side) operates normally B



A

29.CHECK HARNESS AND CONNECTOR (FRONT TURN SIGNAL LIGHT (RH SIDE) - COMBINATION METER ASSEMBLY)

B

REPLACE HEADLIGHT ASSEMBLY RH

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for GTMC Made)>REMOVAL


29.CHECK HARNESS AND CONNECTOR (FRONT TURN SIGNAL LIGHT (RH SIDE) - COMBINATION METER ASSEMBLY)
a.

Disconnect the A167 headlight assembly RH connector.


b.

Disconnect the I5 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A167-1 (B) or I5-6 (LR) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

30.CHECK SIDE TURN SIGNAL LIGHT (OUTER REAR VIEW MIRROR ASSEMBLY RH)
a.

Remove the outer rear view mirror assembly RH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL


b.

Remove the outer rear view mirror assembly LH.

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL


c.

Interchange the outer rear view mirror assembly RH with LH and connect the connectors.


d.

Check the side turn signal light (RH side) operates normally.

NOTICE:

If the side turn signal light (RH side) operates normally, return the outer rear view mirror assembly RH and outer rear view mirror assembly LH that were interchanged in a previous step back to their original conditions so that a component of the outer rear view mirror assembly RH can be inspected in the next step.



Result:
Result Proceed to
Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) 		A
Side/rear turn signal light (RH side) operates normally B



A

31.CONFIRM MODEL

B

35.CHECK SIDE TURN SIGNAL LIGHT (SIDE TURN SIGNAL LIGHT ASSEMBLY RH)
31.CONFIRM MODEL
a.

Choose the model to be inspected.


Result:
Result Proceed to
for LEVIN A
for LEVIN GT B



A

32.CHECK REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT SOCKET AND WIRE RH)

B

33.CHECK REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT ASSEMBLY RH)
32.CHECK REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT SOCKET AND WIRE RH)
a.

Remove the rear combination light socket and wire RH from the rear combination light assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for GTMC Made)>DISASSEMBLY


b.

Remove the rear combination light socket and wire LH from the rear combination light assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for GTMC Made)>DISASSEMBLY


c.

Interchange the rear combination light socket and wire RH with LH and connect the connectors.


d.

Check the rear turn signal light (RH side) operates normally.


Result:
Result Proceed to
Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) 		A
Side/rear turn signal light (RH side) operates normally B



A

34.CHECK HARNESS AND CONNECTOR (SIDE AND REAR TURN SIGNAL LIGHT (RH SIDE) - COMBINATION METER ASSEMBLY)

B

REPLACE REAR COMBINATION LIGHT SOCKET AND WIRE RH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for GTMC Made)>DISASSEMBLY


33.CHECK REAR TURN SIGNAL LIGHT (REAR COMBINATION LIGHT ASSEMBLY RH)
a.

Remove the rear combination light assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for GTMC Made)>REMOVAL


b.

Remove the rear combination light assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for GTMC Made)>REMOVAL


c.

Interchange the rear combination light assembly RH with LH and connect the connectors.


d.

Check the rear turn signal light (RH side) operates normally.

NOTICE:

If the rear turn signal light (RH side) operates normally, return the rear combination light assembly RH and rear combination light assembly LH that were interchanged in a previous step back to their original conditions so that a component of the rear combination light assembly RH can be inspected in the next step.



Result:
Result Proceed to
Problem symptoms do not change
(Side/rear turn signal light (RH side) does not blink) 		A
Side/rear turn signal light (RH side) operates normally B



A

34.CHECK HARNESS AND CONNECTOR (SIDE AND REAR TURN SIGNAL LIGHT (RH SIDE) - COMBINATION METER ASSEMBLY)

B

REPLACE REAR COMBINATION LIGHT ASSEMBLY RH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY (for GTMC Made)>REMOVAL


34.CHECK HARNESS AND CONNECTOR (SIDE AND REAR TURN SIGNAL LIGHT (RH SIDE) - COMBINATION METER ASSEMBLY)
a.

Disconnect the K9*1 or K10*2 outer rear view mirror assembly RH connector.

*1: w/ Retractor Mirror

*2: w/o Retractor Mirror



b.

Disconnect the O104 rear combination light assembly RH connector.


c.

Disconnect the I5 combination meter assembly connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
K9-8 (B)*1, K10-5 (B)*2, O104-3 (B) or I5-21 (TRNR) - Body ground Always 10 kΩ or higher


*1: w/ Retractor Mirror

*2: w/o Retractor Mirror



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

35.CHECK SIDE TURN SIGNAL LIGHT (SIDE TURN SIGNAL LIGHT ASSEMBLY RH)
a.

Remove the side turn signal light assembly RH from the outer rear view mirror assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL


b.

Remove the side turn signal light assembly LH from the outer rear view mirror assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL


c.

Interchange the side turn signal light assembly RH with LH and connect the connectors.


d.

Check the side turn signal light (RH side) operates normally.


Result:
Result Proceed to
Side/rear turn signal light (RH side) operates normally A
Side/rear turn signal light (RH side) does not blink B



A

REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY RH

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL


B

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY RH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL
