RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0396486 INTERIOR ILLUMINATION LIGHT(for Side Trim) A

LIGHTING (INT) INTERIOR ILLUMINATION LIGHT(for Side Trim) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 81080V 1.INSTALL NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY

a.

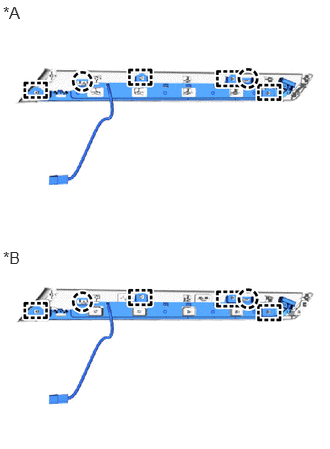

E417872C01

0.031,0.031 0.344,0.24 0.313,0.208 12 false *A 0.031,2.583 0.344,2.781 0.313,0.198 12 false *B

*A	w/o Rear Sunshade
*B	w/ Rear Sunshade

Attach the guide and claw to install the No. 2 interior illumination light assembly for the ornament LH.

b.

w/o Rear Sunshade:

i.

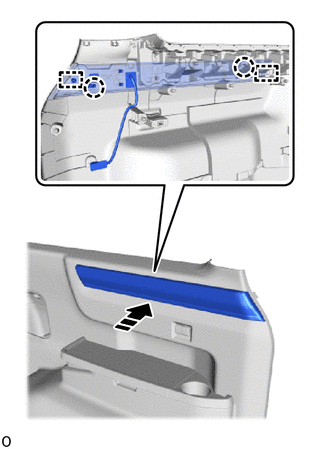

E417832C01

0,0 0,0 false

V113147

Install in this Direction

Attach the guide and claw to install the No. 2 interior illumination light assembly with ornament LH as shown in the illustration.

c.

w/ Rear Sunshade:

i.

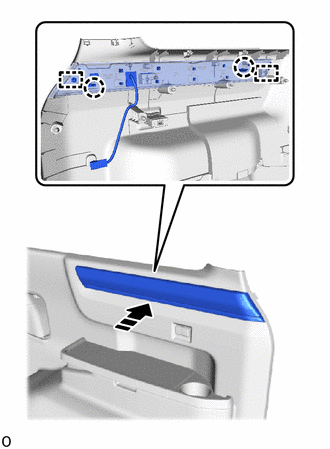

E417834C01

0,0 0,0 false

V113147

Install in this Direction

Attach the guide and claw to install the No. 2 interior illumination light assembly with ornament LH as shown in the illustration.

d.

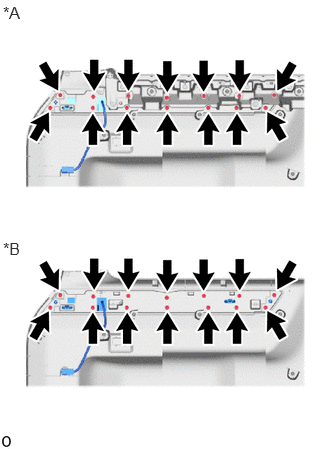

E417830C01

0.031,0.031 0.323,0.24 0.292,0.208 12 false *A 0.031,2.49 0.302,2.708 0.271,0.219 12 false *B

*A	w/o Rear Sunshade
*B	w/ Rear Sunshade

Install the 14 screws.

e.

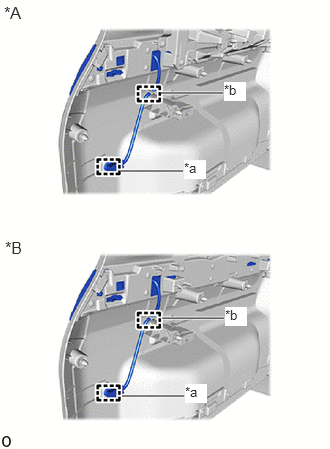

E417829C01

1.26,1.781 1.906,1.781 true 1.677,0.969 2.323,0.969 true 1.688,3.313 2.333,3.313 true 1.271,4.125 1.917,4.125 true 0.042,0.031 0.354,0.24 0.313,0.208 12 false *A 0.052,2.479 0.344,2.667 0.292,0.188 12 false *B 1.917,1.667 2.146,1.865 0.229,0.198 10 true *a 2.333,0.854 2.563,1.052 0.229,0.198 10 true *b 1.927,4 2.156,4.198 0.229,0.198 10 true *a 2.344,3.198 2.573,3.396 0.229,0.198 10 true *b

*A	w/o Rear Sunshade
*B	w/ Rear Sunshade
*a	Clamp
*b	Guide

Attach the guide and clamp.

Hide Display 65992C 2.INSTALL REAR WINDOW CURTAIN LH (w/ Rear Sunshade)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>REAR SUNSHADE ASSEMBLY (for Side Trim)>INSTALLATION201906,999999,_58,_078375,_0396476,RM100000001IHQB_02_0001,

Hide Display 62520B 3.INSTALL QUARTER TRIM PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>INSTALLATION201906,999999,_58,_078375,_0396474,RM100000001IHQ6_01_0021,

Hide Display 62510M 4.INSTALL QUARTER TRIM PANEL ASSEMBLY RH (w/ Rear Air Conditioning System)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>INSTALLATION201906,999999,_58,_078375,_0396474,RM100000001IHQ6_01_0019,

Hide Display 67872A 5.INSTALL NO. 1 SLIDE DOOR WEATHERSTRIP LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>INSTALLATION201906,999999,_59,_078503,_0397541,RM100000001IPZ5_02_0003,

Hide Display 6.INSTALL REAR SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR) (w/ Seat Belt)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Wagon)>INSTALLATION201906,999999,_58,_078602,_0398109,RM100000001IT6F_06_0005,

Hide Display 73233D 7.INSTALL OUTER LAP BELT ANCHOR COVER (w/ Seat Belt)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Wagon)>INSTALLATION201906,999999,_58,_078602,_0398109,RM100000001IT6F_06_0009,

Hide Display 67918D 8.INSTALL REAR DOOR SCUFF PLATE LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0035,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0035,

Hide Display 67935 9.INSTALL BACK DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0010,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0010,

Hide Display 10.INSTALL REAR NO. 3 SEAT ASSEMBLY LH (for LH Side)

a.

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>INSTALLATION201902,999999,_58,_078601,_0382458,RM100000001G55V,

b.

for 60/40 Split Seat Type 40 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 40 Side)>INSTALLATION201906,999999,_58,_078601,_0396039,RM100000001IFKV,

Hide Display 11.INSTALL REAR NO. 3 SEAT ASSEMBLY RH (for RH Side)

a.

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>INSTALLATION201902,999999,_58,_078601,_0382458,RM100000001G55V,

b.

for 60/40 Split Seat Type 60 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>INSTALLATION201906,999999,_58,_078601,_0396040,RM100000001IFL0,

Hide Display 12.INSTALL REAR NO. 2 SEAT ASSEMBLY LH (for LH Side)

a.

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396327,RM100000001IY38,

b.

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396328,RM100000001IGZK,

Hide Display 13.INSTALL REAR NO. 2 SEAT ASSEMBLY RH (for RH Side)

a.

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396327,RM100000001IY38,

b.

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396328,RM100000001IGZK,

Hide Display 14.INSTALL REAR NO. 1 SEAT ASSEMBLY LH (for LH Side)

a.

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396327,RM100000001IY38,

b.

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396328,RM100000001IGZK,

Hide Display 15.INSTALL REAR NO. 1 SEAT ASSEMBLY RH (for RH Side)

a.

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396327,RM100000001IY38,

b.

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396328,RM100000001IGZK,

Hide Display 16.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for First Row)

·

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

·

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 17. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (for First Row)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 18. PERFORM DIAGNOSTIC SYSTEM CHECK (for First Row)

a.

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

b.

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 19.CHECK SRS WARNING LIGHT (for First Row)

a.

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

b.

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 20.INSPECT SEAT BELT WARNING SYSTEM

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>OPERATION CHECK201906,999999,_58,_078602,_0385912,RM100000001IZZ0,

Hide Display 21.INSPECT REAR SEAT ASSEMBLY (for Power Seat)

Click hereVehicle Interior>SEAT>REAR POWER SEAT CONTROL SYSTEM>OPERATION CHECK201906,999999,_58,_078601,_0396767,RM100000001IJY3,

Hide Display 22.INSPECT SEAT HEATER SYSTEM (w/ Seat Heater System)

Click hereVehicle Interior>SEAT>SEAT HEATER SYSTEM>OPERATION CHECK201906,999999,_58,_078601,_0396768,RM100000001IJYA,
