THEFT DETERRENT / KEYLESS ENTRY ELECTRICAL KEY OSCILLATOR(for Rear Floor) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedures listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

PROCEDURE

Hide Display 899A0 1.INSTALL NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

NOTICE:: Do not reuse parts if dropped or subjected to any strong impact.

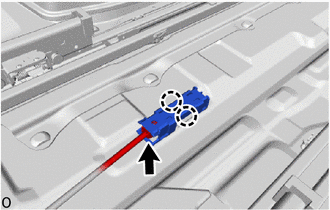

for LH Side:

Connect the connector.

ii.

Attach the claw to install the No. 1 indoor electrical key antenna assembly.

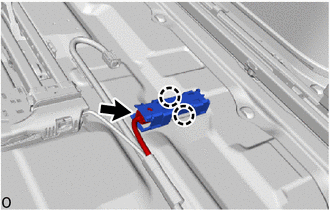

for RH Side:

Connect the connector.

ii.

Attach the claw to install the No. 1 indoor electrical key antenna assembly.

Hide Display 58514H 2.INSTALL NO. 4 FLOOR MAT

Install the No. 4 floor mat.

Hide Display 58513F 3.INSTALL NO. 3 FLOOR MAT

Install the No. 3 floor mat.

Hide Display 58570C 4.INSTALL REAR FLOOR CARPET ASSEMBLY

Click hereVehicle Interior>SEAT>SEAT RAIL>INSTALLATION201906,999999,_58,_078601,_0396334,RM100000001IH09_01_0074,

Hide Display 5.INSTALL SEAT TRACK RAIL PROTECTOR

Click hereVehicle Interior>SEAT>SEAT RAIL>INSTALLATION201906,999999,_58,_078601,_0396334,RM100000001IH09_01_0103,

Hide Display 58595 6.INSTALL NO. 3 FLOOR NO. 1 CARPET MOULDING

Click hereVehicle Interior>SEAT>SEAT RAIL>INSTALLATION201906,999999,_58,_078601,_0396334,RM100000001IH09_01_0079,

Hide Display 58595 7.INSTALL NO. 3 FLOOR NO. 2 CARPET MOULDING

Click hereVehicle Interior>SEAT>SEAT RAIL>INSTALLATION201906,999999,_58,_078601,_0396334,RM100000001IH09_01_0080,

Hide Display 58595 8.INSTALL NO. 3 FLOOR NO. 3 CARPET MOULDING (w/ Power Supply Unit)

Click hereVehicle Interior>SEAT>SEAT RAIL>INSTALLATION201906,999999,_58,_078601,_0396334,RM100000001IH09_01_0081,

Hide Display 58595 9.INSTALL NO. 3 FLOOR NO. 4 CARPET MOULDING (w/ Power Supply Unit)

Click hereVehicle Interior>SEAT>SEAT RAIL>INSTALLATION201906,999999,_58,_078601,_0396334,RM100000001IH09_01_0082,

Hide Display 10.INSTALL REAR NO. 3 SEAT ASSEMBLY LH

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>INSTALLATION201902,999999,_58,_078601,_0382458,RM100000001G55V,

for 60/40 Split Seat Type 40 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 40 Side)>INSTALLATION201906,999999,_58,_078601,_0396039,RM100000001IFKV,

Hide Display 11.INSTALL REAR NO. 3 SEAT ASSEMBLY RH

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>INSTALLATION201902,999999,_58,_078601,_0382458,RM100000001G55V,

for 60/40 Split Seat Type 60 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>INSTALLATION201906,999999,_58,_078601,_0396040,RM100000001IFL0,

Hide Display 12.INSTALL REAR NO. 2 SEAT ASSEMBLY LH

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396327,RM100000001IY38,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396328,RM100000001IGZK,

Hide Display 13.INSTALL REAR NO. 2 SEAT ASSEMBLY RH

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396327,RM100000001IY38,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396328,RM100000001IGZK,

Hide Display 14.INSTALL REAR NO. 1 SEAT ASSEMBLY LH

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396327,RM100000001IY38,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396328,RM100000001IGZK,

Hide Display 15.INSTALL REAR NO. 1 SEAT ASSEMBLY RH

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396327,RM100000001IY38,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396328,RM100000001IGZK,

Hide Display 16.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for First Row)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 17. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (for First Row)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 18. PERFORM DIAGNOSTIC SYSTEM CHECK (for First Row)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 19.CHECK SRS WARNING LIGHT (for First Row)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 20.INSPECT SEAT BELT WARNING SYSTEM

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>OPERATION CHECK201906,999999,_58,_078602,_0385912,RM100000001IZZ0,

Hide Display 21.INSPECT REAR SEAT ASSEMBLY (for Power Seat)

Click hereVehicle Interior>SEAT>REAR POWER SEAT CONTROL SYSTEM>OPERATION CHECK201906,999999,_58,_078601,_0396767,RM100000001IJY3,

Hide Display 22.INSPECT SEAT HEATER SYSTEM (w/ Seat Heater System)

Click hereVehicle Interior>SEAT>SEAT HEATER SYSTEM>OPERATION CHECK201906,999999,_58,_078601,_0396768,RM100000001IJYA,
