RM35X0E _58 Vehicle Interior _078375 INTERIOR PANELS / TRIM _0396476 REAR SUNSHADE ASSEMBLY(for Side Trim) A

INTERIOR PANELS / TRIM REAR SUNSHADE ASSEMBLY(for Side Trim) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 65992C 1.INSTALL REAR WINDOW CURTAIN LH

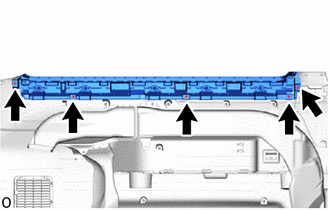

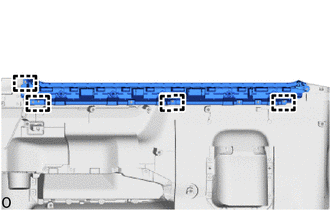

Attach the guide to install the rear window curtain LH.

Install the 6 screws.

Hide Display 65991E 2.INSTALL REAR WINDOW CURTAIN RH

w/ Rear Cooler:

HINT:: Use the same procedure described for the LH side.

w/ Rear Air Conditioning System:

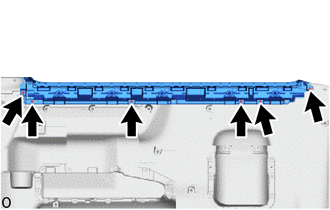

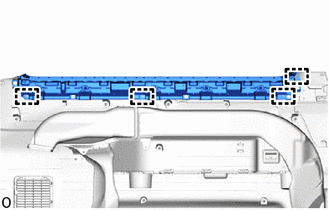

Attach the guide to install the rear window curtain RH.

ii.

Install the 5 screws.

Hide Display 62520B 3.INSTALL QUARTER TRIM PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>INSTALLATION201906,999999,_58,_078375,_0396474,RM100000001IHQ6_01_0021,

Hide Display 62510M 4.INSTALL QUARTER TRIM PANEL ASSEMBLY RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>INSTALLATION201906,999999,_58,_078375,_0396474,RM100000001IHQ6_01_0019,

Hide Display 67872A 5.INSTALL NO. 1 SLIDE DOOR WEATHERSTRIP LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>INSTALLATION201906,999999,_59,_078503,_0397541,RM100000001IPZ5_02_0003,

Hide Display 67918D 6.INSTALL REAR DOOR SCUFF PLATE LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0035,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0035,

Hide Display 67935 7.INSTALL BACK DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0010,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0010,

Hide Display 8.INSTALL REAR SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR) (w/ Seat Belt)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Wagon)>INSTALLATION201906,999999,_58,_078602,_0398109,RM100000001IT6F_06_0005,

Hide Display 73233D 9.INSTALL OUTER LAP BELT ANCHOR COVER (w/ Seat Belt)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Wagon)>INSTALLATION201906,999999,_58,_078602,_0398109,RM100000001IT6F_06_0009,

Hide Display 10.INSTALL REAR NO. 3 SEAT ASSEMBLY LH (for LH Side)

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>INSTALLATION201902,999999,_58,_078601,_0382458,RM100000001G55V,

for 60/40 Split Seat Type 40 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 40 Side)>INSTALLATION201906,999999,_58,_078601,_0396039,RM100000001IFKV,

Hide Display 11.INSTALL REAR NO. 3 SEAT ASSEMBLY RH (for RH Side)

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>INSTALLATION201902,999999,_58,_078601,_0382458,RM100000001G55V,

for 60/40 Split Seat Type 60 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>INSTALLATION201906,999999,_58,_078601,_0396040,RM100000001IFL0,

Hide Display 12.INSTALL REAR NO. 2 SEAT ASSEMBLY LH (for LH Side)

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396327,RM100000001IY38,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396328,RM100000001IGZK,

Hide Display 13.INSTALL REAR NO. 2 SEAT ASSEMBLY RH (for RH Side)

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396327,RM100000001IY38,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396328,RM100000001IGZK,

Hide Display 14.INSTALL REAR NO. 1 SEAT ASSEMBLY LH (for LH Side)

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396327,RM100000001IY38,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396328,RM100000001IGZK,

Hide Display 15.INSTALL REAR NO. 1 SEAT ASSEMBLY RH (for RH Side)

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Manual Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396327,RM100000001IY38,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Power Captain Seat)>INSTALLATION201906,999999,_58,_078601,_0396328,RM100000001IGZK,

Hide Display 16.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for First Row)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 17. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (for First Row)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 18. PERFORM DIAGNOSTIC SYSTEM CHECK (for First Row)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 19.CHECK SRS WARNING LIGHT (for First Row)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 20.INSPECT SEAT BELT WARNING SYSTEM

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>OPERATION CHECK201906,999999,_58,_078602,_0385912,RM100000001IZZ0,

Hide Display 21.INSPECT REAR SEAT ASSEMBLY (for Power Seat)

Click hereVehicle Interior>SEAT>REAR POWER SEAT CONTROL SYSTEM>OPERATION CHECK201906,999999,_58,_078601,_0396767,RM100000001IJY3,

Hide Display 22.INSPECT SEAT HEATER SYSTEM (w/ Seat Heater System)

Click hereVehicle Interior>SEAT>SEAT HEATER SYSTEM>OPERATION CHECK201906,999999,_58,_078601,_0396768,RM100000001IJYA,
