RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0387529 FRONT SEAT OUTER BELT ASSEMBLY(for Full-trim) A

SEAT BELT FRONT SEAT OUTER BELT ASSEMBLY(for Full-trim) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 73200A 1.INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

HINT:: Use the same procedure for the other side.

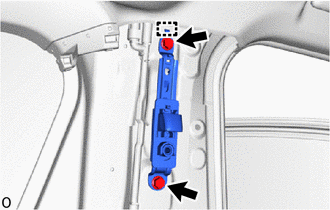

Attach the guide.

Install the front shoulder belt anchor adjuster assembly with the 2 bolts.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Hide Display 73024 2.INSTALL FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH

Attach the guide and install the front shoulder belt anchor plate sub-assembly LH.

Hide Display 73023 3.INSTALL FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

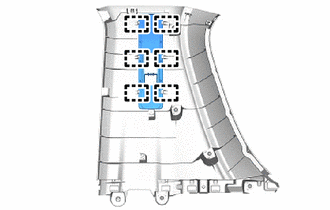

Hide Display 62411 4.INSTALL CENTER PILLAR GARNISH RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75_01_0031,201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0031,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0031,

Hide Display 62412 5.INSTALL CENTER PILLAR GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75_01_0021,201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0021,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0021,

Hide Display 6.INSPECT FRONT SEAT OUTER BELT ASSEMBLY

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Full-trim)>INSPECTION201902,999999,_58,_078602,_0387529,RM100000001GXTZ,

Hide Display 73220 7.INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH

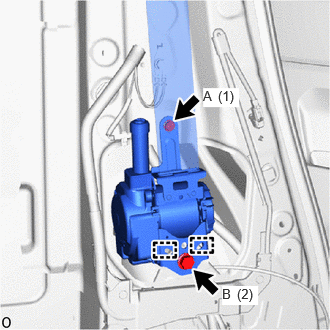

2.115,0.917 2.271,1.115 0.156,0.198 10 true A 2.271,0.917 2.49,1.115 0.219,0.198 10 true (1) 2.313,2.979 2.469,3.177 0.156,0.198 10 true B 2.469,2.979 2.688,3.177 0.219,0.198 10 true (2)

Attach the guide.

Temporarily install the front seat outer belt assembly LH with the 2 bolts.

Tighten the 2 bolts in the order shown in the illustration.

Torque:: Bolt A : 12.5 N*m (127 kgf*cm, 9 ft.*lbf); Bolt B : 42 N*m (428 kgf*cm, 31 ft.*lbf)

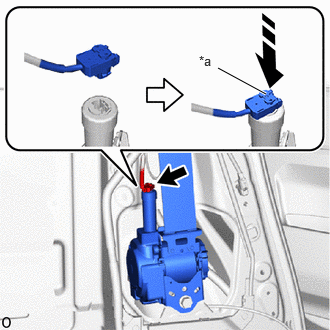

2.271,0.708 2.771,0.979 true 2.073,0.552 2.26,0.729 0.188,0.177 10 false *a

*a	Locking Button
	Lock in this Direction

w/ Pretensioner and Force Limiter:

Connect the pretensioner connector and lock the locking button as shown in the illustration.

NOTICE:: ·

When handling the pretensioner connector, take care not to damage the pretensioner wire harness.

·

Securely lock the locking button.

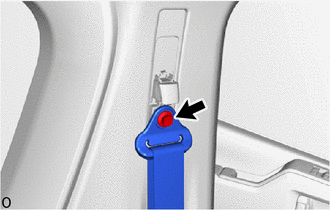

Install the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Hide Display 73210 8.INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 73178C 9.INSTALL SEAT BELT ANCHOR COVER CAP

HINT:: Use the same procedure for the other side.

0,0 0,0 false

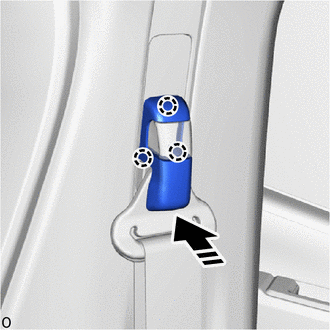

Install in this Direction

Attach the claw and install the seat belt anchor cover cap as shown in the illustration.

Hide Display 62520B 10.INSTALL QUARTER TRIM PANEL ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75_01_0003,201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0003,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0003,

Hide Display 62620K 11.INSTALL SIDE TRIM BOARD ASSEMBLY LH (for High Roof)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75_01_0004,201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0004,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0004,

Hide Display 62640M 12.INSTALL REAR QUARTER TRIM BOARD ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75_01_0005,201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0005,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0005,

Hide Display 58777A 13.INSTALL TOOL BAG HOLDER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75_01_0007,201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0007,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0007,

Hide Display 73570B 14.INSTALL REAR SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR) (w/ Seat Belt)

HINT:: Use the same procedure for the other side.; Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Full-trim)>INSTALLATION201902,999999,_58,_078602,_0389937,RM100000001HCBG_06_0005,

Hide Display 67935 15.INSTALL BACK DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75_01_0010,201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0010,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0010,

Hide Display 16.INSTALL REAR SEAT ASSEMBLY LH

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>INSTALLATION201902,999999,_58,_078601,_0382458,RM100000001G55V,

for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>INSTALLATION201902,999999,_58,_078601,_0381332,RM100000001FZL4,

for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>INSTALLATION201902,999999,_58,_078601,_0381335,RM100000001FZLJ,

Hide Display 17.INSTALL REAR SEAT ASSEMBLY RH

for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>INSTALLATION201902,999999,_58,_078601,_0381335,RM100000001FZLJ,

Hide Display 62413A 18.INSTALL LOWER CENTER PILLAR GARNISH RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75_01_0032,201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0032,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0032,

Hide Display 67871E 19.INSTALL NO. 1 SLIDE DOOR WEATHERSTRIP RH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (except Wagon)>INSTALLATION201902,999999,_59,_078503,_0385653,RM100000001GNFP_02_0003,

Hide Display 62312B 20.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION201902,999999,_59,_078503,_0385652,RM100000001GNFM_02_0001,

Hide Display 62311B 21.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: Use the same procedure described for the LH side.

Hide Display 67917C 22.INSTALL REAR DOOR SCUFF PLATE RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75_01_0035,201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0035,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0035,

Hide Display 74707 23.INSTALL NO. 1 HAND GRIP FRAME SUB-ASSEMBLY (w/ Hand Rail)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75_01_0029,201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0029,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0029,

Hide Display 74733 24.INSTALL NO. 1 HAND GRIP COVER (w/ Hand Rail)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>INSTALLATION201902,201906,_58,_078375,_0380060,RM100000001FZ65_01_0043,201906,202208,_58,_078375,_0380060,RM100000001IXV3_01_0043,202208,999999,_58,_078375,_0380060,RM1000000024I17_01_0043,

Hide Display 73220 25.INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

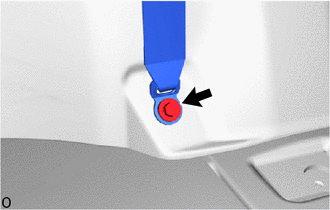

Install the floor anchor of the front seat outer belt assembly LH with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Check that the ELR locks.

With the front seat outer belt assembly LH installed to the vehicle, check that the belt locks when it is pulled out quickly.

Hide Display 73210 26.INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR)

HINT:: Use the same procedure described for the LH side.

Hide Display 73233 27.INSTALL OUTER LAP BELT ANCHOR COVER

HINT:: Use the same procedure for the other side.

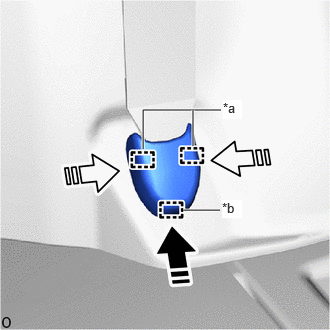

1.49,1.552 1.49,1.146 1.49,1.146 2.302,1.146 true 2.01,1.521 2.01,1.146 true 2.292,2.188 1.906,2.188 true 2.323,1.042 2.521,1.24 0.198,0.198 10 true *a 2.313,2.083 2.521,2.271 0.208,0.188 10 true *b
