INTERIOR PANELS / TRIM  ROOF HEADLINING  INSTALLATION

1.INSTALL ROOF HEADLINING ASSEMBLY

a.

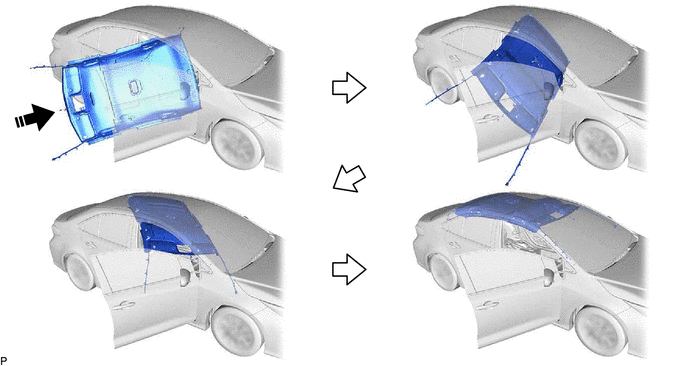

Put the roof headlining assembly into the vehicle through the front door RH as shown in the illustration.

0,0 0,0 false

Install in this Direction

-

-

NOTICE:

Do not damage the roof headlining assembly or vehicle interior.

b.

for Roof Side (for Normal Roof):

i.

Install the roof headlining assembly with the 3 clips.

ii.

Engage the 2 claws to install the base of each visor holder.

c.

for Roof Side (for Moon Roof):

i.

Engage the 6 fasteners.

ii.

Install the roof headlining assembly with the 3 clips.

iii.

Engage the 2 claws to install the base of each visor holder.

iv.

Connect the connector.

d.

0,0 0,0 false

Install in this Direction

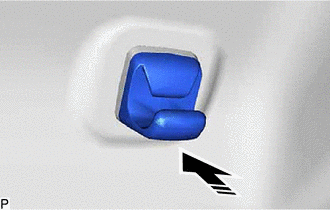

Install the visor holder as shown in the illustration.

HINT:

Use the same procedure for the LH side and RH side.

e.

for Rear Pillar RH Side:

i.

Engage the clamp.

ii.

Connect the connector.

f.

for Front Pillar RH Side:

i.

Remove the protective cover.

ii.

Engage the 3 clamps.

iii.

Install the protective cover.

g.

for Front Pillar LH Side:

i.

Remove the protective cover.

ii.

Connect each connector.

iii.

Engage the 4 clamps.

iv.

Install the protective cover.

h.

for Windshield Glass Side with Connector:

i.

Connect each connector.

74320 2.INSTALL VISOR ASSEMBLY LH

74325 3.INSTALL VISOR BRACKET COVER LH (w/ Cover)

74310 4.INSTALL VISOR ASSEMBLY RH

74325 5.INSTALL VISOR BRACKET COVER RH (w/ Cover)

74610A 6.INSTALL ASSIST GRIP SUB-ASSEMBLY

a.

2.271,1.49 2,1.313 true 2.313,1.417 2.625,1.573 0.313,0.156 10 false *a

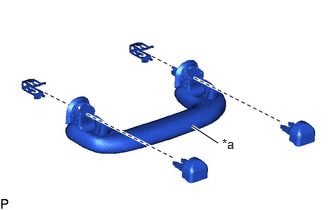

*a	Assist Grip

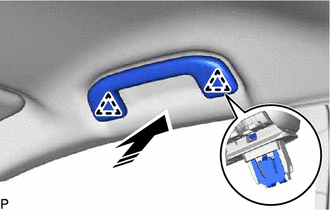

Install the 2 clips to the assist grip.

b.

Temporarily install the 2 assist grip covers to the assist grip as shown in the illustration.

c.

0,0 0,0 false

Install in this Direction

Engage the 2 clips to install the assist grip sub-assembly as shown in the illustration.

d.

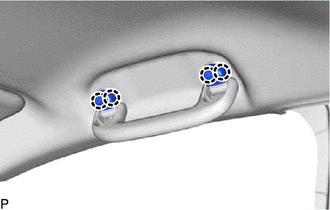

Engage the 4 claws to install the assist grip cover LH and assist grip cover RH.

NOTICE:

Make sure that the clips are engaged securely.

74630E 7.INSTALL REAR ASSIST GRIP ASSEMBLY LH

74620C 8.INSTALL REAR ASSIST GRIP ASSEMBLY RH

9.INSTALL COVER (w/ ETC for Type B)

a.

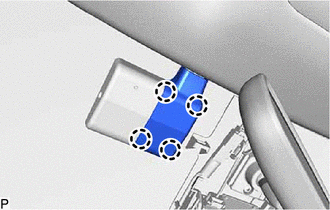

Engage the 4 claws to install the cover.

86466D 10.INSTALL NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)

86466E 11.INSTALL NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)

12.CONNECT TOLL COLLECTION ECU ASSEMBLY (w/ ETC for Type A)

89941 13.INSTALL RAIN SENSOR (w/ Rain Sensor)

81240 14.INSTALL NO. 1 ROOM LIGHT ASSEMBLY (for Bulb Type)

81240 15.INSTALL NO. 1 ROOM LIGHT ASSEMBLY (for LED Type)

81360T 16.INSTALL SPOT LIGHT ASSEMBLY (for Bulb Type)

81360T 17.INSTALL SPOT LIGHT ASSEMBLY (for LED Type)

18.INSTALL MAP LIGHT ASSEMBLY (for Bulb Type)

19.INSTALL MAP LIGHT ASSEMBLY (for LED Type)

20.INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY (for CVT)

21.INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

62472A 22.INSTALL ROOF SIDE INNER GARNISH LH

a.

0,0 0,0 false

Install in this Direction

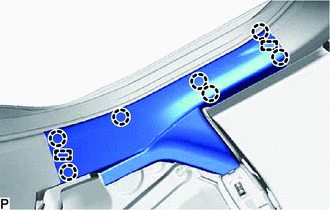

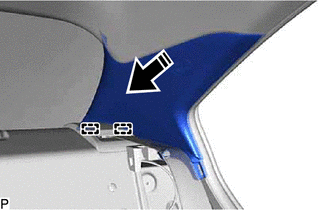

Engage the 2 guides as shown in the illustration.

b.

0,0 0,0 false

Install in this Direction

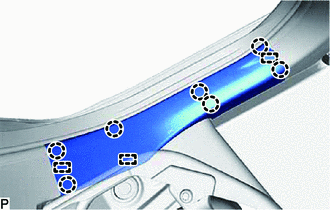

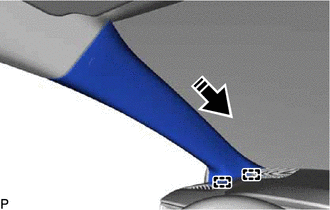

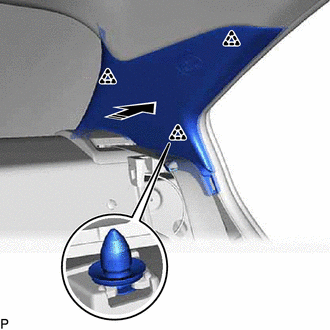

Engage the 3 clips to install the roof side inner garnish LH as shown in the illustration.

62552F 23.INSTALL REAR SEAT SIDE GARNISH LH

a.

0.844,0.865 1.521,0.865 true 0.594,0.76 0.823,0.917 0.229,0.156 10 true *1

*1	Rear Seatback Hinge Sub-assembly LH
	Install in this Direction

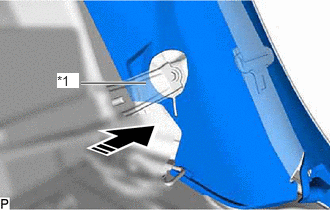

Pass the rear seatback hinge sub-assembly LH through the rear seat side garnish LH as shown in the illustration.

b.

Engage the 2 guides, 2 claws and clip to install the rear seat side garnish LH.

76974F 24.INSTALL REAR UNDER SIDE COVER LH (for HV Model)

a.

0,0 0,0 false

Install in this Direction

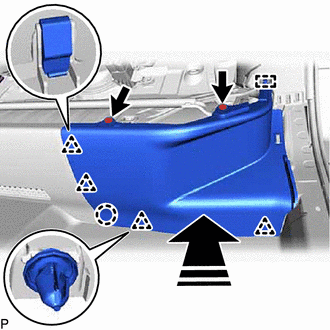

Engage the guide, 4 clips and claw as shown in the illustration.

b.

Install the rear under side cover LH with the 2 clips.

62471A 25.INSTALL ROOF SIDE INNER GARNISH RH

62551F 26.INSTALL REAR SEAT SIDE GARNISH RH

76973F 27.INSTALL REAR UNDER SIDE COVER RH (for HV Model)

62412B 28.INSTALL CENTER PILLAR UPPER GARNISH LH

a.

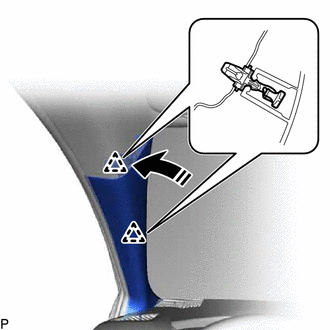

Pass the anchor of the front seat outer belt assembly LH through the center pillar upper garnish LH.

b.

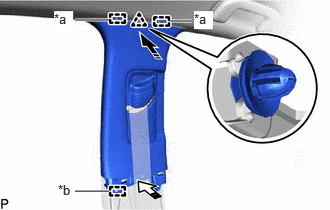

0.781,0.208 1.135,0.208 true 2,0.219 1.771,0.219 true 0.781,1.99 1.135,1.99 true 0.563,0.115 0.76,0.302 0.198,0.188 10 true *a 2.021,0.115 2.219,0.302 0.198,0.188 10 true *a 0.604,1.896 0.802,2.083 0.198,0.188 10 false *b

*a	Guide (A)
*b	Guide (B)
	Install in this Direction (1)
	Install in this Direction (2)

Engage the 2 guides (A) and clip as shown in the illustration.

c.

Engage the guide (B) as shown in the illustration.

d.

Install the center pillar upper garnish LH with the 2 clips.

62414A 29.INSTALL CENTER PILLAR LOWER GARNISH LH

a.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

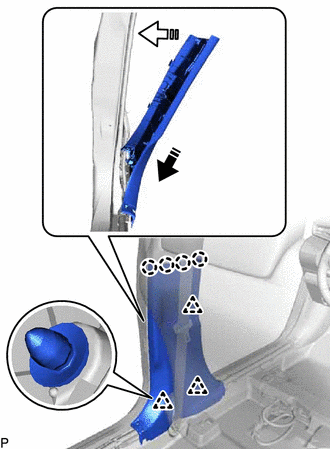

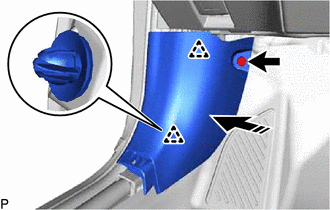

Engage the 4 claws and 3 clips to install the center pillar lower garnish LH as shown in the illustration.

73220 30.CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

73233 31.INSTALL LAP BELT OUTER ANCHOR COVER (for LH Side)

62332A 32.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

67918A 33.INSTALL REAR DOOR SCUFF PLATE LH (for Gasoline Model)

a.

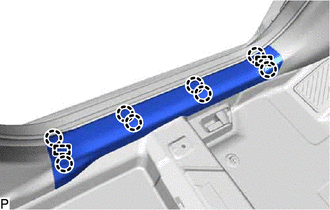

Engage the 2 guides and 7 claws to install the rear door scuff plate LH.

HINT:

Install the center pillar lower garnish LH side of the rear door scuff plate LH first.

67918A 34.INSTALL REAR DOOR SCUFF PLATE LH (for HV Model)

a.

Engage the 3 guides and 7 claws to install the rear door scuff plate LH.

HINT:

Install the center pillar lower garnish LH side of the rear door scuff plate LH first.

62212 35.INSTALL FRONT PILLAR GARNISH LH

a.

Remove the protective cover.

b.

1.833,0.479 2.354,0.479 true 2.24,1.281 2.76,1.281 true 2.365,0.385 2.677,0.542 0.313,0.156 10 false *1 2.781,1.188 3.094,1.344 0.313,0.156 10 false *2

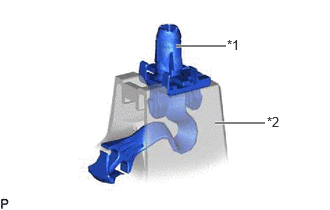

*1	Front Pillar Garnish Clip
*2	Front Pillar Garnish LH

Install 2 new front pillar garnish clips to the front pillar garnish LH.

HINT:

Make sure that the front pillar garnish clip is engaged correctly.

c.

0,0 0,0 false

Install in this Direction

Push the front pillar garnish LH as shown in the illustration to engage the 2 guides.

d.

0,0 0,0 false

Install in this Direction

Engage the 2 front pillar garnish clips to install the front pillar garnish LH as shown in the illustration.

HINT:

Make sure that the curtain shield airbag assembly LH is not pinched.

e.

Remove the protective tape.

62312B 36.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

62112A 37.INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

a.

0,0 0,0 false

Install in this Direction

Engage the 2 clips as shown in the illustration.

b.

Install the cowl side trim sub-assembly LH with the clip.

67914 38.INSTALL FRONT DOOR SCUFF PLATE LH

a.

Engage the 2 guides and 8 claws to install the front door scuff plate LH.

HINT:

Install the center pillar lower garnish LH side of the front door scuff plate LH first.

62411B 39.INSTALL CENTER PILLAR UPPER GARNISH RH

62413A 40.INSTALL CENTER PILLAR LOWER GARNISH RH

73210 41.CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

73233 42.INSTALL LAP BELT OUTER ANCHOR COVER (for RH Side)

62331A 43.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

67917A 44.INSTALL REAR DOOR SCUFF PLATE RH

62211 45.INSTALL FRONT PILLAR GARNISH RH

62311B 46.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

62111C 47.INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

67913 48.INSTALL FRONT DOOR SCUFF PLATE RH

49.INSTALL REAR SEAT ASSEMBLY (for Fixed Seat Type)

50.INSTALL REAR SEAT ASSEMBLY (for Fold Down Seat Type)

51.INSTALL FRONT SEAT ASSEMBLY (for Manual Seat)

52.INSTALL FRONT SEAT ASSEMBLY (for Power Seat)
