INTERIOR PANELS / TRIM  INSTRUMENT PANEL SAFETY PAD  INSTALLATION

1.INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

a.

When installing a new instrument panel safety pad sub-assembly:

i.

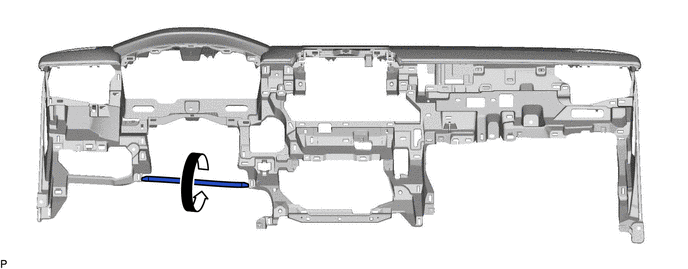

Immediately before installing the instrument panel safety pad sub-assembly, twist and cut off the portion as shown in the illustration.

b.

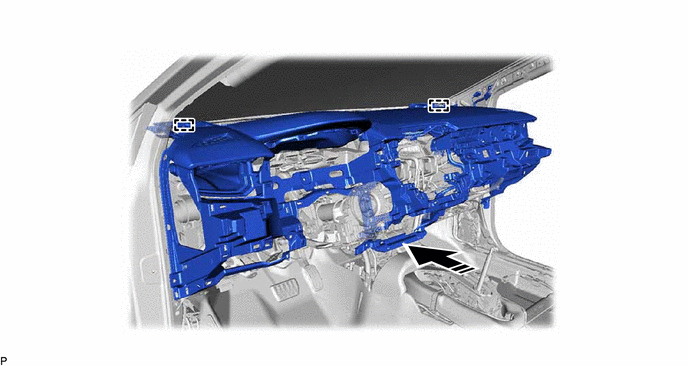

Engage the 2 guides as shown in the illustration.

0,0 0,0 false

Install in this Direction

-

-

NOTICE:

·

Do not damage the instrument panel safety pad sub-assembly.

·

Do not allow the wire harnesses to interfere with the surrounding parts.

c.

Install the 2 bolts <B> and each screw <D>.

d.

Install each clip.

e.

Install the instrument panel safety pad assembly with the 2 bolts <A>.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

f.

Install the bolts <C>.

Torque:

10 N*m (102 kgf*cm, 7 ft.*lbf)

g.

Engage each clamp.

h.

Connect each connector.

i.

Engage the 2 claws to connect the cooler (room temp. sensor) thermistor.

82142 2.CONNECT NO. 2 INSTRUMENT PANEL WIRE

55300 3.INSTALL UPPER INSTRUMENT PANEL ASSEMBLY (w/ Upper Instrument Panel)

a.

Connect the connector.

b.

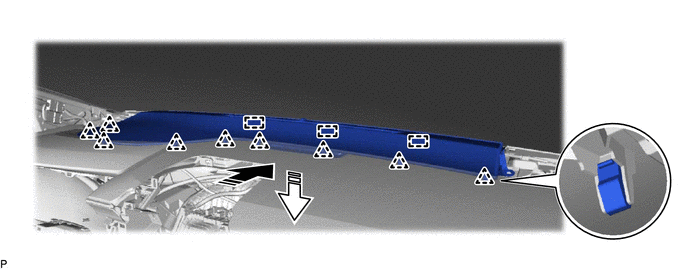

Engage the 3 guides and 9 clips as shown in the illustration.

0,0 0,0 false

Install in this Direction (1)

Install in this Direction (2)

c.

Install the upper instrument panel assembly with the 2 clips.

55472C 4.INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL

a.

for Panel with Speaker:

i.

Connect the connector.

b.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Engage the 2 guides, 2 clips and 2 claws as shown in the illustration to install the No. 1 instrument panel speaker panel.

62212 5.INSTALL FRONT PILLAR GARNISH LH

55474B 6.INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH

a.

0,0 0,0 false

Install in this Direction

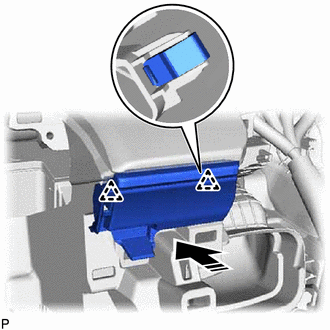

Engage the 2 clips as shown in the illustration to install the instrument cluster finish panel garnish.

55475A 7.INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

a.

0,0 0,0 false

Install in this Direction

Engage the 5 clips as shown in the illustration to install the No. 2 instrument cluster finish panel garnish.

83100 8.INSTALL COMBINATION METER ASSEMBLY

55416C 9.INSTALL INSTRUMENT CLUSTER FINISH PANEL RETAINER

a.

0,0 0,0 false

Install in this Direction

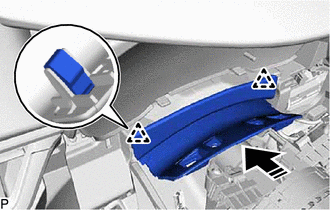

Engage the 2 clips as shown in the illustration to install the instrument cluster finish panel retainer.

55413D 10.INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL

a.

w/ Smart Entry and Start System:

i.

Connect the connector.

b.

0,0 0,0 false

Install in this Direction

Engage the 4 clips as shown in the illustration to install the center lower instrument cluster finish panel.

55410C 11.INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

55473B 12.INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL

a.

for Panel with Speaker:

i.

Connect the connector.

b.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Engage the 2 guides, 2 clips and 2 claws as shown in the illustration to install the No. 2 instrument panel speaker panel.

62211 13.INSTALL FRONT PILLAR GARNISH RH

55011A 14.INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

a.

0,0 0,0 false

Install in this Direction

Engage the 9 clips as shown in the illustration to install the No. 1 instrument panel garnish sub-assembly.

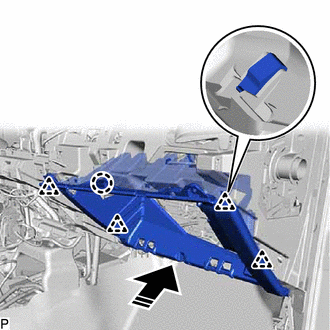

55433B 15.INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

a.

Connect the connector.

b.

0,0 0,0 false

Install in this Direction

Engage the 4 clips and claw as shown in the illustration.

c.

Install the lower No. 2 instrument panel finish panel with the 5 screws <E>.

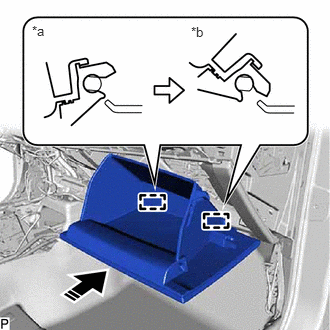

55550 16.INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

a.

0.333,0.24 0.646,0.396 0.313,0.156 10 false *a 1.99,0.25 2.302,0.406 0.313,0.156 10 false *b

*a	Open Approximately 57°
*b	Closed
	Install in this Direction

With the glove compartment door assembly opened approximately 57° from its closed position, engage the 2 hinges horizontally.

NOTICE:

Engaging the hinges from the top will deform the hinges. Be sure to install the glove compartment door assembly horizontally.

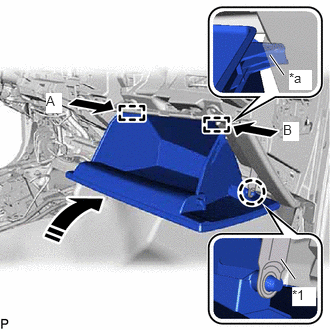

b.

2.958,0.781 2.813,0.573 true 3.073,2.906 2.927,2.698 true 3.042,2.99 3.292,3.188 0.25,0.198 10 true *1 3.01,0.729 3.25,0.938 0.24,0.208 10 true *a 0.479,0.969 0.646,1.177 0.167,0.208 10 true A 2.948,1.271 3.115,1.469 0.167,0.198 10 true B

*1	Glove Compartment Door Stopper Sub-assembly
*a	Stopper
	Install in this Direction

Slightly bend the stoppers (A) and (B) in the directions indicated by the arrows in the illustration and engage the stoppers to install the glove compartment door assembly.

c.

Engage the claw to connect the glove compartment door stopper sub-assembly.

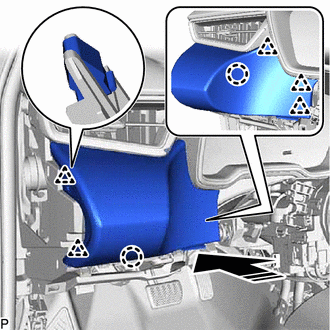

55607 17.INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

a.

w/ Illumination:

i.

Connect the connector.

b.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

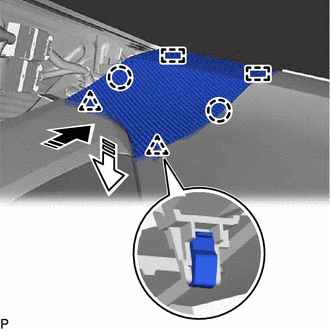

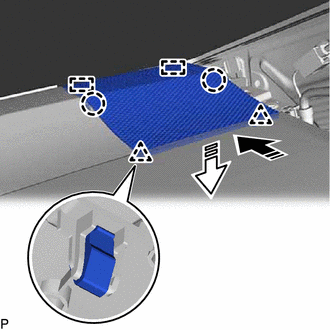

Engage the 2 guides and 3 claws as shown in the illustration to install the No. 2 instrument panel under cover sub-assembly.

55422C 18.INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL (except 10.25 Inch Display)

a.

0,0 0,0 false

Install in this Direction

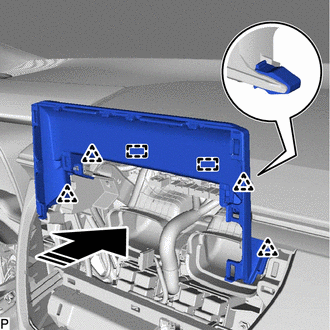

Engage the 2 guides and 4 clips as shown in the illustration to install the center upper instrument cluster finish panel.

19.INSTALL NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (w/ Navigation System)

20.INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (w/o Navigation System)

21.INSTALL CENTER INSTRUMENT PANEL SAFETY PAD RETAINER WITH HEATER CONTROL (for Mechanical Control Type)

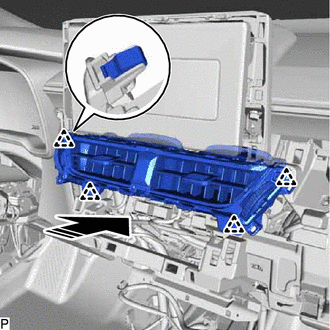

55670A 22.INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY (for TFTM Made)

a.

Connect the connector.

b.

0,0 0,0 false

Install in this Direction

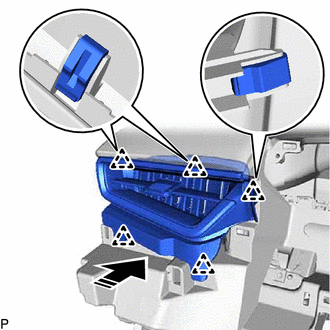

Engage the 4 clips as shown in the illustration to install the center instrument panel register assembly.

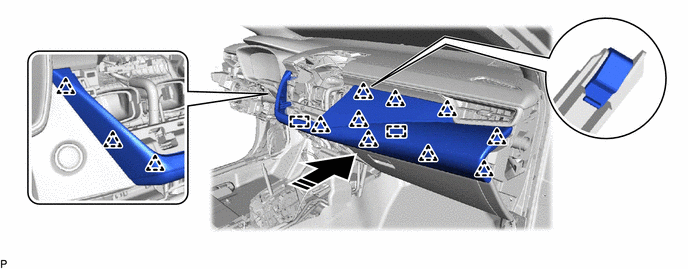

55470 23.INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

a.

for TFTM Made:

i.

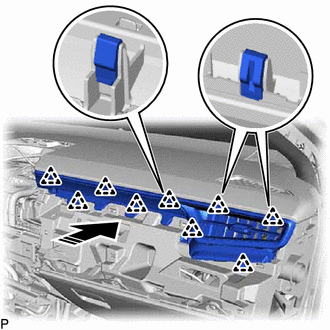

Engage the 13 clips as shown in the illustration to install the instrument cluster finish panel garnish assembly.

0,0 0,0 false

NOTICE:

Be careful not to deform or damage the narrow part of the instrument cluster finish panel garnish assembly during installation.

b.

for GTMC Made (w/o Upper Instrument Panel):

i.

When installing a new instrument cluster finish panel garnish assembly:

1.

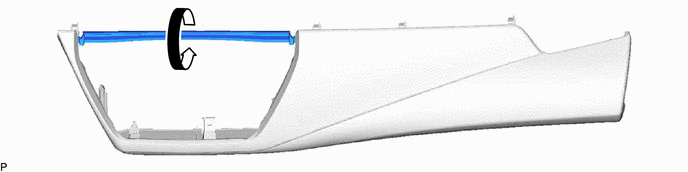

Immediately before installing the instrument cluster finish panel garnish assembly, twist and cut off the portion as shown in the illustration.

c.

for GTMC Made:

i.

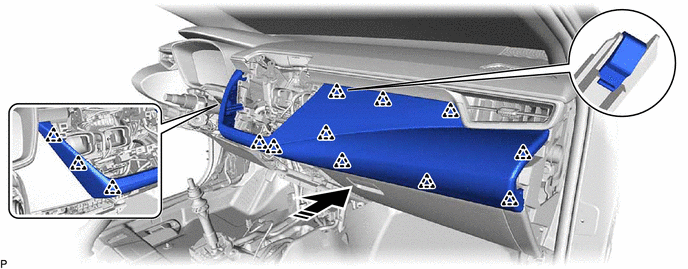

Engage the 2 guides and 12 clips as shown in the illustration.

0,0 0,0 false

Install in this Direction

-

-

NOTICE:

Be careful not to deform or damage the narrow part of the instrument cluster finish panel garnish assembly during installation.

d.

Install the instrument cluster finish panel garnish assembly with the screw <E>.

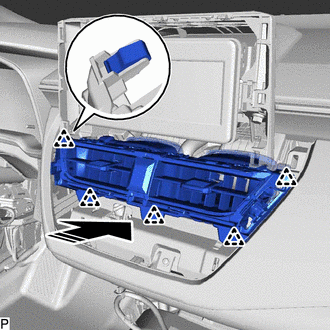

55670A 24.INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY (for GTMC Made)

a.

Connect the connector.

b.

0,0 0,0 false

Install in this Direction

Engage the 5 clips as shown in the illustration to install the center instrument panel register assembly.

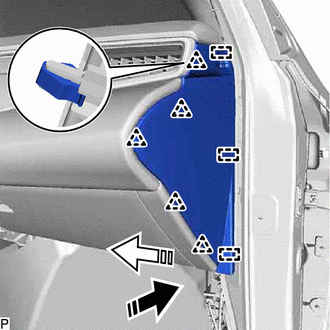

55318F 25.INSTALL NO. 2 INSTRUMENT SIDE PANEL

a.

w/ Upper Instrument Panel:

i.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Engage the 3 guides and 5 clips as shown in the illustration to install the No. 2 instrument side panel.

b.

w/o Upper Instrument Panel:

i.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

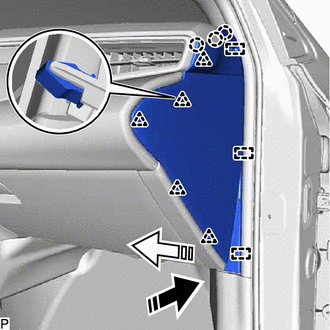

Engage the 3 guides, 3 claws and 5 clips as shown in the illustration to install the No. 2 instrument side panel.

62311B 26.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

62111C 27.INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

67913 28.INSTALL FRONT DOOR SCUFF PLATE RH

73900 29.INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (w/ Knee Airbag)

30.INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Mechanical Control Type)

a.

0,0 0,0 false

Install in this Direction

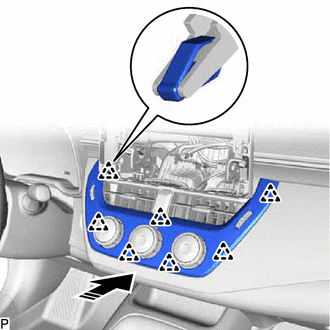

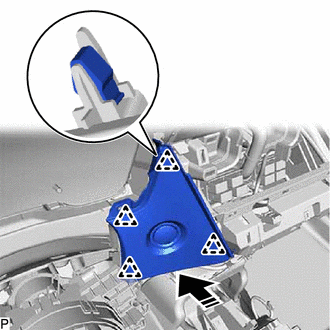

Engage the 7 clips to install the lower center instrument cluster finish panel sub-assembly as shown in the illustration.

55900 31.INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for Electrical Control Type)

55405B 32.INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (except 10.25 Inch Display)

a.

0,0 0,0 false

Install in this Direction

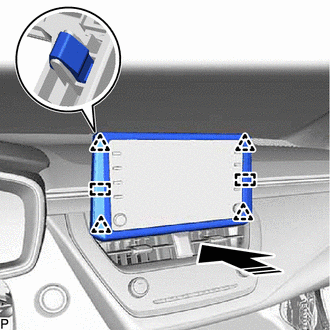

Engage the 2 guides and 4 clips as shown in the illustration to install the center instrument cluster finish panel sub-assembly.

55405B 33.INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 10.25 Inch Display)

a.

0,0 0,0 false

Install in this Direction

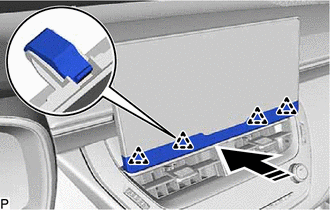

Engage the 4 clips as shown in the illustration to install the center instrument cluster finish panel sub-assembly.

55403F 34.INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

a.

0,0 0,0 false

Install in this Direction

Engage the 5 clips and 2 claws as shown in the illustration to install the instrument panel finish panel sub-assembly.

55432B 35.INSTALL LOWER INSTRUMENT PANEL FINISH PANEL

a.

Connect each connector.

b.

Engage the clamp.

c.

w/o Knee Airbag:

i.

0,0 0,0 false

Install in this Direction

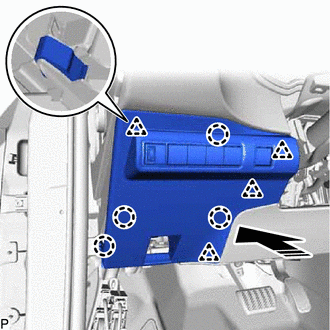

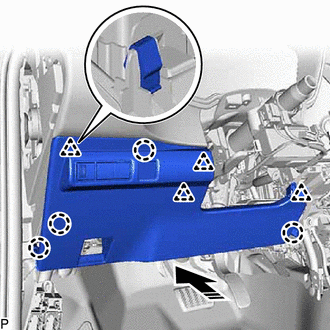

Engage the 4 clips and 4 claws as shown in the illustration to install the lower instrument panel finish panel.

d.

w/ Knee Airbag:

i.

0,0 0,0 false

Install in this Direction

Engage the 4 clips and 4 claws as shown in the illustration to install the lower instrument panel finish panel.

53601 36.CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

55317E 37.INSTALL NO. 1 INSTRUMENT SIDE PANEL

a.

w/ Upper Instrument Panel:

i.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

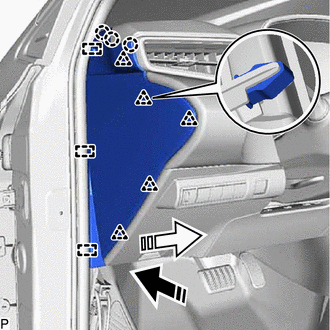

Engage the 3 guides and 5 clips as shown in the illustration to install the No. 1 instrument side panel.

b.

w/o Upper Instrument Panel:

i.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

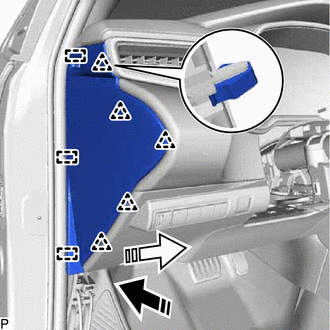

Engage the 3 guides, 3 claws and 5 clips as shown in the illustration to install the No. 1 instrument side panel.

62312B 38.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

62112A 39.INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

67914 40.INSTALL FRONT DOOR SCUFF PLATE LH

58810J 41.INSTALL CONSOLE BOX ASSEMBLY

84329 42.INSTALL TURN SIGNAL SWITCH

84650 43.INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

45286B 44.INSTALL UPPER STEERING COLUMN COVER

45287 45.INSTALL LOWER STEERING COLUMN COVER

46.ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

84306 47.INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

48.INSTALL STEERING WHEEL ASSEMBLY

49.CHECK STEERING WHEEL CENTER POINT

45130 50.INSTALL HORN BUTTON ASSEMBLY
