RM3660EC _58 Vehicle Interior _080732 SEAT _0394196 REAR SEAT ASSEMBLY(for Fold Down Seat Type) A

SEAT REAR SEAT ASSEMBLY(for Fold Down Seat Type) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

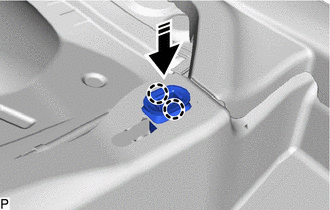

Hide Display 72693 1.INSTALL REAR SEAT CUSHION LOCK HOOK

0,0 0,0 false

Install in this Direction

Engage the 2 claws to install a new rear seat cushion lock hook as shown in the illustration.

HINT:: Use the same procedure for the RH side and LH side.

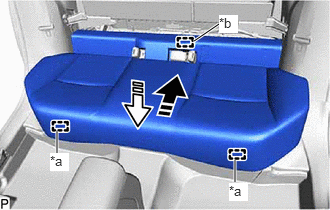

Hide Display 2.INSTALL REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

Place the rear seat cushion assembly in the cabin.

NOTICE:: Be careful not to damage the vehicle body.

0.594,1.594 0.594,1.365 true 2.448,1.896 2.448,1.667 true 2.281,0.25 2.021,0.427 true 0.521,1.594 0.719,1.781 0.198,0.188 10 true *a 2.385,1.906 2.583,2.094 0.198,0.188 10 true *a 2.281,0.156 2.479,0.344 0.198,0.188 10 true *b

*a	Rear Seat Cushion Frame Hook (Front Side)
*b	Rear Seat Cushion Frame Hook (Rear Side)
	Install in this Direction (1)
	Install in this Direction (2)

Engage the rear seat cushion frame hook on the rear side of the rear seat cushion assembly as shown in the illustration.

Engage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly as shown in the illustration to install the rear seat cushion assembly.

NOTICE:: Confirm that the rear seat cushion assembly is securely installed.

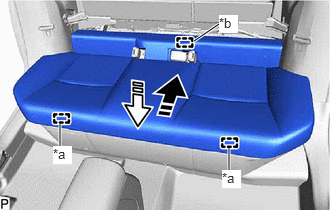

Hide Display 3.INSTALL REAR SEAT CUSHION ASSEMBLY (for HV Model)

Place the rear seat cushion assembly in the cabin.

NOTICE:: Be careful not to damage the vehicle body.

0.625,1.521 0.625,1.292 true 2.385,1.771 2.385,1.542 true 2.281,0.25 2.021,0.427 true 0.552,1.521 0.75,1.708 0.198,0.188 10 true *a 2.313,1.771 2.51,1.958 0.198,0.188 10 true *a 2.281,0.156 2.479,0.344 0.198,0.188 10 true *b

*a	Rear Seat Cushion Frame Hook (Front Side)
*b	Rear Seat Cushion Frame Hook (Rear Side)
	Install in this Direction (1)
	Install in this Direction (2)

Engage the rear seat cushion frame hook on the rear side of the rear seat cushion assembly as shown in the illustration.

Engage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly as shown in the illustration to install the rear seat cushion assembly.

NOTICE:: Confirm that the rear seat cushion assembly is securely installed.

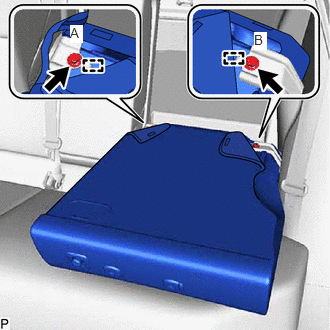

Hide Display 4.INSTALL REAR SEATBACK ASSEMBLY RH

Place the rear seatback assembly RH in the cabin.

NOTICE:: Be careful not to damage the vehicle body.

2.667,0.26 2.813,0.448 0.146,0.188 10 true A 0.708,0.26 0.854,0.448 0.146,0.188 10 true B

Engage the 2 guides.

Temporarily install the rear seatback assembly RH with the 2 bolts.

Fully tighten the bolt (A), and then the bolt (B) to install the rear seatback assembly RH.

Torque:: 36.8 N*m (375 kgf*cm, 27 ft.*lbf)

Engage the 2 fasteners.

Return the rear seatback assembly RH to its original position.

Pass the rear center seat outer belt assembly through the rear seat center shoulder belt guide.

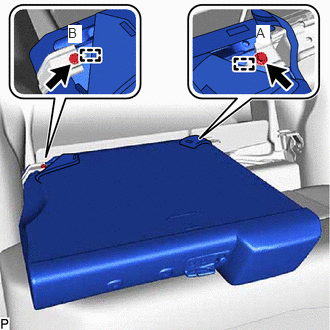

Hide Display 5.INSTALL REAR SEATBACK ASSEMBLY LH

Place the rear seatback assembly LH in the cabin.

NOTICE:: Be careful not to damage the vehicle body.

0.729,0.26 0.865,0.448 0.135,0.188 10 true A 2.646,0.333 2.781,0.521 0.135,0.188 10 true B

Engage the 2 guides.

Temporarily install the rear seatback assembly LH with the 2 bolts.

Fully tighten the bolt (A), and then the bolt (B) to install the rear seatback assembly LH.

Torque:: 36.8 N*m (375 kgf*cm, 27 ft.*lbf)

Engage the 2 fasteners.

Return the rear seatback assembly LH to its original position.

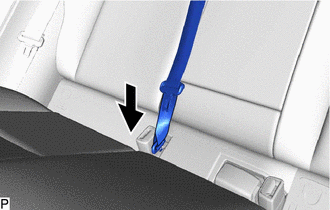

Hide Display 73350C 6.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

Connect the rear center seat outer belt assembly as shown in the illustration.

Hide Display 71940A 7.INSTALL REAR SEAT HEADREST ASSEMBLY (w/ Removable Headrest)

Install the 2 rear seat headrest assemblies.
