RM3660EC _58 Vehicle Interior _080732 SEAT _0391518 FRONT SEAT ASSEMBLY(for Power Seat) A

SEAT  FRONT SEAT ASSEMBLY(for Power Seat)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Be sure to read Precaution thoroughly before servicing.

except NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>PRECAUTION

for NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>PRECAUTION

·
B543257

Wear protective gloves. Sharp areas on the parts may injure your hands.



HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1.INSTALL FRONT SEAT ASSEMBLY

a.

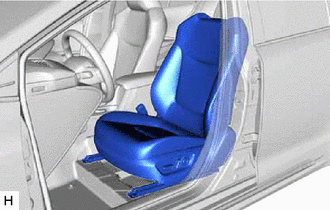

B543261

Place the front seat assembly in the cabin.

NOTICE:

Be careful not to damage the vehicle body.



b.

Connect the front seat airbag assembly connector under the front seat assembly.

i.

Before connecting the connector, check that the position of the housing lock is correct as shown in the illustration.

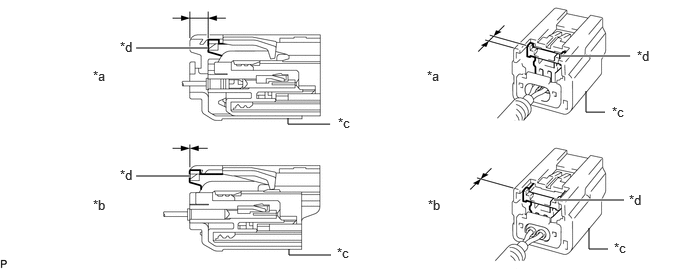

B345877C05
3.01,2.594 3.01,2.656 3.01,2.656 3.448,2.656 false 3,1.229 3,1.292 3,1.292 3.438,1.292 false 6.104,0.948 6.104,1.167 6.104,1.167 6.302,1.167 false 6.135,2.375 6.135,2.594 6.135,2.594 6.333,2.594 false 5.771,2.083 6.5,2.083 true 5.833,0.583 6.563,0.583 true 1.417,0.5 2.167,0.5 true 1.417,1.833 1.979,1.833 true 0.969,0.708 1.281,0.906 0.313,0.198 10 false *a 4.448,0.708 4.76,0.906 0.313,0.198 10 false *a 0.969,2.052 1.281,2.25 0.313,0.198 10 false *b 4.458,2.052 4.771,2.25 0.313,0.198 10 false *b 3.521,1.198 3.833,1.396 0.313,0.198 10 false *c 6.375,1.083 6.688,1.281 0.313,0.198 10 false *c 6.396,2.5 6.708,2.698 0.313,0.198 10 false *c 3.51,2.552 3.896,2.698 0.385,0.146 10 false *c 6.635,0.5 6.948,0.698 0.313,0.198 10 false *d 6.552,2 6.865,2.198 0.313,0.198 10 false *d 1.25,0.406 1.563,0.604 0.313,0.198 10 false *d 1.25,1.74 1.563,1.938 0.313,0.198 10 false *d
*a Correct *b Incorrect
*c Yellow CPA *d White Housing Lock



ii.

Be sure to engage the connectors until they are locked (when locking, make sure that a click sound can be heard).

NOTICE:
·

When connecting any airbag connector, take care not to damage the airbag wire harness.

·

When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and upper part of the yellow CPA, as it may result in an insecure fit.





c.

Connect each connector and engage each clamp under the front seat assembly.


d.

Connect the cable to the negative (-) auxiliary battery terminal.

for NR Series Engine: Click hereGeneral>MAINTENANCE>NR Series BATTERY>INSTALLATION

for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>INSTALLATION

for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>INSTALLATION

for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>INSTALLATION

for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>INSTALLATION

for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>INSTALLATION

for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION

for M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION


e.

Temporarily install the front seat assembly with the 4 bolts.


f.

Operate the slide and vertical power seat switch knob and move the front seat assembly to the rearmost position.


g.

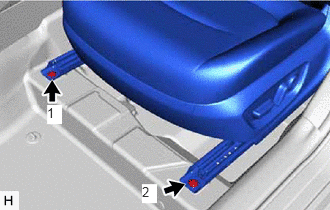

B543258N01
0.49,1.094 0.646,1.292 0.156,0.198 10 true 1 1.479,1.917 1.635,2.115 0.156,0.198 10 true 2

Using a T50 "TORX" socket wrench, tighten the 2 bolts on the front side of the front seat assembly.

Torque:
37 N*m (377 kgf*cm, 27 ft.*lbf)

NOTICE:

Tighten the bolts in the order shown in the illustration.



h.

Operate the slide and vertical power seat switch knob and move the front seat assembly to the foremost position.


i.

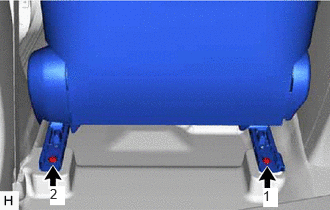

B520272N01
2.74,1.958 2.896,2.156 0.156,0.198 10 true 1 0.521,1.938 0.677,2.135 0.156,0.198 10 true 2

Using a T50 "TORX" socket wrench, tighten the 2 bolts on the rear side of the front seat assembly.

Torque:
37 N*m (377 kgf*cm, 27 ft.*lbf)

NOTICE:

Tighten the bolts in the order shown in the illustration.



Hide 72158E 2.INSTALL REAR INNER SEAT TRACK BRACKET COVER

a.

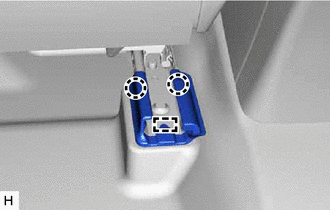

B520271

Engage the 2 claws and guide to install the rear inner seat track bracket cover.


Hide 72138N 3.INSTALL REAR OUTER SEAT TRACK BRACKET COVER

a.

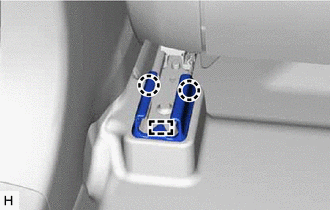

B520270

Engage the 2 claws and guide to install the rear outer seat track bracket cover.


Hide 72124A 4.INSTALL FRONT INNER SEAT TRACK BRACKET COVER

a.

Operate the slide and vertical power seat switch knob and move the front seat assembly to the rearmost position.


b.

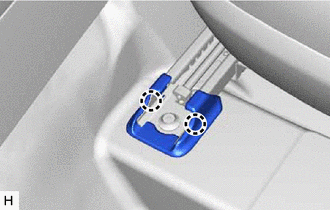

B520269

Engage the 2 claws to install the front inner seat track bracket cover.


Hide 72124 5.INSTALL FRONT OUTER SEAT TRACK BRACKET COVER

a.

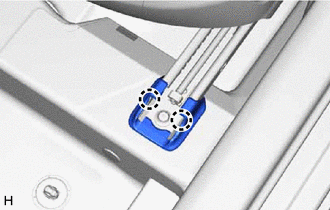

B520268

Engage the 2 claws to install the front outer seat track bracket cover.


Hide 71910A 6.INSTALL FRONT SEAT HEADREST ASSEMBLY

a.

Install the front seat headrest assembly to the front seat assembly.


Hide 8. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective systems are used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
