WIPER / WASHER RAIN SENSOR INSTALLATION

PROCEDURE

Hide Display 89944 1.INSTALL RAIN SENSOR TAPE

HINT:: The rain sensor tape is reusable. Only replace the tape if it is damaged or contaminated with foreign matter.

Clean the sensing portion of the rain sensor with a piece of cloth.

2.042,0.854 2.531,0.594 true 0.844,1.375 1,1.573 0.156,0.198 10 false A 1.448,2 1.656,2.167 0.208,0.167 10 false B 2.573,0.49 2.885,0.646 0.313,0.156 10 false *1

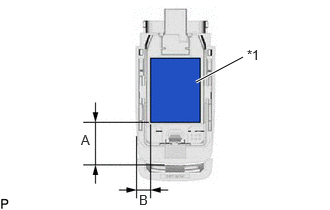

*1	Rain Sensor Tape

Peel off the smaller release sheet, and then attach the rain sensor tape to the sensing portion of the rain sensor as shown in the illustration.

HINT:: Use your fingers to push out any air bubbles from under the tape.

Standard Clearance
Area	Measurement
A	14.4 mm (0.567 in.)
B	7.25 mm (0.285 in.)

Hide Display 89941 2.INSTALL RAIN SENSOR

Clean the windshield glass with a piece of cloth.

NOTICE:: ·

Make sure that there is no rain sensor tape residue remaining on the windshield glass. If there is, remove the residue.

·

If there is any rain sensor tape residue remaining on the windshield glass, replace the tape.

When installing a new rain sensor or when the rain sensor tape has been replaced:

Peel off the release sheet.

HINT:: Do not touch the rain sensor tape surfaces.

Connect the connector.

0.271,1.396 0.635,1.479 false 0.104,1.302 0.417,1.5 0.313,0.198 10 false *a

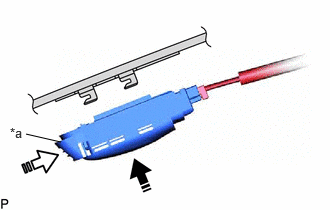

*a	Stopper
	Install in this Direction (1)
	Install in this Direction (2)

Gradually attach the rain sensor to the windshield glass surface in the direction indicated by the arrow (1) shown in the illustration to prevent air bubbles from forming between them.

HINT:: Do not touch the rain sensor tape surface or windshield glass surface.

Push in the stopper in the direction indicated by the arrow (2) shown in the illustration to install the rain sensor.

Hide Display 89943 3.INSTALL RAIN SENSOR COVER

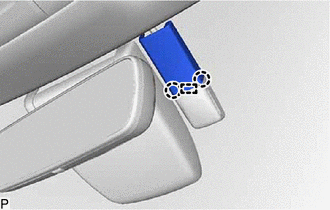

Engage the guide and 2 claws to install the rain sensor cover.
