RM3660EC _58 Vehicle Interior _080732 SEAT _0394195 REAR SEAT ASSEMBLY(for Fixed Seat Type) A

SEAT  REAR SEAT ASSEMBLY(for Fixed Seat Type)  INSTALLATION


PROCEDURE

Hide 1.INSTALL REAR SEATBACK ASSEMBLY

a.

Place the rear seatback assembly in the cabin.

NOTICE:

Be careful not to damage the vehicle body.



b.

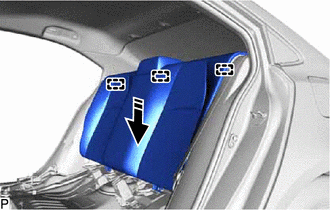

B552621C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 3 hooks as shown in the illustration.


c.

Install the rear seatback assembly with the 2 bolts.

Torque:
18 N*m (184 kgf*cm, 13 ft.*lbf)


d.

Connect rear seat outer belt to the rear seat center shoulder belt guide.


Hide 71940A 2.INSTALL REAR SEAT HEADREST ASSEMBLY

a.

Install the rear seat headrest assembly.

HINT:

Use the same procedure for the RH side and LH side.



Hide 72693 3.INSTALL REAR SEAT CUSHION LOCK HOOK

a.

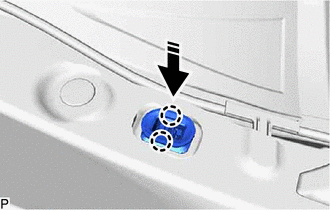

B493730C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws to install a new rear seat cushion lock hook as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.



Hide 4.INSTALL REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

a.

Place the rear seat cushion assembly in the cabin.

NOTICE:

Be careful not to damage the vehicle body.



b.

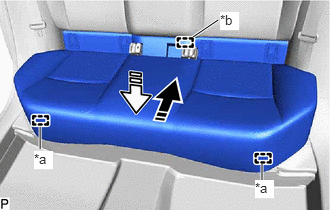

B545873C01
0.417,1.552 0.417,1.323 true 2.729,1.875 2.729,1.708 true 2.271,0.208 2.01,0.385 true 0.354,1.573 0.552,1.76 0.198,0.188 10 true *a 2.656,1.875 2.854,2.063 0.198,0.188 10 true *a 2.292,0.125 2.49,0.313 0.198,0.188 10 true *b
*a Rear Seat Cushion Frame Hook (Front Side)
*b Rear Seat Cushion Frame Hook (Rear Side)
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Engage the rear seat cushion frame hook on the rear side of the rear seat cushion assembly as shown in the illustration.


c.

Engage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly as shown in the illustration to install the rear seat cushion assembly.

NOTICE:

Confirm that the rear seat cushion assembly is securely installed.



Hide 5.INSTALL REAR SEAT CUSHION ASSEMBLY (for HV Model)

a.

Place the rear seat cushion assembly in the cabin.

NOTICE:

Be careful not to damage the vehicle body.



b.

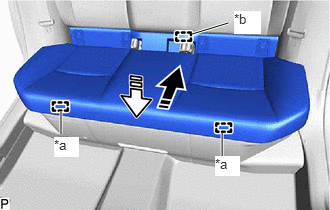

B545875C01
2,0.354 2.375,0.24 true 0.635,1.396 0.635,1.156 true 2.313,1.625 2.313,1.385 true 0.563,1.427 0.823,1.635 0.26,0.208 10 true *a 2.438,0.115 2.719,0.354 0.281,0.24 10 true *b 2.24,1.625 2.5,1.833 0.26,0.208 10 true *a
*a Rear Seat Cushion Frame Hook (Front Side)
*b Rear Seat Cushion Frame Hook (Rear Side)
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Engage the rear seat cushion frame hook on the rear side of the rear seat cushion assembly as shown in the illustration.


c.

Engage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly as shown in the illustration to install the rear seat cushion assembly.

NOTICE:

Confirm that the rear seat cushion assembly is securely installed.



Hide 73350C 6.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

a.

Pass the rear center seat outer belt assembly through the rear seat shoulder belt guide.


b.

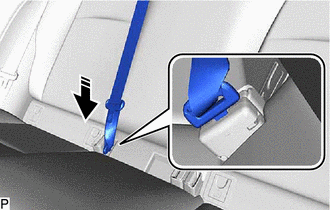

B545870C01
0,0 0,0 false
V113147

Install in this Direction


Connect the rear center seat outer belt assembly as shown in the illustration.
