SEAT FRONT SEAT ASSEMBLY(for Manual Seat) INSTALLATION
CAUTION / NOTICE / HINT
- CAUTION:
- ·
Be sure to read Precaution thoroughly before servicing.
except NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>PRECAUTION202304,999999,_58,_080741,_0584471,RM1000000029GQF,
for NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>PRECAUTION202307,999999,_58,_080741,_0610731,RM100000002CGZV,
·
Wear protective gloves. Sharp areas on the parts may injure your hands.
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
1.INSTALL FRONT SEAT ASSEMBLY

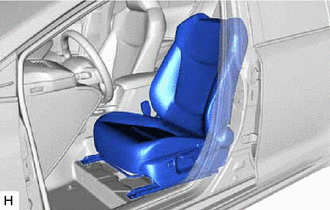

Place the front seat assembly in the cabin.
- NOTICE:
-
Be careful not to damage the vehicle body.
Connect the front seat airbag assembly connector under the front seat assembly.
Before connecting the connector, check that the position of the housing lock is correct as shown in the illustration.
| *a | Correct | *b | Incorrect |
| *c | Yellow CPA | *d | White Housing Lock |
Be sure to engage the connectors until they are locked (when locking, make sure that a click sound can be heard).
- NOTICE:
- ·
When connecting any airbag connector, take care not to damage the airbag wire harness.
·When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and upper part of the yellow CPA, as it may result in an insecure fit.
w/ Front Seat Cushion Airbag:
Connect the front seat cushion airbag assembly RH connector.
- NOTICE:
- ·
Be careful not to damage the connector or wire harness of the front seat cushion airbag assembly RH.
·When connecting the connector, make sure to push it straight in.
Connect each connector and engage each clamp under the front seat assembly.
Temporarily install the front seat assembly with the 4 bolts.
Operate the seat track adjusting handle and move the front seat assembly to the rearmost position.

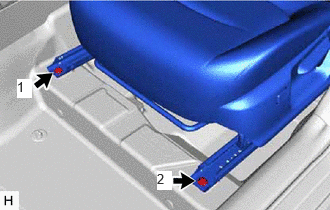

Using a T50 "TORX" socket wrench, tighten the 2 bolts on the front side of the front seat assembly.
- Torque:
- 37 N*m (377 kgf*cm, 27 ft.*lbf)
- NOTICE:
-
Tighten the bolts in the order shown in the illustration.
Operate the seat track adjusting handle and move the front seat assembly to the foremost position.

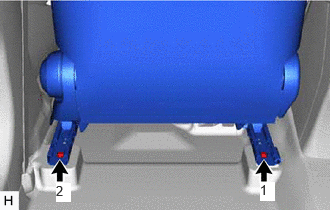

Using a T50 "TORX" socket wrench, tighten the 2 bolts on the rear side of the front seat assembly.
- Torque:
- 37 N*m (377 kgf*cm, 27 ft.*lbf)
- NOTICE:
-
Tighten the bolts in the order shown in the illustration.
2.INSPECT SEAT SLIDE ADJUSTER LOCK
While performing a sliding operation of the front seat assembly, check that the left and right adjusters move together smoothly and lock simultaneously. If the seat adjusters do not lock simultaneously, loosen the front seat assembly installation bolts and adjust the adjuster position.
72158E
3.INSTALL REAR INNER SEAT TRACK BRACKET COVER
Operate the seat track adjusting handle and move the front seat assembly to the foremost position.

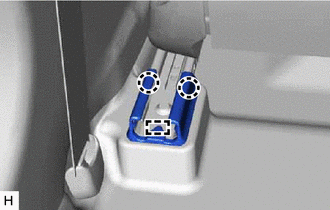

Engage the 2 claws and guide to install the rear inner seat track bracket cover.
72138N
4.INSTALL REAR OUTER SEAT TRACK BRACKET COVER
Engage the 2 claws and guide to install the rear outer seat track bracket cover.
72124A
5.INSTALL FRONT INNER SEAT TRACK BRACKET COVER
Operate the seat track adjusting handle and move the front seat assembly to the rearmost position.

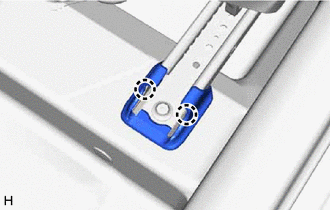

Engage the 2 claws to install the front inner seat track bracket cover.
72124
6.INSTALL FRONT OUTER SEAT TRACK BRACKET COVER

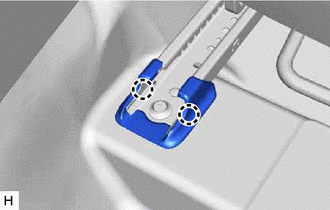

Engage the 2 claws to install the front outer seat track bracket cover.
71910A
7.INSTALL FRONT SEAT HEADREST ASSEMBLY
Install the front seat headrest assembly to the front seat assembly.
8.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
for NR Series Engine: Click hereGeneral>MAINTENANCE>NR Series BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392375,RM100000002BCCN,
for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392376,RM100000002ACL8,
for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0453685,RM100000002BCCF,
for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0453686,RM100000002BCCG,
for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0470107,RM100000002BCCI,
for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0474497,RM100000002BCCK,
for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0484846,RM100000002BCCJ,
for M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_080956,_0611807,RM100000002CK9L,
9. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
- HINT:
-
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective systems are used.
10.CHECK SEAT HEATER (w/ Seat Heater System)
11. PERFORM DIAGNOSTIC SYSTEM CHECK (for NR Series Engine)
12.INSPECT SRS WARNING LIGHT
except NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>OPERATION CHECK202304,999999,_58,_080741,_0584471,RM1000000029GNO,
for NR Series Engine: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>OPERATION CHECK202307,202502,_58,_080741,_0610731,RM100000002CH00,202502,999999,_58,_080741,_0610731,RM100000002QSGL,
