RM35X0E _51 Engine / Hybrid System _078603 7GR-FKS ENGINE MECHANICAL _0381343 ENGINE ASSEMBLY A

7GR-FKS ENGINE MECHANICAL ENGINE ASSEMBLY INSTALLATION

PROCEDURE

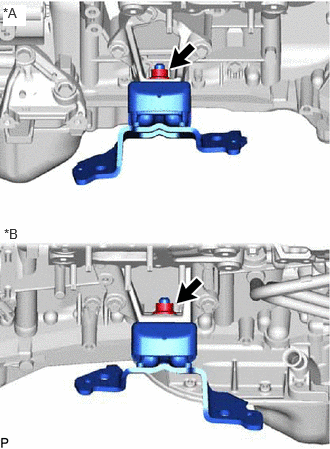

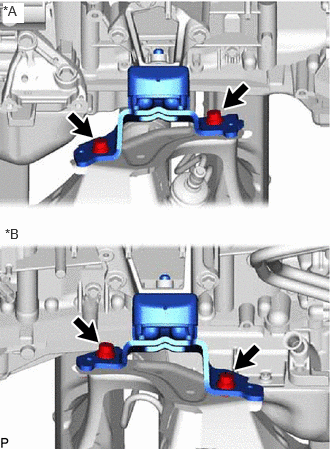

Hide Display 12361E 1.INSTALL FRONT ENGINE MOUNTING INSULATOR

0.031,0.052 0.271,0.271 0.24,0.219 10 true *A 0.042,2.354 0.26,2.583 0.219,0.229 10 false *B

*A	for LH Side
*B	for RH Side

Install the 2 front engine mounting insulators to the front No. 1 engine mounting bracket RH and front No. 1 engine mounting bracket LH with the 2 nuts.

Torque:: 86 N*m (877 kgf*cm, 63 ft.*lbf)

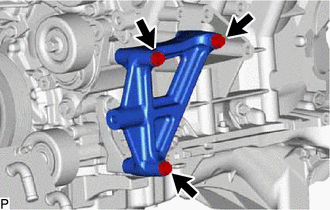

Hide Display 12281A 2.INSTALL ENGINE HANGER

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202107,999999,_51,_078603,_0381343,RM100000001XZUP_01_0048,

Hide Display 3.REMOVE ENGINE FROM ENGINE STAND

Attach an engine sling device and hang the engine with a chain block.

NOTICE:: Pay attention to the angle of the sling device as the engine assembly or No. 1 engine hanger may be damaged or deformed if the angle is incorrect.

Lift the engine and remove it from the engine stand.

Place the engine onto a work bench.

Hide Display 51100H 4.CONNECT FRONT FRAME ASSEMBLY

0.031,0.031 0.25,0.24 0.219,0.208 10 true *A 0.052,2.354 0.302,2.563 0.25,0.208 10 false *B

*A	for LH Side
*B	for RH Side

Install the front frame assembly to the engine assembly with the 4 bolts.

Torque:: 50 N*m (510 kgf*cm, 37 ft.*lbf)

Hide Display 32101 5.INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transmission)

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>REAR CRANKSHAFT OIL SEAL>INSTALLATION201902,999999,_51,_078603,_0381342,RM100000001FZPA_01_0004,

Hide Display 35000 6.INSTALL AUTOMATIC TRANSMISSION ASSEMBLY (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION ASSEMBLY (for 7GR-FKS)>INSTALLATION202107,999999,_52,_078741,_0382312,RM100000001WUCM_01_0005,

Hide Display 12380 7.INSTALL REAR ENGINE MOUNTING INSULATOR ASSEMBLY (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION ASSEMBLY (for 7GR-FKS)>INSTALLATION202107,999999,_52,_078741,_0382312,RM100000001WUCM_01_0006,

Hide Display 57209B 8.INSTALL REAR ENGINE MOUNTING MEMBER SUB-ASSEMBLY (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION ASSEMBLY (for 7GR-FKS)>INSTALLATION202107,999999,_52,_078741,_0382312,RM100000001WUCM_01_0007,

Hide Display 11361J 9.INSTALL FLYWHEEL HOUSING UNDER COVER (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION ASSEMBLY (for 7GR-FKS)>INSTALLATION202107,999999,_52,_078741,_0382312,RM100000001WUCM_01_0010,

Hide Display 10.INSTALL DRIVE PLATE AND TORQUE CONVERTER SETTING BOLT (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION ASSEMBLY (for 7GR-FKS)>INSTALLATION202107,999999,_52,_078741,_0382312,RM100000001WUCM_01_0009,

Hide Display 11.CONNECT ENGINE WIRE (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION ASSEMBLY (for 7GR-FKS)>INSTALLATION202107,999999,_52,_078741,_0382312,RM100000001WUCM_01_0015,

Hide Display 32921 12.INSTALL NO. 1 OIL COOLER INLET TUBE AND NO. 1 OIL COOLER OUTLET TUBE (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>OIL COOLER (for 7GR-FKS)>INSTALLATION202107,999999,_52,_078741,_0382309,RM100000001WUCH_01_0002,

Hide Display 13.INSTALL ENGINE ASSEMBLY WITH AUTOMATIC TRANSMISSION ASSEMBLY (for Automatic Transmission)

0,0 0,0 false

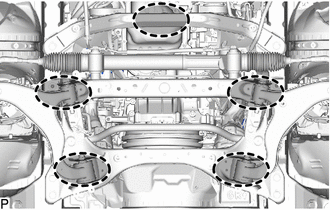

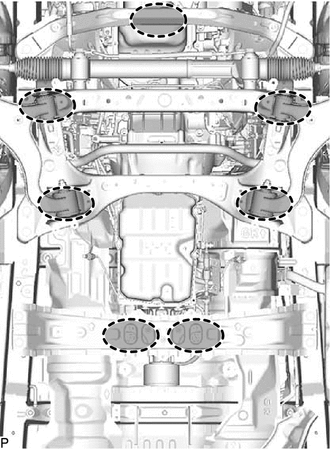

Place Wooden Block or Plate Attachments

Set the engine on an engine lifter.

NOTICE:: ·

Place wooden blocks or plate lift attachments so that the engine is level.

·

With the exception of installing the engine assembly to an engine stand or removing the engine assembly from an engine stand, do not perform any work on the engine while it is suspended, as doing so is dangerous.

·

Never install attachments to the oil pan of the engine assembly or transmission as doing so may deform the oil pan.

Operate the engine lifter and install the engine assembly with automatic transmission assembly to the vehicle.

NOTICE:: Make sure that the engine is clear of all wiring and hoses.

0,0 0,0 false

	Bolt
	Nut

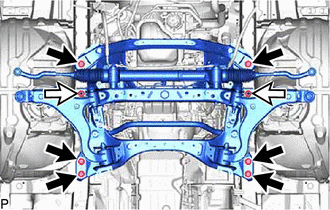

Install the engine assembly with automatic transmission assembly to the vehicle with the 6 bolts and 2 nuts.

Torque:: 188 N*m (1917 kgf*cm, 139 ft.*lbf)

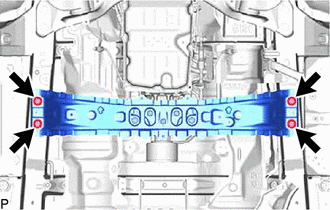

Install the rear engine mounting member with the 4 bolts.

Torque:: 80 N*m (816 kgf*cm, 59 ft.*lbf)

Remove the 4 bolts and 2 engine hangers.

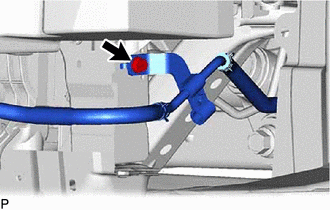

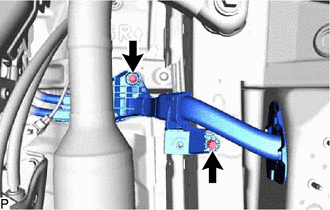

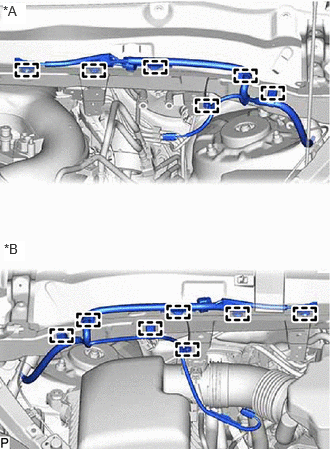

Hide Display 88539C 14.CONNECT NO. 2 COOLER UNIT DRAIN HOSE (for Automatic Transmission)

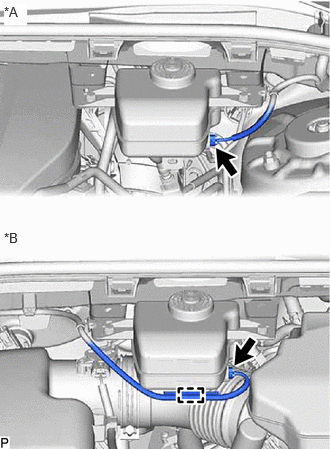

for LHD:

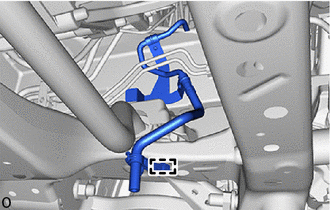

Attach the clamp and connect the No. 2 cooler unit drain hose.

for RHD:

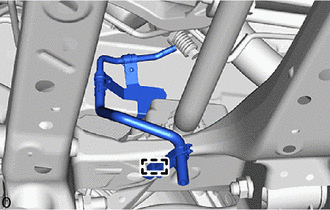

Attach the clamp and connect the No. 2 cooler unit drain hose.

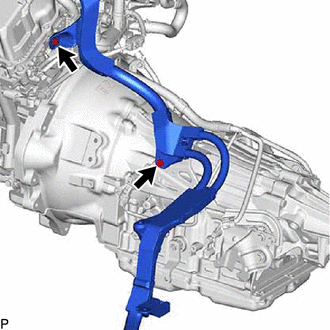

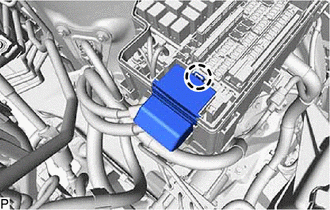

Hide Display 82122A 15.CONNECT NO. 2 ENGINE WIRE (for Automatic Transmission)

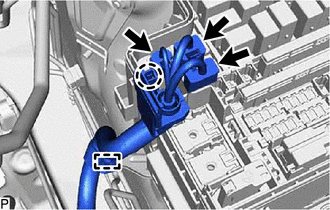

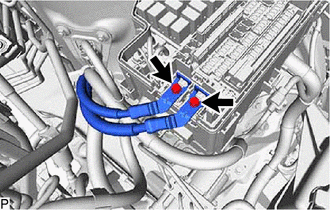

Connect the No. 2 engine wire to the vehicle body with the 2 bolts.

Torque:: 13 N*m (133 kgf*cm, 10 ft.*lbf)

Connect the No. 2 engine wire to the automatic transmission assembly with the 2 bolts.

Torque:: 13 N*m (133 kgf*cm, 10 ft.*lbf)

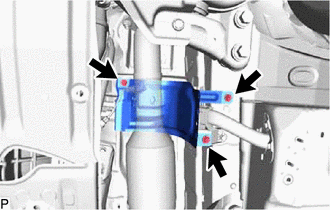

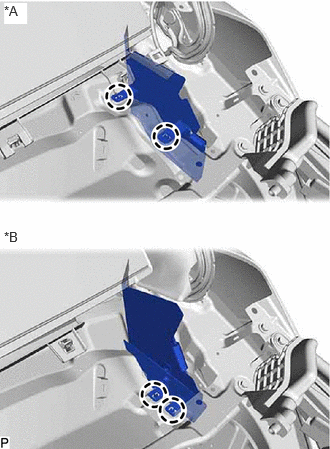

Hide Display 58041C 16.INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR SUB-ASSEMBLY (for Automatic Transmission)

Install the front No. 1 floor heat insulator sub-assembly with the 3 bolts.

Torque:: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

Hide Display 17.INSTALL ENGINE ASSEMBLY (for Manual Transmission)

0,0 0,0 false

Place Wooden Block or Plate Attachments

Set the engine on an engine lifter.

NOTICE:: ·

Place wooden blocks or plate lift attachments so that the engine is level.

·

With the exception of installing the engine assembly to an engine stand or removing the engine assembly from an engine stand, do not perform any work on the engine while it is suspended, as doing so is dangerous.

·

Never install attachments to the oil pan of the engine assembly or transmission as doing so may deform the oil pan.

Operate the engine lifter and install the engine assembly to the vehicle.

NOTICE:: Make sure that the engine is clear of all wiring and hoses.

0,0 0,0 false

	Bolt
	Nut

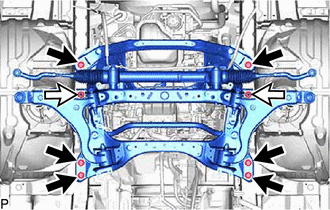

Install the engine assembly to the vehicle with the 6 bolts and 2 nuts.

Torque:: 188 N*m (1917 kgf*cm, 139 ft.*lbf)

Remove the 4 bolts and 2 engine hangers.

Hide Display 88539C 18.CONNECT NO. 2 COOLER UNIT DRAIN HOSE (for Manual Transmission)

for LHD:

Attach the clamp and connect the No. 2 cooler unit drain hose.

for RHD:

Attach the clamp and connect the No. 2 cooler unit drain hose.

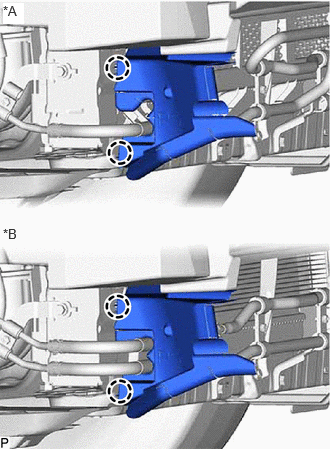

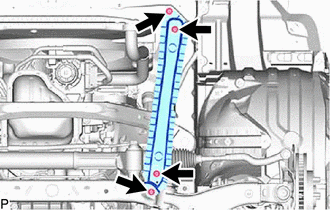

Hide Display 51107D 19.INSTALL REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH

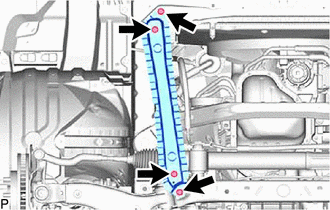

Install the rear side rail reinforcement sub-assembly RH with the 4 bolts.

Torque:: 35 N*m (357 kgf*cm, 26 ft.*lbf)

Hide Display 51108C 20.INSTALL REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH

Install the rear side rail reinforcement sub-assembly LH with the 4 bolts.

Torque:: 35 N*m (357 kgf*cm, 26 ft.*lbf)

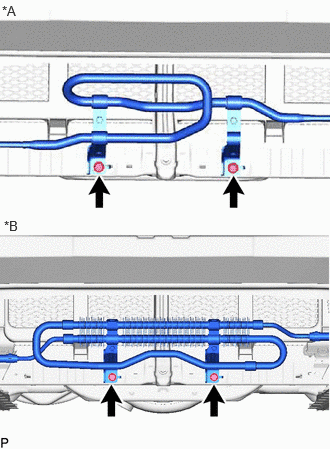

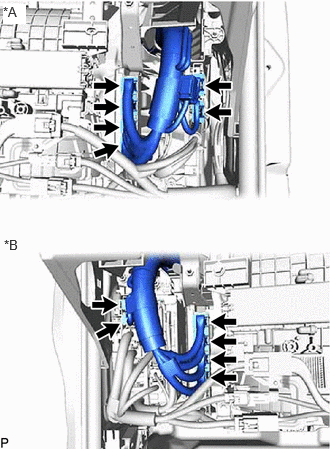

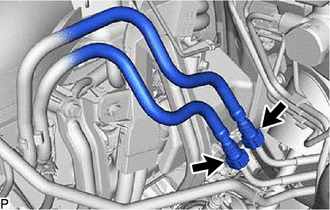

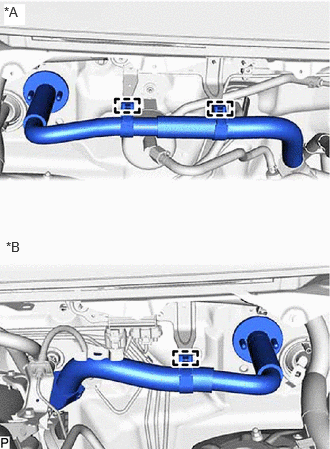

Hide Display 44402 21.CONNECT NO. 1 POWER STEERING OIL COOLER SUB-ASSEMBLY

0.021,0.031 0.281,0.229 0.26,0.198 10 false *A 0.042,2.271 0.25,2.49 0.208,0.219 10 false *B

*A	for Type A
*B	for Type B

for LHD:

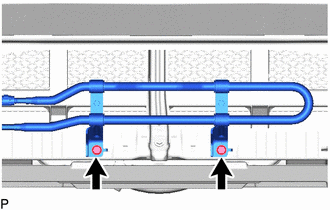

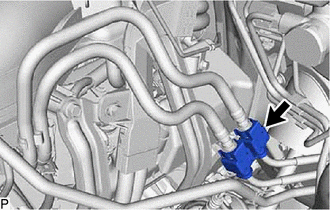

Connect the No. 1 power steering oil cooler sub-assembly with the 2 bolts.

Torque:: 28 N*m (286 kgf*cm, 21 ft.*lbf)

for RHD:

Connect the No. 1 power steering oil cooler sub-assembly with the 2 bolts.

Torque:: 28 N*m (286 kgf*cm, 21 ft.*lbf)

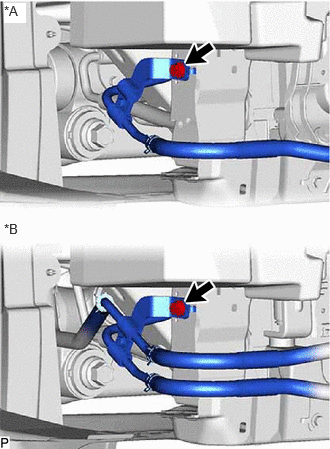

for LHD:

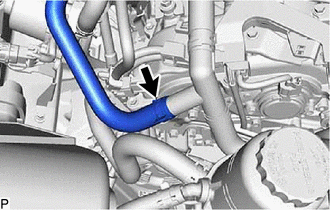

Connect the return tube sub-assembly to the vehicle body with the bolt.

Torque:: 28 N*m (286 kgf*cm, 21 ft.*lbf)

0.042,0.031 0.271,0.24 0.229,0.208 10 true *A 0.042,2.302 0.26,2.49 0.219,0.188 10 false *B

*A	for LHD
*B	for RHD

Connect the return tube sub-assembly to the vehicle body with the bolt.

Torque:: 28 N*m (286 kgf*cm, 21 ft.*lbf)

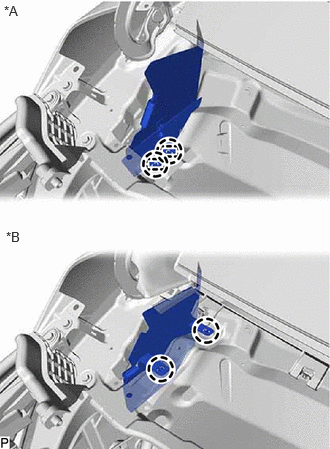

Hide Display 53287B 22.INSTALL RADIATOR SUPPORT EXTENSION RH

0.031,0.031 0.25,0.25 0.219,0.219 10 true *A 0.031,2.354 0.302,2.573 0.271,0.219 10 false *B

*A	for LHD
*B	for RHD

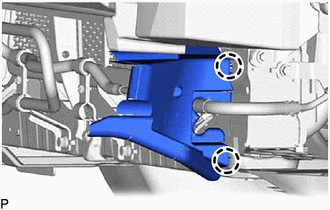

Attach the 2 claws and install the radiator support extension RH.

Hide Display 53288B 23.INSTALL RADIATOR SUPPORT EXTENSION LH (for LHD)

Attach the 2 claws and install the radiator support extension LH.

Hide Display 13405 24.INSTALL FLYWHEEL SUB-ASSEMBLY (for Manual Transmission)

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>REAR CRANKSHAFT OIL SEAL>INSTALLATION201902,999999,_51,_078603,_0381342,RM100000001FZPA_01_0010,

Hide Display 31250 25.INSTALL CLUTCH DISC ASSEMBLY (for Manual Transmission)

Click hereDrivetrain>CLUTCH>CLUTCH UNIT>INSTALLATION201902,999999,_52,_078837,_0382379,RM100000001G4HJ_01_0001,

Hide Display 31210 26.INSTALL CLUTCH COVER ASSEMBLY (for Manual Transmission)

Click hereDrivetrain>CLUTCH>CLUTCH UNIT>INSTALLATION201902,999999,_52,_078837,_0382379,RM100000001G4HJ_01_0002,

Hide Display 31210 27.INSPECT AND ADJUST CLUTCH COVER ASSEMBLY (for Manual Transmission)

Click hereDrivetrain>CLUTCH>CLUTCH UNIT>INSTALLATION201902,999999,_52,_078837,_0382379,RM100000001G4HJ_01_0003,

Hide Display 28.INSTALL MANUAL TRANSMISSION ASSEMBLY (for Manual Transmission)

Click hereDrivetrain>RC60J (MANUAL TRANSMISSION / TRANSAXLE)>MANUAL TRANSMISSION ASSEMBLY (for 7GR-FKS)>INSTALLATION201902,999999,_52,_078740,_0385768,RM100000001GO0K_01_0009,

Hide Display 29.CONNECT WIRE HARNESS (for Manual Transmission)

Click hereDrivetrain>RC60J (MANUAL TRANSMISSION / TRANSAXLE)>MANUAL TRANSMISSION ASSEMBLY (for 7GR-FKS)>INSTALLATION201902,999999,_52,_078740,_0385768,RM100000001GO0K_01_0030,

Hide Display 12380 30.INSTALL REAR ENGINE MOUNTING INSULATOR ASSEMBLY (for Manual Transmission)

Click hereDrivetrain>RC60J (MANUAL TRANSMISSION / TRANSAXLE)>MANUAL TRANSMISSION ASSEMBLY (for 7GR-FKS)>INSTALLATION201902,999999,_52,_078740,_0385768,RM100000001GO0K_01_0011,

Hide Display 57209B 31.INSTALL REAR ENGINE MOUNTING MEMBER SUB-ASSEMBLY (for Manual Transmission)

Click hereDrivetrain>RC60J (MANUAL TRANSMISSION / TRANSAXLE)>MANUAL TRANSMISSION ASSEMBLY (for 7GR-FKS)>INSTALLATION201902,999999,_52,_078740,_0385768,RM100000001GO0K_01_0013,

Hide Display 58041C 32.INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR SUB-ASSEMBLY (for Manual Transmission)

Click hereDrivetrain>RC60J (MANUAL TRANSMISSION / TRANSAXLE)>MANUAL TRANSMISSION ASSEMBLY (for 7GR-FKS)>INSTALLATION201902,999999,_52,_078740,_0385768,RM100000001GO0K_01_0052,

Hide Display 51446B 33.INSTALL NO. 2 ENGINE UNDER COVER BRACKET (for Manual Transmission)

Click hereDrivetrain>RC60J (MANUAL TRANSMISSION / TRANSAXLE)>MANUAL TRANSMISSION ASSEMBLY (for 7GR-FKS)>INSTALLATION201902,999999,_52,_078740,_0385768,RM100000001GO0K_01_0045,

Hide Display 33820B 34.CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (for Manual Transmission)

Click hereDrivetrain>RC60J (MANUAL TRANSMISSION / TRANSAXLE)>SHIFT AND SELECT TRANSMISSION CONTROL CABLE>INSTALLATION201902,999999,_52,_078740,_0383470,RM100000001GB9V_01_0010,

Hide Display 33825 35.INSTALL TRANSMISSION CONTROL CABLE INSULATOR (for Manual Transmission)

Click hereDrivetrain>RC60J (MANUAL TRANSMISSION / TRANSAXLE)>MANUAL TRANSMISSION ASSEMBLY (for 7GR-FKS)>INSTALLATION201902,999999,_52,_078740,_0385768,RM100000001GO0K_01_0044,

Hide Display 31482 36.INSTALL CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE (for Manual Transmission)

Click hereDrivetrain>RC60J (MANUAL TRANSMISSION / TRANSAXLE)>MANUAL TRANSMISSION ASSEMBLY (for 7GR-FKS)>INSTALLATION201902,999999,_52,_078740,_0385768,RM100000001GO0K_01_0048,

Hide Display 31470 37.INSTALL CLUTCH RELEASE CYLINDER ASSEMBLY (for Manual Transmission)

Click hereDrivetrain>CLUTCH>CLUTCH RELEASE CYLINDER>INSTALLATION201902,999999,_52,_078837,_0382381,RM100000001G4HT_01_0001,

Hide Display 31490 38.INSTALL CLUTCH ACCUMULATOR ASSEMBLY (for Manual Transmission)

Click hereDrivetrain>CLUTCH>CLUTCH ACCUMULATOR (for 7GR-FKS)>INSTALLATION201902,999999,_52,_078837,_0382383,RM100000001GF9K_01_0001,

Hide Display 31482D 39.INSTALL CLUTCH RELEASE CYLINDER TO ACCUMULATOR TUBE (for Manual Transmission)

Click hereDrivetrain>CLUTCH>CLUTCH ACCUMULATOR (for 7GR-FKS)>INSTALLATION201902,999999,_52,_078837,_0382383,RM100000001GF9K_01_0007,

Hide Display 31349 40.INSTALL CLUTCH CABLE HEAT INSULATOR (for Manual Transmission)

Click hereDrivetrain>RC60J (MANUAL TRANSMISSION / TRANSAXLE)>MANUAL TRANSMISSION ASSEMBLY (for 7GR-FKS)>INSTALLATION201902,999999,_52,_078740,_0385768,RM100000001GO0K_01_0049,

Hide Display 41.INSTALL CLUTCH ACCUMULATOR HEAT INSULATOR SUB-ASSEMBLY (for Manual Transmission)

Click hereDrivetrain>CLUTCH>CLUTCH ACCUMULATOR (for 7GR-FKS)>INSTALLATION201902,999999,_52,_078837,_0382383,RM100000001GF9K_01_0009,

Hide Display 42.INSTALL FRONT AXLE ASSEMBLY LH

Click hereDrivetrain>AXLE AND DIFFERENTIAL>FRONT AXLE HUB>INSTALLATION201902,999999,_52,_079259,_0385113,RM100000001GKGG_01_0004,

Hide Display 43.INSTALL FRONT AXLE ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 48810 44.INSTALL FRONT STABILIZER LINK ASSEMBLY LH

Click hereSuspension>FRONT SUSPENSION>FRONT STABILIZER BAR>INSTALLATION201902,999999,_53,_078876,_0384535,RM100000001GHC7_01_0007,

Hide Display 48820B 45.INSTALL FRONT STABILIZER LINK ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 48069 46.INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

Click hereSuspension>FRONT SUSPENSION>FRONT LOWER SUSPENSION ARM>INSTALLATION201906,999999,_53,_078876,_0384534,RM100000001J044_01_0094,

Hide Display 48068 47.INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 43512 48.INSTALL FRONT DISC

Click hereBrake>BRAKE (FRONT)>FRONT BRAKE>INSTALLATION201902,999999,_54,_078670,_0387338,RM100000001GWHT_01_0001,

Hide Display 49.CONNECT FRONT DISC BRAKE CALIPER ASSEMBLY LH

Click hereDrivetrain>AXLE AND DIFFERENTIAL>FRONT AXLE HUB BOLT>REPLACEMENT201902,999999,_52,_079259,_0385112,RM100000001GKGC_01_0019,

Hide Display 50.CONNECT FRONT DISC BRAKE CALIPER ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 45047 51.CONNECT TIE ROD END SUB-ASSEMBLY LH

for LHD:

Click hereSteering>STEERING GEAR / LINKAGE>STEERING GEAR (for LHD)>INSTALLATION202107,999999,_55,_079314,_0388802,RM100000001XX3L_01_0009,

for RHD:

Click hereSteering>STEERING GEAR / LINKAGE>STEERING GEAR (for RHD)>INSTALLATION202107,999999,_55,_079314,_0388803,RM100000001XX3M_01_0009,

Hide Display 45046 52.CONNECT TIE ROD END SUB-ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 89543 53.INSTALL FRONT SPEED SENSOR LH

Click hereDrivetrain>AXLE AND DIFFERENTIAL>FRONT AXLE HUB>INSTALLATION201902,999999,_52,_079259,_0385113,RM100000001GKGG_01_0051,

Hide Display 89542 54.INSTALL FRONT SPEED SENSOR RH

HINT:: Use the same procedure described for the LH side.

Hide Display 55.CONNECT INTERMEDIATE SHAFT ASSEMBLY

for LHD:

Click hereSteering>STEERING GEAR / LINKAGE>STEERING GEAR (for LHD)>INSTALLATION202107,999999,_55,_079314,_0388802,RM100000001XX3L_01_0008,

for RHD:

Click hereSteering>STEERING GEAR / LINKAGE>STEERING GEAR (for RHD)>INSTALLATION202107,999999,_55,_079314,_0388803,RM100000001XX3M_01_0008,

Hide Display 11363A 56.INSTALL FLYWHEEL HOUSING SIDE COVER

Click hereEngine / Hybrid System>7GR-FKS (STARTING)>STARTER>INSTALLATION201902,999999,_51,_078665,_0382031,RM100000001G3I0_01_0007,

Hide Display 28100 57.INSTALL STARTER ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (STARTING)>STARTER>INSTALLATION201902,999999,_51,_078665,_0382031,RM100000001G3I0_01_0008,

Hide Display 28192 58.INSTALL STARTER COVER

Click hereEngine / Hybrid System>7GR-FKS (STARTING)>STARTER>INSTALLATION201902,999999,_51,_078665,_0382031,RM100000001G3I0_01_0009,

Hide Display 37100 59.INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

for Standard Roof:

Click hereDrivetrain>DRIVE SHAFT / PROPELLER SHAFT>PROPELLER SHAFT ASSEMBLY (for Standard Roof)>INSTALLATION201902,999999,_52,_079136,_0383777,RM100000001GCJ8_01_0001,

for High Roof:

Click hereDrivetrain>DRIVE SHAFT / PROPELLER SHAFT>PROPELLER SHAFT ASSEMBLY (for High Roof)>INSTALLATION201902,999999,_52,_079136,_0383776,RM100000001GCIX_01_0001,

Hide Display 51569A 60.INSTALL PROPELLER SHAFT GUARD

for Standard Roof:

Click hereDrivetrain>DRIVE SHAFT / PROPELLER SHAFT>PROPELLER SHAFT ASSEMBLY (for Standard Roof)>INSTALLATION201902,999999,_52,_079136,_0383777,RM100000001GCJ8_01_0007,

for High Roof:

Click hereDrivetrain>DRIVE SHAFT / PROPELLER SHAFT>PROPELLER SHAFT ASSEMBLY (for High Roof)>INSTALLATION201902,999999,_52,_079136,_0383776,RM100000001GCIX_01_0007,

Hide Display 17150 61.INSTALL EXHAUST MANIFOLD ASSEMBLY LH

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>EXHAUST MANIFOLD>INSTALLATION201902,999999,_51,_079308,_0385727,RM100000001GNNX_01_0189,

Hide Display 17362 62.INSTALL NO. 2 AIR TUBE (w/ Secondary Air Injection System)

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>EXHAUST MANIFOLD>INSTALLATION201902,999999,_51,_079308,_0385727,RM100000001GNNX_01_0193,

Hide Display 17119 63.INSTALL NO. 2 MANIFOLD STAY

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>EXHAUST MANIFOLD>INSTALLATION201902,999999,_51,_079308,_0385727,RM100000001GNNX_01_0182,

Hide Display 17140 64.INSTALL EXHAUST MANIFOLD ASSEMBLY RH

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>EXHAUST MANIFOLD>INSTALLATION201902,999999,_51,_079308,_0385727,RM100000001GNNX_01_0184,

Hide Display 17361N 65.INSTALL NO. 1 AIR TUBE (w/ Secondary Air Injection System)

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>EXHAUST MANIFOLD>INSTALLATION201902,999999,_51,_079308,_0385727,RM100000001GNNX_01_0185,

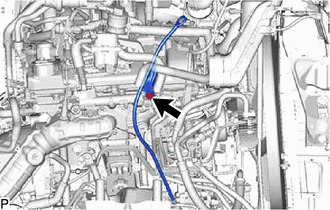

Hide Display 11409 66.INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE

Install the O-ring to the engine oil level dipstick guide.

Install the engine oil level dipstick guide with the bolt.

Torque:: 21 N*m (214 kgf*cm, 15 ft.*lbf)

Install the engine oil level dipstick.

Hide Display 17118 67.INSTALL MANIFOLD STAY

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>EXHAUST MANIFOLD>INSTALLATION201902,999999,_51,_079308,_0385727,RM100000001GNNX_01_0186,

Hide Display 17450B 68.INSTALL FRONT NO. 2 EXHAUST PIPE ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>EXHAUST MANIFOLD>INSTALLATION201902,999999,_51,_079308,_0385727,RM100000001GNNX_01_0188,

Hide Display 17410 69.INSTALL FRONT EXHAUST PIPE ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>EXHAUST MANIFOLD>INSTALLATION201902,999999,_51,_079308,_0385727,RM100000001GNNX_01_0192,

Hide Display 17403 70.INSTALL FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>EXHAUST MANIFOLD>INSTALLATION201902,999999,_51,_079308,_0385727,RM100000001GNNX_01_0194,

Hide Display 17190 71.INSTALL INTAKE AIR SURGE TANK ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>INTAKE MANIFOLD>INSTALLATION201902,999999,_51,_079308,_0385725,RM100000001GNNT_01_0167,

Hide Display 22267A 72.INSTALL THROTTLE BODY BRACKET

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>INTAKE MANIFOLD>INSTALLATION201902,999999,_51,_079308,_0385725,RM100000001GNNT_01_0168,

Hide Display 17125 73.INSTALL NO. 1 SURGE TANK STAY

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>INTAKE MANIFOLD>INSTALLATION201902,999999,_51,_079308,_0385725,RM100000001GNNT_01_0169,

Hide Display 17126 74.INSTALL NO. 2 SURGE TANK STAY

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>INTAKE MANIFOLD>INSTALLATION201902,999999,_51,_079308,_0385725,RM100000001GNNT_01_0170,

Hide Display 17346 75.CONNECT NO. 6 AIR INJECTION SYSTEM HOSE (w/ Secondary Air Injection System)

Connect the No. 6 air injection system hose to the air tube assembly, and slide the clip to secure it.

Hide Display 16631D 76.INSTALL NO. 1 IDLER PULLEY BRACKET (w/o Air Conditioning System)

Install the No. 1 idler pulley bracket with the 3 bolts.

Torque:: 24.5 N*m (250 kgf*cm, 18 ft.*lbf)

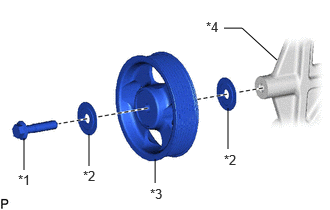

Hide Display 16603K 77.INSTALL IDLER PULLEY SUB-ASSEMBLY (w/o Air Conditioning System)

2.333,0.292 2.521,0.292 2.521,0.292 2.885,0.625 false 2.375,1.552 2.375,1.125 false 1.615,1.906 1.615,1.656 false 0.927,1.729 0.927,1.396 false 0.25,1.771 0.25,1.438 false 0.188,1.792 0.396,1.979 0.208,0.188 10 false *1 0.865,1.75 1.052,1.938 0.188,0.188 10 false *2 1.563,1.938 1.75,2.115 0.188,0.177 10 false *3 2.146,0.198 2.333,0.385 0.188,0.188 10 false *4 2.333,1.583 2.531,1.781 0.198,0.198 10 false *2

*1	Bolt
*2	Plate Washer
*3	Idler Pulley Sub-assembly
*4	No. 1 Idler Pulley Bracket

Install the 2 plate washers and idler pulley sub-assembly to the No. 1 idler pulley bracket with the bolt as shown in the illustration.

Torque:: 60 N*m (612 kgf*cm, 44 ft.*lbf)

Hide Display 88320 78.INSTALL COMPRESSOR ASSEMBLY WITH MAGNET CLUTCH (w/ Air Conditioning System)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>COMPRESSOR (for 7GR-FKS)>INSTALLATION201902,999999,_58,_079316,_0384886,RM100000001GIU5_01_0001,

Hide Display 88704 79.CONNECT SUCTION HOSE SUB-ASSEMBLY (w/ Air Conditioning System)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>COMPRESSOR (for 7GR-FKS)>INSTALLATION201902,999999,_58,_079316,_0384886,RM100000001GIU5_01_0003,

Hide Display 88703 80.CONNECT DISCHARGE HOSE SUB-ASSEMBLY (w/ Air Conditioning System)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>COMPRESSOR (for 7GR-FKS)>INSTALLATION201902,999999,_58,_079316,_0384886,RM100000001GIU5_01_0002,

Hide Display 27020 81.INSTALL GENERATOR ASSEMBLY

Click herePower Source / Network>7GR-FKS (BATTERY / CHARGING)>GENERATOR>INSTALLATION201902,999999,_57,_078664,_0386628,RM100000001GSF9_01_0001,

Hide Display 44310 82.CONNECT VANE PUMP ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>WATER PUMP>INSTALLATION201902,999999,_51,_079310,_0386772,RM100000001GTPX_01_0077,

Hide Display 83.CONNECT VACUUM HOSE ASSEMBLY

Click hereBrake>BRAKE SYSTEM (OTHER)>VACUUM PUMP (for 7GR-FKS)>INSTALLATION201902,999999,_54,_078668,_0381541,RM100000001G0LH_01_0069,

Hide Display 23901 84.CONNECT FUEL TUBE SUB-ASSEMBLY

Connect the 2 fuel tube sub-assemblies.

Click hereEngine / Hybrid System>7GR-FKS (FUEL)>FUEL SYSTEM>PRECAUTION201906,999999,_51,_079024,_0383258,RM100000001IZVI,

Install the No. 2 fuel pipe clamp.

Hide Display 87245A 85.CONNECT HEATER WATER HOSE ASSEMBLY

Connect the 2 heater water hose assemblies to the water pipe, and slide the 2 clamps to secure the hoses.

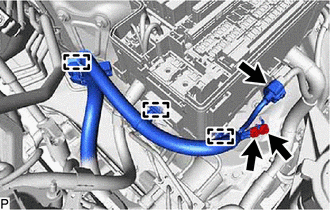

Hide Display 86.CONNECT WIRE HARNESS

Attach the claw and 3 connectors from the No. 1 engine room relay block.

Attach the clamp and connect the wire harness to the bracket.

Connect the wire harness to the body with the 2 bolts.

Torque:: 14 N*m (143 kgf*cm, 10 ft.*lbf)

Connect the connector.

Attach the 3 clamps and connect the wire harness to the No. 1 engine room relay block and bracket.

Connect the 2 wire harnesses to the No. 1 engine room relay assembly with the 2 bolts.

Torque:: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

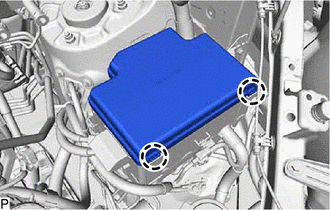

Attach the claw and install the relay block cover to the No. 1 engine room relay block.

Attach the 2 claws and install the upper No. 1 relay block cover to the No. 1 engine room relay block.

Hide Display 82121 87.CONNECT ENGINE WIRE

Pass the engine wire into the cabin.

Attach the grommet to the body.

0.042,0.042 0.26,0.26 0.219,0.219 10 true *A 0.063,2.49 0.323,2.719 0.26,0.229 10 false *B

*A	for LHD
*B	for RHD

for LHD:

Attach the 2 clamps to connect the engine wire to the bracket.

for RHD:

Attach the clamp to connect the engine wire to the bracket.

0.031,0.042 0.271,0.25 0.24,0.208 10 true *A 0.042,2.469 0.26,2.667 0.219,0.198 10 false *B

*A	for LHD
*B	for RHD

Connect the 2 connectors to the instrument panel wire.

Connect the 4 connectors to the ECM.

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>ECM>INSTALLATION201902,999999,_51,_078720,_0381918,RM100000001G2Y5,

Hide Display 16711 88.INSTALL FAN SHROUD

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>RADIATOR>INSTALLATION201906,999999,_51,_079310,_0386774,RM100000001IZPW_01_0152,

Hide Display 32941 89.INSTALL NO. 1 OIL COOLER INLET HOSE AND NO. 1 OIL COOLER OUTLET HOSE (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>OIL COOLER (for 7GR-FKS)>INSTALLATION202107,999999,_52,_078741,_0382309,RM100000001WUCH_01_0003,

Hide Display 16572D 90.INSTALL NO. 2 RADIATOR HOSE

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>RADIATOR>INSTALLATION201906,999999,_51,_079310,_0386774,RM100000001IZPW_01_0153,

Hide Display 16571C 91.INSTALL NO. 1 RADIATOR HOSE

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>RADIATOR>INSTALLATION201906,999999,_51,_079310,_0386774,RM100000001IZPW_01_0154,

Hide Display 16470 92.INSTALL RADIATOR RESERVE TANK ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>RADIATOR>INSTALLATION201906,999999,_51,_079310,_0386774,RM100000001IZPW_01_0155,

Hide Display 44360 93.CONNECT VANE PUMP OIL RESERVOIR ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>RADIATOR>INSTALLATION201906,999999,_51,_079310,_0386774,RM100000001IZPW_01_0156,

Hide Display 94.INSTALL FRONT BUMPER

for Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for Wagon)>INSTALLATION201906,999999,_59,_079322,_0397092,RM100000001IMTB,

except Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (except Wagon)>INSTALLATION201906,999999,_59,_079322,_0397093,RM100000001IMTG,

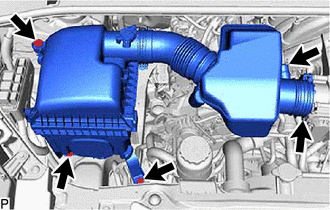

Hide Display 17881 95.INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

Install the air cleaner assembly with air cleaner hose with the 3 bolts.

Torque:: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

Tighten the hose clamp.

Torque:: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

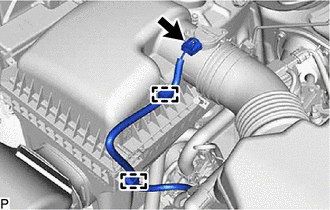

Connect the No. 2 PCV hose to the No. 1 air cleaner hose, and slide the clamp to secure the hose.

Attach the 2 wire harness clamps.

Connect the mass air flow meter sub-assembly connector.

Hide Display 17751 96.INSTALL NO. 1 AIR CLEANER INLET

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>RADIATOR>INSTALLATION201906,999999,_51,_079310,_0386774,RM100000001IZPW_01_0157,

Hide Display 11209 97.INSTALL V-BANK COVER SUB-ASSEMBLY (w/ Cover)

Attach the 3 clips to install the V-bank cover sub-assembly.

NOTICE:: ·

Securely attach the clips.

·

If the clips are forcibly attached or struck with an object, they may be damaged.

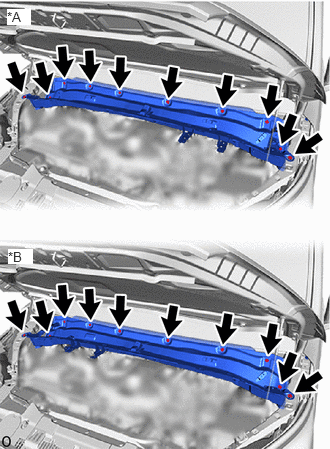

Hide Display 55701J 98.INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

0.073,0.094 0.323,0.26 0.25,0.167 10 true *A 0.083,2.594 0.344,2.75 0.26,0.156 10 true *B

*A	for LHD
*B	for RHD

Install the outer cowl top panel sub-assembly with the 10 bolts.

Torque:: 12 N*m (122 kgf*cm, 9 ft.*lbf)

0.031,0.031 0.271,0.25 0.24,0.219 10 true *A 0.042,2.51 0.26,2.719 0.219,0.208 10 true *B

*A	for LHD
*B	for RHD

for LHD:

Attach the 6 clamps and connect the wire harness to the outer cowl top panel sub-assembly.

for RHD:

Attach the 7 clamps and connect the wire harness to the outer cowl top panel sub-assembly.

Hide Display 55738D 99.INSTALL NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL

0.042,0.031 0.281,0.25 0.24,0.219 10 true *A 0.042,2.385 0.302,2.615 0.26,0.229 10 false *B

*A	for LHD
*B	for RHD

for LH Side:

Attach the 2 claws and install the No. 2 heater air duct splash shield seal to the outer cowl top panel sub-assembly.

0.042,0.031 0.281,0.271 0.24,0.24 10 false *A 0.063,2.385 0.281,2.594 0.219,0.208 10 false *B

*A	for LHD
*B	for RHD

for RH Side:

Attach the 2 claws and install the No. 2 heater air duct splash shield seal to the outer cowl top panel sub-assembly.

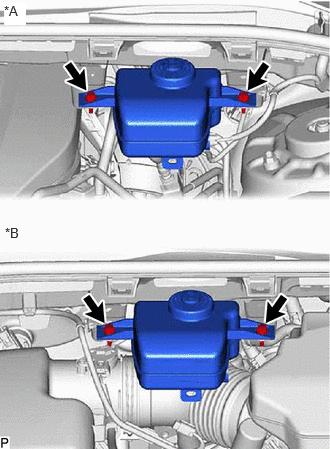

Hide Display 47220D 100.CONNECT BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

0.042,0.031 0.271,0.26 0.229,0.229 10 true *A 0.052,2.344 0.302,2.542 0.25,0.198 10 false *B

*A	for LHD
*B	for RHD

Connect the brake master cylinder reservoir assembly with the 2 bolts.

Torque:: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

0.042,0.042 0.281,0.26 0.24,0.219 10 true *A 0.042,2.396 0.26,2.604 0.219,0.208 10 false *B

*A	for LHD
*B	for RHD

Disconnect the connector.

for RHD:

Attach the clamp and connect the wire harness to the brake master cylinder reservoir assembly.

Hide Display 85110 101.INSTALL WINDSHIELD WIPER MOTOR ASSEMBLY

Click hereVehicle Exterior>WIPER / WASHER>FRONT WIPER MOTOR>INSTALLATION201902,999999,_59,_079320,_0385302,RM100000001GLKW,

Hide Display 102.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

Hide Display 103. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 104.BLEED CLUTCH PIPE LINE (for Manual Transmission)

Click hereDrivetrain>CLUTCH>CLUTCH SYSTEM>BLEEDING201902,999999,_52,_078837,_0382375,RM100000001G4H4,

Hide Display 105.INSPECT FOR BRAKE FLUID LEAK (for Manual Transmission)

Click hereDrivetrain>CLUTCH>CLUTCH MASTER CYLINDER>INSTALLATION201906,999999,_52,_078837,_0382377,RM100000001IXW7_01_0010,

Hide Display 106.CHECK FLUID LEVEL IN RESERVOIR (for Manual Transmission)

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE FLUID>ON-VEHICLE INSPECTION201902,999999,_54,_078668,_0382364,RM100000001G4EI,

Hide Display 31301 107.INSPECT AND ADJUST CLUTCH PEDAL SUB-ASSEMBLY (for Manual Transmission)

Click hereDrivetrain>CLUTCH>CLUTCH PEDAL>ADJUSTMENT201902,999999,_52,_078837,_0382376,RM100000001H07P,

Hide Display 108.CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT (w/ Air Conditioning System)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT>REPLACEMENT201906,999999,_58,_079316,_0384872,RM100000001IHVK_01_0002,

Hide Display 109.ADD ENGINE OIL

Click hereGeneral>MAINTENANCE>7GR-FKS OIL AND OIL FILTER>REPLACEMENT202107,999999,_V1,_078672,_0387903,RM100000001XJ12_02_0005,

Hide Display 110.ADD MANUAL TRANSMISSION OIL (for Manual Transmission)

Click hereDrivetrain>RC60J (MANUAL TRANSMISSION / TRANSAXLE)>MANUAL TRANSMISSION OIL>REPLACEMENT201902,999999,_52,_078740,_0382067,RM100000001G3M1_01_0002,

Hide Display 111.INSPECT MANUAL TRANSMISSION OIL (for Manual Transmission)

Click hereDrivetrain>RC60J (MANUAL TRANSMISSION / TRANSAXLE)>MANUAL TRANSMISSION OIL>ON-VEHICLE INSPECTION201902,999999,_52,_078740,_0382067,RM100000001G3M2_01_0001,

Hide Display 112.ADD AUTOMATIC TRANSMISSION FLUID (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION FLUID>ADJUSTMENT202107,202208,_52,_078741,_0382060,RM100000001WUC9,202208,999999,_52,_078741,_0382060,RM10000000261OM,

Hide Display 113.ADD ENGINE COOLANT

Click hereGeneral>MAINTENANCE>7GR-FKS COOLANT>REPLACEMENT202107,999999,_V1,_078672,_0386705,RM0000003TPC183_01_0030,

Hide Display 114.ADJUST AUTOMATIC TRANSMISSION FLUID (for Automatic Transmission)

Hide Display 115. WARM UP ENGINE (w/ Air Conditioning System)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT>REPLACEMENT201906,999999,_58,_079316,_0384872,RM100000001IHVK_01_0003,

Hide Display 116.INSPECT FOR REFRIGERANT GAS LEAK (w/ Air Conditioning System)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT>REPLACEMENT201906,999999,_58,_079316,_0384872,RM100000001IHVK_01_0004,

Hide Display 117.INSPECT FOR FUEL LEAK

Click hereEngine / Hybrid System>7GR-FKS (FUEL)>FUEL SYSTEM>ON-VEHICLE INSPECTION201902,999999,_51,_079024,_0383258,RM100000001G9W0_01_0001,

Hide Display 118.INSPECT FOR COOLANT LEAK

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>COOLING SYSTEM>ON-VEHICLE INSPECTION201902,999999,_51,_079310,_0386557,RM100000001GS5S_01_0001,

Hide Display 119.INSPECT FOR ENGINE OIL LEAK

Click hereGeneral>MAINTENANCE>7GR-FKS OIL AND OIL FILTER>REPLACEMENT202107,999999,_V1,_078672,_0387903,RM100000001XJ12_02_0007,

Hide Display 120.INSPECT FOR EXHAUST GAS LEAK

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>EXHAUST PIPE>INSTALLATION201902,999999,_51,_079308,_0385728,RM100000001GNO0_01_0072,

Hide Display 121.INSPECT ENGINE OIL LEVEL

Click hereEngine / Hybrid System>7GR-FKS (LUBRICATION)>LUBRICATION SYSTEM>ON-VEHICLE INSPECTION201902,999999,_51,_078604,_0381347,RM100000001FZO8_01_0001,

Hide Display 122.INSPECT ENGINE COOLANT LEVEL IN RESERVOIR TANK

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>COOLING SYSTEM>ON-VEHICLE INSPECTION201902,999999,_51,_079310,_0386557,RM100000001GS5S_01_0002,

Hide Display 123.PERFORM RESET MEMORY (for Automatic Transmission)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION SYSTEM (for 7GR-FKS)>INITIALIZATION201902,999999,_52,_078741,_0385245,RM100000001GL7C,

Hide Display 124.INSTALL FRONT WHEELS

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>INSTALLATION201902,999999,_V1,_078672,_0387313,RM100000001GWDL,

Hide Display 125. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

Hide Display 126.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

Click hereSuspension>ALIGNMENT / HANDLING DIAGNOSIS>FRONT WHEEL ALIGNMENT>ADJUSTMENT202107,202201,_53,_079311,_0385765,RM100000001X2L4,202201,202208,_53,_079311,_0385765,RM1000000021TWD,202208,999999,_53,_079311,_0385765,RM1000000024SMN,

Hide Display 127.INSPECT IGNITION TIMING

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE>ON-VEHICLE INSPECTION201902,999999,_51,_078603,_0381337,RM100000001FZOT_01_0008,

Hide Display 128.INSPECT ENGINE IDLE SPEED

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE>ON-VEHICLE INSPECTION201902,999999,_51,_078603,_0381337,RM100000001FZOT_01_0009,

Hide Display 129.INSPECT CO/HC

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE>ON-VEHICLE INSPECTION201902,999999,_51,_078603,_0381337,RM100000001FZOT_01_0001,

Hide Display 51773E 130.INSTALL STEP PLATE COVER RH (w/ Cover)

0.813,0.823 1.031,1.031 0.219,0.208 10 true *A 1.094,0.823 1.313,1.031 0.219,0.208 10 true *B

*A	for Automatic Transmission
*B	for Manual Transmission

Install the step plate cover RH with the 4 clips and 5 bolts.

Torque:: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

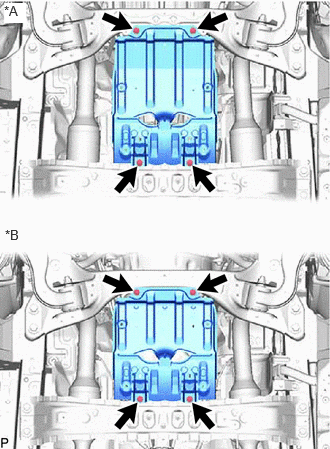

Hide Display 51407A 131.INSTALL NO. 3 ENGINE UNDER COVER SUB-ASSEMBLY (w/ No. 3 Engine Under Cover Sub-assembly)

0.042,0.031 0.271,0.24 0.229,0.208 10 true *A 0.052,2.365 0.281,2.563 0.229,0.198 10 false *B

*A	for Manual Transmission
*B	for Automatic Transmission

Install the No. 3 engine under cover sub-assembly with the 4 bolts.

Torque:: 13 N*m (133 kgf*cm, 10 ft.*lbf)

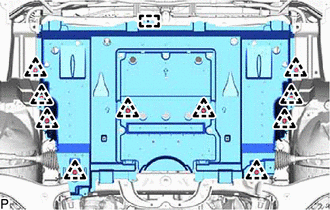

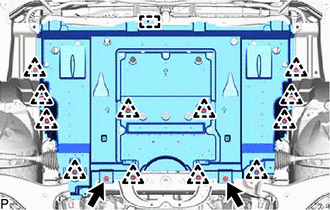

Hide Display 51405A 132.INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

w/ No. 2 Engine Under Cover Sub-assembly:

Attach the guide and install the No. 1 engine under cover sub-assembly.

ii.

Install the 10 clips.

w/o No. 2 Engine Under Cover Sub-assembly:

Attach the guide and install the No. 1 engine under cover sub-assembly.

ii.

Install the 12 clips and 2 bolts.

Torque:: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

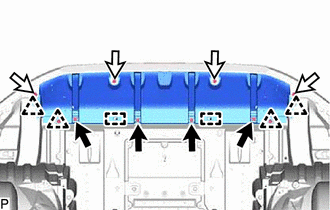

Hide Display 52618 133.INSTALL LOWER FRONT BUMPER ABSORBER

0,0 0,0 false

	Bolt
	Screw

Attach the 2 guides and install the lower front bumper absorber.

Install the 4 bolts, 4 screws and 4 clips.

Torque:: Bolt : 7.5 N*m (76 kgf*cm, 66 in.*lbf)

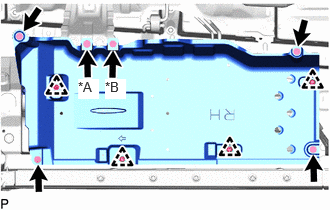

Hide Display 51406A 134.INSTALL NO. 2 ENGINE UNDER COVER SUB-ASSEMBLY (w/ No. 2 Engine Under Cover Sub-assembly)

Install the No. 2 engine under cover sub-assembly with the 6 clips and 7 bolts.

Torque:: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

Hide Display 53106B 135.INSTALL RADIATOR COVER SUB-ASSEMBLY

for Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>RADIATOR GRILLE (for Wagon)>INSTALLATION201906,999999,_59,_079322,_0397097,RM100000001IMU7_02_0004,

except Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>RADIATOR GRILLE (except Wagon)>INSTALLATION201906,999999,_59,_079322,_0397096,RM100000001IMU0_02_0041,
