ALIGNMENT / HANDLING DIAGNOSIS  FRONT WHEEL ALIGNMENT  ADJUSTMENT


CAUTION / NOTICE / HINT

Necessary Procedures After Adjustment
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Front wheel alignment adjustment
w/ VSC OFF Switch:
·

Perform reset memory

·

Perform acceleration sensor zero point calibration and store system information memorization


·

VSC is disabled or malfunctions

·

DTCs are output

·

Slip indicator light illuminates

·

ABS warning light illuminates


(Click here)

Tolerance:

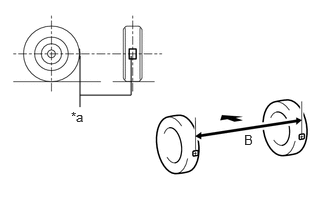

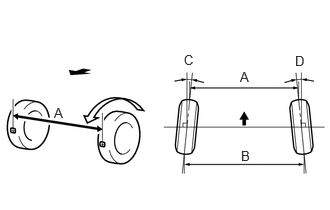

Toe-in Angle Toe-in Width Camber and Caster Left-right Difference of Camber and Caster Inside Wheel Angle
+/-0°11' (+/-0.18°) +/-2.0 mm (+/-0.08 in.) +/-0°45' (+/-0.75°) 0°45' (0.75°) or less +/-2°


Wheel Angle (Unloaded Vehicle):
Inside Wheel Outside Wheel
45°45' (45.75°) 38°45' (38.75°)

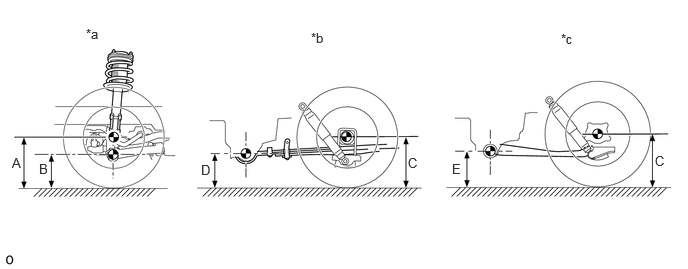

Wheel Alignment (Unloaded Vehicle) for Standard Roof Van:
Model Specification Front Vehicle Height Rear Vehicle Height Camber Caster Steering Axis Inclination Toe-in Angle Toe-in Width
GDH300R-GBFDYT - 87 mm (3.43 in.) 64 mm (2.52 in.) 0°02' (0.03°) 3°12' (3.20°) 12°32' (12.53°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-GBTDYQ - 89 mm (3.50 in.) 64 mm (2.52 in.) 0°00' (0.00°) 3°12' (3.20°) 12°34' (12.56°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-GTTDYQ - 88 mm (3.46 in.) 65 mm (2.56 in.) 0°01' (0.01°) 3°15' (3.25°) 12°33' (12.55°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-RBFDYQ - 91 mm (3.58 in.) 66 mm (2.60 in.) -0°03' (-0.05°) 3°14' (3.23°) 12°37' (12.62°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-RBTDYQ - 90 mm (3.54 in.) 66 mm (2.60 in.) -0°02' (-0.03°) 3°14' (3.23°) 12°36' (12.60°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-RTTDYQ - 89 mm (3.50 in.) 67 mm (2.64 in.) -0°01' (-0.02°) 3°17' (3.28°) 12°35' (12.59°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-RCTDYQ - 95 mm (3.74 in.) 66 mm (2.60 in.) -0°08' (-0.13°) 3°12' (3.21°) 12°43' (12.72°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-RDFDYQ - 93 mm (3.66 in.) 68 mm (2.68 in.) -0°05' (-0.09°) 3°16' (3.26°) 12°40' (12.67°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-RDTDYQ - 92 mm (3.62 in.) 68 mm (2.68 in.) -0°04' (-0.07°) 3°16' (3.27°) 12°39' (12.65°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-RVTDYQ - 91 mm (3.58 in.) 69 mm (2.72 in.) -0°03' (-0.06°) 3°19' (3.31°) 12°38' (12.63°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300L-RBFDYV except EURO 5 86 mm (3.39 in.) 65 mm (2.56 in.) 0°03' (0.05°) 3°15' (3.25°) 12°31' (12.51°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 87 mm (3.43 in.) 65 mm (2.56 in.) 0°02' (0.04°) 3°15' (3.25°) 12°31' (12.52°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300L-RTFDYV except EURO 5 86 mm (3.39 in.) 66 mm (2.60 in.) 0°03' (0.06°) 3°18' (3.30°) 12°30' (12.50°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 86 mm (3.39 in.) 66 mm (2.60 in.) 0°03' (0.05°) 3°18' (3.29°) 12°31' (12.51°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH300L-RBFDHV except EURO 5 and EURO 6 86 mm (3.39 in.) 64 mm (2.52 in.) 0°04' (0.06°) 3°16' (3.26°) 12°30' (12.49°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO 6 87 mm (3.43 in.) 64 mm (2.52 in.) 0°02' (0.03°) 3°15' (3.25°) 12°32' (12.53°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH300L-RTTDHV except EURO 5 and EURO 6 85 mm (3.35 in.) 65 mm (2.56 in.) 0°04' (0.07°) 3°18' (3.30°) 12°29' (12.48°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO 6 87 mm (3.43 in.) 66 mm (2.60 in.) 0°03' (0.04°) 3°18' (3.29°) 12°31' (12.52°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300L-RBTDYV except EURO 5 85 mm (3.35 in.) 64 mm (2.52 in.) 0°04' (0.07°) 3°15' (3.25°) 12°29' (12.48°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 86 mm (3.39 in.) 64 mm (2.52 in.) 0°03' (0.06°) 3°15' (3.25°) 12°30' (12.50°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300L-RTTDYV - 85 mm (3.35 in.) 66 mm (2.60 in.) 0°05' (0.08°) 3°18' (3.30°) 12°28' (12.47°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300L-RCFDYV - 91 mm (3.58 in.) 64 mm (2.52 in.) -0°03' (-0.04°) 3°12' (3.20°) 12°37' (12.61°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH300L-RBTDHV except EURO 5 and EURO 6 85 mm (3.35 in.) 64 mm (2.52 in.) 0°05' (0.08°) 3°16' (3.26°) 12°28' (12.47°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO 6 86 mm (3.39 in.) 64 mm (2.52 in.) 0°03' (0.05°) 3°15' (3.25°) 12°30' (12.50°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH300L-RTFDHV except EURO 5 and EURO 6 84 mm (3.31 in.) 65 mm (2.56 in.) 0°06' (0.09°) 3°18' (3.30°) 12°27' (12.46°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO 6 86 mm (3.39 in.) 65 mm (2.56 in.) 0°04' (0.06°) 3°18' (3.29°) 12°30' (12.49°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH300L-RCFDHV except EURO 5 and EURO 6 89 mm (3.50 in.) 64 mm (2.52 in.) -0°01' (-0.02°) 3°13' (3.22°) 12°35' (12.59°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO 6 91 mm (3.58 in.) 64 mm (2.52 in.) -0°03' (-0.05°) 3°13' (3.21°) 12°37' (12.62°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH300L-RUFDHV except EURO 5 and EURO 6 89 mm (3.50 in.) 65 mm (2.56 in.) -0°01' (-0.01°) 3°16' (3.27°) 12°35' (12.58°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO 6 90 mm (3.54 in.) 65 mm (2.56 in.) -0°02' (-0.04°) 3°15' (3.26°) 12°37' (12.61°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-GBFDY except EURO 5 83 mm (3.27 in.) 63 mm (2.48 in.) 0°08' (0.13°) 3°15' (3.24°) 12°25' (12.41°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 84 mm (3.31 in.) 63 mm (2.48 in.) 0°06' (0.11°) 3°14' (3.23°) 12°26' (12.44°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-GTFDY - 82 mm (3.23 in.) 64 mm (2.52 in.) 0°08' (0.14°) 3°17' (3.29°) 12°24' (12.40°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-GBTDY except EURO 5 87 mm (3.43 in.) 63 mm (2.48 in.) 0°02' (0.03°) 3°13' (3.21°) 12°32' (12.53°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 88 mm (3.46 in.) 64 mm (2.52 in.) 0°01' (0.01°) 3°12' (3.20°) 12°33' (12.55°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-GTTDY - 87 mm (3.43 in.) 65 mm (2.56 in.) 0°03' (0.04°) 3°16' (3.26°) 12°31' (12.52°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH300R-GBTDH - 86 mm (3.39 in.) 63 mm (2.48 in.) 0°04' (0.06°) 3°15' (3.25°) 12°30' (12.49°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-RBFDY except EURO 5 84 mm (3.31 in.) 64 mm (2.52 in.) 0°06' (0.10°) 3°17' (3.28°) 12°27' (12.45°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 85 mm (3.35 in.) 65 mm (2.56 in.) 0°05' (0.08°) 3°16' (3.27°) 12°28' (12.47°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-RTFDY - 84 mm (3.31 in.) 66 mm (2.60 in.) 0°06' (0.11°) 3°19' (3.32°) 12°26' (12.44°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-RBTDY - 89 mm (3.50 in.) 65 mm (2.56 in.) 0°00' (0.00°) 3°15' (3.24°) 12°34' (12.56°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-RCFDY except EURO 5 and EURO6 88 mm (3.46 in.) 64 mm (2.52 in.) 0°00' (0.01°) 3°14' (3.23°) 12°34' (12.56°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO 6c 89 mm (3.50 in.) 64 mm (2.52 in.) -0°01' (-0.01°) 3°13' (3.22°) 12°35' (12.58°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-RCTDY - 88 mm (3.46 in.) 64 mm (2.52 in.) 0°00' (0.01°) 3°14' (3.22°) 12°34' (12.56°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300R-RUTDY - 88 mm (3.46 in.) 65 mm (2.56 in.) 0°01' (0.01°) 3°16' (3.27°) 12°33' (12.55°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300L-GBFDY except EURO 6 83 mm (3.27 in.) 63 mm (2.48 in.) 0°08' (0.13°) 3°15' (3.24°) 12°25' (12.41°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 6 84 mm (3.31 in.) 63 mm (2.48 in.) 0°06' (0.10°) 3°14' (3.23°) 12°27' (12.45°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300L-GTFDY except EURO 6 82 mm (3.23 in.) 64 mm (2.52 in.) 0°08' (0.14°) 3°17' (3.29°) 12°24' (12.40°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 6 83 mm (3.27 in.) 64 mm (2.52 in.) 0°07' (0.12°) 3°17' (3.28°) 12°26' (12.42°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300L-GBTDY except EURO 5 and EURO6 87 mm (3.43 in.) 63 mm (2.48 in.) 0°02' (0.03°) 3°13' (3.21°) 12°32' (12.53°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO6 88 mm (3.46 in.) 64 mm (2.52 in.) 0°01' (0.01°) 3°13' (3.21°) 12°33' (12.55°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH300L-GTTDY except EURO 5 and EURO6 87 mm (3.43 in.) 65 mm (2.56 in.) 0°03' (0.04°) 3°16' (3.26°) 12°31' (12.52°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO6 88 mm (3.46 in.) 65 mm (2.56 in.) 0°01' (0.02°) 3°15' (3.25°) 12°32' (12.54°) 0°11' (0.18°) 2.0 mm (0.08 in.)


Wheel Alignment (Unloaded Vehicle) for High Roof Van:
Model Specification Front Vehicle Height Rear Vehicle Height Camber Caster Steering Axis Inclination Toe-in Angle Toe-in Width
GDH320R-HBTDYQ - 84 mm (3.31 in.) 54 mm (2.13 in.) 0°06' (0.10°) 3°12' (3.21°) 12°27' (12.45°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH320R-HTTDYQ - 84 mm (3.31 in.) 56 mm (2.20 in.) 0°06' (0.11°) 3°14' (3.24°) 12°26' (12.44°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH320R-EDTDYQ - 83 mm (3.27 in.) 53 mm (2.09 in.) 0°07' (0.12°) 3°11' (3.19°) 12°25' (12.42°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH320L-HBFDYV except EURO 5 79 mm (3.11 in.) 52 mm (2.05 in.) 0°12' (0.20°) 3°12' (3.19°) 12°19' (12.32°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 80 mm (3.15 in.) 53 mm (2.09 in.) 0°11' (0.19°) 3°11' (3.19°) 12°21' (12.34°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH320L-HTFDYV except EURO 5 79 mm (3.11 in.) 54 mm (2.13 in.) 0°13' (0.21°) 3°14' (3.23°) 12°19' (12.31°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 80 mm (3.15 in.) 54 mm (2.13 in.) 0°12' (0.20°) 3°13' (3.22°) 12°20' (12.33°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH320L-HBTDYV except EURO 5 79 mm (3.11 in.) 52 mm (2.05 in.) 0°13' (0.22°) 3°11' (3.19°) 12°18' (12.30°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 79 mm (3.11 in.) 52 mm (2.05 in.) 0°12' (0.20°) 3°11' (3.18°) 12°19' (12.32°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH320L-HTTDYV except EURO 5 78 mm (3.07 in.) 53 mm (2.09 in.) 0°14' (0.23°) 3°14' (3.23°) 12°17' (12.29°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 79 mm (3.11 in.) 53 mm (2.09 in.) 0°13' (0.21°) 3°13' (3.22°) 12°19' (12.31°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH320L-HBFDHV except EURO 5 and EURO6 77 mm (3.03 in.) 52 mm (2.05 in.) 0°15' (0.25°) 3°13' (3.22°) 12°16' (12.27°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO6 79 mm (3.11 in.) 52 mm (2.05 in.) 0°13' (0.22°) 3°13' (3.21°) 12°18' (12.30°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH320L-HTFDHV except EURO 5 and EURO6 77 mm (3.03 in.) 53 mm (2.09 in.) 0°16' (0.26°) 3°15' (3.26°) 12°15' (12.26°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO6 78 mm (3.07 in.) 54 mm (2.13 in.) 0°14' (0.23°) 3°15' (3.25°) 12°18' (12.29°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH320L-HBTDHV except EURO 5 and EURO6 77 mm (3.03 in.) 51 mm (2.01 in.) 0°16' (0.27°) 3°13' (3.22°) 12°15' (12.24°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO6 78 mm (3.07 in.) 52 mm (2.05 in.) 0°14' (0.24°) 3°13' (3.21°) 12°17' (12.28°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH320L-HTTDHV except EURO 5 and EURO6 76 mm (2.99 in.) 53 mm (2.09 in.) 0°17' (0.28°) 3°15' (3.26°) 12°14' (12.23°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO6 77 mm (3.03 in.) 53 mm (2.09 in.) 0°15' (0.25°) 3°15' (3.25°) 12°16' (12.27°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH320R-HBFDY - 79 mm (3.11 in.) 52 mm (2.05 in.) 0°12' (0.20°) 3°13' (3.21°) 12°19' (12.32°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH320R-HTFDY - 79 mm (3.11 in.) 54 mm (2.13 in.) 0°13' (0.21°) 3°15' (3.25°) 12°19' (12.31°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH320R-HBTDY - 78 mm (3.07 in.) 52 mm (2.05 in.) 0°14' (0.23°) 3°13' (3.21°) 12°17' (12.29°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH320R-EDFDY - 83 mm (3.27 in.) 52 mm (2.05 in.) 0°07' (0.12°) 3°11' (3.19°) 12°25' (12.42°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH320L-EDFDY except EURO 6 83 mm (3.27 in.) 52 mm (2.05 in.) 0°07' (0.12°) 3°11' (3.19°) 12°25' (12.42°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 6 84 mm (3.31 in.) 53 mm (2.09 in.) 0°06' (0.10°) 3°11' (3.18°) 12°27' (12.45°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH320L-EVFDY except EURO 6 83 mm (3.27 in.) 54 mm (2.13 in.) 0°08' (0.13°) 3°13' (3.22°) 12°24' (12.41°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 6 84 mm (3.31 in.) 54 mm (2.13 in.) 0°06' (0.11°) 3°13' (3.21°) 12°26' (12.44°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH320L-HBFDY except EURO 6 79 mm (3.11 in.) 52 mm (2.05 in.) 0°12' (0.20°) 3°13' (3.21°) 12°19' (12.32°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 6 81 mm (3.19 in.) 53 mm (2.09 in.) 0°11' (0.18°) 3°12' (3.20°) 12°21' (12.35°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH320L-HTFDY except EURO 6 79 mm (3.11 in.) 54 mm (2.13 in.) 0°13' (0.21°) 3°15' (3.25°) 12°19' (12.31°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 6 80 mm (3.15 in.) 54 mm (2.13 in.) 0°11' (0.19°) 3°14' (3.24°) 12°21' (12.34°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH320L-HTTDY except EURO 5 78 mm (3.07 in.) 53 mm (2.09 in.) 0°15' (0.24°) 3°15' (3.25°) 12°17' (12.28°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 79 mm (3.11 in.) 53 mm (2.09 in.) 0°13' (0.22°) 3°15' (3.24°) 12°18' (12.30°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH320L-EDFDH - 82 mm (3.23 in.) 52 mm (2.05 in.) 0°08' (0.14°) 3°11' (3.19°) 12°24' (12.40°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH328L-EDFNYM - 83 mm (3.27 in.) 52 mm (2.05 in.) 0°07' (0.12°) 3°11' (3.19°) 12°25' (12.42°) 0°11' (0.18°) 2.0 mm (0.08 in.)


Wheel Alignment (Unloaded Vehicle) for Standard Roof Bus/Commuter:
Model Specification Front Vehicle Height Rear Vehicle Height Camber Caster Steering Axis Inclination Toe-in Angle Toe-in Width
GDH301R-GDFDYT - 86 mm (3.39 in.) 61 mm (2.40 in.) 0°03' (0.05°) 3°12' (3.20°) 12°30' (12.50°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH301R-GDTDYT - 85 mm (3.35 in.) 61 mm (2.40 in.) 0°04' (0.07°) 3°12' (3.20°) 12°29' (12.48°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH301R-GDTDYZ - 86 mm (3.39 in.) 63 mm (2.48 in.) 0°04' (0.07°) 3°13' (3.22°) 12°29' (12.48°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH301R-GDFDY Seating Capacity 3 91 mm (3.58 in.) 57 mm (2.24 in.) -0°02' (-0.04°) 2°59' (2.99°) 12°37' (12.61°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 12
except EURO 5 		84 mm (3.31 in.) 60 mm (2.36 in.) 0°06' (0.10°) 3°11' (3.19°) 12°27' (12.44°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 12
for EURO 5 		85 mm (3.35 in.) 60 mm (2.36 in.) 0°05' (0.08°) 3°11' (3.19°) 12°28' (12.47°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 13 84 mm (3.31 in.) 60 mm (2.36 in.) 0°06' (0.09°) 3°12' (3.20°) 12°27' (12.46°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 15 90 mm (3.54 in.) 62 mm (2.44 in.) -0°01' (-0.02°) 3°10' (3.17°) 12°35' (12.59°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH301R-GDTDY Seating Capacity 3
except EURO 6 		90 mm (3.54 in.) 56 mm (2.20 in.) -0°01' (-0.02°) 2°59' (2.99°) 12°35' (12.59°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 3
for EURO 6 		91 mm (3.58 in.) 57 mm (2.24 in.) -0°03' (-0.05°) 2°59' (2.98°) 12°37' (12.62°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 12 84 mm (3.31 in.) 60 mm (2.36 in.) 0°06' (0.10°) 3°11' (3.19°) 12°27' (12.44°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 13 84 mm (3.31 in.) 60 mm (2.36 in.) 0°07' (0.11°) 3°12' (3.20°) 12°26' (12.43°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 15
except EURO 6 		89 mm (3.50 in.) 62 mm (2.44 in.) 0°00' (0.00°) 3°11' (3.18°) 12°34' (12.57°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 15
for EURO 6 		90 mm (3.54 in.) 63 mm (2.48 in.) -0°02' (-0.03°) 3°10' (3.17°) 12°36' (12.60°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH301R-GVFDY - 89 mm (3.50 in.) 63 mm (2.48 in.) -0°01' (-0.01°) 3°13' (3.21°) 12°35' (12.58°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH301R-GVTDY - 88 mm (3.46 in.) 63 mm (2.48 in.) 0°01' (0.01°) 3°13' (3.21°) 12°33' (12.55°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH301R-GDFDH Seating Capacity 3 89 mm (3.50 in.) 56 mm (2.20 in.) 0°00' (0.00°) 3°01' (3.01°) 12°34' (12.57°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 12 89 mm (3.50 in.) 61 mm (2.40 in.) 0°00' (0.00°) 3°10' (3.17°) 12°34' (12.57°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 15 88 mm (3.46 in.) 62 mm (2.44 in.) 0°01' (0.01°) 3°12' (3.20°) 12°33' (12.55°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH301R-GDTDH Seating Capacity 3 89 mm (3.50 in.) 56 mm (2.20 in.) 0°00' (0.00°) 3°01' (3.02°) 12°34' (12.56°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 12 88 mm (3.46 in.) 61 mm (2.40 in.) 0°00' (0.00°) 3°10' (3.17°) 12°34' (12.56°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 15 87 mm (3.43 in.) 62 mm (2.44 in.) 0°02' (0.02°) 3°12' (3.20°) 12°32' (12.54°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH301L-GDFDY Seating Capacity 3
Vehicle Weight Rear Side 915 kg (2017.2 lb) 		91 mm (3.58 in.) 57 mm (2.24 in.) -0°02' (-0.04°) 2°59' (2.99°) 12°37' (12.61°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 3
Vehicle Weight Rear Side 930 kg (2050.3 lb) 		89 mm (3.50 in.) 57 mm (2.24 in.) 0°00' (0.00°) 3°02' (3.03°) 12°34' (12.57°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 12 84 mm (3.31 in.) 61 mm (2.40 in.) 0°06' (0.10°) 3°12' (3.20°) 12°27' (12.44°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 15 90 mm (3.54 in.) 62 mm (2.44 in.) -0°01' (-0.02°) 3°10' (3.17°) 12°35' (12.59°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH301L-GVFDY - 89 mm (3.50 in.) 63 mm (2.48 in.) -0°01' (-0.01°) 3°13' (3.21°) 12°35' (12.58°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH301L-GDTDY Seating Capacity 3 90 mm (3.54 in.) 55 mm (2.17 in.) -0°01' (-0.02°) 2°58' (2.96°) 12°35' (12.59°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 15 89 mm (3.50 in.) 62 mm (2.44 in.) 0°00' (0.00°) 3°11' (3.18°) 12°34' (12.57°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH301L-GVTDY - 88 mm (3.46 in.) 63 mm (2.48 in.) 0°01' (0.01°) 3°13' (3.21°) 12°33' (12.55°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH301L-GDFDH Seating Capacity 12 91 mm (3.58 in.) 63 mm (2.48 in.) -0°03' (-0.04°) 3°12' (3.20°) 12°37' (12.62°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 15 88 mm (3.46 in.) 62 mm (2.44 in.) 0°01' (0.01°) 3°12' (3.20°) 12°33' (12.55°) 0°11' (0.18°) 2.0 mm (0.08 in.)


Wheel Alignment (Unloaded Vehicle) for High Roof Bus/Commuter:
Model Specification Front Vehicle Height Rear Vehicle Height Camber Caster Steering Axis Inclination Toe-in Angle Toe-in Width
GDH322R-EDFDYT - 81 mm (3.19 in.) 57 mm (2.24 in.) 0°10' (0.16°) 3°13' (3.21°) 12°23' (12.38°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322R-EDTDYT - 81 mm (3.19 in.) 56 mm (2.20 in.) 0°11' (0.18°) 3°13' (3.22°) 12°21' (12.35°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322R-EDTPYQ - 85 mm (3.35 in.) 60 mm (2.36 in.) 0°04' (0.07°) 3°14' (3.24°) 12°29' (12.48°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH321R-EDFDYD - 87 mm (3.43 in.) 64 mm (2.52 in.) 0°01' (0.02°) 3°18' (3.30°) 12°32' (12.54°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH321R-EDTDYZ - 83 mm (3.27 in.) 66 mm (2.60 in.) 0°07' (0.12°) 3°22' (3.36°) 12°25' (12.42°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322L-EDFPYV except EURO 5 82 mm (3.23 in.) 59 mm (2.32 in.) 0°08' (0.14°) 3°15' (3.26°) 12°24' (12.40°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 83 mm (3.27 in.) 59 mm (2.32 in.) 0°07' (0.12°) 3°15' (3.25°) 12°25' (12.42°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322L-EDTPYV except EURO 5 81 mm (3.19 in.) 59 mm (2.32 in.) 0°10' (0.16°) 3°16' (3.26°) 12°23' (12.38°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 82 mm (3.23 in.) 59 mm (2.32 in.) 0°08' (0.14°) 3°15' (3.26°) 12°24' (12.40°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH322L-EDFPHV except EURO 5 and EURO6 85 mm (3.35 in.) 60 mm (2.36 in.) 0°04' (0.07°) 3°16' (3.26°) 12°29' (12.48°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO6 87 mm (3.43 in.) 60 mm (2.36 in.) 0°02' (0.04°) 3°15' (3.25°) 12°31' (12.52°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH322L-EDTPHV except EURO 5 and EURO6 85 mm (3.35 in.) 59 mm (2.32 in.) 0°05' (0.09°) 3°16' (3.26°) 12°28' (12.46°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO6 86 mm (3.39 in.) 60 mm (2.36 in.) 0°04' (0.06°) 3°15' (3.26°) 12°30' (12.49°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322R-EDFDY Seating Capacity 2
Vehicle Weight Rear Side 1025 kg (2259.7 lb) 		75 mm (2.95 in.) 48 mm (1.89 in.) 0°19' (0.32°) 3°07' (3.12°) 12°11' (12.19°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 2
Vehicle Weight Rear Side 1045 kg (2303.8 lb)
for EURO 5 		78 mm (3.07 in.) 50 mm (1.97 in.) 0°15' (0.24°) 3°06' (3.10°) 12°17' (12.28°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 2
Vehicle Weight Rear Side 1045 kg (2303.8 lb)
except EURO 5 		77 mm (3.03 in.) 50 mm (1.97 in.) 0°16' (0.26°) 3°06' (3.10°) 12°15' (12.25°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 3 75 mm (2.95 in.) 49 mm (1.93 in.) 0°18' (0.30°) 3°07' (3.12°) 12°13' (12.21°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 14
except EURO 5 		82 mm (3.23 in.) 58 mm (2.28 in.) 0°08' (0.14°) 3°15' (3.24°) 12°24' (12.40°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 14
for EURO 5 		83 mm (3.27 in.) 59 mm (2.32 in.) 0°07' (0.12°) 3°14' (3.24°) 12°25' (12.42°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
w/ Rear Headrest 		78 mm (3.07 in.) 58 mm (2.28 in.) 0°15' (0.24°) 3°18' (3.30°) 12°17' (12.28°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
w/o Rear Headrest 		77 mm (3.03 in.) 56 mm (2.20 in.) 0°15' (0.25°) 3°16' (3.26°) 12°16' (12.26°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 17 77 mm (3.03 in.) 56 mm (2.20 in.) 0°15' (0.25°) 3°15' (3.25°) 12°16' (12.26°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322R-EVFDY Seating Capacity 14 82 mm (3.23 in.) 60 mm (2.36 in.) 0°09' (0.15°) 3°16' (3.27°) 12°23' (12.39°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
w/ Rear Headrest 		77 mm (3.03 in.) 59 mm (2.32 in.) 0°15' (0.25°) 3°20' (3.33°) 12°16' (12.26°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
w/o Rear Headrest 		77 mm (3.03 in.) 57 mm (2.24 in.) 0°16' (0.26°) 3°18' (3.29°) 12°15' (12.25°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 17 77 mm (3.03 in.) 57 mm (2.24 in.) 0°16' (0.26°) 3°17' (3.29°) 12°15' (12.25°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322R-EDTDY Seating Capacity 2
Vehicle Weight Rear Side 1030 kg (2270.7 lb) 		74 mm (2.91 in.) 48 mm (1.89 in.) 0°20' (0.34°) 3°08' (3.13°) 12°10' (12.16°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 2
Vehicle Weight Rear Side 1045 kg (2303.8 lb) 		76 mm (2.99 in.) 49 mm (1.93 in.) 0°17' (0.29°) 3°07' (3.11°) 12°13' (12.22°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 3
except EURO 6 		74 mm (2.91 in.) 48 mm (1.89 in.) 0°20' (0.33°) 3°08' (3.13°) 12°10' (12.17°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 3
for EURO 6 		75 mm (2.95 in.) 49 mm (1.93 in.) 0°18' (0.30°) 3°07' (3.12°) 12°13' (12.21°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 14 83 mm (3.27 in.) 59 mm (2.32 in.) 0°07' (0.11°) 3°16' (3.26°) 12°26' (12.43°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
for EURO 0
w/ Rear Headrest 		76 mm (2.99 in.) 58 mm (2.28 in.) 0°16' (0.27°) 3°18' (3.30°) 12°15' (12.24°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
for EURO 0
w/o Rear Headrest 		76 mm (2.99 in.) 56 mm (2.20 in.) 0°17' (0.28°) 3°16' (3.27°) 12°14' (12.23°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
for EURO 6
w/ Rear Headrest 		78 mm (3.07 in.) 58 mm (2.28 in.) 0°15' (0.24°) 3°18' (3.30°) 12°17' (12.28°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
for EURO 6
w/o Rear Headrest 		77 mm (3.03 in.) 56 mm (2.20 in.) 0°15' (0.25°) 3°16' (3.26°) 12°16' (12.26°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
for Large EURO 4 		78 mm (3.07 in.) 58 mm (2.28 in.) 0°15' (0.24°) 3°18' (3.29°) 12°17' (12.28°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322R-EVTDY - 76 mm (2.99 in.) 57 mm (2.24 in.) 0°17' (0.29°) 3°18' (3.30°) 12°13' (12.22°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH322R-EDFDH Seating Capacity 3 78 mm (3.07 in.) 49 mm (1.93 in.) 0°14' (0.23°) 3°08' (3.13°) 12°17' (12.29°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
w/ Rear Headrest 		81 mm (3.19 in.) 58 mm (2.28 in.) 0°11' (0.17°) 3°18' (3.30°) 12°21' (12.36°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
w/o Rear Headrest 		80 mm (3.15 in.) 57 mm (2.24 in.) 0°12' (0.19°) 3°16' (3.26°) 12°20' (12.33°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 17 80 mm (3.15 in.) 56 mm (2.20 in.) 0°11' (0.18°) 3°16' (3.26°) 12°21' (12.34°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH322R-EDTDH Seating Capacity 3 77 mm (3.03 in.) 49 mm (1.93 in.) 0°15' (0.25°) 3°08' (3.13°) 12°16' (12.26°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
w/ Rear Headrest 		80 mm (3.15 in.) 58 mm (2.28 in.) 0°12' (0.19°) 3°18' (3.30°) 12°20' (12.33°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
w/o Rear Headrest 		79 mm (3.11 in.) 56 mm (2.20 in.) 0°12' (0.20°) 3°16' (3.27°) 12°19' (12.32°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH321L-EDFDY Seating Capacity 2 78 mm (3.07 in.) 58 mm (2.28 in.) 0°14' (0.23°) 3°14' (3.23°) 12°17' (12.29°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 10 84 mm (3.31 in.) 66 mm (2.60 in.) 0°06' (0.09°) 3°20' (3.33°) 12°27' (12.45°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322L-EDFPY except EURO 5 83 mm (3.27 in.) 59 mm (2.32 in.) 0°08' (0.13°) 3°15' (3.25°) 12°25' (12.41°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 83 mm (3.27 in.) 60 mm (2.36 in.) 0°07' (0.11°) 3°15' (3.24°) 12°26' (12.43°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322L-EVFPY - 83 mm (3.27 in.) 60 mm (2.36 in.) 0°07' (0.12°) 3°16' (3.26°) 12°25' (12.42°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322L-EDFDY Seating Capacity 2 75 mm (2.95 in.) 48 mm (1.89 in.) 0°19' (0.31°) 3°07' (3.12°) 12°12' (12.20°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 3 75 mm (2.95 in.) 49 mm (1.93 in.) 0°18' (0.30°) 3°07' (3.12°) 12°13' (12.21°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 14 82 mm (3.23 in.) 58 mm (2.28 in.) 0°08' (0.14°) 3°15' (3.24°) 12°24' (12.40°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
w/ Rear Headrest 		78 mm (3.07 in.) 58 mm (2.28 in.) 0°15' (0.24°) 3°18' (3.30°) 12°17' (12.28°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
w/o Rear Headrest 		77 mm (3.03 in.) 56 mm (2.20 in.) 0°15' (0.25°) 3°16' (3.26°) 12°16' (12.26°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 17 77 mm (3.03 in.) 56 mm (2.20 in.) 0°15' (0.25°) 3°15' (3.25°) 12°16' (12.26°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322L-EVFDY Seating Capacity 14 82 mm (3.23 in.) 60 mm (2.36 in.) 0°09' (0.15°) 3°16' (3.27°) 12°23' (12.39°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
w/ Rear Headrest 		77 mm (3.03 in.) 59 mm (2.32 in.) 0°15' (0.25°) 3°20' (3.33°) 12°16' (12.26°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16
w/o Rear Headrest 		77 mm (3.03 in.) 57 mm (2.24 in.) 0°16' (0.26°) 3°18' (3.29°) 12°15' (12.25°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 17 77 mm (3.03 in.) 57 mm (2.24 in.) 0°16' (0.26°) 3°17' (3.29°) 12°15' (12.25°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322L-EDTDY Seating Capacity 3 74 mm (2.91 in.) 48 mm (1.89 in.) 0°20' (0.33°) 3°08' (3.13°) 12°10' (12.17°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 16 76 mm (2.99 in.) 56 mm (2.20 in.) 0°17' (0.28°) 3°16' (3.27°) 12°14' (12.23°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 17 76 mm (2.99 in.) 56 mm (2.20 in.) 0°17' (0.28°) 3°16' (3.26°) 12°14' (12.23°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322L-EVTDY Seating Capacity 16 76 mm (2.99 in.) 57 mm (2.24 in.) 0°17' (0.29°) 3°18' (3.30°) 12°13' (12.22°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 17 76 mm (2.99 in.) 57 mm (2.24 in.) 0°17' (0.29°) 3°18' (3.29°) 12°13' (12.22°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH322L-EDFDH - 81 mm (3.19 in.) 58 mm (2.28 in.) 0°11' (0.17°) 3°18' (3.30°) 12°21' (12.36°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH322L-EVFDH Seating Capacity 16 79 mm (3.11 in.) 58 mm (2.28 in.) 0°12' (0.20°) 3°18' (3.29°) 12°19' (12.32°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 17 80 mm (3.15 in.) 58 mm (2.28 in.) 0°12' (0.19°) 3°18' (3.29°) 12°20' (12.33°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH322L-EDTDH - 80 mm (3.15 in.) 58 mm (2.28 in.) 0°12' (0.19°) 3°18' (3.30°) 12°20' (12.33°) 0°11' (0.18°) 2.0 mm (0.08 in.)


Wheel Alignment (Unloaded Vehicle) for Standard Roof Tourism:
Model Specification Front Vehicle Height Rear Vehicle Height Camber Caster Steering Axis Inclination Toe-in Angle Toe-in Width
GDH301R-GDFNY Seating Capacity 11 92 mm (3.62 in.) 63 mm (2.48 in.) -0°04' (-0.07°) 3°10' (3.17°) 12°39' (12.64°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 12
except EURO 5 		92 mm (3.62 in.) 63 mm (2.48 in.) -0°05' (-0.07°) 3°11' (3.18°) 12°39' (12.65°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 12
for EURO 5 		93 mm (3.66 in.) 63 mm (2.48 in.) -0°06' (-0.09°) 3°10' (3.17°) 12°41' (12.68°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH301R-GDTNY except EURO 5 91 mm (3.58 in.) 63 mm (2.48 in.) -0°03' (-0.06°) 3°11' (3.18°) 12°38' (12.63°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 92 mm (3.62 in.) 63 mm (2.48 in.) -0°05' (-0.07°) 3°10' (3.17°) 12°39' (12.65°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH301R-GDTNH - 90 mm (3.54 in.) 63 mm (2.48 in.) -0°02' (-0.03°) 3°12' (3.21°) 12°36' (12.61°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH301L-GDFNY except EURO 6 92 mm (3.62 in.) 63 mm (2.48 in.) -0°05' (-0.07°) 3°11' (3.18°) 12°39' (12.65°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 6 93 mm (3.66 in.) 64 mm (2.52 in.) -0°06' (-0.10°) 3°10' (3.17°) 12°41' (12.69°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH301L-GVFNY - 92 mm (3.62 in.) 65 mm (2.56 in.) -0°04' (-0.07°) 3°13' (3.22°) 12°39' (12.64°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH301L-GDTNY - 91 mm (3.58 in.) 63 mm (2.48 in.) -0°03' (-0.06°) 3°11' (3.18°) 12°38' (12.63°) 0°11' (0.18°) 2.0 mm (0.08 in.)


Wheel Alignment (Unloaded Vehicle) for High Roof Tourism:
Model Specification Front Vehicle Height Rear Vehicle Height Camber Caster Steering Axis Inclination Toe-in Angle Toe-in Width
GDH322R-EDTQYQ - 84 mm (3.31 in.) 60 mm (2.36 in.) 0°06' (0.10°) 3°15' (3.25°) 12°27' (12.45°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322L-EDFQYV except EURO 5 81 mm (3.19 in.) 59 mm (2.32 in.) 0°10' (0.17°) 3°16' (3.26°) 12°22' (12.37°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 82 mm (3.23 in.) 59 mm (2.32 in.) 0°09' (0.15°) 3°15' (3.26°) 12°23' (12.39°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322L-EDTQYV except EURO 5 80 mm (3.15 in.) 59 mm (2.32 in.) 0°11' (0.19°) 3°16' (3.27°) 12°21' (12.34°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 81 mm (3.19 in.) 59 mm (2.32 in.) 0°10' (0.17°) 3°16' (3.26°) 12°22' (12.37°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH322L-EDFQHV except EURO 5 and EURO6 84 mm (3.31 in.) 59 mm (2.32 in.) 0°06' (0.09°) 3°16' (3.26°) 12°27' (12.45°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO6 86 mm (3.39 in.) 59 mm (2.32 in.) 0°04' (0.06°) 3°15' (3.26°) 12°29' (12.49°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH322L-EDTQHV except EURO 5 and EURO6 83 mm (3.27 in.) 59 mm (2.32 in.) 0°07' (0.11°) 3°16' (3.27°) 12°26' (12.43°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 and EURO6 85 mm (3.35 in.) 59 mm (2.32 in.) 0°05' (0.08°) 3°16' (3.26°) 12°28' (12.46°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322R-EDFNY Seating Capacity 6 78 mm (3.07 in.) 45 mm (1.77 in.) 0°14' (0.24°) 3°02' (3.03°) 12°17' (12.28°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 14 81 mm (3.19 in.) 55 mm (2.17 in.) 0°10' (0.17°) 3°11' (3.19°) 12°22' (12.37°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322R-EDTNY Seating Capacity 6 77 mm (3.03 in.) 45 mm (1.77 in.) 0°15' (0.26°) 3°02' (3.03°) 12°16' (12.26°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 14
except EURO 5 		80 mm (3.15 in.) 54 mm (2.13 in.) 0°11' (0.19°) 3°12' (3.19°) 12°21' (12.34°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 14
for EURO 5 		81 mm (3.19 in.) 54 mm (2.13 in.) 0°10' (0.17°) 3°11' (3.19°) 12°22' (12.37°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322R-EVTNY - 80 mm (3.15 in.) 56 mm (2.20 in.) 0°12' (0.20°) 3°14' (3.23°) 12°20' (12.33°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH321L-EDFNY Seating Capacity 2
for EURO 6 		77 mm (3.03 in.) 58 mm (2.28 in.) 0°16' (0.27°) 3°15' (3.24°) 12°15' (12.25°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 10
for EURO 6 		83 mm (3.27 in.) 66 mm (2.60 in.) 0°07' (0.12°) 3°21' (3.35°) 12°25' (12.42°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322L-EDFNY Seating Capacity 2 76 mm (2.99 in.) 44 mm (1.73 in.) 0°18' (0.30°) 3°01' (3.02°) 12°13' (12.21°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 6 78 mm (3.07 in.) 45 mm (1.77 in.) 0°14' (0.24°) 3°02' (3.03°) 12°17' (12.28°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 14 81 mm (3.19 in.) 55 mm (2.17 in.) 0°10' (0.17°) 3°11' (3.19°) 12°22' (12.37°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322L-EVFNY - 81 mm (3.19 in.) 56 mm (2.20 in.) 0°11' (0.18°) 3°13' (3.22°) 12°21' (12.35°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322L-EDTNY Seating Capacity 2 75 mm (2.95 in.) 43 mm (1.69 in.) 0°19' (0.32°) 3°01' (3.02°) 12°11' (12.19°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 6
except Large EURO 4 		77 mm (3.03 in.) 45 mm (1.77 in.) 0°15' (0.26°) 3°02' (3.03°) 12°16' (12.26°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 6
for Large EURO 4 		79 mm (3.11 in.) 45 mm (1.77 in.) 0°14' (0.23°) 3°01' (3.02°) 12°18' (12.30°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 14
except EURO 5 		80 mm (3.15 in.) 54 mm (2.13 in.) 0°11' (0.19°) 3°12' (3.19°) 12°21' (12.34°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 14
for EURO 5 		81 mm (3.19 in.) 54 mm (2.13 in.) 0°10' (0.17°) 3°11' (3.19°) 12°22' (12.37°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH322L-EVTNY - 80 mm (3.15 in.) 56 mm (2.20 in.) 0°12' (0.20°) 3°14' (3.23°) 12°20' (12.33°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH328L-EDFNYM Seating Capacity 6 78 mm (3.07 in.) 45 mm (1.77 in.) 0°14' (0.24°) 3°02' (3.03°) 12°17' (12.28°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 14 81 mm (3.19 in.) 55 mm (2.17 in.) 0°10' (0.17°) 3°11' (3.19°) 12°22' (12.37°) 0°11' (0.18°) 2.0 mm (0.08 in.)


Wheel Alignment (Unloaded Vehicle) for Wagon:
Model Specification Front Vehicle Height Rear Vehicle Height Camber Caster Steering Axis Inclination Toe-in Angle Toe-in Width
GDH304L-RDTHY - 97 mm (3.82 in.) 66 mm (2.60 in.) -0°10' (-0.17°) 3°12' (3.19°) 12°46' (12.77°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH304R-RDTHYT - 91 mm (3.58 in.) 65 mm (2.56 in.) -0°03' (-0.05°) 3°15' (3.25°) 12°37' (12.62°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH303R-RDTJYQ - 91 mm (3.58 in.) 66 mm (2.60 in.) -0°03' (-0.05°) 3°14' (3.23°) 12°37' (12.62°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH303R-RDTGYQ - 93 mm (3.66 in.) 68 mm (2.68 in.) -0°06' (-0.10°) 3°17' (3.27°) 12°41' (12.68°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH303L-RDTJYV Seating Capacity 6
except EURO 5 		87 mm (3.43 in.) 66 mm (2.60 in.) 0°02' (0.03°) 3°16' (3.27°) 12°32' (12.53°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 6
for EURO 5 		88 mm (3.46 in.) 66 mm (2.60 in.) 0°01' (0.02°) 3°16' (3.26°) 12°33' (12.55°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 7
except EURO 5 		91 mm (3.58 in.) 72 mm (2.83 in.) -0°03' (-0.05°) 3°23' (3.39°) 12°37' (12.62°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 7
for EURO 5 		91 mm (3.58 in.) 72 mm (2.83 in.) -0°04' (-0.06°) 3°23' (3.38°) 12°38' (12.64°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH303L-RDTJHV Seating Capacity 6
except EURO 5 and EURO6 		89 mm (3.50 in.) 66 mm (2.60 in.) -0°01' (-0.01°) 3°16' (3.27°) 12°35' (12.58°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 6
for EURO 5 and EURO6 		91 mm (3.58 in.) 66 mm (2.60 in.) -0°03' (-0.05°) 3°15' (3.25°) 12°38' (12.63°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 7
except EURO 5 and EURO6 		93 mm (3.66 in.) 72 mm (2.83 in.) -0°06' (-0.10°) 3°24' (3.39°) 12°41' (12.68°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Seating Capacity 7
for EURO 5 and EURO6 		95 mm (3.74 in.) 72 mm (2.83 in.) -0°08' (-0.13°) 3°23' (3.38°) 12°44' (12.73°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH303R-RDTJY except EURO 5 88 mm (3.46 in.) 65 mm (2.56 in.) 0°01' (0.02°) 3°14' (3.24°) 12°33' (12.55°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 89 mm (3.50 in.) 66 mm (2.60 in.) -0°01' (-0.01°) 3°14' (3.23°) 12°35' (12.58°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH303R-RDTGY except EURO 5 90 mm (3.54 in.) 67 mm (2.64 in.) -0°02' (-0.04°) 3°17' (3.29°) 12°37' (12.61°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 5 91 mm (3.58 in.) 67 mm (2.64 in.) -0°04' (-0.06°) 3°17' (3.28°) 12°38' (12.64°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH303R-RDTHY - 90 mm (3.54 in.) 66 mm (2.60 in.) -0°02' (-0.04°) 3°16' (3.26°) 12°37' (12.61°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH304R-RDTHH - 87 mm (3.43 in.) 61 mm (2.40 in.) 0°02' (0.04°) 3°14' (3.23°) 12°31' (12.52°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH303L-RDTJY except EURO 6 88 mm (3.46 in.) 65 mm (2.56 in.) 0°01' (0.02°) 3°14' (3.24°) 12°33' (12.55°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 6 90 mm (3.54 in.) 66 mm (2.60 in.) -0°01' (-0.02°) 3°13' (3.22°) 12°36' (12.59°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GRH303L-RDTJH - 89 mm (3.50 in.) 66 mm (2.60 in.) -0°01' (-0.01°) 3°15' (3.26°) 12°35' (12.58°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH303L-RDTGY except EURO 6 90 mm (3.54 in.) 67 mm (2.64 in.) -0°02' (-0.04°) 3°17' (3.29°) 12°37' (12.61°) 0°11' (0.18°) 2.0 mm (0.08 in.)
for EURO 6 92 mm (3.62 in.) 67 mm (2.64 in.) -0°04' (-0.07°) 3°16' (3.27°) 12°39' (12.65°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH303L-RDTHY Vehicle Weight Rear Side 1340 kg (2954.2 lb) 95 mm (3.74 in.) 67 mm (2.64 in.) -0°08' (-0.14°) 3°14' (3.24°) 12°44' (12.73°) 0°11' (0.18°) 2.0 mm (0.08 in.)
Vehicle Weight Rear Side 1320 kg (2910.1 lb) 94 mm (3.70 in.) 65 mm (2.56 in.) -0°08' (-0.13°) 3°13' (3.21°) 12°43' (12.72°) 0°11' (0.18°) 2.0 mm (0.08 in.)
GDH306L-RDTGY for Russia 95 mm (3.74 in.) 68 mm (2.68 in.) -0°09' (-0.15°) 3°15' (3.25°) 12°45' (12.74°) 0°11' (0.18°) 2.0 mm (0.08 in.)


PROCEDURE

Hide 2.MEASURE VEHICLE HEIGHT

NOTICE:
·

Perform measurement on a level surface.

·

Apply the parking brake and secure the vehicle with the chocks.



C419785C02
0.896,0.271 1.208,0.427 0.313,0.156 10 false *a 3.24,0.313 3.552,0.469 0.313,0.156 10 false *b 5.844,0.323 6.052,0.521 0.208,0.198 10 false *c 0.125,1.615 0.302,1.781 0.177,0.167 10 false A 0.406,1.677 0.594,1.844 0.188,0.167 10 false B 2.094,1.688 2.281,1.865 0.188,0.177 10 false D 6.823,1.594 6.948,1.76 0.125,0.167 10 false C 4.25,1.615 4.438,1.781 0.188,0.167 10 false C 4.708,1.677 4.896,1.844 0.188,0.167 10 false E
*a Front *b Rear Leaf Spring
*c Rear 4-link - -

A: Ground clearance of front wheel center

B: Ground clearance of front center position of front lower No. 1 suspension arm sub-assembly front bush installation bolt

C: Ground clearance of rear wheel center

D: Ground clearance of front center position of rear leaf spring front installation bolt head

E: Ground clearance of front center position of lower control arm assembly front installation bolt head


Measurement Points:

Front vehicle height = A - B

Rear vehicle height = C - D or C - E


Hide 3.INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION

Hide 4.ADJUST CAMBER

a.

Remove the front wheel.


b.

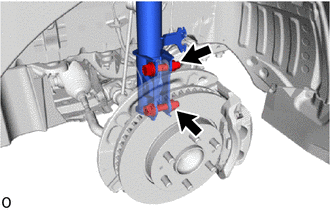

C413034

Loosen the bolts and nuts.


c.

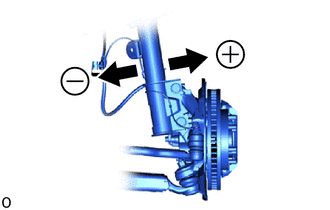

C413035

Push or pull the axle hub for the adjustment.


d.
C413034

Tighten the bolts and nuts.

Torque:
290 N*m (2957 kgf*cm, 214 ft.*lbf)


e.

Install the front wheel.


f.

Bounce the vehicle and settle the suspensions.


g.

Check the camber. If it is not as specified, go to the next step.


h.

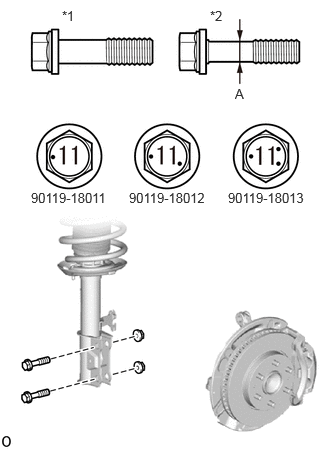

C413036C02
2.448,0.896 2.604,1.094 0.156,0.198 10 false A 0.323,1.979 1.177,2.156 0.854,0.177 10 false 90119-18011 1.344,1.979 2.219,2.188 0.875,0.208 10 false 90119-18012 2.375,1.979 3.198,2.167 0.823,0.188 10 false 90119-18013 0.646,0.083 0.875,0.281 0.229,0.198 10 false *1 2.188,0.083 2.5,0.281 0.313,0.198 10 false *2
*1 Stock bolt
*2 Adjust bolt


Replace the bolt with the adjust bolt for the camber adjustment.

NOTICE:

Replace the nut with a new one when replacing the bolt.


Adjust bolt specification:
Parts Number A
90119-18011 16.85 to 17.05 mm (0.663 to 0.671 in.)
90119-18012 15.8 to 16.0 mm (0.622 to 0.630 in.)
90119-18013 15.0 to 15.2 mm (0.591 to 0.598 in.)


Adjustable range (Reference):
Adjustable Range Upper Bolt Lower Bolt
+15' (+0.25°) 90119-18010 (Stock) 90119-18011
+/-30' (+/-0.50°) 90119-18010 (Stock) 90119-18012
+/-45' (+/-0.75°) 90119-18010 (Stock) 90119-18013
+/-1°00' (+/-1.00°) 90119-18011 90119-18013
+/-1°15' (+/-1.25°) 90119-18012 90119-18013
+/-1°30' (+/-1.50°) 90119-18013 90119-18013



Hide 5.INSPECT TOE-IN

C317577C06
1.625,0.51 1.781,0.708 0.156,0.198 10 false A 1.667,1.365 1.823,1.563 0.156,0.198 10 false B 1.031,0.323 1.188,0.521 0.156,0.198 10 false C 2.208,0.344 2.365,0.542 0.156,0.198 10 false D

HINT:

Check either the toe-in angle (C + D) or toe-in width (B - A).


a.

Release the parking brake and move the shift lever to neutral.


b.

Push the vehicle straight ahead approximately 5 m (16.4 ft.).


c.
C188968C30
0.833,0.583 0.833,1.115 false 1.365,0.583 1.365,0.99 1.365,0.99 0.833,0.99 false 0.74,1.135 0.917,1.302 0.177,0.167 10 false *a 2.542,1.375 2.719,1.531 0.177,0.156 10 false B
*a Tread Center Mark
V100135

Front of the Vehicle


Put tread center marks on the front tires and measure the distance between them (B).


d.

Push the vehicle straight ahead until the front wheels rotating 180°. Use the tire valve position as a reference.

HINT:

If the wheels rotate more than 180°, go back to the step (b).



e.
C188969C30
1.917,0.542 2.052,0.698 0.135,0.156 10 false C 3.073,0.552 3.208,0.708 0.135,0.156 10 false D 2.5,0.719 2.635,0.875 0.135,0.156 10 false A 2.51,1.542 2.646,1.698 0.135,0.156 10 false B 0.563,1.094 0.74,1.25 0.177,0.156 10 false A
V100135

Front of the Vehicle


Measure the distance between the tread center marks (A).


Hide 6.ADJUST TOE-IN AND WHEEL ANGLE

a.

Remove the steering rack boot clips from the steering rack boot.


b.

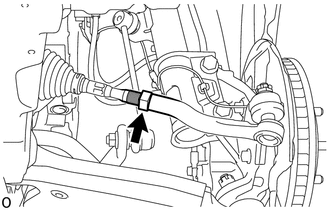

C409578

Loosen the lock nuts.


c.

Turn the right and left steering rack ends by an equal amount to adjust the toe-in.

HINT:
·

If the toe-in is more than the standard, shorten the steering rack ends.

·

If the toe-in is less than the standard, extend the steering rack ends.




d.

Tighten the lock nuts.Steering>STEERING GEAR / LINKAGE>STEERING GEAR (for LHD)>INSTALLATION


e.

Install the steering rack boot clips.


Hide 7.INSPECT WHEEL ANGLE

a.
C132439C03
0.863,0.204 1.036,0.381 0.173,0.177 10 *b 0.538,0.204 0.713,0.381 0.176,0.177 10 *a 2.397,0.204 2.57,0.381 0.173,0.177 10 *b 2.725,0.204 2.901,0.381 0.176,0.177 10 *a
*a Inside
*b Outside
V100135

Front of the Vehicle


Turn the steering wheel fully to the left and right and measure the wheel angle.
