EXTERIOR PANELS / TRIM FRONT BUMPER(except Wagon) INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
-
A bolt without a torque specification is shown in the standard bolt chart.
PROCEDURE
53879H

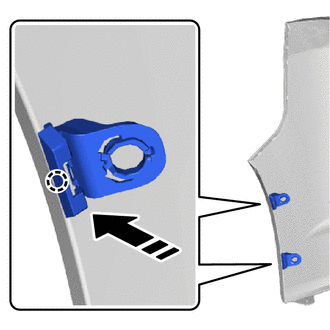

1.INSTALL FRONT FENDER LINER RETAINER
|
Install in this Direction |
Install the 2 front fender liner retainers as shown in the illustration.
- HINT:
-
Use the same procedure for the other side.
2.INSTALL FRONT BUMPER ASSEMBLY
|
|
Install in this Direction |

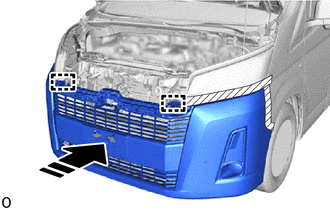

Attach the hook and install the front bumper assembly as shown in the illustration.
|
|
Install in this Direction |

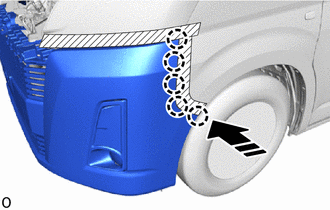

Attach the claw as shown in the illustration.
- HINT:
-
Use the same procedure for the other side.
Attach the guide.
- HINT:
-
Use the same procedure for the other side.
w/ Wire Harness:
w/ Fog Light:
Connect the connector.
w/ TOYOTA Parking Assist-sensor System:
Connect the connector.
| *A | w/ Fog Light | *B | w/ TOYOTA Parking Assist-sensor System |
Install the 5 bolts.
Remove the protective tape.

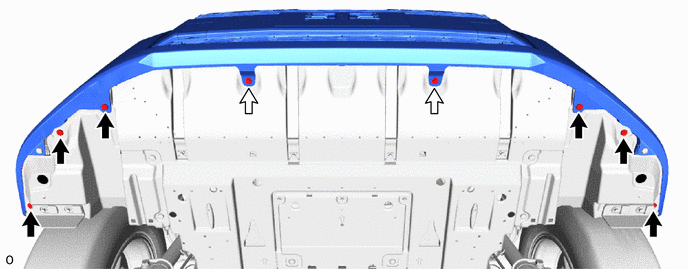

Install the 2 screws and 6 clips.
|
Clip |
|
Screw |
Install the clip.
- HINT:
-
Use the same procedure for the other side.
47749F

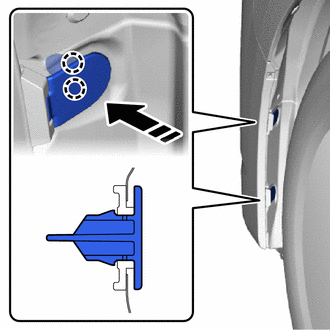

3.INSTALL PIN HOLD CLIP
|
|
Install in this Direction |
Install the 2 pin hold clips as shown in the illustration.
- HINT:
-
Use the same procedure for the other side.
53128E
4.INSTALL LOWER RADIATOR GRILLE SIDE LH
|
|
Install in this Direction |

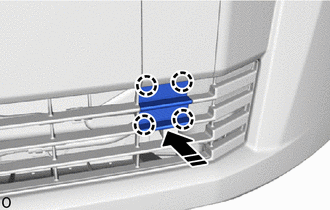

Attach the claw and install the lower radiator grille side LH as shown in the illustration.
53127D
5.INSTALL LOWER RADIATOR GRILLE SIDE RH
- HINT:
-
Use the same procedure described for the LH side.
53101
6.INSTALL RADIATOR GRILLE SUB-ASSEMBLY
7.ADJUST FOG LIGHT ASSEMBLY (w/ Fog Light)
