EXTERIOR PANELS / TRIM  FRONT BUMPER(for Wagon)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:

A bolt without a torque specification is shown in the standard bolt chart.

Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS


PROCEDURE

Hide 53879H 1.INSTALL FRONT FENDER LINER RETAINER

a.
B545293C01
0,0 0,0 false
V113147

Install in this Direction


Install the 2 front fender liner retainers as shown in the illustration.

HINT:

Use the same procedure for the other side.



Hide 2.INSTALL FRONT BUMPER ASSEMBLY

a.
B550154C01
0,0 0,0 false
V113147

Install in this Direction

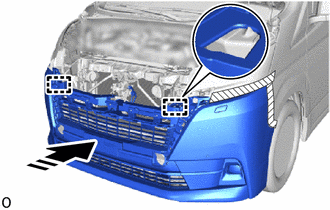

Attach the hook and install the front bumper assembly as shown in the illustration.


b.
B550152C01
0,0 0,0 false
V113147

Install in this Direction

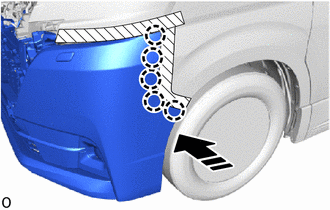

Attach the claw as shown in the illustration.

HINT:

Use the same procedure for the other side.



c.
B545294

Attach the guide.

HINT:

Use the same procedure for the other side.



d.

Connect the connector.

B550150C01
3.948,0.146 4.177,0.365 0.229,0.219 12 true *A 4.594,2.448 4.823,2.667 0.229,0.219 12 true *B
*A w/ TOYOTA Parking Assist-sensor System *B w/ Headlight Cleaner System



e.

w/ TOYOTA Parking Assist-sensor System:

i.

Connect the connector.



f.

w/ Headlight Cleaner System:

i.

Attach the claw and connect the headlight cleaner hose.



g.

Install the 5 bolts.

B550149


h.

Remove the protective tape.


i.

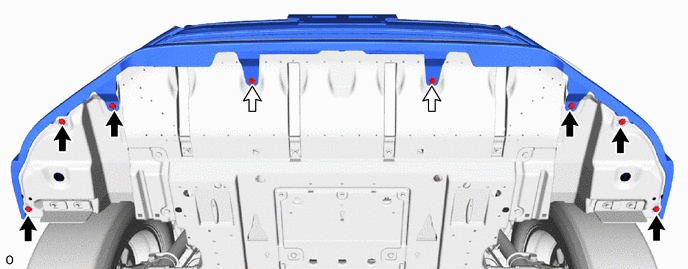

Install the 2 screws and 6 clips.

B550147C02
0,0 0,0 false
V100135

Clip
V100136

Screw



j.
B524335

Install the clip.

HINT:

Use the same procedure for the other side.



Hide 47749F 3.INSTALL PIN HOLD CLIP

a.
B545295C01
0,0 0,0 false
V113147

Install in this Direction

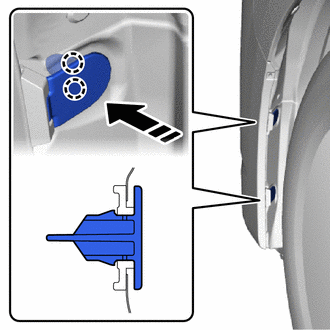

Install the 2 pin hold clips as shown in the illustration.

HINT:

Use the same procedure for the other side.



Hide 53128E 4.INSTALL LOWER RADIATOR GRILLE SIDE LH

a.
B550146C01
0,0 0,0 false
V113147

Install in this Direction

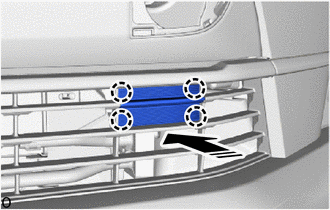

Attach the claw and install the lower radiator grille side LH as shown in the illustration.


Hide 53127D 5.INSTALL LOWER RADIATOR GRILLE SIDE RH

HINT:

Use the same procedure described for the LH side.


Hide 7.ADD WINDSHIELD WASHER FLUID (w/ Headlight Cleaner System)

a.

Add washer fluid to the washer jar.
