RM35X0E _54 Brake _078668 BRAKE SYSTEM (OTHER) _0382364 BRAKE FLUID G

BRAKE SYSTEM (OTHER)  BRAKE FLUID  ON-VEHICLE INSPECTION


PROCEDURE

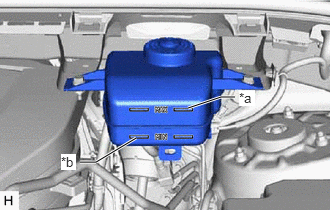

Hide 1.INSPECT BRAKE FLUID LEVEL IN RESERVOIR (for LHD)

a.
C410838C01
1.958,1.125 2.302,1.01 2.302,1.01 2.448,1.01 true 0.833,1.688 1,1.688 1,1.688 1.417,1.438 true 2.49,0.938 2.656,1.104 0.167,0.167 10 true *a 0.635,1.604 0.792,1.771 0.156,0.167 10 true *b
*a MAX Line
*b MIN Line


Check the fluid level.

HINT:
·

If the brake fluid level is lower than the MIN line, inspect for brake fluid leaks and brake pad wear. If necessary, refill the reservoir with brake fluid to the MAX line after repair or replacement.

·

The brake fluid level must always be adjusted to the MAX line.



Brake Fluid:

SAE J1703 or FMVSS No. 116 DOT3

SAE J1704 or FMVSS No. 116 DOT4


NOTICE:

If using a dropper to adjust the fluid amount, make sure that the dropper has not been used with mineral oils, water or deteriorated brake fluid. Sealed areas may deteriorate and lead to fluid leaks, or the fluid may deteriorate and lead to decreased efficiency.



Hide 2.INSPECT BRAKE FLUID LEVEL IN RESERVOIR (for RHD)

a.
C410839C01
1.063,1.729 1.229,1.729 1.229,1.729 1.479,1.563 true 2,1.271 2.313,1.479 2.313,1.479 2.479,1.479 true 2.531,1.396 2.698,1.552 0.167,0.156 10 true *a 0.854,1.635 1.021,1.802 0.167,0.167 10 true *b
*a MAX Line
*b MIN Line


Check the fluid level.

HINT:
·

If the brake fluid level is lower than the MIN line, inspect for brake fluid leaks and brake pad wear. If necessary, refill the reservoir with brake fluid to the MAX line after repair or replacement.

·

The brake fluid level must always be adjusted to the MAX line.



Brake Fluid:

SAE J1703 or FMVSS No. 116 DOT3

SAE J1704 or FMVSS No. 116 DOT4


NOTICE:

If using a dropper to adjust the fluid amount, make sure that the dropper has not been used with mineral oils, water or deteriorated brake fluid. Sealed areas may deteriorate and lead to fluid leaks, or the fluid may deteriorate and lead to decreased efficiency.
