RM35X0E _59 Vehicle Exterior _078503 DOOR / HATCH _0385651 FRONT DOOR N

DOOR / HATCH  FRONT DOOR  ADJUSTMENT


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front door adjustment are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Removal and installation of battery terminal Parking assist monitor system Memorize steering angle neutral point (Click here)
Panoramic view monitor system (Click here)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Stop and start system

Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -

·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

Use the same procedure described for the LH side.

·
B276679C41
0.621,1.754 0.818,1.944 0.197,0.19 10 *1 2.535,1.754 2.732,1.944 0.197,0.19 10 *2
*1 Centering Bolt
*2 Standard Bolt


Centering bolts are used to mount the door hinge to the vehicle body and door. The door cannot be adjusted with the centering bolts on. Substitute the centering bolts for standard bolts when making adjustments.



PROCEDURE

Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)

a.

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL


b.

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL

CAUTION:
B394718

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.




Hide 67002 3.INSPECT FRONT DOOR PANEL SUB-ASSEMBLY LH

a.

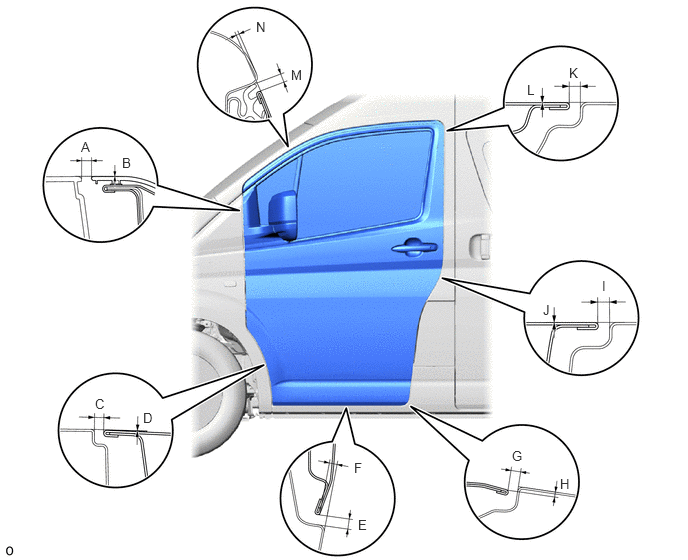

Check that the clearance measurements of areas A to N are within the standard ranges.

B537921N01
0.844,1.448 1.052,1.646 0.208,0.198 10 false A 1.271,1.615 1.479,1.813 0.208,0.198 10 false B 0.99,4.125 1.198,4.323 0.208,0.198 10 false C 1.49,4.271 1.698,4.469 0.208,0.198 10 false D 3.729,5.385 3.948,5.594 0.219,0.208 10 false E 3.688,4.792 3.896,4.99 0.208,0.198 10 false F 5.333,4.667 5.542,4.865 0.208,0.198 10 false G 5.833,4.958 6.042,5.156 0.208,0.198 10 false H 6.271,2.896 6.479,3.094 0.208,0.198 10 false I 5.656,3.146 5.865,3.344 0.208,0.198 10 false J 5.927,0.677 6.135,0.875 0.208,0.198 10 false K 5.49,0.854 5.698,1.052 0.208,0.198 10 false L 3.031,0.698 3.24,0.896 0.208,0.198 10 false M 2.667,0.198 2.875,0.396 0.208,0.198 10 false N

Standard Clearance:
Area Measurement Area Measurement
A 4.5 to 7.5 mm (0.177 to 0.295 in.) B -1.5 to 1.5 mm (-0.0591 to 0.0591 in.)
C 3.2 to 6.2 mm (0.126 to 0.244 in.) D -1.4 to 1.6 mm (-0.0551 to 0.0630 in.)
E 4.2 to 7.2 mm (0.165 to 0.283 in.) F -6.0 to -3.0 mm (-0.236 to -0.118 in.)
G 3.6 to 6.6 mm (0.142 to 0.260 in.) H -4.4 to -1.4 mm (-0.1732 to -0.0551 in.)
I 3.2 to 6.2 mm (0.126 to 0.244 in.) J -1.5 to 1.5 mm (-0.0591 to 0.0591 in.)
K 3.2 to 6.2 mm (0.126 to 0.244 in.) L -1.5 to 1.5 mm (-0.0591 to 0.0591 in.)
M 3.2 to 6.2 mm (0.126 to 0.244 in.) N 1.0 to 4.0 mm (0.0394 to 0.1575 in.)



Hide 67002 4.ADJUST FRONT DOOR PANEL SUB-ASSEMBLY LH

a.

Remove the front pillar upper cover sub-assembly LH.

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT PILLAR UPPER COVER>REMOVAL


b.
B537922

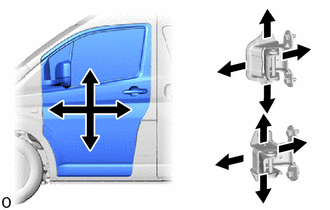

Using SST, loosen the hinge bolts on the body and adjust the door position.

SST
09812-00010


c.

Tighten the hinge bolts on the body after the adjustment.

Torque:
26 N*m (265 kgf*cm, 19 ft.*lbf)


d.
B537923

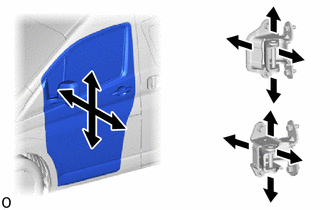

Loosen the hinge bolts on the door and adjust the door position.


e.

Tighten the hinge bolts on the door after the adjustment.

Torque:
21 N*m (214 kgf*cm, 15 ft.*lbf)


f.
B537924

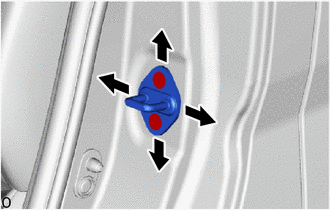

Using a T40 "TORX" socket wrench, adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a brass bar and a hammer.


g.

Using a T40 "TORX" socket wrench, tighten the striker mounting screws after the adjustment.

Torque:
23 N*m (235 kgf*cm, 17 ft.*lbf)


h.

Install the front piller upper cover sub-assembly LH.

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT PILLAR UPPER COVER>INSTALLATION


Hide 6. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Front Seat Side Airbag)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
