EXTERIOR PANELS / TRIM FRONT PILLAR UPPER COVER INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

Hide Display 60118A 1.INSTALL FRONT PILLAR UPPER COVER SUB-ASSEMBLY LH

0,0 0,0 false

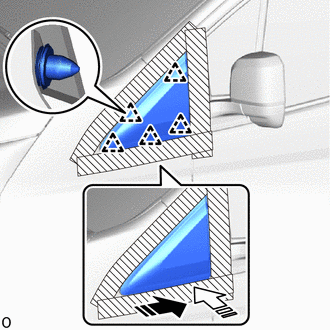

	Install in this Direction (1)
	Install in this Direction (2)

Move the front pillar upper cover sub-assembly LH toward the rear of the vehicle and set it into place at the position shown in the illustration.

Attach the clip to install the front pillar cover sub-assembly as shown in the illustration.

Remove the protective tape.
