EXTERIOR PANELS / TRIM  FRONT PILLAR UPPER COVER  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 60118A 1.REMOVE FRONT PILLAR UPPER COVER SUB-ASSEMBLY LH

a.

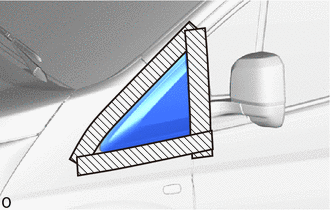

B525675C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the front pillar upper cover sub-assembly LH.


b.

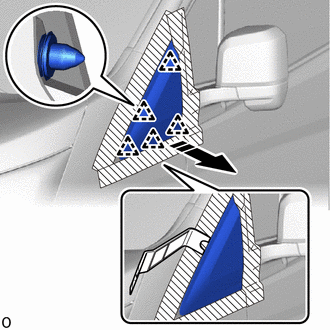

B525678C02
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover B, detach the clip as shown in the illustration.


c.

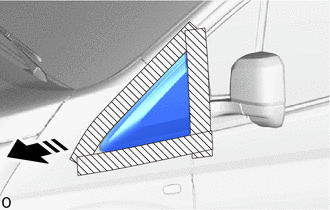

B525679C01
0,0 0,0 false
V113147

Remove in this Direction


Pull the front pillar upper cover sub-assembly LH toward the front of the vehicle and remove it.
