DOOR LOCK  DOOR CONTROL RECEIVER(for Wagon)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the smart door control receiver assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Removal and installation of battery terminal Parking assist monitor system Memorize steering angle neutral point (Click here)
Panoramic view monitor system (Click here)
w/ Tire Pressure Warning System:

Tire pressure warning ECU and receiver


·

Register transmitter ID

·

Initialize tire pressure warning system


·

When DTC detection conditions of "transmitter ID not received" DTC are met, tire pressure wanning light blinks for 1 minute, and then illuminates

·

Tire pressure warning function


for Initialization:
(Click here)
for Registration:
(Click here)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Stop and start system

Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -

·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

Use the same procedure described for the RH side.



PROCEDURE

Hide 1. PRECAUTION (w/ Pretensioner and Force Limiter)

Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Pretensioner and Force Limiter)


b.

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL

CAUTION:
B394718

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.




Hide 897B0A 3.REMOVE ELECTRICAL KEY AND TPMS RECEIVER ASSEMBLY (w/ Tire Pressure Warning System)

Hide 67872A 9.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP LH

HINT:
·

Use the same procedure described for the RH side.

·

Pull back the No. 1 slide door weatherstrip LH so that the rear quarter trim board assembly LH can be removed.

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>REMOVAL



Hide 89740A 11.REMOVE SMART DOOR CONTROL RECEIVER ASSEMBLY

a.

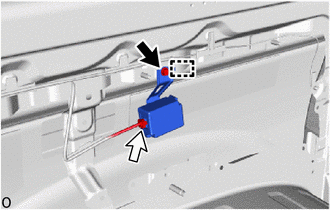

B541547C01
0,0 0,0 false
V100135

Bolt
V100136

Connector


Disconnect the connector.


b.

Detach the guide to remove the bolt and smart door control receiver assembly.

NOTICE:
·

Do not subject the smart door control receiver assembly to strong impacts or force, and do not drop it.

·

Do not reuse the smart door control receiver assembly that has been dropped.
