TIRE PRESSURE MONITORING TIRE PRESSURE WARNING RECEIVER(for Standard Roof) REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the tire pressure warning receiver removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Tire pressure warning ECU and receiver | ·
Register transmitter ID ·
Initialize tire pressure warning system |
·
When DTC detection conditions of "transmitter ID not received" DTC are met, TPWS indicator blinks for 1 minute, and then illuminates. ·
Tire pressure warning function |
for Initialization:
(  201906,999999,_53,_078885,_0382739,RM100000001IHE2,)
for Registration: ( 201906,999999,_53,_078885,_0382739,RM100000001IHE1,)
|
PROCEDURE
63320E
1.REMOVE REAR ROOF HEADLINING ASSEMBLY
89760C
2.REMOVE TIRE PRESSURE WARNING ECU AND RECEIVER
- NOTICE:
- ·
Do not drop the tire pressure warning ECU and receiver, strike it with tools or subject it to impact.
·If the tire pressure warning ECU and receiver is subjected to an impact, replace it with a new one.

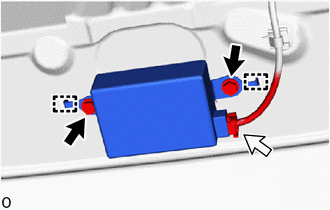

for Wagon:
|
Nut |
|
Connector |
Remove the 2 nuts.
Detach a clip to disconnect the tire pressure warning ECU and receiver.
Disconnect the connector and remove the tire pressure warning ECU and receiver.
except Wagon:
|
|
Bolt |
|
|
Connector |
Remove the 2 bolts.
Detach the 2 guides to disconnect the tire pressure warning ECU and receiver.
Disconnect the connector and remove the tire pressure warning ECU and receiver.
