RM35X0E _58 Vehicle Interior _078601 SEAT _0381334 REAR SEAT ASSEMBLY(for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 71940M 1.REMOVE REAR SEAT HEADREST ASSEMBLY

a.

Remove the rear seat headrest assembly.


Hide 2.REMOVE REAR SEAT ASSEMBLY RH

a.

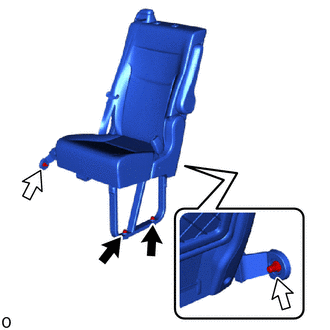

for Type A:

i.
B540123C02
0,0 0,0 false
V100135

Bolt
V100136

Nut


Remove the 2 nuts and 2 bolts.



b.
B540124C03
0,0 0,0 false
V100135

Bolt
V100136

Nut

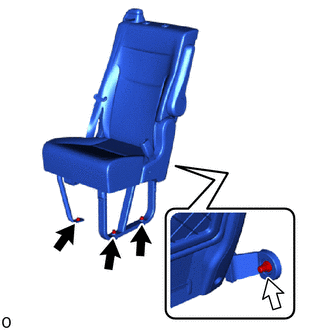

for Type B:

i.

Remove the nut and 3 bolts.



c.

Remove the rear seat assembly RH from the vehicle.

NOTICE:
·

2 or more people are required when carrying the rear seat assembly RH out of the vehicle.

·

Do not damage the rear seat assembly RH, body exterior or interior parts.
