ADVANCED DRIVER ASSISTANCE SYSTEM FRONT CAMERA SYSTEM(Production Date from 2023/04) Steering Pad Switch Circuit
DESCRIPTION
ECM*1 or hybrid vehicle control ECU*2 performs cruise control based on signals from the driving assist switch, +RES switch, -switch, CANCEL switch (steering pad switch assembly).
Forward recognition camera changes the driving support mode, turns LTA ON/OFF, and sets the vehicle-to-vehicle distance based on signals from the driving assist mode select switch, LTA switch, and vehicle-to-vehicle distance switch (steering pad switch assembly).
*1: for Gasoline Model
*2: for HEV Model
WIRING DIAGRAM

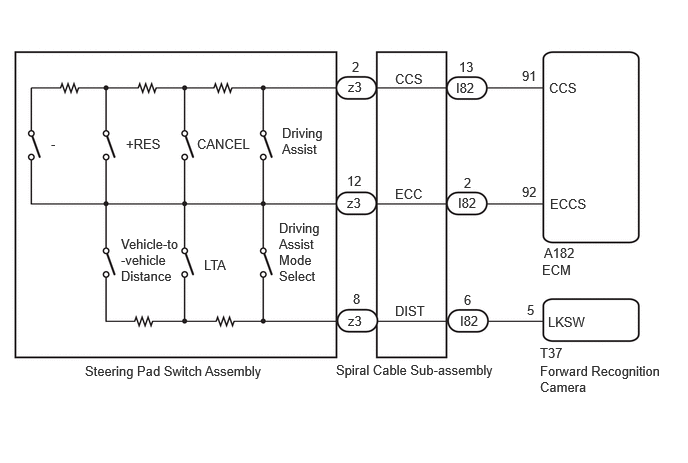

for Gasoline Model

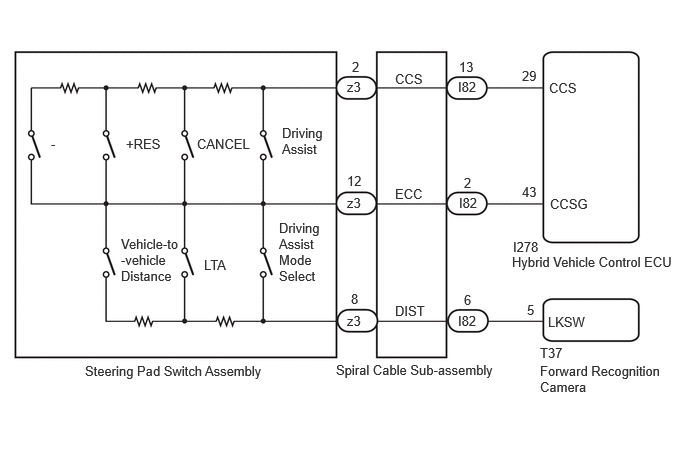

for HEV Model
CAUTION / NOTICE / HINT
- NOTICE:
- ·
The vehicle is equipped with a Supplemental Restraint System (SRS) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the precaution for Supplemental Restraint System.
·When replacing the forward recognition camera, always replace it with a new one. If a forward recognition camera which was installed to another vehicle is used, the information stored in the forward recognition camera will not match the information from the vehicle and a DTC may be stored.
·When the forward recognition camera has been replaced with a new one, make sure to clear all stored vehicle control history of each system and the forward recognition camera beam axis alignment data.
- HINT:
-
Forward recognition camera beam axis alignment can be performed by using "One Time Recognition", "Driving Adjustment" or "Camera Axis Adjustment Value Write".
-
One Time Recognition: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (Production Date from 2023/04)>TARGET ADJUSTMENT(ONE TIME RECOGNITION)202201,999999,_95,_112293,_0580211,RM1000000028VIV,
-
Driving Adjustment: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (Production Date from 2023/04)>DRIVING ADJUSTMENT202201,999999,_95,_112293,_0580211,RM1000000028VIX,
-
Camera Axis Adjustment Value Write: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (Production Date from 2023/04)>CAMERA AXIS ADJUSTMENT VALUE WRITE202201,999999,_95,_112293,_0580211,RM1000000028VIY,
·If the forward recognition camera has been replaced with a new one, make sure to perform Software Version Confirmation.
·for Gasoline Model
Before replacing the ECM, refer to Service Bulletin.
·for HEV Model
Before replacing the hybrid vehicle control ECU, refer to Service Bulletin.
PROCEDURE
Check the problem symptoms.
- Result:
Result Proceed to All switches cannot be operated A Driving assist switch, +RES switch, -Switch, CANCEL switch cannot be operated B Only driving assist switch cannot be operated C Only +RES switch cannot be operated Only -switch cannot be operated Only CANCEL switch cannot be operated Only driving assist mode select switch cannot be operated Only vehicle-to-vehicle distance switch cannot be operated Only LTA switch cannot be operated Driving assist mode select switch, vehicle-to-vehicle distance switch, and LTA switch cannot be operated D
A
B
C
D
- Result:
Proceed to OK NG
OK
NG
- Result:
Result Proceed to OK (for Gasoline Model) A OK (for HEV Model) B NG C
A
B
C
Disconnect the A182 ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition I82-2 (ECC) - A182-92 (ECCS) Always Below 1 Ω I82-2 (ECC) or A182-92 (ECCS) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
Disconnect the I278 hybrid vehicle control ECU connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition I82-2 (ECC) - I278-43 (CCSG) Always Below 1 Ω I82-2 (ECC) or I278-43 (CCSG) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
- Result:
Proceed to OK NG
OK
NG
- Result:
Result Proceed to OK (for Gasoline Model) A OK (for HEV Model) B NG C
A
B
C
Disconnect the A182 ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition I82-13 (CCS) - A182-91 (CCS) Always Below 1 Ω I82-13 (CCS) or A182-91 (CCS) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
Disconnect the I278 hybrid vehicle control ECU connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition I82-13 (CCS) - I278-29 (CCS) Always Below 1 Ω I82-13 (CCS) or I278-29 (CCS) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
- Result:
Proceed to OK NG
OK
NG
- Result:
Proceed to OK NG
OK
NG
Disconnect the T37 forward recognition camera connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition I82-6 (DIST) - T37-5 (LKSW) Always Below 1 Ω I82-6 (DIST) or T37-5 (LKSW) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
