RM38T0EC _58 Vehicle Interior _115188 SUPPLEMENTAL RESTRAINT SYSTEMS _0510624 SPIRAL CABLE A

SUPPLEMENTAL RESTRAINT SYSTEMS SPIRAL CABLE REMOVAL

CAUTION / NOTICE / HINT

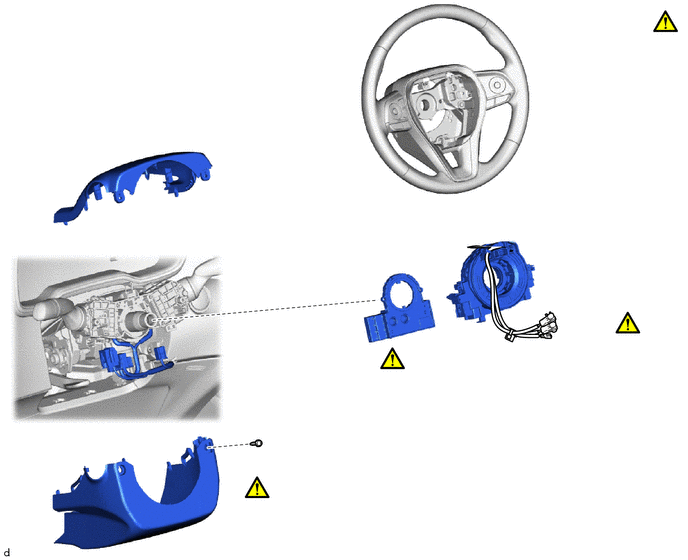

COMPONENTS (REMOVAL)

3.75,2.417 6.042,4.083 2.292,1.667 2.271,5.063 2.51,5.063 false 2.167,1.667 2.5,1.667 false 6.5,0.26 6.833,0.26 false 4.917,3.646 4.917,3.313 false 4.198,3.635 4.198,3.469 false 5.49,1.031 5.823,1.031 false 6.042,3.333 6.375,3.333 false 5.854,0.854 6.135,1.208 0.281,0.354 18 false 1 6.313,0.104 6.594,0.458 0.281,0.354 18 false 2 2.844,4.896 3.125,5.25 0.281,0.354 18 false 3 2.563,1.5 2.844,1.854 0.281,0.354 18 false 4 6.688,3.188 6.969,3.542 0.281,0.354 18 false 5 2.76,4.51 3.073,4.708 0.313,0.198 10 false x3 4.833,3.646 5.146,3.844 0.313,0.198 10 false *1 4.24,3.583 4.5,3.844 0.26,0.26 18 false 6

Procedure		Part Name Code
1	STEERING WHEEL ASSEMBLY	45100	-	-	-
2	ALIGN FRONT WHEELS FACING STRAIGHT AHEAD	-	(202307,999999,_58,_115188,_0510624,RM100000002BZWC_01_0035,)	-	-
3	LOWER STEERING COLUMN COVER	45287	(202307,999999,_58,_115188,_0510624,RM100000002BZWC_01_0031,)	-	-
4	UPPER STEERING COLUMN COVER	45286B	-	-	-
5	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY	-	(202307,999999,_58,_115188,_0510624,RM100000002BZWC_01_0011,)	-	-
6	STEERING SENSOR	89245B	(202307,999999,_58,_115188,_0510624,RM100000002BZWC_01_0052,)	-	-

SPIRAL CABLE SUB-ASSEMBLY

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the steering sensor removal/installation are shown below.

NOTICE:: After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 45100 1.REMOVE STEERING WHEEL ASSEMBLY

Click hereSteering>STEERING COLUMN>STEERING WHEEL>REMOVAL202307,999999,_55,_112306,_0501032,RM100000002C3MT,

Hide Display 2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

4.115,0.438 5.271,0.625 true 4.135,1.063 5.271,0.677 true 4.49,0.052 4.771,0.406 0.281,0.354 18 false ii 3.948,0.323 4.26,0.521 0.313,0.198 10 false *a 3.958,0.99 4.271,1.188 0.313,0.198 10 false *b 0.177,0.073 0.458,0.427 0.281,0.354 18 false i

Check Window

Top of Flat Cable U-turn

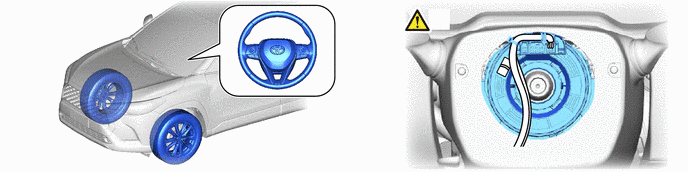

Check that the front wheels are facing straight ahead.

ii.

Check that the spiral cable with sensor sub-assembly is center position.

OK:: The connector is at the top.; The colored roller or the top of the flat cable U-turn can be checked from the check window.

NOTICE:: If the result is not as specified, it is possible that the spiral cable sub-assembly is broken. Replace the spiral cable sub-assembly with a new one.

Hide Display 45287 3.REMOVE LOWER STEERING COLUMN COVER

Click here(

202307,999999,_55,_112306,_0501031,RM100000002C3MR_01_0114,)

Hide Display 45286B 4.REMOVE UPPER STEERING COLUMN COVER

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>REMOVAL202307,999999,_55,_112306,_0501031,RM100000002C3MR_01_0099,

Hide Display 5.REMOVE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

NOTICE:: ·

Do not remove/install the spiral cable with sensor sub-assembly with the auxiliary battery connected and the ignition switch on (IG).

·

Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the auxiliary battery connected and the ignition switch on (IG).

·

Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.

1.417,0.583 0.417,0.583 true 0.219,0.49 0.531,0.646 0.313,0.156 10 false *a 4.083,0.104 4.365,0.458 0.281,0.354 18 false ii 0.167,0.104 0.448,0.458 0.281,0.354 18 false i 2.646,1.802 3.021,2.042 0.375,0.24 12 false *A 1.313,1.792 1.688,2.031 0.375,0.24 12 false *B

*A	w/ Smart Entry and Start System	*B	w/o Smart Entry and Start System
*a	Illumination off	-	-

Check that the ignition switch is off.

ii.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; ·

If the airbag deploys for any reason, it may cause a serious accident.

0.458,0.156 0.74,0.51 0.281,0.354 18 false i 1.729,1.469 2.01,1.823 0.281,0.354 18 false ii 0.25,2.49 0.531,2.844 0.281,0.354 18 false iii 3.854,1.635 4.135,1.99 0.281,0.354 18 false iv

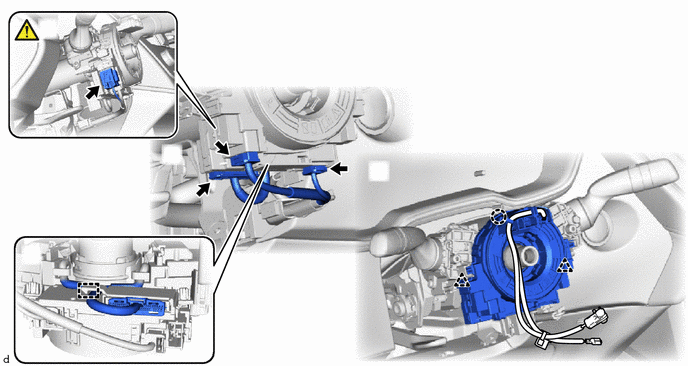

Disconnect the airbag connector.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202201,999999,_58,_115188,_0511913,RM1000000020FQX,

ii.

Disconnect each connector.

iii.

Separate the wire harness from the spiral cable with sensor sub-assembly.

iv.

Disengage the claw and clips to remove the spiral cable with sensor sub-assembly.

Hide Display 89245B 6.REMOVE STEERING SENSOR

NOTICE:: Remove the steering sensor from the spiral cable sub-assembly only when replacing the spiral cable sub-assembly.

0.417,0.135 0.698,0.49 0.281,0.354 18 false i 3.188,0.125 3.469,0.479 0.281,0.354 18 false ii

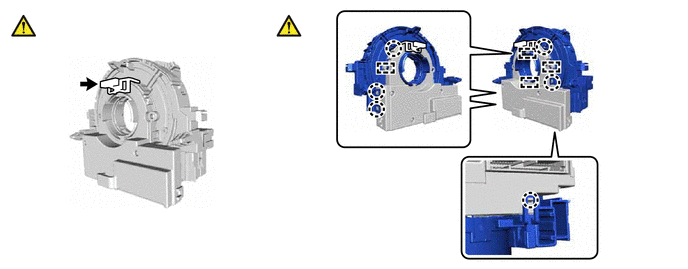

Install the lock pin to the steering sensor.

NOTICE:: ·

Use the lock pin provided with a new spiral cable sub-assembly.

·

Do not remove the lock pin before installing the steering sensor to the spiral cable sub-assembly.

ii.

Disengage the claws and pins to remove the spiral cable sub-assembly from the steering sensor.

NOTICE:: Do not damage the pins of the spiral cable sub-assembly or guides of the steering sensor.
