NETWORKING CAN COMMUNICATION SYSTEM(for Gasoline Model) Check Bus 5 Line
DESCRIPTION
| Symptom | Trouble Area |
|---|---|
| There are ECUs or sensors that display a communication stop on the bus diagnostic screen. Or, there are ECUs or sensors that display communication stop history on the "Detail" screen. | ·
CAN main bus line, CAN branch line or connector ·
Central gateway ECU (network gateway ECU) ·
Air conditioning amplifier assembly ·
Certification ECU (smart key ECU assembly) ·
Position control ECU assembly (w/ Seat Position Memory System) ·
Multiplex network door ECU (w/ Power Back Door System) ·
Main body ECU (multiplex network body ECU) ·
Outer mirror control ECU assembly LH (w/ Seat Position Memory System) ·
Outer mirror control ECU assembly RH (w/ Seat Position Memory System) ·
No. 5 global CAN junction connector ·
No. 8 global CAN junction connector |

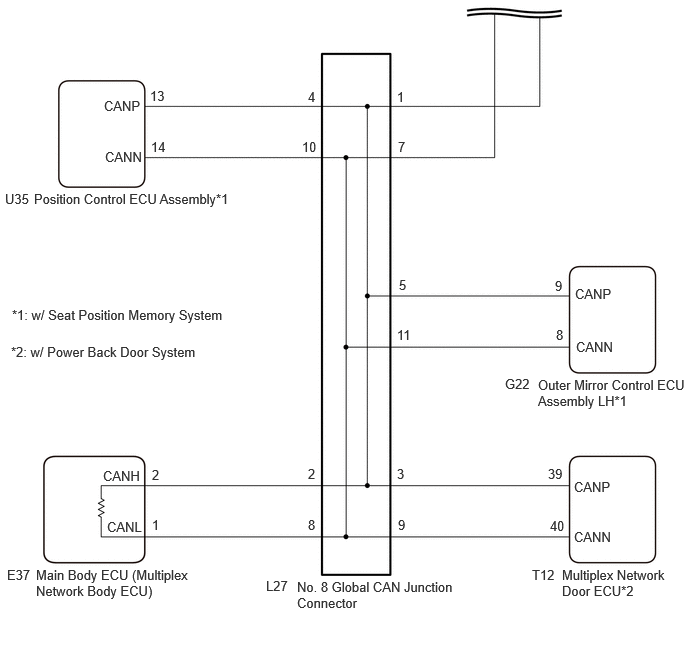

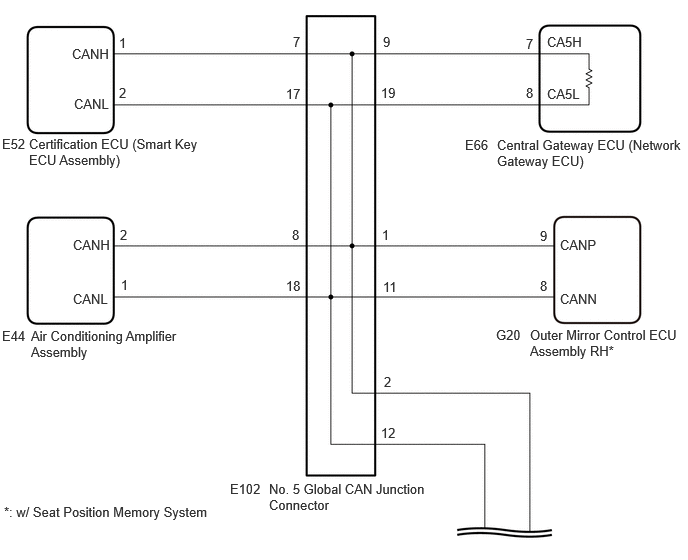

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- CAUTION:
-
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
- NOTICE:
- ·
Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.
·Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.
·After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.
·When disconnecting and reconnecting the battery.
- HINT:
-
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
·Some parts must be initialized and set when replacing or removing and installing parts.
·After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.
DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.
·After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.
·Before replacing the main body ECU (multiplex network body ECU) or certification ECU (smart key ECU assembly), refer to Service Bulletin.
- HINT:
- ·
Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.
·When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.
PROCEDURE
Disconnect the cable from the negative (-) battery terminal.

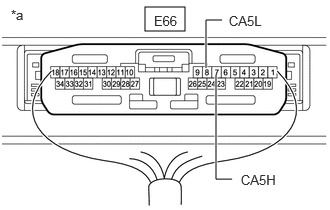

| *a | Component with harness connected
(Central Gateway ECU (Network Gateway ECU)) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E66)Location & Routingewd_type=routing;type=c;code=E66
Click Connector(E66)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Network Gateway ECUewd_type=component;type=c;code=E66;pinno=7,8
E66-7 (CA5H) - E66-8 (CA5L) Cable disconnected from negative (-) battery terminal Below 70 Ω
- Result:
Result OK NG
OK
NG
| *a | Component with harness connected
(Central Gateway ECU (Network Gateway ECU)) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E66)Location & Routingewd_type=routing;type=c;code=E66
Click Connector(E66)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Network Gateway ECUewd_type=component;type=c;code=E66;pinno=7,8
E66-7 (CA5H) - E66-8 (CA5L) Cable disconnected from negative (-) battery terminal 54 Ω or higher
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.

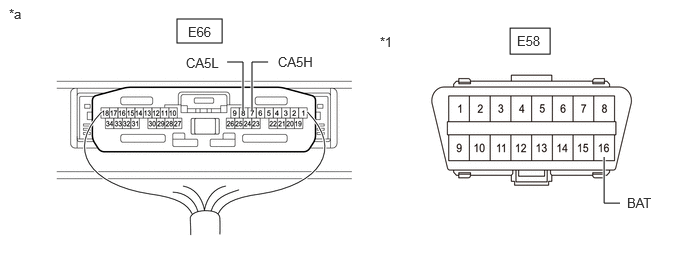

| *1 | DLC3 | - | - |
| *a | Component with harness connected
(Central Gateway ECU (Network Gateway ECU)) |
- | - |
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E66,E58)Location & Routingewd_type=routing;type=c,c;code=E66,E58
Click Connector(E66)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Network Gateway ECUewd_type=component;type=c;code=E66;pinno=7,8
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
E66-7 (CA5H) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E66-8 (CA5L) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.

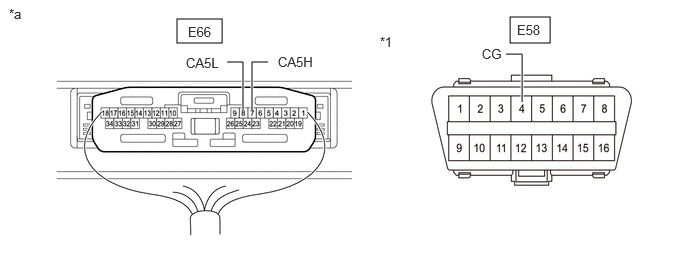

| *1 | DLC3 | - | - |
| *a | Component with harness connected
(Central Gateway ECU (Network Gateway ECU)) |
- | - |
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E66,E58)Location & Routingewd_type=routing;type=c,c;code=E66,E58
Click Connector(E66)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Network Gateway ECUewd_type=component;type=c;code=E66;pinno=7,8
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
E66-7 (CA5H) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher E66-8 (CA5L) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Disconnect the E102 No. 5 global CAN junction connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=9,19
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
E102-9 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher E102-19 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=2,12
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
E102-2 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher E102-12 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Check vehicle type.
- Result:
Result Proceed to w/ Seat Position Memory System A w/o Seat Position Memory System B
A
B
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=1,11
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
E102-1 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher E102-11 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=7,17
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
E102-7 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher E102-17 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=8,18
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
E102-8 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher E102-18 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Disconnect the E66 central gateway ECU (network gateway ECU) connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=9,19
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
E102-9 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher E102-19 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Disconnect the G20 outer mirror control ECU assembly RH connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=1,11
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
E102-1 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher E102-11 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Disconnect the E52 certification ECU (smart key ECU assembly) connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=7,17
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
E102-7 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher E102-17 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Disconnect the E44 air conditioning amplifier assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=8,18
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
E102-8 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher E102-18 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Disconnect the L27 No. 8 global CAN junction connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=1,7
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
L27-1 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher L27-7 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Check vehicle type.
- Result:
Result Proceed to w/ Power Back Door System A w/o Power Back Door System B
A
B
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=3,9
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
L27-3 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher L27-9 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Check vehicle type.
- Result:
Result Proceed to w/ Seat Position Memory System A w/o Seat Position Memory System B
A
B
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=4,10
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
L27-4 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher L27-10 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=5,11
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
L27-5 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher L27-11 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=2,8
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
L27-2 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher L27-8 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Disconnect the T12 multiplex network door ECU connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=3,9
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
L27-3 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher L27-9 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Disconnect the U35 position control ECU assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=4,10
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
L27-4 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher L27-10 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Check vehicle type.
- Result:
Result Proceed to for SFTM Made A for GTMC Made B
A
B
Disconnect the G22 outer mirror control ECU assembly LH connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=5,11
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
L27-5 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher L27-11 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Disconnect the E37 main body ECU (multiplex network body ECU) connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=2,8
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=4
L27-2 (CANH) - E58-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher L27-8 (CANL) - E58-4 (CG)
- Result:
Result OK NG
OK
NG
Disconnect the E102 No. 5 global CAN junction connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=9,19
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
E102-9 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E102-19 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=2,12
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
E102-2 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E102-12 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Check vehicle type.
- Result:
Result Proceed to w/ Seat Position Memory System A w/o Seat Position Memory System B
A
B
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=1,11
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
E102-1 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E102-11 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=7,17
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
E102-7 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E102-17 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=8,18
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
E102-8 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E102-18 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Disconnect the E66 central gateway ECU (network gateway ECU) connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=9,19
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
E102-9 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E102-19 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Disconnect the G20 outer mirror control ECU assembly RH connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=1,11
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
E102-1 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E102-11 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Disconnect the E52 certification ECU (smart key ECU assembly) connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=7,17
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
E102-7 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E102-17 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Disconnect the E44 air conditioning amplifier assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102,E58)Location & Routingewd_type=routing;type=c,c;code=E102,E58
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=8,18
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
E102-8 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher E102-18 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Disconnect the L27 No. 8 global CAN junction connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=1,7
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
L27-1 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher L27-7 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Check vehicle type.
- Result:
Result Proceed to w/ Power Back Door System A w/o Power Back Door System B
A
B
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=3,9
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
L27-3 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher L27-9 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Check vehicle type.
- Result:
Result Proceed to w/ Seat Position Memory System A w/o Seat Position Memory System B
A
B
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=4,10
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
L27-4 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher L27-10 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=5,11
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
L27-5 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher L27-11 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=2,8
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
L27-2 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher L27-8 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Disconnect the T12 multiplex network door ECU connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=3,9
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
L27-3 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher L27-9 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Disconnect the U35 position control ECU assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=4,10
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
L27-4 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher L27-10 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Check vehicle type.
- Result:
Result Proceed to for SFTM Made A for GTMC Made B
A
B
Disconnect the G22 outer mirror control ECU assembly LH connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=5,11
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
L27-5 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher L27-11 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Disconnect the E37 main body ECU (multiplex network body ECU) connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27,E58)Location & Routingewd_type=routing;type=c,c;code=L27,E58
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=2,8
Click Connector(E58)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Data Link Connector 3ewd_type=component;type=c;code=E58;pinno=16
L27-2 (CANH) - E58-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher L27-8 (CANL) - E58-16 (BAT)
- Result:
Result OK NG
OK
NG
Disconnect the E102 No. 5 global CAN junction connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102)Location & Routingewd_type=routing;type=c;code=E102
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=9,19
E102-9 (CANH) - E102-19 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102)Location & Routingewd_type=routing;type=c;code=E102
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=2,12
E102-2 (CANH) - E102-12 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
- Result:
Result OK NG
OK
NG
Check vehicle type.
- Result:
Result Proceed to w/ Seat Position Memory System A w/o Seat Position Memory System B
A
B
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102)Location & Routingewd_type=routing;type=c;code=E102
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=1,11
E102-1 (CANH) - E102-11 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102)Location & Routingewd_type=routing;type=c;code=E102
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=7,17
E102-7 (CANH) - E102-17 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102)Location & Routingewd_type=routing;type=c;code=E102
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=8,18
E102-8 (CANH) - E102-18 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher
- Result:
Result OK NG
OK
NG
Disconnect the E66 central gateway ECU (network gateway ECU) connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102)Location & Routingewd_type=routing;type=c;code=E102
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=9,19
E102-9 (CANH) - E102-19 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher
- Result:
Result OK NG
OK
NG
Disconnect the G20 outer mirror control ECU assembly RH connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102)Location & Routingewd_type=routing;type=c;code=E102
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=1,11
E102-1 (CANH) - E102-11 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher
- Result:
Result OK NG
OK
NG
Disconnect the E52 certification ECU (smart key ECU assembly) connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102)Location & Routingewd_type=routing;type=c;code=E102
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=7,17
E102-7 (CANH) - E102-17 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher
- Result:
Result OK NG
OK
NG
Disconnect the E44 air conditioning amplifier assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102)Location & Routingewd_type=routing;type=c;code=E102
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=8,18
E102-8 (CANH) - E102-18 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher
- Result:
Result OK NG
OK
NG
Reconnect the E102 No. 5 global CAN junction connector.
Disconnect the L27 No. 8 global CAN junction connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27)Location & Routingewd_type=routing;type=c;code=L27
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=1,7
L27-1 (CANH) - L27-7 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
- Result:
Result OK NG
OK
NG
Check vehicle type.
- Result:
Result Proceed to w/ Power Back Door System A w/o Power Back Door System B
A
B
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27)Location & Routingewd_type=routing;type=c;code=L27
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=3,9
L27-3 (CANH) - L27-9 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher
- Result:
Result OK NG
OK
NG
Check vehicle type.
- Result:
Result Proceed to w/ Seat Position Memory System A w/o Seat Position Memory System B
A
B
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27)Location & Routingewd_type=routing;type=c;code=L27
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=4,10
L27-4 (CANH) - L27-10 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27)Location & Routingewd_type=routing;type=c;code=L27
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=5,11
L27-5 (CANH) - L27-11 (CANL) Cable disconnected from negative (-) battery terminal 200 Ω or higher
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27)Location & Routingewd_type=routing;type=c;code=L27
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=2,8
L27-2 (CANH) - L27-8 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
- Result:
Result OK NG
OK
NG
Disconnect the T12 multiplex network door ECU connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27)Location & Routingewd_type=routing;type=c;code=L27
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=3,9
L27-3 (CANH) - L27-9 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher
- Result:
Result OK NG
OK
NG
Disconnect the U35 position control ECU assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27)Location & Routingewd_type=routing;type=c;code=L27
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=4,10
L27-4 (CANH) - L27-10 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher
- Result:
Result OK NG
OK
NG
Check vehicle type.
- Result:
Result Proceed to for SFTM Made A for GTMC Made B
A
B
Disconnect the G22 outer mirror control ECU assembly LH connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27)Location & Routingewd_type=routing;type=c;code=L27
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=5,11
L27-5 (CANH) - L27-11 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher
- Result:
Result OK NG
OK
NG
Disconnect the E37 main body ECU (multiplex network body ECU) connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27)Location & Routingewd_type=routing;type=c;code=L27
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=2,8
L27-2 (CANH) - L27-8 (CANL) Cable disconnected from negative (-) battery terminal 1 MΩ or higher
- Result:
Result OK NG
OK
NG
Disconnect the E66 central gateway ECU (network gateway ECU) connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E66)Location & Routingewd_type=routing;type=c;code=E66
Click Connector(E66)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Network Gateway ECUewd_type=component;type=c;code=E66;pinno=7,8
E66-7 (CA5H) - E66-8 (CA5L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
- Result:
Result OK NG
OK
NG
Reconnect the E66 central gateway ECU (network gateway ECU) connector.
Disconnect the E102 No. 5 global CAN junction connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102)Location & Routingewd_type=routing;type=c;code=E102
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=9,19
E102-9 (CANH) - E102-19 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E102)Location & Routingewd_type=routing;type=c;code=E102
Click Connector(E102)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>No. 5 Global CAN Junction Connectorewd_type=component;type=c;code=E102;pinno=2,12
E102-2 (CANH) - E102-12 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
- Result:
Result OK NG
OK
NG
Reconnect the E102 No. 5 global CAN junction connector.
Disconnect the L27 No. 8 global CAN junction connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27)Location & Routingewd_type=routing;type=c;code=L27
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=1,7
L27-1 (CANH) - L27-7 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
- Result:
Result OK NG
OK
NG
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(L27)Location & Routingewd_type=routing;type=c;code=L27
Click Connector(L27)Body>No. 2 Floor Wire>No. 8 Global CAN Junction Connectorewd_type=component;type=c;code=L27;pinno=2,8
L27-2 (CANH) - L27-8 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
- Result:
Result OK NG
OK
NG
Reconnect the L27 No. 8 global CAN junction connector.
Disconnect the E37 main body ECU (multiplex network body ECU) connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Click Location & Routing(E37)Location & Routingewd_type=routing;type=c;code=E37
Click Connector(E37)Instrument Panel>Instrument Panel Wire / Telephone Computer Wire>Multiplex Network Body ECUewd_type=component;type=c;code=E37;pinno=2,1
E37-2 (CANH) - E37-1 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
- Result:
Result OK NG
OK
NG
